User manual

Always there to help you

AW3000

Question?

Contact

Philips

1EN

Contents

1 Important 2

Safety 2

Notice 3

2 Your Wireless Hi-Fi Speaker 4

Introduction 4

What's in the box 4

What else you need 4

Overview of the main unit 5

3 Prepare 6

Download Philips AirStudio to your

smartphone or tablets 6

Connect power and switch on 7

4 Connect AW3000 to your home

Wi-Fi network 9

Option 1: Set up wireless connection

to a non-WPS router through an

iOS device 9

Option 2: Set up through a non-WPS

Wi-Fi router and Android device 11

Option 3: Set up wireless connection

to a WPS router 14

Option 4: Set up wired connection

through an Ethernet cable 15

5 Play 16

Stream audio to AW3000 16

Listen to Internet radio stations

through AW3000 19

Play from an external device 22

6 Upgradermware 24

7 Product information 26

Specications 26

8 Troubleshooting 27

9 Appendix 1: Mount the device

onto wall 29

10 Appendix 2: Understand

meanings of LED colors 30

Contents

2EN

1 Important

Safety

Information for Europe:

Know these safety symbols

The 'exclamation mark' calls attention to

features for which you should carefully read the

supplied literature to prevent operating and

maintenance problems.

The 'lightening bolt' symbol indicates

uninsulated components within the product

that can cause an electric shock.

Toreducetheriskofreorelectricshock,do

not expose the product to rain or moisture and

donotplaceanyobjectslledwithliquids,such

asvases,ontheproduct.

a Read these instructions.

b Keep these instructions.

c Heed all warnings.

d Follow all instructions.

e Do not use this product near water.

f Clean only with dry cloth.

g Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

h Do not remove the casing of this product.

i Do not expose the product to dripping /

splashing water, rain or high humidity.

j Keep this product away from direct

sunlight,nakedamesorheat.

k Do not install near any heat sources

such as radiators, heat registers, stoves,

or other electrical equipment (including

ampliers).

l Do not place any other electrical

equipment on the product.

m Do not place any sources of danger

on the product (e.g. objects containing

liquids,burningcandles).

n Where the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

•Never remove the casing of this apparatus.

•Never lubricate any part of this apparatus.

•Never place this apparatus on other electrical

equipment.

•Keepthisapparatusawayfromdirectsunlight,naked

amesorheat.

•Ensure that you always have easy access to the power

cord,plugoradaptortodisconnectthisapparatusfrom

the power.

Risk of overheating! Never install this apparatus

inaconnedspace.Alwaysleaveaspaceof

at least four inches around this apparatus for

ventilation. Ensure curtains or other objects

never cover the ventilation slots on this

apparatus.

3EN

Notice

This product complies with the radio

interferencerequirementsoftheEuropean

Community.

Thisproductcomplieswiththerequirementof

the 1999/5/EC directive.

Modications

Modicationsnotauthorizedbythe

manufacturer may void user's authority to

operate this product.

Your product is designed and manufactured

withhighqualitymaterialsandcomponents,

which can be recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product

is covered by the European Directive 2002/96/

EC.

Please inform yourself about the local separate

collection system for electrical and electronic

products.

Please act according to your local rules and

do not dispose of your old products with your

normal household waste. Correct disposal of

your old product helps to prevent potential

negativeconsequencesfortheenvironmentand

human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separateintothreematerials:cardboard(box),

polystyrene foam (buffer) and polyethylene

(bags,protectivefoamsheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

aspecializedcompany.Pleaseobservethe

local regulations regarding the disposal of

packagingmaterials,exhaustedbatteriesandold

equipment.

Android is a trademark of Google Inc. Use of

this trademark is subject to Google permissions.

Class II equipment symbol:

CLASSIIapparatuswithdoubleinsulation,and

no protective earth provided.

Note

•The type plate is located on the bottom of the

apparatus.

4EN

2 Your Wireless

Hi-Fi Speaker

Congratulationsonyourpurchase,and

welcometoPhilips!Tofullybenetfromthe

supportthatPhilipsoffers,registeryourproduct

at www.philips.com/welcome.

IfyoucontactPhilips,youwillbeaskedforthe

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Introduction

WiththiswirelessHi-Fispeaker,youcan:

• stream audio from your iOS or

Android device.

• listen to Internet radio stations or

online music services.

• stream audio from a PC/Mac installed

with Media Manager downloaded from

www.philips.com/mediamanager.

• play music from other audio devices

through the MP3-LINK socket.

What's in the box

Check and identify the contents of your

package:

• Wireless Hi-Fi speaker with built-in

Wi-Fi

• 1 x AC power adaptor

• Quick start guide

• Safety sheet

What else you need

TostreamaudiowirelesslytoAW3000,you

need:

• acertiedWi-Firouter

• aniOSorAndroiddevice,suchasan

iPod touch/iPhone/iPad or an Android

phone or tablet; or a PC/Mac enabled

with Wi-Fi

• the Philips AirStudio app available on

Apple App Store (for iOS devices)

or Google Play Store (for Android

devices)

Your AW3000 should be connected to the

same local network as your iOS/Android device

or PC/Mac through the Wi-Fi router.

5EN

Overview of the main unit

a +/-

• Adjust volume.

b Numerickeys(1to5)

• Tune to a preset Internet radio station.

• Numeric key 1: Reset the device.

c Power/status indicator/button

• Show the current status of the device.

• Switch the device on or to normal/Eco

standby mode.

d DC IN

• Connect the power adaptor.

e ETHERNET

• (Optional) Connect to a wireless

router through an Ethernet cable (not

supplied).

f MP3-LINK

• Connect an external audio player

through a 3.5mm audio cable (not

supplied).

g WI-FI SETUP button

• Connect the unit to a Wi-Fi network.

h Screw hole for wall mounting

Tip

•You can go to Appendix 1 for details about wall

mounting (see ‘Appendix 1: Mount the device onto wall’

on page 29).

6EN

3 Prepare

Always follow the instructions in this chapter

in sequence.

Download Philips AirStudio

to your smartphone or

tablets

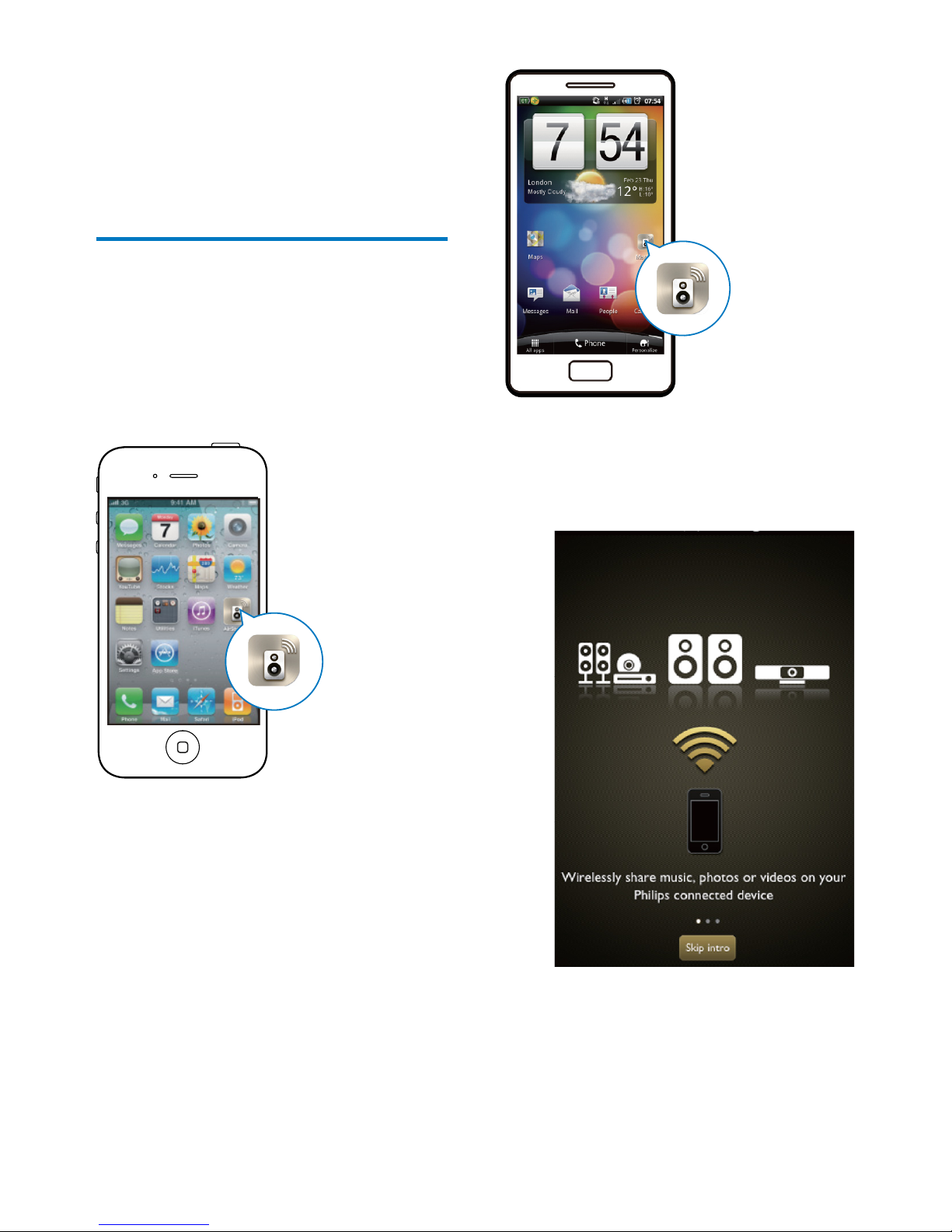

1 (For iPod touch/iPhone/iPad users) Install

Philips AirStudio from Apple App Store,

and then run the app.

(For users of Android smartphones or tablets)

Install Philips AirStudio from Google Play Store

and then run the app.

2 Flick right to view the introduction pages

and then go to the initial Setuppage,or

tap Skip intro to enter the initial Setup

page directly.

7EN

3 On the initial Setuppage,tapSetup a new

speaker.

4 Readthegeneralsetupsteps,thentap

Next.

Connect power and switch

Caution

•Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the device.

•Risk of electric shock! When you unplug the AC

adaptor,alwayspulltheplugfromthesocket.Never

pull the cord.

•BeforeyouconnecttheACadaptor,makesurethatyou

have completed all the other connections.

1 Read the power connection instructions

on the app.

2 Connect the AC power cord to

• the DC IN socket on the back of the

device.

• the wall power socket.

» The device switches on automatically.

» The power/status indicator blinks

amber during boot-up.

8EN

» Afterawhile,forrst-timesetup,the

power/status indicator turns solid

amber.

3 Tap Next on the app screen to continue.

Switch between normal and Eco power

standby mode

• To switch the device to normal standby

mode,brieypressthepowerbutton/

indicator above .

» The power/status indicator turns green.

• To switch the device to Eco power standby

mode,pressandholdthepowerbutton/

indicator above for less than 3 seconds

and then release the button.

» The power/status indicator turns

amber for a short while and then turns

off.

• To switch the device on from normal or

Ecopowerstandbymode,brieypressthe

power button/indicator above again.

DC IN

Operation LED status

On ->

Normal

standby

Brieypressthe

power button/indica-

tor above .

Amber/white

-> Green

On/Normal

standby ->

Eco power

standby

Press and hold the

power button/indica-

tor above for less

than 3 seconds and

then release the

button.

Amber/white

or green ->

Off

Normal

standby/

Eco power

standby ->

Brieypressthe

power button/indi-

cator above .

Green/Off ->

Amber/white

9EN

4 Connect

AW3000 to

your home Wi-

Fi network

To connect AW3000 to your existing home Wi-

Finetwork,youneedtoapplyyourhomeWi-Fi

settings to AW3000.

Choose your best setup method based on the

preconditions listed below.

Platform

of your

mobile

device

Type of

your Wi-

Fi router

Other

re-

quire-

ment

Setup method

iOS Non-WPS No Choose option

1 (see 'Option 1:

Set up wireless

connection to a

non-WPS router

through an iOS

device' on page

9).

Android Non-WPS No Choose option

2 (see 'Option 2:

Set up through

a non-WPS

Wi-Fi router and

Android device'

on page 11).

Either

iOS or

Android

WPS No Choose option

3 (see 'Option 3:

Set up wireless

connection to a

WPS router' on

page 14).

Either

iOS or

Android

Either

non-WPS

or WPS

You

have

Eth-

ernet

cable.

Choose option

4 (see 'Op-

tion 4: Set up

wired connec-

tion through an

Ethernet cable'

on page 15).

Before connection of AW3000 to you home

Wi-Finetwork,makesurethat:

a your Wi-Fi router is powered on and

working properly.

b AW3000 has been powered on and

booted up successfully (see 'Connect

powerandswitchon'onpage7).

c you have jotted down your Wi-Fi

password.

Onceconnectedsuccessfully,AW3000will

remember your home Wi-Fi settings.Then

you can play music or listen to Internet radio

via Philips AirStudio whenever AW3000 is

powered on and connected to your home Wi-

Fi network automatically.

Option 1: Set up wireless

connection to a non-WPS

router through an iOS device

1 Beforesetup,makesurethatyouriOS

device is connected to your home Wi-Fi

network.

2 Read the Wi-Fi setup instructions on the app.

Autres manuels pour Fidelio AW3000

Table des matières

Autres manuels Philips Intervenants

Philips

Philips FB 698 Manuel utilisateur

Philips

Philips HTL3140B Manuel utilisateur

Philips

Philips HTB9150 Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips SPA8210 Manuel utilisateur

Philips

Philips ShowView LX9000R Manuel d'utilisation

Philips

Philips SPA5300/93 Manuel utilisateur

Philips

Philips HTL6140B Manuel utilisateur

Philips

Philips EverPlay BT7900 Manuel utilisateur

Philips

Philips SHOQBOX SB7100 Manuel utilisateur

Philips

Philips BT50 Manuel utilisateur

Philips

Philips HTS3111/05 Manuel utilisateur

Philips

Philips Fidelio HTL7180 Manuel utilisateur

Philips

Philips HTL2101A/96 Manuel utilisateur

Philips

Philips 1000 Series Manuel utilisateur

Philips

Philips SPA4320/93 Manuel utilisateur

Philips

Philips SPA2300 Manuel utilisateur

Philips

Philips SBT50/00 Manuel utilisateur

Philips

Philips AECS7000E/00 Manuel utilisateur

Philips

Philips Fidelio DS3880W/10 Manuel utilisateur

Philips

Philips SPA1300/05 Manuel utilisateur

Philips

Philips SPA7351 Manuel utilisateur

Philips

Philips Fidelio DS3881W/37 Manuel utilisateur

Philips

Philips 7000 Setie Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
