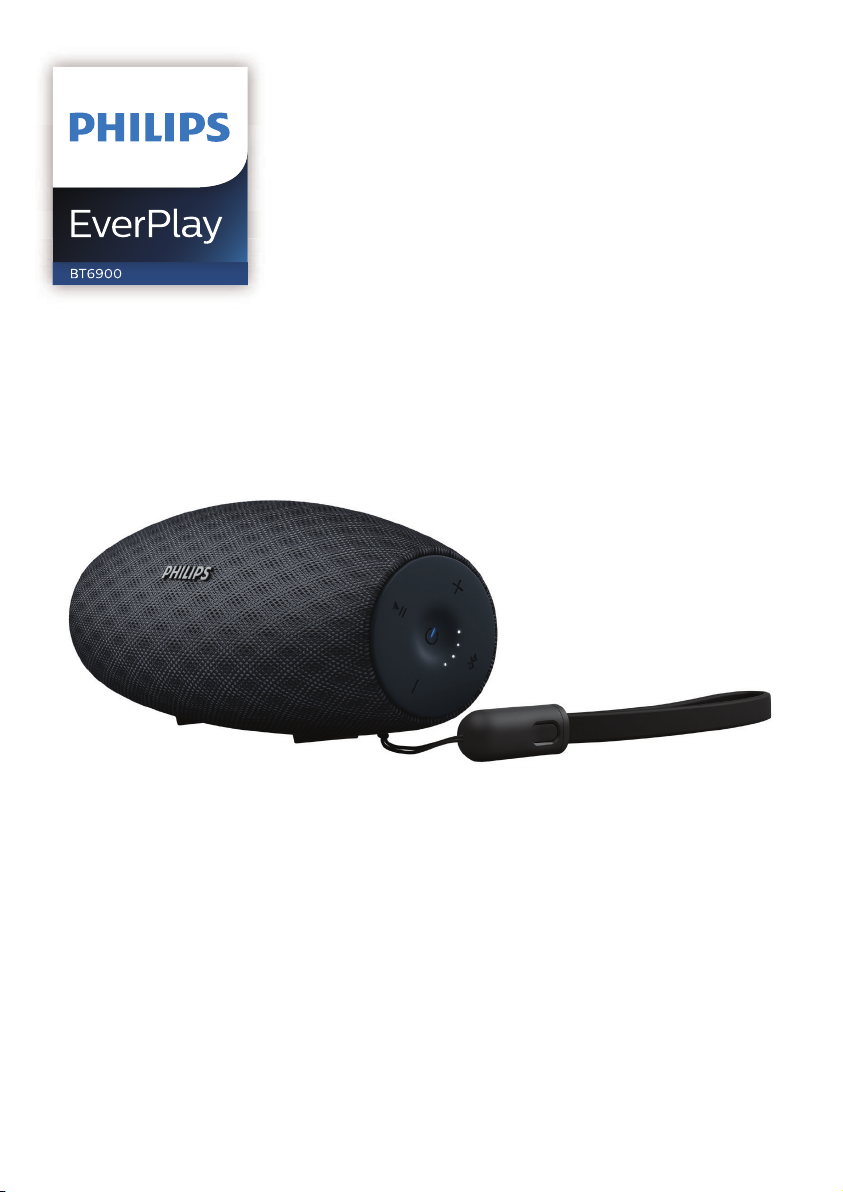

Philips EverPlay BT6900A/00 Manuel utilisateur

www.philips.com/support

User manual

1EN

Contents

1 Important 1

Safety 1

Notice 1

2 Your Bluetooth speaker 3

Introduction 3

What's in the box 3

Overview of the speaker 3

3 Get started 4

Turn on/o 4

Check the battery level 4

Charge the built-in battery 4

4 Play from Bluetooth devices 6

Connect a Bluetooth device 6

Play from a connected

Bluetooth device 6

Disconnect a device 7

Reconnect a device 7

Clear pairing information 7

Control your phone call 7

5 Other features 8

Listen to an external device 8

Adjust volume 8

Attach the lanyard cable 8

6 Specications 9

7 Troubleshooting 10

General 10

About Bluetooth device 10

2EN

1 Important

Safety

Warning

•Never remove the casing of this speaker.

•Never place this speaker on other electrical

equipment.

•Keep this speaker away from direct

sunlight, naked ames or heat.

• Only use attachments or

accessories specied by the

manufacturer.

• The battery shall not be exposed

to excessive heat such as sunshine,

re or the like.

• Do not place any sources of

danger on the speaker (e.g. lighted

candles).

• The speaker can meet IP57

waterproof standard only when

the USB/AUDIO IN socket cover is

covered seamlessly.

• The operation temperature of the

product is from -10 °C to 40 °C.

• For safety reasons, the battery

will not be charged if the battery

temperature is below 0 °C or above

40 °C.

• If your speaker gets wet, clean with

a soft dry cloth and then let it dry

completely in a well-ventilated

place before use next time.

Note

• The type plate is located on the left side

of the speaker.

Notice

Any changes or modications made

to this device that are not expressly

approved by Gibson Innovations may

void the user’s authority to operate the

equipment.

Compliance

Hereby, Gibson Innovations declares that

this product is in compliance with the

essential requirements and other relevant

provisions of Directive 1999/5/EC. You

can nd the Declaration of Conformity on

www.philips.com/support.

Care of the environment

Disposal of your old product and

battery

Your product is designed and

manufactured with high quality

materials and components, which can

be recycled and reused.

This symbol on a product means that the

product is covered by European Directive

2012/19/EU.

This symbol means that the product

contains a built-in rechargeable

battery covered by European Directive

1588

3EN

2013/56/EU which cannot be disposed

of with normal household waste. We

strongly advise you to take your product

to an ocial collection point or a Philips

service centre to have a professional

remove the rechargeable battery.

Inform yourself about the local separate

collection system for electrical and

electronic products and rechargeable

batteries. Follow local rules and

never dispose of the product and

rechargeable batteries with normal

household waste. Correct disposal of

old products and rechargeable batteries

helps prevent negative consequences

for the environment and human health.

Caution

•Removal of the built-in battery invalidates

the warranty and may destroy the product.

Always bring your product to a

professional to remove the built-in

battery.

Environmental information

All unnecessary packaging has been

omitted. We have tried to make the

packaging easy to separate into three

materials: cardboard (box), polystyrene

foam (buer) and polyethylene (bags,

protective foam sheet.)

Your system consists of materials

which can be recycled and reused if

disassembled by a specialized company.

Please observe the local regulations

regarding the disposal of packaging

materials, exhausted batteries and old

equipment.

Trademark notice

The Bluetooth® word mark and logos

are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such

marks by Gibson Innovations Limited

is under license. Other trademarks

and trade names are those of their

respective owners.

Qualcomm is a trademark of Qualcomm

Incorporated, registered in the United

States and other countries.

Quick Charge is a trademark of

Qualcomm Incorporated. All Qualcomm

Incorporated trademarks are used with

permission.

4EN

2 Your

Bluetooth

speaker

Congratulations on your purchase,

and welcome to Philips! To fully

benet from the support that Philips

oers, register your product at

www.philips.com/welcome.

Introduction

With this speaker, you can enjoy audio

from Bluetooth-enabled devices or

other external audio devices through a

3.5mm audio-in cable.

What's in the box

Check and identify the contents of your

package:

• Speaker

• USB lanyard cable

• Printed materials

Quick Start

Guide

BT6900

Portable speaker

www.philips.com/support

Overview of the speaker

a -/+

• Adjust volume.

b Battery level indicators

• Show the charging progress.

• Show the battery level.

• Enter Bluetooth pairing mode.

• Clear Bluetooth pairing

information.

• Turn the speaker on or o.

• Check the battery level.

• Show the Bluetooth status.

• In Bluetooth mode, press to

pause or resume play.

• In Bluetooth mode, press twice

to play the next track.

• Respond to an incoming call

through Bluetooth connection.

f AUDIO IN

• Connect an external audio device.

• Charge the built-in battery.

5EN

3 Get started

Always follow the instructions in this

chapter in sequence.

Turn on/o

• To turn the speaker on, press and

hold for over two seconds.

» The Bluetooth indicator starts

ashing.

» The battery level indicators light

up briey.

» The speaker beeps.

• To turn the speaker o, press and

hold for two seconds again.

Note

•When there is no Bluetooth connection for

15 minutes or the battery is at low level, the

speaker turns o automatically to save power.

Check the battery level

The speaker is powered by the built-in

rechargeable battery. After power-on,

the speaker shows the battery level

immediately, and the battery indication

disappears in ve seconds.

• To manually check the battery level,

briey press in either power-on or

power-o mode.

» The dierent behavior of the four

LEDs indicates dierent battery

levels.

LED indication:

Battery

power

LED 1 LED 2 LED 3 LED 4

Full Solid white

> 8% Solid white O

50% -

80%

Solid white O

20% -

50%

Solid

white

O

Low

battery

(<20%)

Flash

red

O

Charge the built-in battery

Note

•It takes you approximately three hours to

fully charge the battery.

•The micro USB socket is for charging only.

•Rechargeable battery has a limited number

of charge cycles. Battery life and number of

charge cycles vary by use and settings.

•You can use a power adaptor compatible

with Quick Charge 3.0 (not supplied; 5V

2A output recommended) to speed up the

charging process.

LED 1

LED 3

LED 4

LED 2

6EN

When the battery level is low, LED 1

ashes red as illustrated.

To charge the built-in battery:

• Pull out the USB cable from the

USB lanyard cable as illustrated.

• Connect the speaker to AC

power by using a power adaptor

(not supplied; 5V 2A adaptor

recommended).

System

status

Battery

status

System behavior

On During

charging

Beep once,

without

charging

indication.

System

status

Battery

status

System behavior

O During

charging

Shows the

charging

indication

O Fully

charged

All LEDs are

on, then turn

o after three

minutes.

Check the charging progress

During charging, you can press to

check the charging progress.

Battery

level

LED 1 LED 2 LED 3 LED 4

<20%

charged

Flash

white

O

20%

- 50%

charged

Solid

white

Flash

white

O

50%

- 80%

charged

Solid white Flash

white

O

> 80%

charged

Solid white Flash

white

Fully

charged

Solid white

(turn o in 3 minutes)

7EN

4 Play from

Bluetooth

devices

With this speaker, you can listen to

audio from Bluetooth-enabled devices

and control the incoming call through

Bluetooth.

Connect a Bluetooth

device

Note

•Make sure that Bluetooth function is

enabled on your device, and your device is

set as visible to all other Bluetooth devices.

•Any obstacle between this speaker

and a Bluetooth device can reduce the

operational range.

•Keep away from any other electronic

device that may cause interference.

•The operational range between this

speaker and a Bluetooth device is

approximately 30 meters.

1 Make sure that the speaker is in

Bluetooth pairing mode.

» The Bluetooth LED ashes blue

quickly.

» If the LED ashes blue slowly,

press and hold for two

seconds to enter pairing mode.

2 On your Bluetooth device, enable

Bluetooth and search for Bluetooth

devices that can be paired (see the

user manual of the device).

3 Select [Philips BT6900] displayed

on your device for pairing. If

necessary, input “0000” as the

pairing password.

» After successful connection, the

speaker beeps twice, and the

LED turns solid blue.

LED behavior Description

Flashing blue

quickly

Ready for pairing

Flashing blue

slowly

Reconnecting the

last connected

device;

Waiting for

connection from

the paired device

Solid blue Connected

Play from a connected

Bluetooth device

Note

•Music play pauses when there is an

incoming call, and resumes when your

phone call ends.

8EN

After successful Bluetooth connection,

play audio on the connected device.

» Audio streams from your Bluetooth

device to the speaker.

• To pause or resume play, press

• To play the next track, press

twice.

Tip

•You can also use your Bluetooth device to

control play.

Disconnect a device

• Press and hold for two seconds;

• Turn o the speaker;

• Disable Bluetooth on your device;

• Move the device beyond the

communication range.

Reconnect a device

• When you turn on the speaker,

it tries to reconnect the last

connected device automatically;

• If not successful, select [Philips

BT6900] on your Bluetooth menu

to start reconnection.

Clear pairing information

• Press and hold for 10 seconds.

Control your phone call

After Bluetooth connection, you can

control an incoming call with this

speaker.

Button Function

Press to answer an

incoming call.

Press and hold for two

seconds to reject an

incoming call.

During a call, press to end

the current call.

During a call, press and

hold for two seconds to

transfer the call to your

mobile device.

9EN

5 Other features

Listen to an external

device

With this speaker, you can also listen

to an external audio device such as an

MP3 player.

Note

•Make sure that music playback through

Bluetooth is stopped.

1 Connect an audio input cable (not

supplied) with a 3.5 mm connector

on both ends to

• the AUDIO IN socket on this

speaker, and

• the headphone socket on the

external device.

2 Play audio on the external device

(refer to its user manual).

Tip

•When you start music streaming from

a connected Bluetooth device, the

speaker switches to the Bluetooth source

automatically.

Adjust volume

During music playback, press -/+ to

increase or decrease volume.

Tip

•You can press and hold -/+ to increase or

decrease volume continuously.

•When the volume reaches the maximum,

the speaker beeps twice.

Attach the lanyard cable

For easy carrying, attach the supplied

USB lanyard cable to this speaker as

illustrated.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Intervenants

Philips

Philips RWSS5510 Manuel utilisateur

Philips

Philips SPA7380 Manuel utilisateur

Philips

Philips BT7500B Manuel utilisateur

Philips

Philips MMS3160B Manuel utilisateur

Philips

Philips HTL2101A Manuel utilisateur

Philips

Philips Soundmachine AZ3067 Manuel utilisateur

Philips

Philips SPA1315/10 Manuel utilisateur

Philips

Philips SD7220 Manuel utilisateur

Philips

Philips SBC BP015 Manuel utilisateur

Philips

Philips Fidelio SoundRing DS3801W/37 Manuel utilisateur

Philips

Philips STS3001/00 Manuel utilisateur

Philips

Philips AD7000W/93 Manuel utilisateur

Philips

Philips HTL2100/93 Manuel utilisateur

Philips

Philips BT100 Fiche d'information produit

Philips

Philips AD7000W/10 Manuel utilisateur

Philips

Philips SPA9060B Manuel utilisateur

Philips

Philips Fidelio HTL7180 Manuel utilisateur

Philips

Philips SPA5200/97 Manuel utilisateur

Philips

Philips 70DSS930 Manuel utilisateur

Philips

Philips BM5B/37 Manuel utilisateur

Philips

Philips EverPlay BT3900 Manuel utilisateur

Philips

Philips HTL2160C/G/M/S/T/W/12/F7/93 Manuel utilisateur

Philips

Philips HTL5120 Manuel utilisateur

Philips

Philips SBT75/12 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
