User Guide

Intelligent Remote Control

The Intelligent Remote Control can be used for most devices that

understand infrared (IR) remote control signals. Its easy-to-use

touch screen with 256 colors and its intuitive interface makes it a

perfect remote control for every user.

The Remote Control (RC) is completely customizable. In the

memory of the Remote Control, RC codes are stored to activate

different brands for all kinds of video and audio devices. The

Remote Control is set up by default to operate with Philips or

Marantz devices. When you have other brands, you simply define

the brands of your devices when you use the Remote Control for

the first time.

The Remote Control can also learn RC codes from existing remote

controls. It is designed to add devices and functions, relabel

buttons, record macros and set timers. With the ProntoPro Edit

software you create your own control panels and define your

personal look.

If you want to operate devices from a distance or from an adjacent

room, you can use the Remote Control with radio frequency (RF)

signals and an RF Extender.

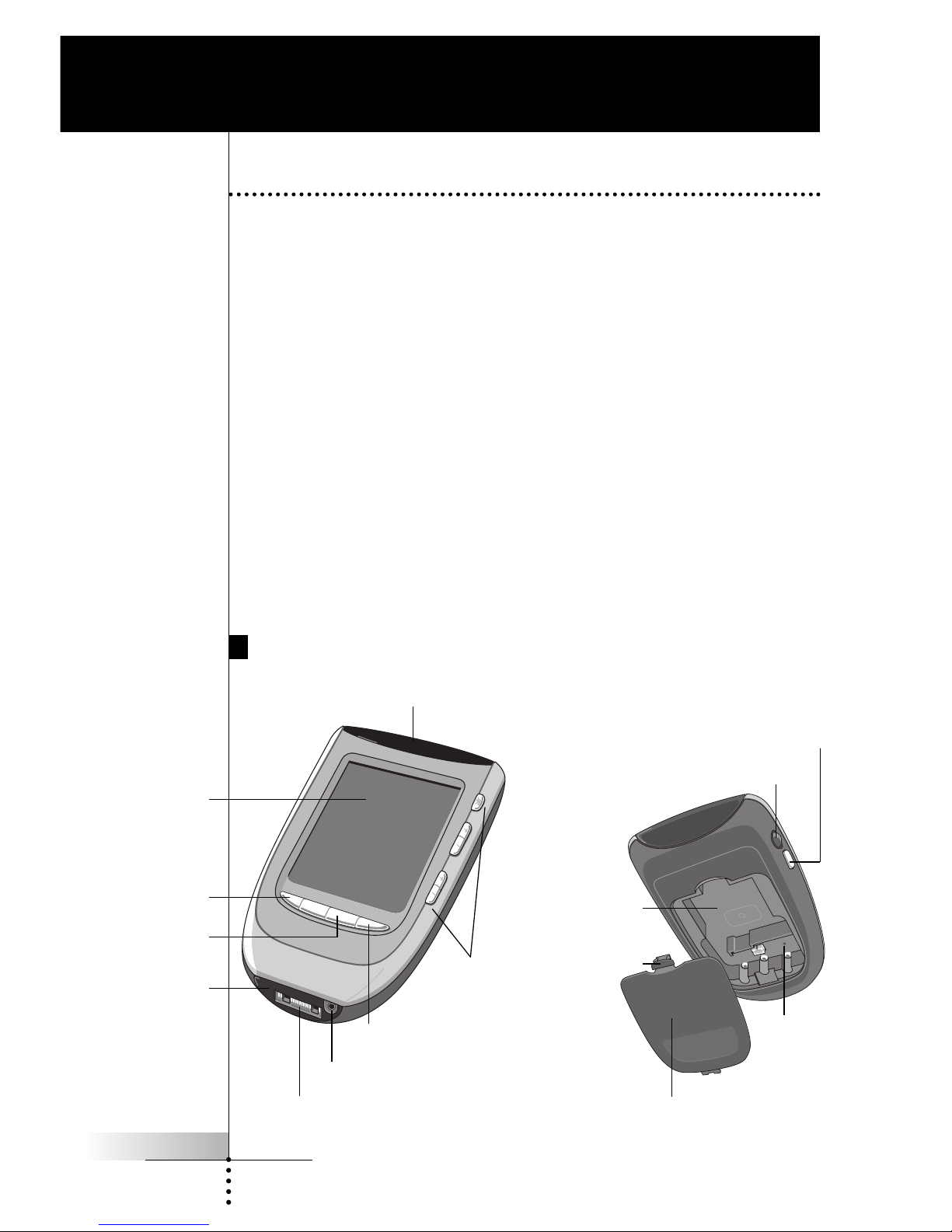

The Appliance

Direct-access

buttons

Sending eye

256 color LCD

touch screen

Learning eye

Connection to the

docking station

Contrast dial

Page Up button

Serial port

Taking a First Look

Page Down button

Action buttons

Backlight button

Reset

button

Battery

compartment

Battery

cover

Latch

User Guide

Taking a First Look

Remote Control icon:

• Tap to enter the Mode menu and

customize the Remote Control

• Touch and hold to enter

Setup mode

Macro tab:

To activate the

Macro menu

Device tab:

To activate

the Device menu

Panel number:

Shows active

control panel

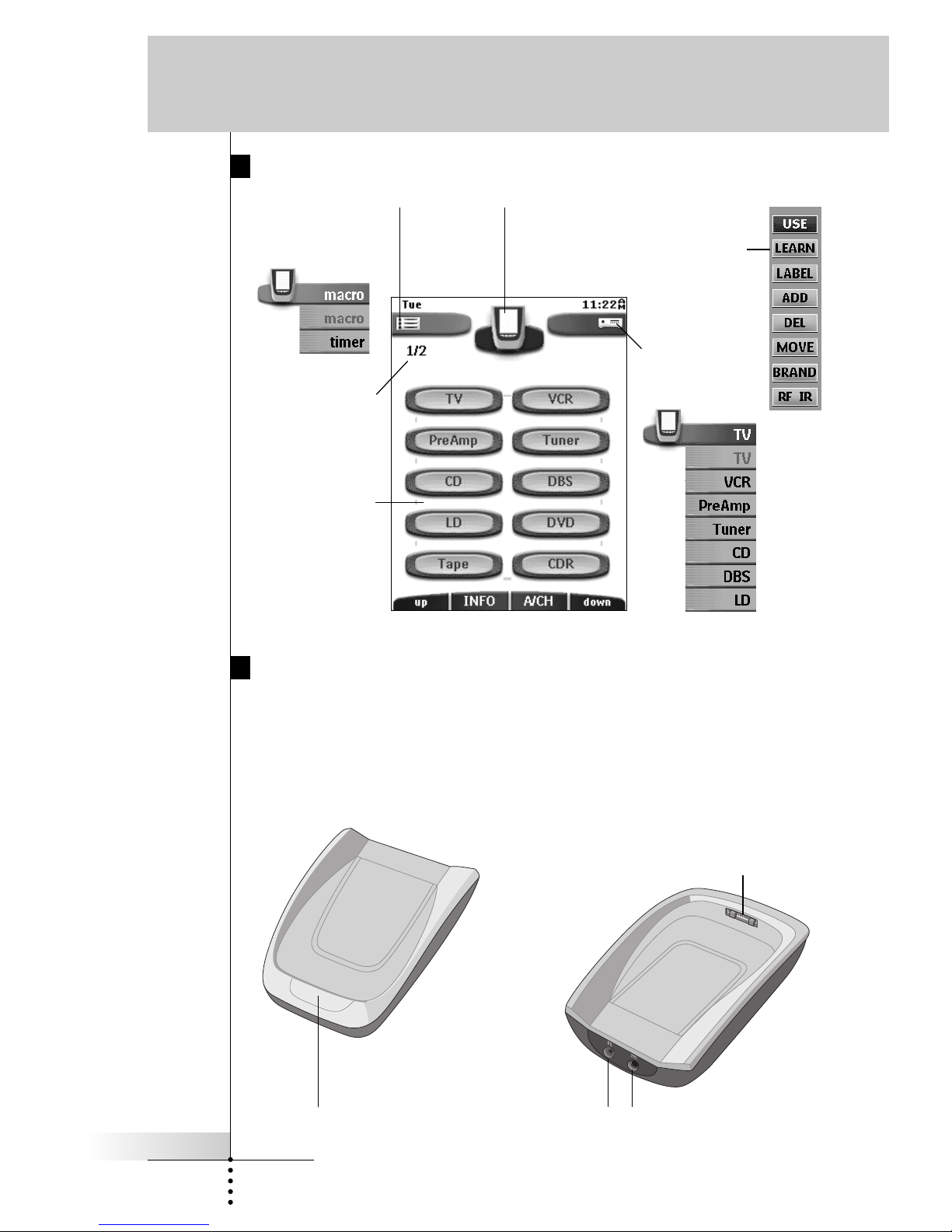

The Touch Screen

Control panel:

To send

commands

to devices

The Docking Station

The docking station is used:

• to charge the Remote Control;

• to connect your Remote Control to your computer.

The serial port on the docking station can be used as an alternative for the

serial port on the Remote Control.

Charging LED Adapter connectorSerial port

Connection for the

Remote Control

User Guide

Before You Start

When you use the Remote Control for the first time, you will have to:

• install the battery pack;

• place the Remote Control in the docking station and charge the Remote

Control.

Warning Use the docking station only with the Philips NiMH rechargeable battery pack.

We strongly advise you not to plug other appliances (like mobile phones,

PDA’s, …) into the docking station. This causes damage to the connector and

the appliance.

Installing the Battery Pack

1 Press the latch on the battery cover and remove the battery cover from

the Remote Control.

2 Place the battery pack in the battery compartment.

3 Plug the cable of the battery pack in the connector as illustrated.

Taking a First Look

User Guide

4 Place the battery cover back on.

Note Make sure the cable of the battery pack does not get stuck between the

mould and the battery cover.

After a few seconds, the Remote Control starts up automatically and an

Introduction screen appears. The Remote Control beeps twice to indicate that

it has finished starting up.

Because the battery pack of the Remote Control is not fully pre-charged, you

will have to charge it as described below.

Charging the Remote Control

For charging the Remote Control you use the docking station.

1 Plug the power adapter into a wall outlet and connect it to the docking

station.

2 Place the Remote Control in the docking station.

Make sure you hold the Remote

Control at an angle of 30° to 45°

when you place the it in the

docking station.

Charging starts immediately. The green charging LED on the front of the

docking station indicates charging takes place. When the Remote Control is

fully charged, the LED goes off.

Note Normal charging time is 2 to 3 hours, depending on the condition of the

battery pack.

You can operate the Remote Control while it is being charged.

The battery pack does not have to be entirely empty before recharging.

You can place the Remote Control in the docking station at any time.

When the battery pack is running low, the Low Battery icon flashes on the

Remote Control icon . Recharge the Remote Control as soon as possible to

ensure perfect performance.

Note The Remote Control retains all settings when the battery pack has run out.

You will only have to set the clock. See “Adjusting the Settings” on page 18.

Taking a First Look

30° to 45°

User Guide

Activating the Remote Control

Turning on the Display and the Backlight

The Remote Control’s display can be activated in three different ways:

Tap the screen gently with your finger or a blunt, soft object like a

pencil eraser.

The display is activated.

Tilt the Remote Control more than

50 degrees as illustrated.

The display and the backlight of the

direct-access buttons are activated.

Note In the settings (p. 18) you can choose to deactivate the Pick Up sensor.

Press the backlight button on the left side.

The display and the backlight of the direct-access buttons are activated.

When you turn on the display you see the Home panel. If another panel is

displayed, tap the Home button .

Note If the screen stays black or becomes blank, adjust the contrast using the contrast

dial on the left side.

The Remote Control has a switch-off feature: it automatically turns off to save

power.

In the settings (p. 18) you can define the switch-off time for the touch screen.

Activating Modes

The Remote Control has different modes. In Use mode the Remote Control icon

is entirely visible. If a label (like or ) covers the icon, see

page 23 to switch your Remote Control to Use mode.

Getting Started

50°

User Guide

Defining the Brands

of Your Devices

The Remote Control uses RC codes to activate devices. Because there are several

brands using specific RC codes, you have to define the brands of your devices.

On the Home panel you find buttons for most common video and audio devices.

When you select a device on the Home panel for the first time, you will notice that

the Remote Control is set up by default to operate Philips or Marantz devices. For

all devices other than Philips or Marantz, you will have to define the brand before

you can operate them with the Remote Control.

1 Select a device on the Home panel.

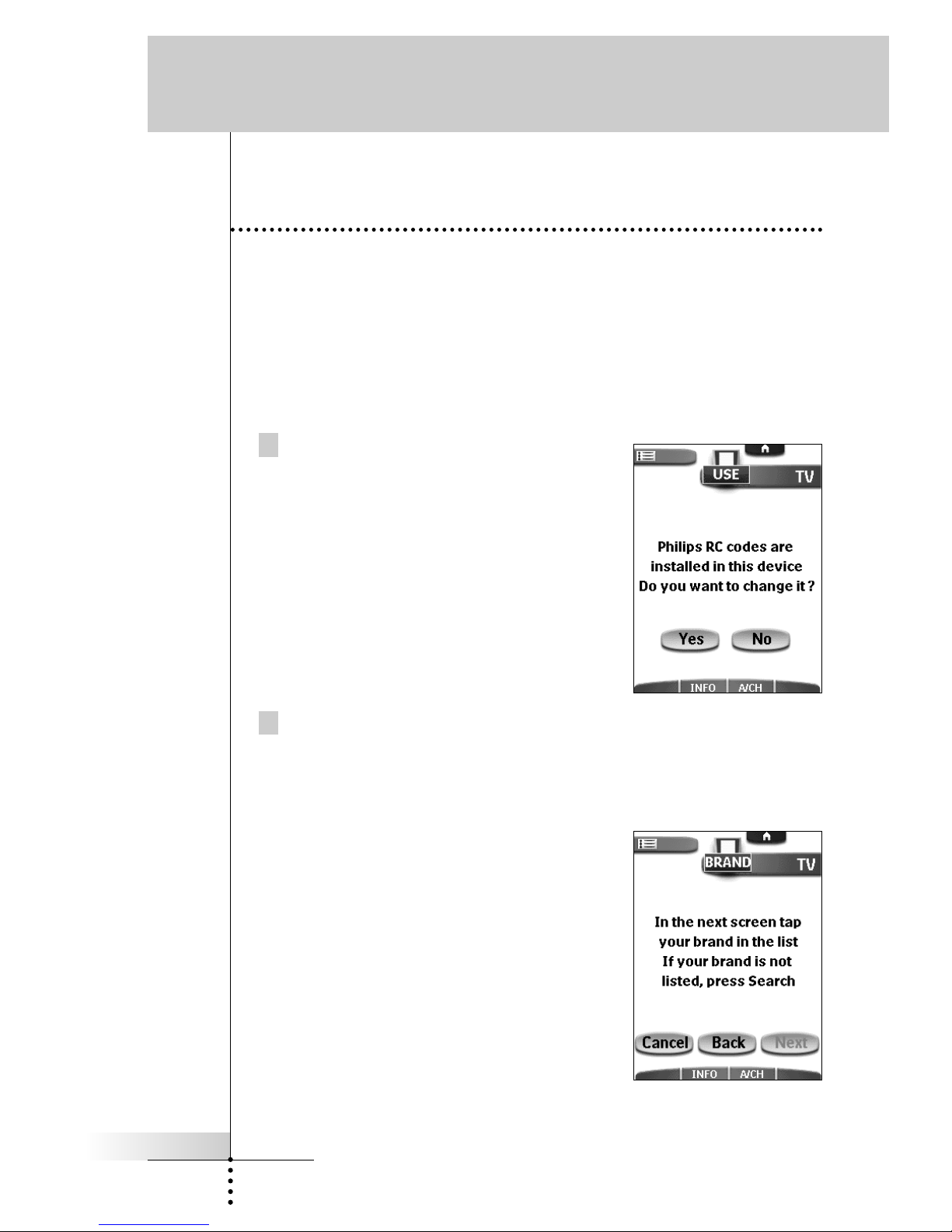

The following screen appears.

2 When the brand of your device is Philips or Marantz, click No.

The Remote Control switches to Use mode. To operate the device in Use

mode, see p. 15.

-or-

When you want to adjust the Remote

Control to operate with your brand,

click Yes.

The Remote Control switches to Brand mode.

Follow the instructions as described below.

There are three possible scenarios for defining

brands:

• You can select the brand and the code set

of your device.

• You can select the brand of your device and

search the code set.

• You can search the brand of your device.

Getting Started

User Guide

Selecting Brands and Code Sets

A list of brands and their corresponding RC codes are stored in the Remote

Control’s memory.

You have to select your brand from the list. Because not every device of a certain

brand uses the same RC codes, you might also have to select a set of RC codes for

your brand.

1 Tap Next.

A scrollable list of brands for the selected

device and a “virtual auto-zooming”

mini-keyboard appears.

2 Navigate through the list of brands using the scroll buttons and

to scroll up or down in the list of brands.

• By tapping the scroll buttons, you scroll through the brands one by one.

• By holding down the scroll buttons, the scrolling speed increases.

-or-

Navigate through the list of brands using the mini-keyboard to jump

through the list of brands.

• To enter a character, tap the keyboard near the character you want to use.

The keyboard is zoomed in, allowing you to tap exactly the character you

need.

After you have tapped the character, the keyboard is zoomed out. Repeat

this action for every character.

Note You can zoom out again without tapping a character by pressing the right

action button (labeled Zoom).

Getting Started

User Guide

• To delete a character, press the right action button (labeled

Del

• To enter a space, tap the lower left corner of the keyboard. When the

keyboard is zoomed in, tap the empty key.

Every time you enter a character the list displays the brands that match

the character(s). The Remote Control makes a pre-selection of the (first)

matching brand. You only have to type as many characters as needed to

display your brand.

Note When your brand is not displayed in the list of brands, you can use Search

mode. See “Searching Brands and Code Sets” on p. 12.

3 Select your brand in the list.

The selected brand is highlighted.

The Search button switches into Next.

4 Tap Next.

When your brand uses only one set of RC codes,

the Remote Control switches to Try mode.

Continue with step 5.

When there are several code sets for your brand,

a list of code sets for the selected brand appears.

Getting Started

User Guide

You can select the code set for your device:

Note The RC code sets are ranked. The first code set in the list is used for most

devices of the selected brand.

1 Select a code set from the list.

The selected code set is highlighted.

The Search button switches to Next.

2 Tap Next.

The Remote Control switches to Try mode. Continue with step 5.

-or-

When you do not know which code set to select for your device, you can

search the code set in Remote Control’s memory:

1 Tap Search.

The Remote Control automatically searches through all available RC code

sets to find the matching codes for your device.

2 Tap Next to start sending appropriate

commands for the selected device.

The progress bar indicates how many of the

available code sets have been tried out.

Getting Started

Autres manuels pour TSU6000

Table des matières

Autres manuels Philips Télécommande

Philips

Philips SRU5040/55 Manuel utilisateur

Philips

Philips SBC RU 530/87U Manuel utilisateur

Philips

Philips G96SVCAA01 Manuel utilisateur

Philips

Philips Pronto SBCRU960/00 Manuel utilisateur

Philips

Philips SBC RU 538 Manuel utilisateur

Philips

Philips SBCRU240/00 Manuel utilisateur

Philips

Philips 22AV1105 Manuel utilisateur

Philips

Philips MAGNAVOX PR1911B Manuel utilisateur

Philips

Philips Magnavox 50P8241 Manuel utilisateur

Philips

Philips srp3014 Manuel utilisateur

Philips

Philips SRU5110/87 Manuel utilisateur

Philips

Philips Prestigo SRU8015/34 Manuel utilisateur

Philips

Philips SRU3030/10 Manuel utilisateur

Philips

Philips PM435S Manuel utilisateur

Philips

Philips SRU 5086 Manuel utilisateur

Philips

Philips SRU4208WM/17 Manuel utilisateur

Philips

Philips SRU3006/27 Manuel utilisateur

Philips

Philips SRU 740/10 Manuel utilisateur

Philips

Philips SRP3013 Manuel utilisateur

Philips

Philips SBCRU258/00H Manuel utilisateur

Philips

Philips SBCRU520/87U Manuel utilisateur

Philips

Philips SRP6219G/27 Manuel utilisateur

Philips

Philips Perfect replacement SRP5107/27 Manuel utilisateur

Philips

Philips SRU5150/86 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
