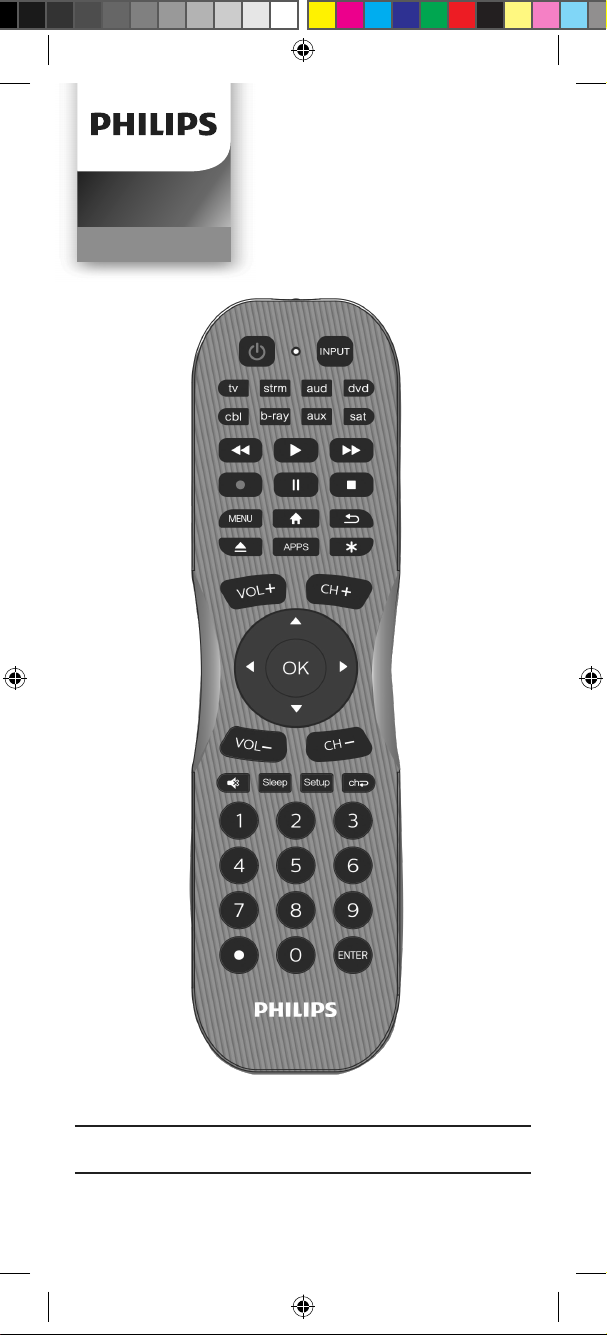

Philips SRP8121G/27 Manuel utilisateur

v1 5/21

Audio/Video

SRP8121G/27

User manual

SRP8121G_27 EnSp manual v1.indd 1SRP8121G_27 EnSp manual v1.indd 1 5/24/21 6:21 PM5/24/21 6:21 PM

Setup......................................................................... 3

Button Functions ....................................................4

Programming Your Remote ...................................6

Direct Code Entry ..............................................6

Auto Code Search.............................................. 7

Controlling Combo Devices .............................9

Using Your Remote ............................................... 10

Primary Audio Control .................................... 10

Code Identication........................................... 11

Reset to Factory Settings................................ 11

Troubleshooting.....................................................12

Warranty..................................................................13

FCC Statement ...................................................... 14

Congratulations on your purchase of this Philips

branded Universal Remote Control. This remote

is capable of operating thousands of audio/

video devices including TVs, Blu-ray™/DVD

players, streaming media players, sound bars,

cable receivers and more!

Table of Contents

Scan this code to

watch a video on how

to set up this remote

www.byjasco.com/remote

SRP8121G_27 EnSp manual v1.indd 2SRP8121G_27 EnSp manual v1.indd 2 5/24/21 6:21 PM5/24/21 6:21 PM

Your universal remote requires two (2) AA

batteries (not included). Alkaline batteries are

recommended.

Battery Installation

1. On the back of the remote, pull down on

the textured surface and slide battery cover

downward to remove.

2. Match the (+) and (-) marks on the batteries

to the (+) and (-) marks inside the battery

compartment, then insert two (2) AA

batteries. Be sure to use fresh batteries.

3. Position battery cover slightly below opening

and push upward to lock into place.

NOTE:If your remote stops operating properly,

replace the batteries with new ones.

Battery Precautions

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-

zinc), or rechargeable (Ni-Cd, Ni-MH, etc.)

batteries.

• Always remove old, weak or worn-out

batteries promptly and recycle or dispose of

them in accordance with local and national

regulations.

Battery Saver

Your remote automatically turns o if the

buttons are depressed more than 8 seconds.

This will save your batteries should your remote

get stuck in a place where the buttons remain

depressed (e.g., between the sofa cushions).

Code Saver

You have up to 10 minutes to change the

batteries in your remote without losing the

codes you have programmed.

Setup

SRP8121G_27 EnSp manual v1.indd 3SRP8121G_27 EnSp manual v1.indd 3 5/24/21 6:21 PM5/24/21 6:21 PM

Button Functions

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

11 16

11 17 11 18

SRP8121G_27 EnSp manual v1.indd 4SRP8121G_27 EnSp manual v1.indd 4 5/24/21 6:21 PM5/24/21 6:21 PM

Button Functions

1. Power - Turns devices ON/OFF

2. tv, strm, aud, dvd, cbl, b-ray, aux, sat - Selects

the device to control

3. Record, play, stop, rewind, fast forward, pause

4. Menu - Displays the on-screen menu

5. DVD/Blu-ray™open/close - Open/close a

player, or List features on cable/satellite

receivers

6. Streaming App Hotkey - Access top apps like

Netix®, Amazon®Prime, Hulu®and more

7. Input - Selects video inputs

8. Home/Guide - Easily access features on

streaming devices, or Guide on cable/satellite

receivers

9. Channel up/down

10. Volume up/down

11. Ok/up/down/left/right - Navigate and select

menu items for the controlled device

12. Sleep - Sleep timer

13. Mute - Mutes sound

14. Setup - Used to program the remote

15. Last channel - Returns to the previously

selected channel

16. Numbers - Enter numbers for direct channel

selection

17. Dot (•) - Use to select digital channels, e.g., 4.1

18. Enter key (Some devices require Enter to be

pressed after channel selection)

SRP8121G_27 EnSp manual v1.indd 5SRP8121G_27 EnSp manual v1.indd 5 5/24/21 6:21 PM5/24/21 6:21 PM

Programming Your Remote

Your remote is designed to control multiple

audio/video devices. To use, you will need to

program the remote for your devices. There are

two dierent methods you can use to program

the remote, Direct Code Entry or Auto Code

Search.

• The Direct Code Entry method is the

recommended approach, as it is the simplest

and quickest process in most cases.

• The Auto Code Search method searches

through all the codes in the remote to nd a

code for your device.

NOTE:This remote comes preprogrammed for

Roku®boxes and Samsung TVs. Press tv for

Samsung TVs and strm for Roku boxes.

Direct Code Entry (Recommended)

1. Locate the Code List included

with your remote. Find the section

for the type of device you wish

to control, (for example tv, strm,

aud, etc). Locate the brand of your

device and circle all the remote

codes for the brand.

2. Press and hold down the Setup

button on the remote until the red

light on the remote control turns

on. Release the Setup button.

The red light will remain on.

NOTE: The red light will either be a

small light at the top of the remote or

the power ON/OFF button.

3. Press and release the device button

on the remote for the type of device

you wish to control, (for example

tv, strm, aud, etc). The red light will

blink once and remain on.

NOTE:Any of the device buttons

on the remote can be programmed

to control any of your devices. For

example, you can use the aux device

button on the remote to control a

satellite receiver, digital converter

box, streaming media player or any

device category in the Code List.

123

456

789

ENTER

INPUT

Sleep

Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

SRP8121G_27 EnSp manual v1.indd 6SRP8121G_27 EnSp manual v1.indd 6 5/24/21 6:21 PM5/24/21 6:21 PM

Programming Your Remote

4. Use the number buttons on the

remote to enter the rst 4-digit

remote code you circled in the

Code List in Step 1. The red light

will turn o after entering the

fourth digit.

5. Point the remote at the device.

Test the buttons on the remote to

see if the device responds as you

would expect. If the buttons do not

operate the device, return to Step

2 above and use the next code that

you circled for that device.

6. Repeat steps 1 – 5 for each

device you wish to control.

Programming Notes

• Some codes may operate only a few functions

of your device. There may be another code in

the Code List that controls more functions.

Test other codes in the Code List for more

functionality.

• If you do not nd a remote code that works

your device or there are no codes in the

Code List for your device, use the Auto Code

Search method in the next section to program

your remote.

• For combination devices such as a TV/DVD

combo or TV/VCR combo, you may have to

enter a code for each device.

• Write down the remote codes used to

program the remote for future reference.

Auto Code Search

The Auto Code Search is a process where you can

search through all the codes stored in the remote

to nd a code for your device. It is recommended

that you read through all the steps below to

familiarize yourself with the Auto Code Search

before starting the process.

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

SRP8121G_27 EnSp manual v1.indd 7SRP8121G_27 EnSp manual v1.indd 7 5/24/21 6:21 PM5/24/21 6:21 PM

Programming Your Remote

1. Manually turn on the device you

wish to control.

NOTE:The Auto Code Search process

cannot be used for devices without

power ON/OFF capability. Use the

Direct Code Entry method in these

cases.

2. Press and hold down the Setup

button on the remote until the red

light on the remote control turns on.

Release the Setup button. The red

light will remain on.

NOTE:The red light will either be a

small light at the top of the remote or

the power ON/OFF button.

3. Press and release the device button

on the remote for the type of device

you wish to control, (for example

tv, strm, aud, etc). The red light will

blink once and remain on.

4. With the remote pointed at the

device, press and release the Power

button on the remote. The remote

will send 10 dierent codes to the

device. The red light will blink once

for each code and remain on after

sending the 10 codes.

Did the device turn o?

• If YES, go to Step 5.

• If NO, repeat Step 4 to test the

next 10 codes.

5. Manually turn the device back on.

6. With the remote pointed at the

device, press and release the

VOL+ button. The remote will re-

send the rst code of the 10 codes

from Step 4. The red light will blink

once and remain on.

Did the device turn o?

• If YES, you have found a code for

the device. Press and release the

same device button you pressed

in Step 3. This will store the code

in the remote. Go to Step 7.

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep

Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

SRP8121G_27 EnSp manual v1.indd 8SRP8121G_27 EnSp manual v1.indd 8 5/24/21 6:21 PM5/24/21 6:21 PM

Programming Your Remote

• If NO, continue to press and

release the VOL+ button until

the device turns o to test the

other 9 codes from Step 4. Be

sure to wait approximately 3

seconds after each VOL+ button

press to allow the device time

to respond to the code. When

the device turns o, you have

found a code for your device.

Press and release the same

device button pressed in Step

3. This will store the code in the

remote. Go to Step 7.

NOTE:

• The VOL- button can be used to

go backwards through each batch

of 10 codes.

• The red indicator light will ash 2

times after testing the rst or last

code in each batch of 10.

7. Use the remote to turn the device

back on. Test the buttons on

the remote to see if the device

responds as you would expect.

If the buttons do not operate the

device, return to Step 2 and repeat

this process to search for a better

code to operate the device.

8. Repeat this process for each

device you wish to control.

Controlling Combo Devices

Some combo devices (e.g. TV/VCR, TV/DVD,

DVD/VCR, etc.) will require you to set up two

dierent device buttons to control both parts

of the combo device. For example, if you have

a TV/DVD combo, you may need to set up one

code under the tv button to control the TV

and a separate code under the b-ray button

to control the DVD.

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

SRP8121G_27 EnSp manual v1.indd 9SRP8121G_27 EnSp manual v1.indd 9 5/24/21 6:21 PM5/24/21 6:21 PM

Using Your Remote

Primary Audio Control

The Primary Audio Control feature allows you to

select a single device that the volume buttons

always control. For example, the remote can be

in TV mode while the volume buttons control

the volume on your audio receiver or sound bar

instead of your TV.

Enabling the Primary Audio Control

1. Press and hold down the Setup

button on the remote until the red

light on the remote control turns

on. Release the Setup button.

The red light will remain on.

2. Press and release the device

button (tv, aud, etc.) on the remote

for the device you wish to control

the volume.

3. Press and release the Mute

button.

4. Press and release the VOL+

button. The red light will blink

twice and turn o.

Disabling the Primary Audio Control

1. Press and hold down the Setup

button on the remote until the red

light on the remote control turns

on. Release the Setup button. The

red light will remain on.

2. Press and release the device

button (tv, aud, etc.) programmed

to control the Primary Audio

Control feature.

3. Press and release the Mute

button.

4. Press and release the VOL-

button. The red light will blink

twice and turn o.

123

456

789

ENTER

INPUT

Sleep

Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep

Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

123

456

789

ENTER

INPUT

Sleep Setup

APPS

CH–

CH+

VOL–

VOL+

SRP8121G_27 EnSp manual v1.indd 10SRP8121G_27 EnSp manual v1.indd 10 5/24/21 6:21 PM5/24/21 6:21 PM

Table des matières

Langues :

Autres manuels Philips Télécommande

Philips

Philips SRU4105WM - Universal Remote Control Manuel utilisateur

Philips

Philips US2-P335B Manuel utilisateur

Philips

Philips SBCRU520/85 Manuel utilisateur

Philips

Philips SRU3003WM - Universal Remote Control Manuel utilisateur

Philips

Philips City line Manuel utilisateur

Philips

Philips 22HFL2869P/12 Manuel utilisateur

Philips

Philips SRU 5150/87 Manuel utilisateur

Philips

Philips srp3014 Manuel utilisateur

Philips

Philips SBCRU610/00U Manuel utilisateur

Philips

Philips US2-PMDVD6T Manuel utilisateur

Philips

Philips SBCRP520 Manuel utilisateur

Philips

Philips Pronto TSU9405 Manuel utilisateur

Philips

Philips LivingColors 69164/31/PH Manuel utilisateur

Philips

Philips PM525S - Phlips 5 Device Universal Remote... Manuel utilisateur

Philips

Philips SRP1003WM/17 Manuel utilisateur

Philips

Philips SRP 1001/10 Manuel utilisateur

Philips

Philips T32 Manuel utilisateur

Philips

Philips 29PT8403/32 Manuel utilisateur

Philips

Philips SRC3036/27 Manuel d'installation et d'exploitation

Philips

Philips SRU9600/17 Manuel utilisateur

Philips

Philips YKF314001 Manuel utilisateur

Philips

Philips SRU4008/27 Manuel utilisateur

Philips

Philips MAGNAVOX PR1911B Manuel utilisateur

Philips

Philips SBCRU1000/05 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
