Philips CDR951/00C Manuel utilisateur

Audio CD-Recorder

CDR951C

Single tray High End CD-Recorder CDR 951C

• Linear analogue power supply

• Optical output & 2x digital coaxial input

• Monitor mode (SRC active)

• Fade in / fade out

• Variable microphone input (mix)

• Variable headphone output

• Text input for sources

• Gold cinch connectors

• High quality audio cables

• Separate DA-Convertor (AD1855) & AD-Convertor (AD1877)

• Sample Rate Conversion (12-56 kHz)

• Direct Line Recording (DLR)

• Records HD-CD format (Via DLR)

• Digital (separate channel) record level control

(64 steps) + analogue 8 steps fix.inputs

• Continuous calibration (Running OPC)

• 2x CD text features (input & editing for max. 60 characters)

• CD Synchronised auto start recording from all

analogue and digital sources (disc & track)

• Max.99-track program

• Text scrolling

• Standby (via RC) + hard on/off

• Music calendar

• Easy jog (Menu controlled user interface)

• High quality starbust FTD (display)

• Auto (un) finalise

• Introscan

• Erasing per track, selection of last

tracks & whole disc (takes max 2 min.)

• Tray blocking (dealer function)

• Gold plated headphone connection

• Remote control

Opm leaflets 26/4/99 2:13 pm Page 1

Theproductsandservicesdescribedherearenotnecessarilytobecomeavailableinthemarket.Thisdocumentcontainspreliminaryinformation.Duetocontinuousimprovementsthisspecificationissubjecttochangeswithoutnotice. PrintedintheNetherlands. 2/99

Audio CD-Recorder

CDR951C

700+ series CD player

Technical Specifications CDR 951C

General

• System Compact disc digitalAudio (Single recorder)

• Number of channels 2 (stereo)

• Applicable supply AC 230V +/- 10% 50 Hz (/00&/14),

AC 117V +/- 10% 60 Hz (/17),

AC 100 / 110 / 230 / 240V +/- 10% 50 Hz (/01)

• Power consumption 15W (< = 6W in standby)

• Operating temperature 5-35°C

• Weight 4 kg

• Dimensions 435 x 310 x 88 mm (w x d x h)

Audio

• Digital frequency range 2 Hz - 22,05 kHz

• Playback S/N 115 dB (A-weighted)

• Playback S/N 110 dB

• Playback dynamic range 96 dB

• Play back total harmonic distortion 95 dB (0,0034%)

• Recording S/N 105 dB (A-weighted)

• Recording S/N (Digital without SRC) Recording quality equal to Source

• Recording dynamic range 95 dB

• Recording total harmonic

distortion + noise 95 dB (0,0031%)

• 1x Headphones 0-5Vrms / 8-2000Ω

Output

• 1xAnalogue line output 2Vrms +/- 2 dB / 0.2 kΩ

• 1x Digital coaxial output 0.5V(pp) / 75Ω

• 1x Digital optical output -20 dbm (reference output:2Vrms)

Input (level adjustment)

• Direct line recording (bypass SRC) for 44.1 kHz +/- 100 ppm

• 2x Digital coaxial input (SRC) 12 - 56 kHz / 0.5Vrms / 75Ω

• 1x Digital optical input (SRC) 12 - 56 kHz

• 1xAnalogue input 500 mVrms / 50 kΩ= 0 dB

Recording functions

• Recording on CD-R & CD-RW disc

• Records from all home stereo analogue and digital sources

• Auto start recording per disc,track

• Soft mute insert function

• Multi track erase (CD-RW disc)

• Erase disc (CD-RW disc)

• Auto finalise / unfinalise disc (CD-RW disc)

• Manual /Auto track increment

• Remaining recording time display

• Double speed finalising (make disc compatible to CD-player)

• SCMS (Serial Copy management system)

• RID code (Recorder Unique identifier)

Playback functions

• Plays allAudio CD’s

(120 mm + 80 mm discs)

• Play - Introscan - Pause - Stop

• Direct track selection

• Track selection with easy jog

• Search forward / reverse

• Repeat (all / per track)

• Program play (99 tracks)

• Time display switching

• Permanent text option

Accessories

• Remote control (+batteries)

• Audio cable with gold cinch

connectors (x2)

• Digital coaxial cable with gold

cinch connectors (x1)

• AC mains cord

LEVELPHONES

OPEN/ CLOSE

LEVEL/MIXMIC

DISPLAY

CDR 950 AUDIO CD RECORDER

STORE/

CANCEL/

DELETE

STOPPLAY/PAUSE

ON/OFF EASY JOG

ENTER

REC START

REC TYPE

SCROLL

Recordable

REPEATPROGRAM SHUFFLE FINALIZE

SOURCE

ERASE

SYNC

PROGRAM SHUFFLE REPEAT SCAN

ALL

MANUAL DISC

TRACK

123456789

REM TRACKREC TIME

DIGITAL

OPTICAL

ANALOG

CD RW

REMTOTAL TIME STEPTRACK FADE

10 11 12 13 14 15 16 17 18 19 20 +

DIRECT LINE

RECORDING

SCAN

ABC

GHI

DEF

JKL OPQ

RST XYZ

UVW

SPACE

ENTER CANCEL

TRACK INCR.

MENU/

STORE

PROG.

CDR CD

SCROLL

SHUFFLE REPEAT

Opm leaflets 26/4/99 2:13 pm Page 2

Ce manuel convient aux modèles suivants

Autres manuels Philips Équipement d'enregistrement

Philips

Philips CDR560BK Manuel utilisateur

Philips

Philips VoiceTracer DVT4110 Manuel utilisateur

Philips

Philips CDR 538 Manuel utilisateur

Philips

Philips CDR870 Manuel utilisateur

Philips

Philips Digital Desktop 9750 Manuel utilisateur

Philips

Philips AZ1060 - annexe 1 Manuel utilisateur

Philips

Philips CDR-778 Manuel utilisateur

Philips

Philips CDR Mozart Manuel utilisateur

Philips

Philips CDR770/N1B Manuel du système

Philips

Philips CDR-778 Manuel utilisateur

Philips

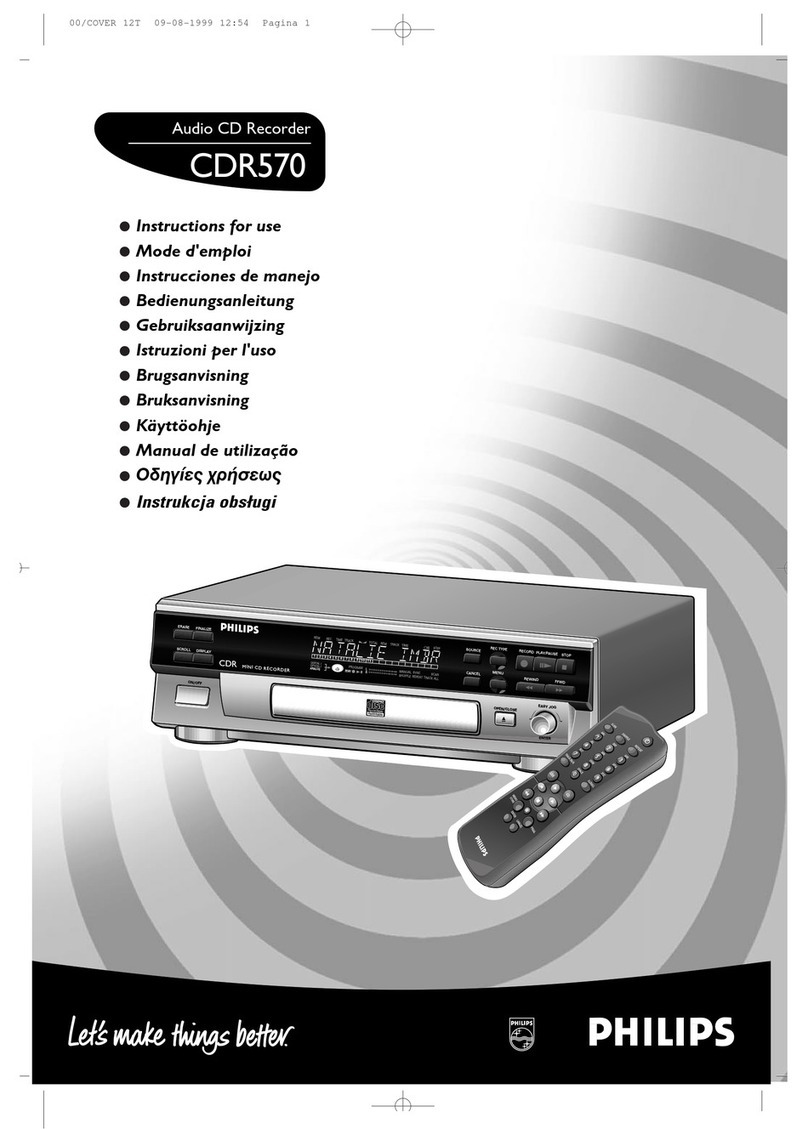

Philips CDR570 Manuel utilisateur
