CD recorder
1ON/OFF ........................turns the CD recorder ON or OFF (if
the recorder is in Standby mode,
any key press will activate the CD
recorder)
2Standby indicator
3Disc tray
4OPEN/CLOSE /..........opens/closes disc tray
5PLAY/PAUSE 2;......starts play/interrupts play or
recording
6STOP 9........................stops/clears a program
7REC(ord) TYPE ............selects recording modes
8RECORD ......................starts recording, finalizing, erasing
9FINALIZE ....................selects finalize mode
0ERASE..........................selects erasing mode (disc or track)
!EXT SOURCE ..............selects external input source
@CDR ............................selects CD recorder deck
display/keys
CD player
$CD ..............................selects CD player deck
display/keys
)PLAY/PAUSE 2;......starts play/interrupts play
¡STOP 9........................stops/clears a program
™OPEN/CLOSE /..........opens/closes disc tray
£Disc tray
General
#Display..........................information screen
%Q............................- searches backward
- cursor control in Menu/Prog.
review mode
^R............................- searches forward
- cursor control in Menu/Prog.
review mode
&¡EASY JOG ™........- previous/next track (Play and
(rotate) Program mode)
- recording level control (recording)
- selects settings (menu on)
ENTER..........................- plays selected tracks
(push) - selects settings in Menu mode
- programs track numbers
*STORE/MENU ............- stores Menu settings
- enters Menu mode
(CANCEL/DELETE ......- deletes tracks from a program
- deletes text in Menu mode
- returns to a higher level in the
menu
≤IR sensor ....................receives signals from the remote
control
∞PHONES......................socket for headphones
§DJ MODE ....................separate play of CD recorder deck
and CD player deck
≥REPEAT........................repeats play (All, program or track)
•SCROLL........................activates scrolling of text over the
display (once)
ªDISPLAY......................selects display information,
permanent text scrolling and time
ºSHUFFLE......................plays CD(RW) or program in
random order
⁄PROG(ram) ..................opens/closes program memory
Note: Unless stated otherwise, all controls are on the front of
the CD recorder. When provided on the remote control,
you can also use the corresponding buttons, after
selecting the CD recorder deck or CD player deck by
pressing CDR or CD.

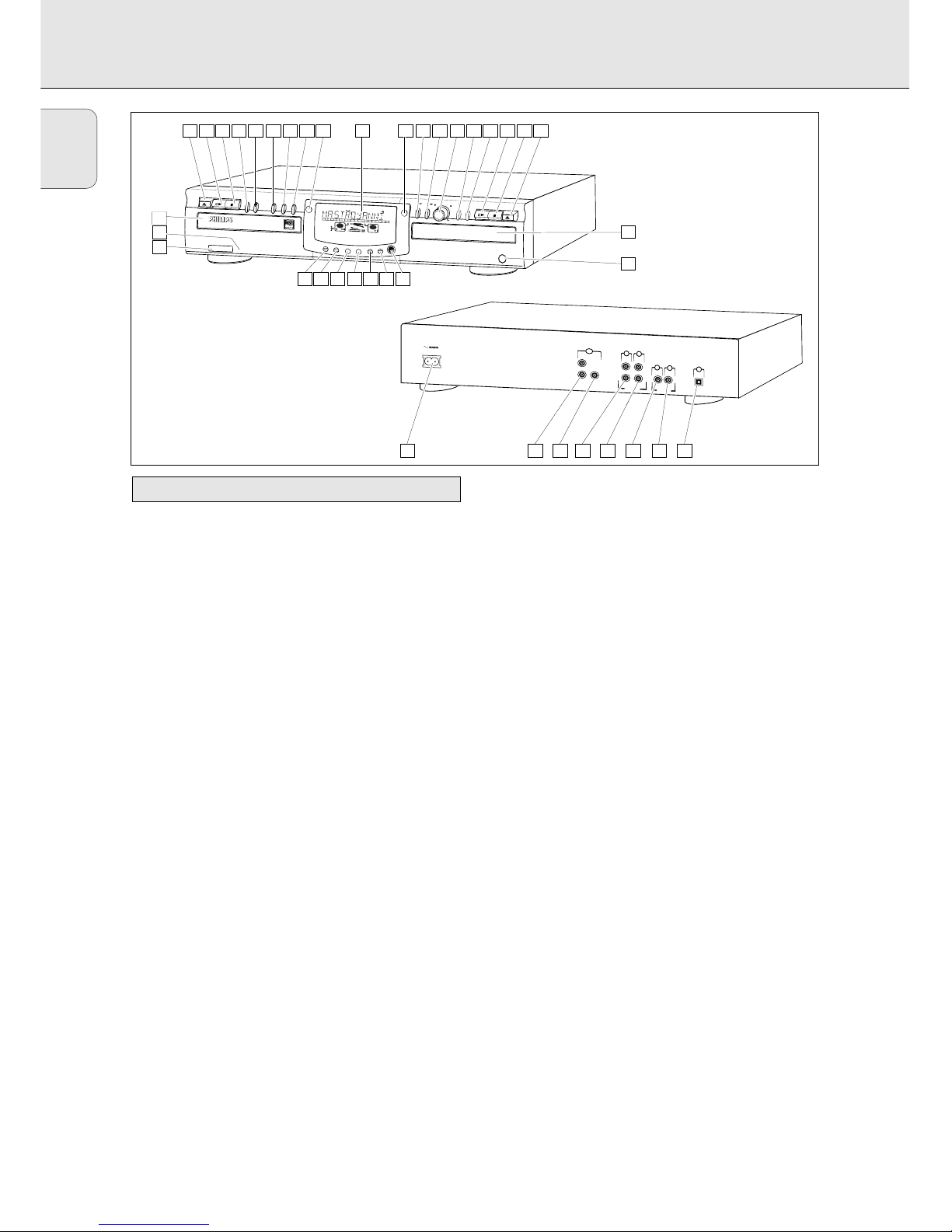

Controls on the front
CONTROLS AND CONNECTIONS
AUDIO CD RECORDABLE/REWRITABLE
OPEN / CLOSE
PLAY/ PAUSE STOP
REC
TYPE
Recordable
ON / OFF
PHONES
EASY JOG STORE/
MENU
OPEN / CLOSE
PLAY/ PAUSE STOP
EXT
SOURCE
ERASEFINALIZE
AUDIO CD RECORDABLE/REWRITABLE
CDR
CANCEL/
DELETE
RECORD
CD
DOUBLE SPEED
IR SENSOR
AUDIO CD PLAUDIO CD PLAYBACK
ENTER
DISPLAY SCROLL DJ MODE
REPEATSHUFFLE
PROG
CDR 77XAUDIO CD RECORDER
DIGITAL DIGITAL
IN OUT
OUT
OUT
OPTICAL
IN
ANALOG
ANALOG
IN
L
R
L
R
OUT
L
R
CD
REM TRACK
REC TIME
DIGITAL
OPTICAL
ANALOG
PROG
SHUFFLE
REPEAT
SCAN
I
I
CD
RW
CHANGER
SYNC MANUAL RECORD
REMTOTAL
A-B
ALL
TRACK
TIME STEPTRACK
CD
RW
123456789
10 11 12 13 14 15 16 17 18 19 20 +
CD
CD
CDR
CDR CDR
CD
CDR
1 87
6
5432
26 25
14 15 16 17 18 19 20 21 22
23
24
4 65 9 10 11 12 13
3031 29 2728
7 8
1
2
3
English
9

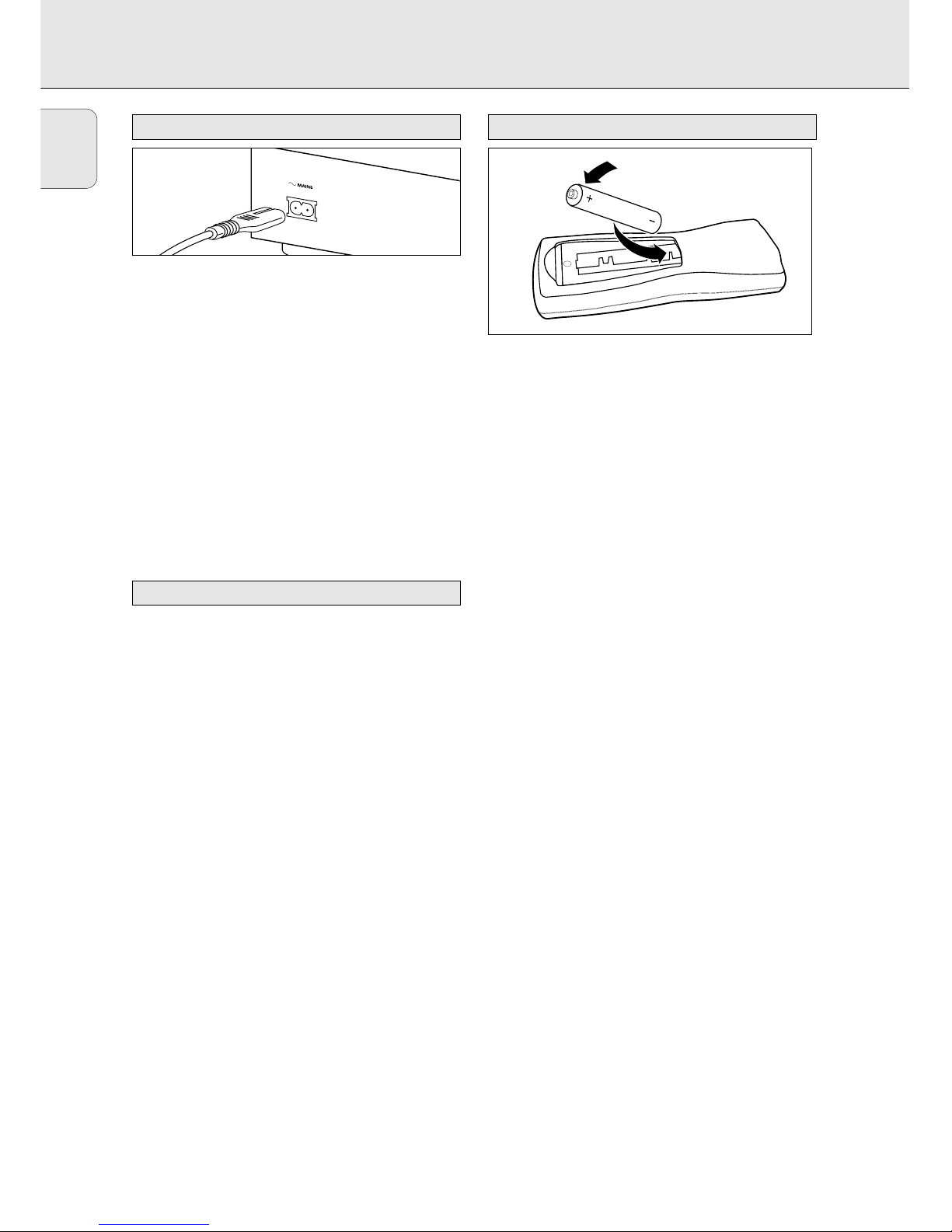

1Connection to mains
2ANALOG OUT ............connects CD player deck to the
line input of an amplifier (left and
right)
3DIGITAL OUT CD ......connects CD player deck to the
digital coaxial input of e.g.
amplifier or recording device
4ANALOG IN ................connects to the line output of an
amplifier (left and right)
5ANALOG OUT CDR & CD
......................................connects to the line input of an
amplifier (left and right)
6DIGITAL IN..................connects to the digital coaxial
output of an external CD player
7DIGITAL OUT CDR & CD
......................................connects to the digital coaxial
input of e.g. amplifier or recording
device
8OPTICAL IN ................connects to the digital optical
output of an external CD player
1REM/REC TIME ..........remaining time/remaining
recording time/recording time
2TRACK ........................track number
3
FE
..............................balance (lights during balance
adjustment)
4TOTAL REM
TRACK TIME ..............total or remaining time of disc or
track
5}}................................remote control active
6STEP ............................indicates the number of tracks in a
program
7Track bar ....................indicates:
- tracks on a disc or in a program
- track in play
8+ 20 ..............................disc or program contains more
than 20 tracks
9PROG(ram) ..................flashes during programming/lights
in program mode
0REPEAT TRACK/ALL..lights up when a track/ complete
disc (or program) is repeated
!SCAN ..........................lights up when the first 10
seconds of each track are played
@SHUFFLE......................plays tracks in random order
#s..............................CD player deck selected
$c..............................CD inserted (a pre-recorded CD or
finalized CDR or CDRW disc)
%fRECORDg............lights during recording from the
internal CD
^L/R; ;........................record/play level bar. Indicates the
audio signal level
&j k ........................DJ mode selected
*iCHANGERh........changer mode selected
(;..................................pause function active
)B................................lights during play
¡R(W) ............................unfinalized CDR(W) disc inserted
™0................................lights during recording
£ANALOG......................- analog input selected for
external recording
- analog recording
≤OPTICAL I ..................optical input I selected for external
recording
∞DIGITAL I ....................digital input I selected for external
recording
§SYNC ..........................automatic or synchronised start of
external recording
≥MANUAL ....................manual start of external recording
REM TRACK
REC TIME
DIGITAL
OPTICAL
ANALOG
PROG
SHUFFLE
REPEAT
SCAN
I
I
CD
RW
CHANGER
SYNC MANUAL RECORD
REMTOTAL
ALL
TRACK
TIME STEPTRACK
CD
RW
123456789
10 11 12 13 14 15 16 17 18 19 20 +
1 2 3 4 5
10
1617
19202122
23
24
27
26
25
12131415
6
7
8
9
11
18

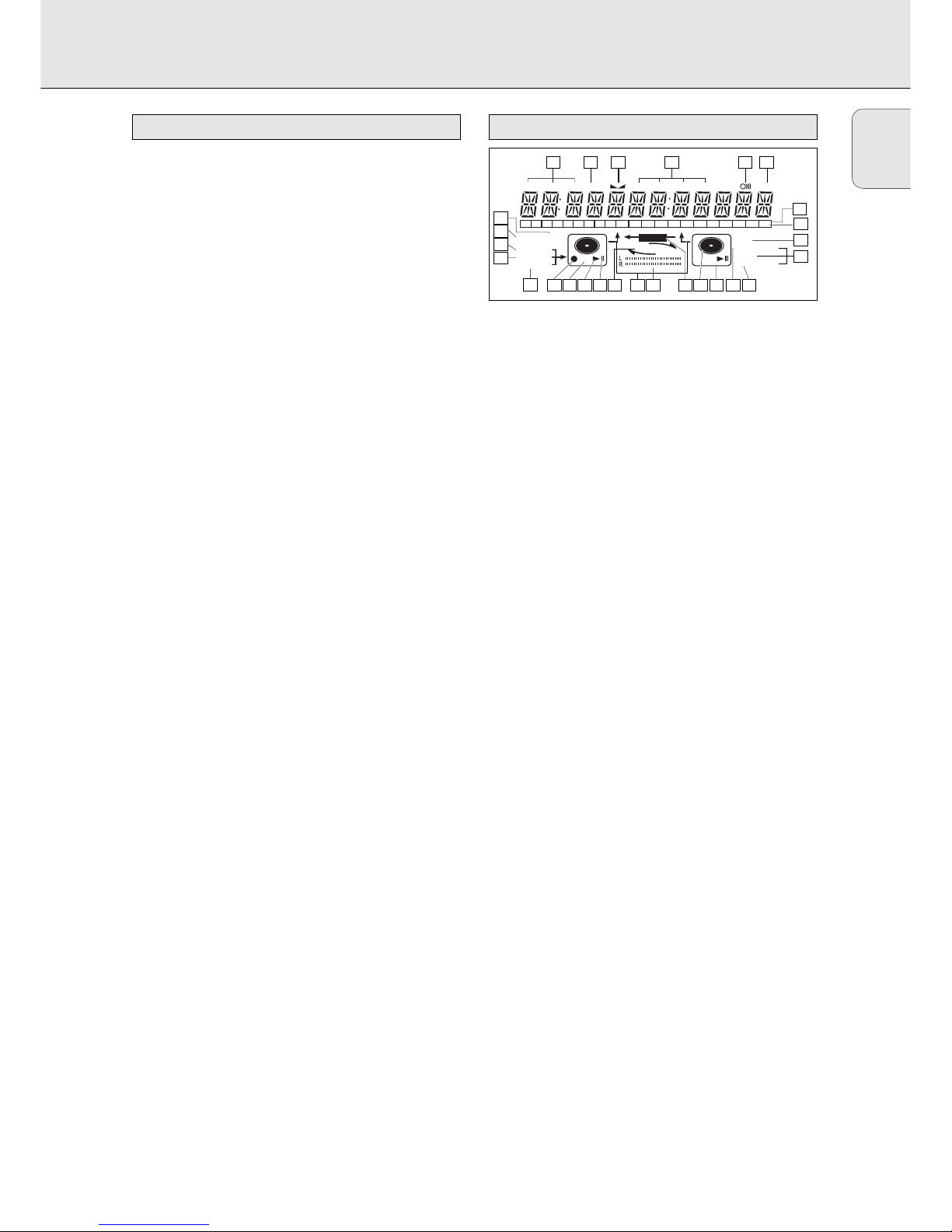

DISPLAY indicationsConnections at the back
CONTROLS AND CONNECTIONS DISPLAY
English
11

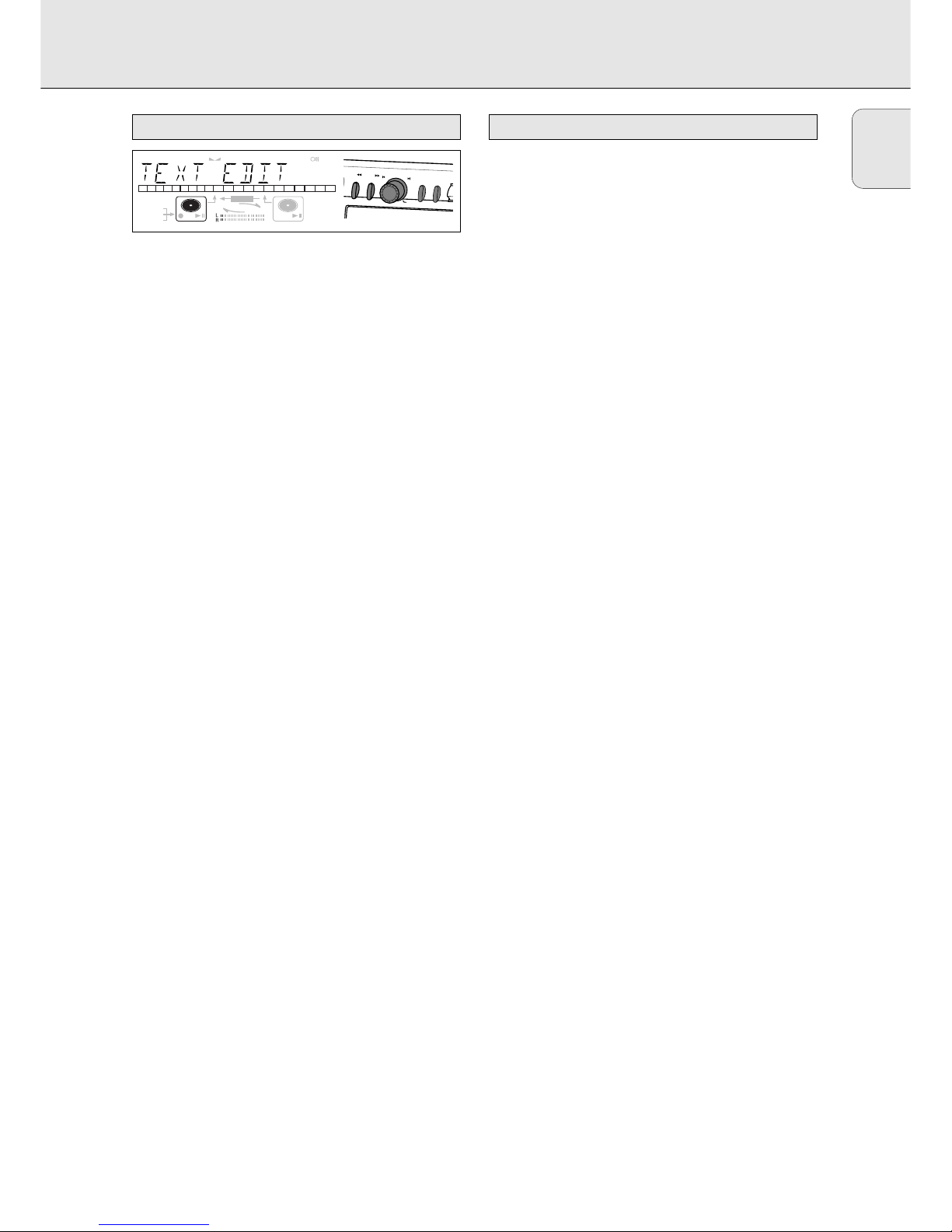

Menu messages
NO TRACKS ....................when attempting to edit text for a
disc which has no tracks
TEXT EDIT ....................when entering Text Edit mode
ALBUM ARTIST ............when editing or erasing an artist
name
ALBUM TITLE ..............when editing or erasing a title
ARTIST TR N................when editing or erasing an artist
name per track
TITLE TR N ..................when editing or erasing a title per
track
TEXT ERASE ..................when entering Text Erase mode
ALL TEXT ......................when entering All Text mode
ERASE OK ......................when confirmation for erasing has
to be given with ENTER key
ERASE ALL OK ............when confirmation for erasing has
to be given with ENTER key
ERASE MEMORY ............when waiting for confirmation
when erasing a disc
MEMORY VIEW ..............when selecting text review per
unfinalized disc in memory
MEMORY EMPTY ............when REVIEW is selected while no
text is in memory
AUTO TRACK ..................when selecting auto track
increment ON or OFF
ON ......................................auto track increment on
OFF ....................................auto track increment off
SET BALANCE ..............when selecting BALANCE
NO TEXT ..........................no text stored for disc
For playback on the CD recorder (and/or CD player deck) the
following outputs are present:
- Digital coaxial output (CD & CDR);
- Analog output (CD & CDR).

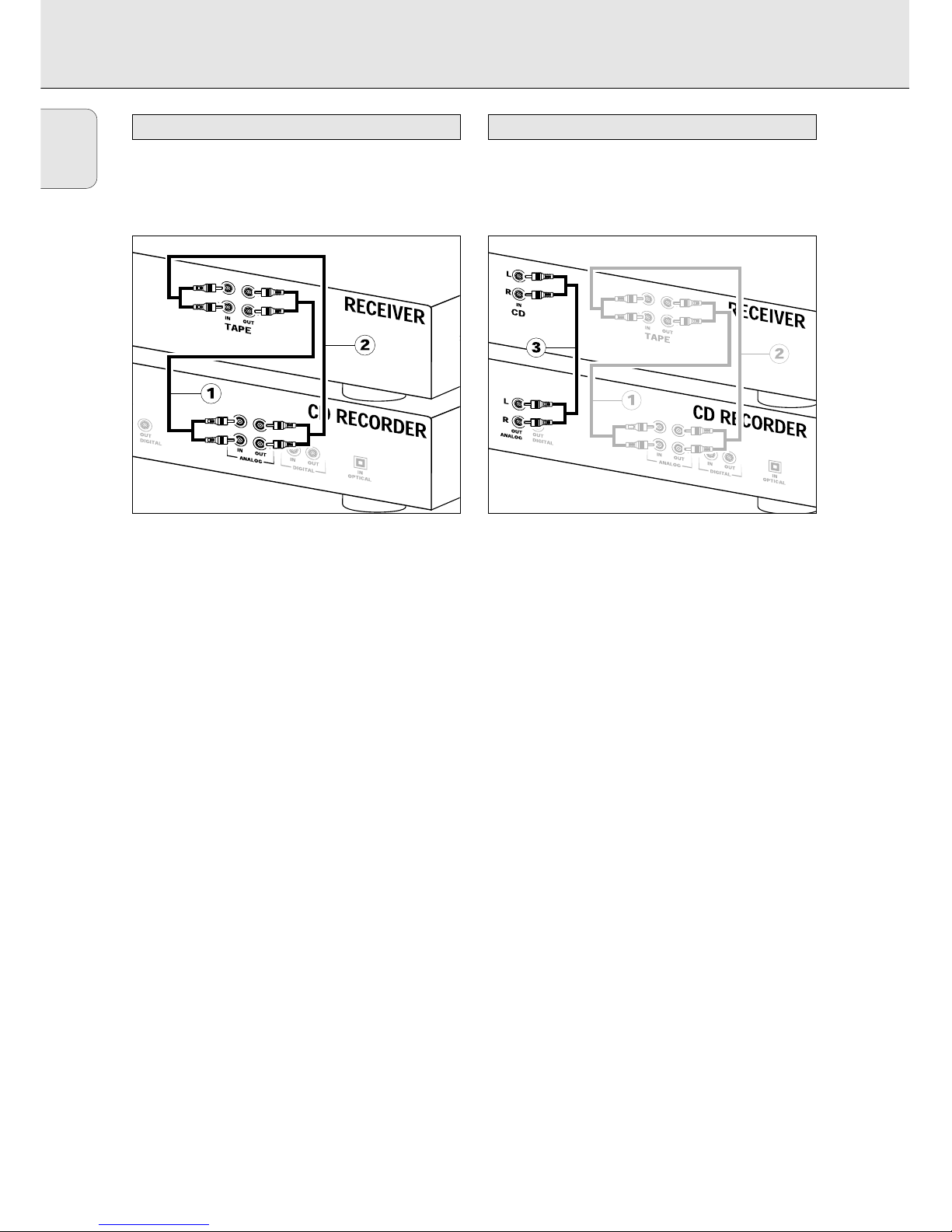

We advise you to connect these to the TAPE or CDR input on
your amplifier.
For external recording the following inputs are present:
- Digital optical input;
- Digital coaxial input;
- Analog input.
For playback of CD player deck separately (DJ mode) from the
CD recorder the following outputs are present:
- Digital coaxial output (CD);
- Analog output (CD).
We advise you to connect these to the CD input on your
amplifier.

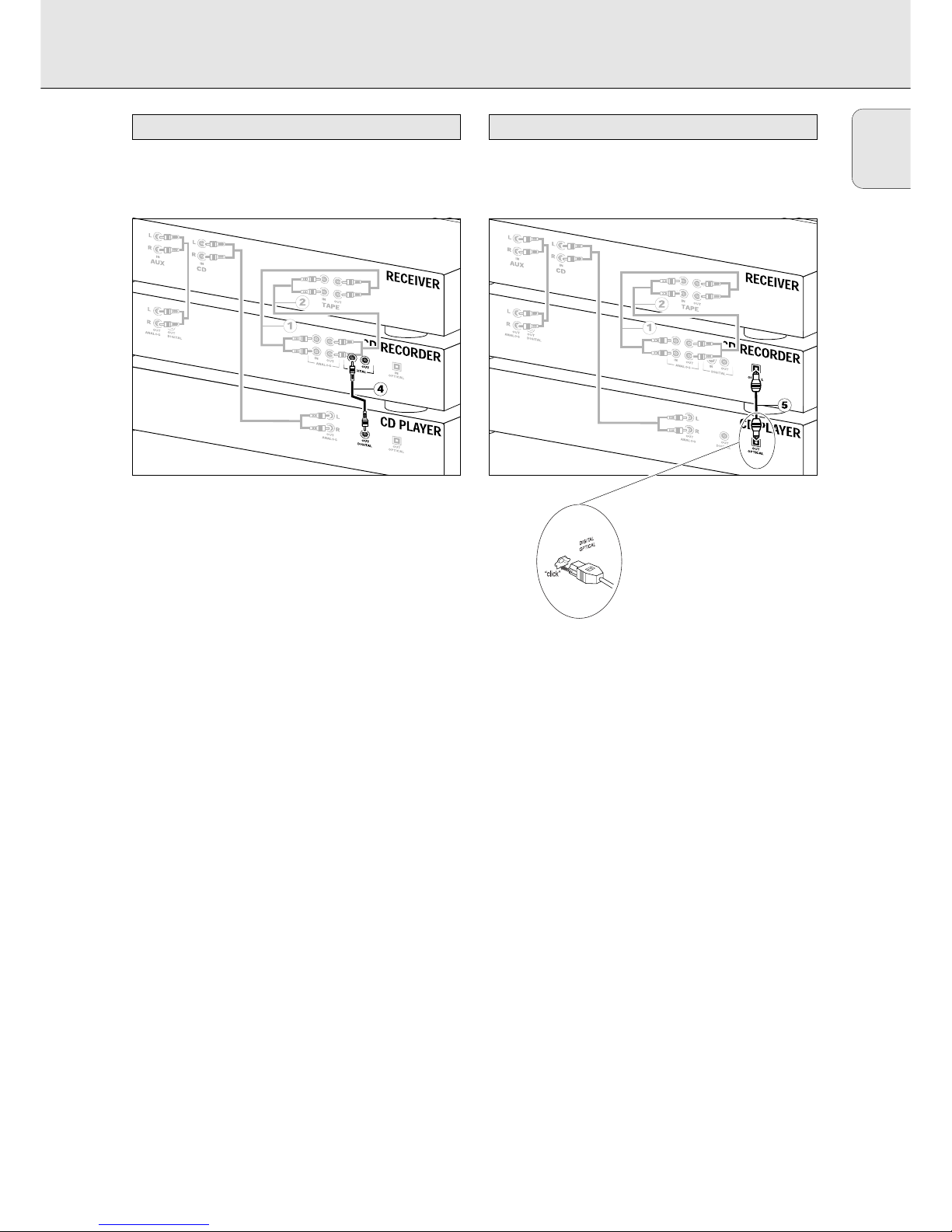

The connections you make will depend upon the possibilities
your audio equipment offers. Please refer to the user manuals
for your other audio equipment first.
Digital recordings (optical or coaxial) give the best
performance in audio and usability (e.g. auto-track).
(The digital optical connection is less sensitive to external
disturbances).
If your equipment does not offer digital connections, the high
quality Analog-Digital-Convertor of your CD recorder will
ensure very good audio performance when recordings are
made from the analog input.
Playback via the digital coaxial output of the CD recorder
gives the best audio performance.
If your equipment does not offer digital connections, the high
quality Digital-Analog-Convertor of the CD recorder ensures a
very good sound quality via the analog output.
We advise you to always establish both digital and analog
connections. In this way you can always make analog
recordings when digital recording is not possible.
We have described the most common ways of connecting the
CD recorder. If you still have difficulties with the connections
you can always contact the Philips Consumer Service desk in
your country.
Connections general
EASY JOG STORE/
MENU
CANCEL/
DELETE
ENTER
REM TRACK
REC TIME
DIGITAL
OPTICAL
ANALOG
PROG
SHUFFLE
REPEAT
SCAN
I
I
CD
RW
CHANGER
SYNC MANUAL RECORD
REMTOTAL
ALL
TRACK
TIME STEPTRACK
CD
RW
MENU messages - See Menu mode
DISPLAY INSTALLATION
English
12
This connection must be made for playback on the CD
recorder deck as well as the CD player deck (cable 2).
Cable 1is only required if you want to make recordings from
an external analog source.
Use the audio cables supplied. Connect the red plugs to the
R sockets, and the white plugs to the L sockets.
1For recording, connect cable 1between the ANALOG IN-
sockets on the CD recorder and the CDR LINE- or TAPE OUT-
sockets of an amplifier.
Note: For recording directly from a CD player, the analog
input of the CD recorder should be connected to the
analog output of the CD player.
2For playback, connect cable 2between the ANALOG OUT-
sockets on the CD recorder and the input sockets of an
amplifier e.g. TAPE IN, CDR or AUX.
Note: Never use the PHONO input.
This connection is only required if you want to playback on
the CD player deck seperately from the CD recorder deck. This
will be the case in DJ-mode.
1For separate playback on the CD player deck, connect a
third cable 3(not supplied) between the ANALOG OUT
sockets of the CD recorder and the input sockets of an
amplifier e.g. CD, or AUX.
(Connect the red plugs to the R sockets, and the white plugs
to the L socket.)
Note:
- Never use the PHONO input.
- Your CD recorder/player is equipped with a digital coaxial
output for the CD player deck. This output can be used for
digital playback.
Analog connections CD player deckAnalog connections CD recorder & CD player
INSTALLATION
English
13
This connection is only required if you want to make
recordings from an external CD player with a digital coaxial
output.
Use the digital coaxial cable supplied.
1For external recording, connect the cable 4between the
DIGITAL IN-socket on the CD recorder and the DIGITAL OUT-
socket of an external CD player.
Note: Your CD recorder is equipped with a digital coaxial
output (common output for CD recorder & CD player
deck). This output can be used for digital playback.
This connection is only required if you want to make
recordings from an external CD player with a digital optical
output.
When connecting the Digital
Optical cable, make sure it
is fully inserted until
there is a click.
1Remove the dust caps from the digital optical connection.
(We recommend you save the cap.)
2For external recording, connect a fibre-optic cable 5
between the digital optical input of the CD recorder and the
digital-optical output of an external CD player.
Note: For playback, the digital coaxial outputs or analog
outputs of the CD Player and CD recorder should be
connected to an amplifier.
Digital optical connections CD recorderDigital coaxial connections CD recorder
INSTALLATION
English
14
1Plug the power cord supplied into the MAINS connector on
the CD recorder, then into a mains socket.
2Press ON/OFF.
➜The CD recorder will switch on.
Note:
- If the CD recorder is in Standby mode (red led on), press any
key to activate the recorder.
- The CD recorder will automatically adjust to the local mains
voltage.
- When the CD recorder is in the ‘OFF’ position, it is still
consuming some power. If you wish to disconnect your
player completely from the mains, withdraw the plug from
the AC outlet.
- Place the CD recorder on a solid, vibration free surface.
- Do not place the CD recorder near a source of heat or in
direct sunlight.
- Do not use the CD recorder under extremely damp
conditions.
- If the CD recorder is placed in a cabinet, make sure that a
2.5 cm space remains free on all sides of the CD recorder
for proper ventilation.
Important:
- Do not put the CD recorder on top of other equipment that
heats up the CD recorder (e.g. receiver or amplifier).
1Open the battery compartment cover.
2Insert 2 batteries (“AA”, LR-6 or UM-3; as supplied) as
shown.
3Replace the cover.
Note: We recommend you use 2 batteries of the same type
and condition.
Batteries contain chemical substances, so they should
be disposed of properly.
Inserting batteries in the remote control
Setup recommendations
Power supply
INSTALLATION
Ce manuel convient aux modèles suivants
3
Table des matières
Autres manuels Philips Équipement d'enregistrement
Philips
Philips DP-IF8000 Manuel utilisateur
Philips
Philips MATCHLINE DVD 955 Manuel utilisateur
Philips
Philips CDR870 Manuel utilisateur
Philips
Philips CDR 785 Manuel utilisateur
Philips
Philips CDR700BK Manuel utilisateur
Philips
Philips PSC805 Aurilium Manuel utilisateur
Philips
Philips CDR82017 Manuel utilisateur
Philips
Philips CDR300BK Manuel utilisateur
Philips
Philips CDR800/05 Manuel utilisateur
Philips
Philips CDR775/00 Manuel utilisateur
Philips
Philips CDR950BK99 Manuel utilisateur
Philips
Philips VHS VR540/02 Manuel utilisateur
Philips
Philips CDR760BK99 Manuel utilisateur
Philips
Philips Respironics V60 Mode d’emploi
Philips
Philips VoiceTracer DVT4110 Manuel utilisateur
Philips
Philips Respironics CoughAssist 70 Series Manuel utilisateur
Philips
Philips VoiceTracer DVT1250 Manuel utilisateur
Philips
Philips CDR 538 Manuel utilisateur
Philips
Philips LFH 0955 Manuel utilisateur
Philips
Philips POCKET MEMO LFH9600 Manuel utilisateur
Manuels Équipement d'enregistrement populaires d'autres marques
Strymon
Strymon NIGHTSKY Manuel utilisateur
Mitsubishi Electric
Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur
Tews Technologies
Tews Technologies TPMC465 Manuel utilisateur
Honeywell
Honeywell Excel 50 Manuel utilisateur
SeaLevel
SeaLevel COMM+8.LPCI Manuel utilisateur
Arturia
Arturia AUDIOFUSE STUDIO Manuel utilisateur
