Quick start guide

1Connect receiver

2Enjoy

Welcome

Wireless TV link SLV5405

A. Receiver

Television 3 Power outlet

What else you’ll need

B. SCART cable C. Power adapter

Wireless TV link

E. User manual

SLV5400/00

User Manual 3

Handleiding 19

Mode d’employ

User Manual

Handleiding

Mode d’employ

D. Quick start

guide

Quick start guide

1Connect

Quick start guide

Enjoy2

Connect receiver

Wireless TV link SLV5400

Welcome

What’s in the box

Wireless TV link SLV5405

User Manual 3

Handleiding 14

Mode d’employ

User Manual

Handleiding

Mode d’employ

User Manual 3

Handleiding 14

Mode d’employ

User Manual

Handleiding

Mode d’employ

1Connect receiver

Prepare the receiver

CHANNEL

STANDBY SELECT

SLV5400 WIRELESS TV LINK TRANSMITTER

Prepare the installation

Your wireless TV link needs to be connected.

1. Find the CHANNEL switch on the

transmitter.

2. Take the receiver (A).

3. Set the CHANNEL switch on the receiver

(A) to the same number as on the

transmitter.

1. Switch on the transmitter.

2. Switch on the video source.

3. Take these items:

• Remote control of the wireless TV link

• Remote control of a video source.

• Receiver (A)

• SCART cable (B)

• Power adapter (C)

• This quick start guide (D)

4. Go to TV3.

Connect TV3

1. Take the supplied SCART cable (B).

2. Plug one end into the TV2 SCART port on

the receiver (A).

3. Plug the other end into the SCART port of

the TV.

TV2

TV3

DC 12VDC 12V

Connect the power adapter

1. Take the supplied power adapter (C).

2. Plug the connector into the DC 12V power

connector on the receiver (A).

3. Plug the adapter into the power outlet.

> The power light on the front comes on as red.

STANDBY

RECEIVER

4 5

TV3

Check the operation of TV3

1. Switch on TV3.

2. Switch on the receiver (A).

3. Select the correct SCART input on TV3.

4. Point the remote control of the video

source to the receiver (A).

5. Operate the video source with its remote

control.

6. Check if TV3 shows the image of the video

source.

> The receiver is connected correctly.

Firmly insert the SCART cables to the ports:

1. Plug the connector straight into the port.

2. Apply some force when you insert the connector.

Result

TV2

TV1TV3

SAT/STB

AUX

DVD player

VCR

DVD recorder

2Enjoy

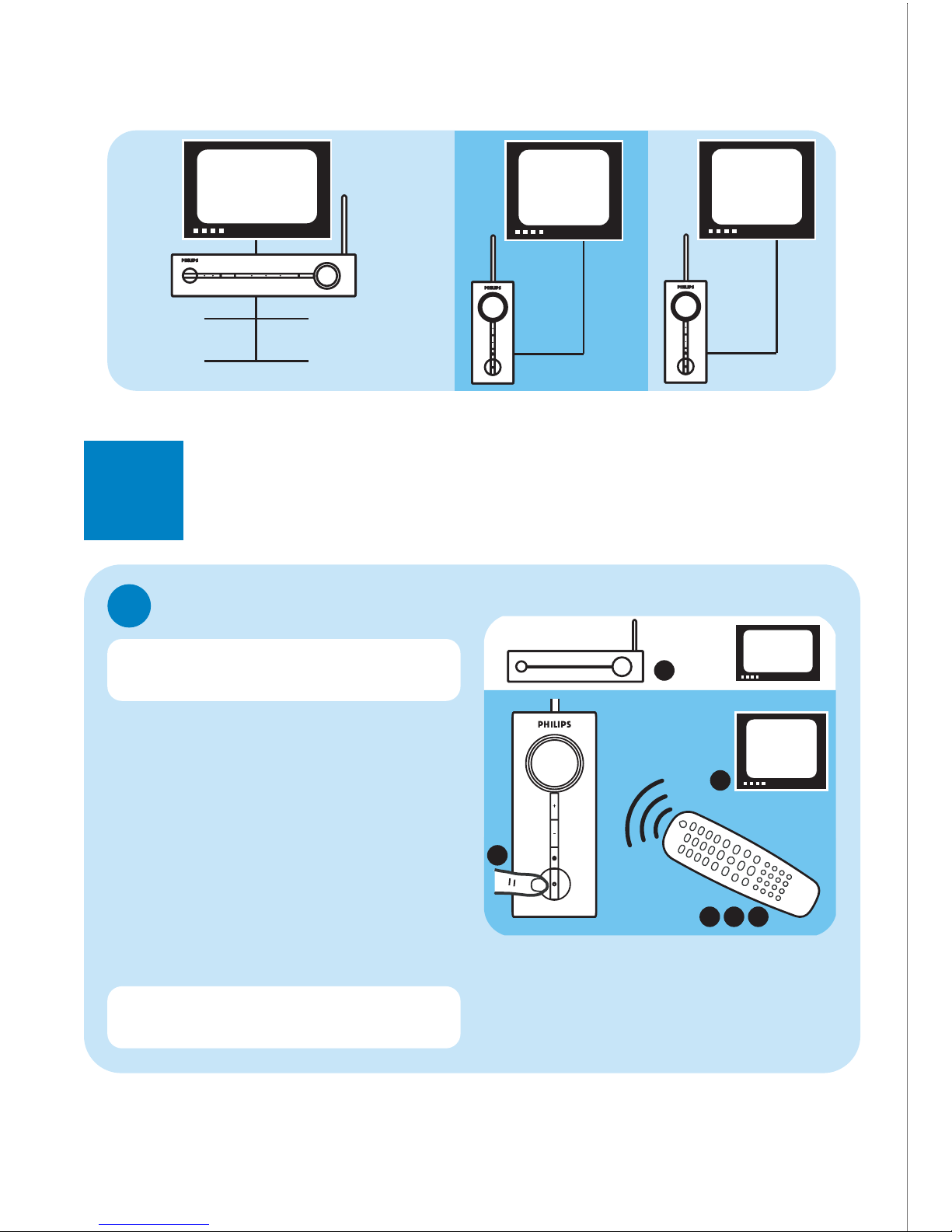

Example:View satellite programs on TV3

TV1

7 86

WIRELESS TV LINK RECEIVER

TV3

1. Switch on the satellite receiver.

2. Switch on the transmitter.

3. Select the satellite receiver as video source

on the transmitter.

4. Switch on TV3.

5. Switch on the receiver (A).

6. Select the correct SCART input on TV3.

7. Point the remote control of the satellite

receiver to the receiver (A).

8. Operate the satellite receiver with its

remote control. Enjoy!

To view other video sources, replace ´Satellite

receiver´ with the name of the device used.

Your satellite receiver needs to be connected

to the transmitter of the wireless TV link.

Philips remote control solutions for any device, any brand

Take full control

SBC RU760

6in1 remote control

Automatic backlighting

Intelligent learning

Supports control of the SLV5400 wireless TV Link

RU540 RU560 RU740

4in1 remote control 6in1 remote control 4in1 remote control

Supports control of the SLV5400 wireless TV Link

For more information:

1. Start your internet browser.

2. Enter www.philips.com.

3. Select Go.

4. Enter product number.

5. Select .

Troubleshooting

Problem Tip

No image or wrong image on TV3 • Make sure SCART cables are ﬁrmly inserted.

• Make sure the receiver (A) is connected to TV3.

• Make sure both receiver (A) and transmitter are switched on.

• Make sure the video source is switched on.

• Make sure the correct SCART input on TV3 is selected.

• Select the correct video source with +/- on the receiver (A).

> Only for the SLV5400 transmitter.

• f the video source gives proper image on TV1:

Make sure the video source gives video signal in CVBS mode.

> See its user manual

• Change the wireless channel that is used for communication.

> See the user manual (E) page 6.

• The receiver (A) is out of range of the transmitter.

The number of walls and ceilings in between the receiver (A) and

transmitter restrict the distance.

Interference in the image on TV3 • Slightly change the position of the receiver (A) or the transmitter.

• Change the wireless channel that is used for communication.

> See the user manual (E) page 6.

• The receiver (A) is out of range of the transmitter.

The number of walls and ceilings in between the receiver (A) and

transmitter restrict the distance.

The video sources do not respond • Point the remote control directly to the receiver (A).

to the remote control commands • Replace the batteries of the remote controls with new ones.

from TV3 • Install the remote control blaster cord.

> See the user manual of the Wireless TV Link.

• The maximum operating distance of the remote control is 5 m.

The image of the video source • Turn off the auto standby mode of the video source.

disappears on TV3

> See its user manual.

• Follow the instructions to reconnect the videosources.

> See the quick start guide of the Wireless TV Link.

Helpline

België/Belgique/Belgien 070 222 303 (€0.17)

Danmark 3525 8759

Deutschland 0900 1101211 (€0.12)

España 902 888 784 (€0.15)

France 08 9165 0005 (€0.23)

0 0800 3122 1280

Ireland 01 764 0292

Italia 899 23 45 06 (€0.25)

Luxemburg/Luxembourg 40 6661 6544

Nederland 0900 8407 (€0.20)

Norge 2270 8111

Österreich 0900 060 827 (€0.20)

Portugal 2 1359 1442

Schweiz/Suisse/Svizzera 0900 001 600

Suomi 0600 412 001

Sverige 08 5792 9100

UK (United Kingdom) 0906 1010 016 (£ 0.15)

Speciﬁcations are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

QSG-SLV5405-AEN-V1.0

Need help?

User manual

See the user manual that came with your wireless TV link.

Online help: www.philips.com/support
