English

Welcome to digital television

Congratulations on choosing the Philips DTR 500 digital terrestrial receiver.Using your Philips digital

receiver will allow you to access Freeview digital terrestrial television,radio and interactive channels.

With this product, you can enjoy advanced functions and features including:

- Award-winning noise-free reception

- Automatic program installation

- Wide screen format

- TV SCART andVCR/DVD SCART connector

- Personal channel list and favourite lists

- Electronic Programme Guide

This User Manual covers the installation of your receiver and the necessary steps to use the various

functions,so you can optimally enjoy classic as well as unique features.

Lucas Covers

Paris,August 2004

2WELCOME TO DIGITAL TELEVISION

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 2

English

Quick installation

Please read the safety section before connecting your receiver.

Requirements for fast and successful first installation are as follows:

• You already have an aerial.

• Your aerial is correctly pointed at the terrestrial transmitter

corresponding to your area (

•Your digital receiver connection is according to the diagram above.

•YourTV set is switched on.

- Connect your receiver to the mains.The receiver front display gets

on and the welcome screen appears.

- Press <OK> to proceed.

The Setup screen appears.The selection is on Service scan.

- Press <OK> to start scanning for channels.

During the channel scan,the following information is reported on screen:

•scanning progress,

•number of channels found.

When scanning is successfully completed,a completion message is displayed.

- Press <OK> to start watchingTV.

To know more about using your digital receiver consult chapter 6.

QUICK INSTALLATION 3

PHILIPS

to AC outlet

TV set

VCR/DVD

ANT IN

ANT OUT

EXT 1

EXT 2

EXT 1EXT 2

For optimum configuration

RF Cable

Terrestrial Receiver

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 3

4TABLE OF CONTENTS

English

Quick installation 3

Meaning of symbols 6

1Safety instructions 6

1.1 For safe operation and optimal

lifetime 6

1.2 Mains connection 7

2Product description 7

2.1 Unpacking 7

2.2 Front view 8

2.3 Rear view 9

3Remote control 10

3.1 Installing the batteries 10

3.2 Using the remote control 11

4Connecting your digital receiver 12

4.1 Connecting to aTV and aVCR both

fitted with one SCART socket 12

4.2 Connecting to your HiFi /Audio

receiver equipment.

(Analogue / Digital) 13

4.3 Connecting to a video projector 14

5First installation 15

5.1 Channel scan 15

5.2 Scanning failure 16

5.3 Repeated scanning failure 16

6Day to day operation 17

6.1 Switch your receiver ON/OFF

(standby) 17

6.2 SelectTV/Radio mode 17

6.3 Change channel 18

6.3.1 Using number buttons 18

6.3.2 Using <P+>/<P-> 18

6.3.3 Using <BACK> (last channel recall) 18

6.3.4 Using the channel list 18

6.3.5 Using your favourite lists 18

6.4 Channel banner 19

6.5 Volume control - / + / 19

6.6 Change temporarily the Subtitle

selection (circular toggle) 20

6.7 Change temporarily theAudio language

selection (circular toggle) 20

6.8 Electronic Programme Guide 20

6.9 Timers 20

6.9.1 Setting a timer when watching

digitalTV 20

6.9.2 Set a timer from the Guide 20

6.9.3 Deleting a running timer 21

6.10 DIGITALTEXT –MHEG interactive

television 21

6.11 Using theTV / STB button 21

6.12 Watching locked channels 21

TABLE OF CONTENTS

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 4

7Change the settings of your

receiver 22

7.1 General information 22

7.1.1 Basics about menu navigation 22

7.1.2 Change setting 22

7.1.3 Cancel/Store changes 22

7.2 Preferences 23

7.2.1 Language 23

7.2.2 Location 23

7.2.3 System settings 24

7.2.3.1 TV 24

7.2.3.2 VCR 24

7.2.3.3 Channel Banner 25

7.2.3.4 Volume 25

7.2.3.5 Remote Control 25

7.3 Installation 25

7.3.1 Service lists 25

7.3.1.1 Rearrange services 26

7.3.1.2 View newTV channels 26

7.3.1.3 Listen to new Radio stations 26

7.3.2 Service setup 27

7.3.2.1 Add new services 27

7.3.2.2 Reinstall all services 27

7.3.3 Test reception 27

7.3.4 Restore factory settings 28

7.4 Information 28

System software 28

7.5 Timers 29

7.5.1 Record/Remind 29

7.5.2 Sleep 30

7.6 Favourites 30

7.6.1 TV Channels 31

7.6.2 Radio Stations 31

7.7 Access Restrictions 31

8Menu tree 32

9Advanced settings 34

9.1 Changing the remote control setting 34

9.2 More about recording 34

9.2.1 Connecting for Prepare Record

or Record Link 34

9.2.2 Digital receiver andVCR settings 35

9.2.3 Recording using theVCR control

feature 35

9.2.4 Errors during recording 35

10 Troubleshooting guide 36

11 Technical specification 38

English

TABLE OF CONTENTS 5

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 5

English

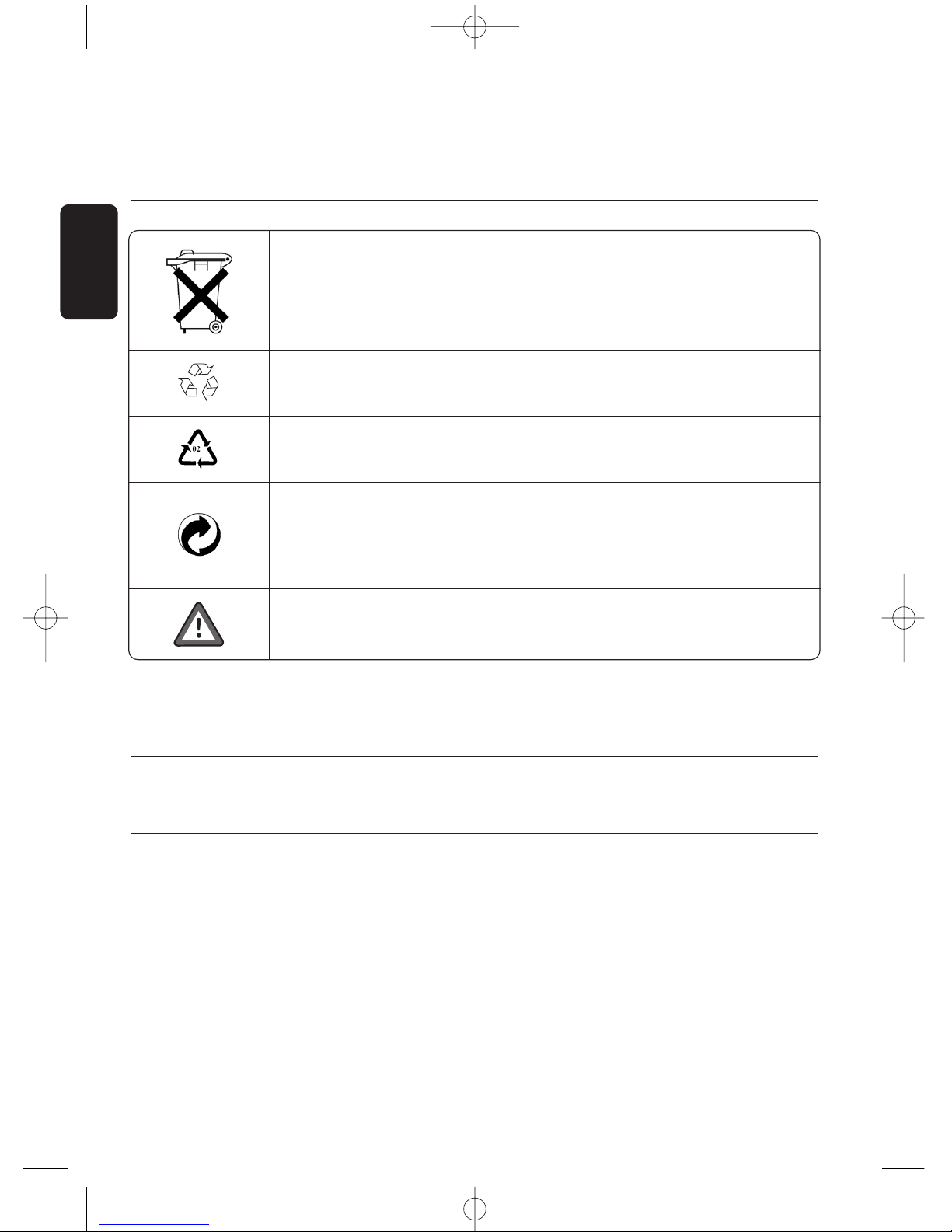

Meaning of symbols

1 Safety instructions

All the safety and operating Instructions should be read and understood before the receiver is

operated.

1.1 For safe operation and optimal lifetime

- Position your receiver away from radiators or other heat sources.

- Leave a space of at least 3 cm around the receiver for ventilation,making sure that the ventilation

slots are not obstructed.

- This receiver is intended for use in a domestic environment only and should never be operated or

stored in excessively hot,humid or damp conditions.

- Make sure no objects or fluids enter the housing through the ventilation slots.Should this happen,

disconnect your receiver from the mains and consult your retailer.

- For cleaning,use damp chamois leather.Never use any abrasive cloth,sponge or cleaner.

- When connecting or disconnecting cables to the receiver always ensure the receiver is

disconnected from the mains.

- Do not disassemble the equipment.There are no user serviceable parts.

6SAFETY INSTRUCTIONS

The “Batteries marking symbol”means used batteries must not be

disposed together with your household waste. Please, inquire about the

local regulations regarding disposal of used batteries.

For information: the Philips batteries supplied with your receiver remote

do not contain hazardous substances such as Mercury, Cadmium, or Lead.

The“Material recyclability symbol ”means the package cardboard or User

manual paper is recyclable.

The “Material recyclability symbol ”affixed on plastic parts means these

parts are recyclable.

The “Green point”affixed on cardboard means PHILIPS pays a financial

duty to the“Avoidance and Recovery of PackagingWaste”organization.

This receiver contains a large number of materials that can be recycled.If

you are disposing of an old machine,please take it to a recycling centre.

The “Warning” symbol means the recommendations must be

read carefully.

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 6

English

1.2 Mains connection

Before connecting the receiver to the mains, check that the mains supply voltage corresponds to the

voltage printed on the rear of the receiver.If the mains voltage is different, consult your dealer.

Important note

This apparatus is fitted with an approved moulded BS1363 plug.

To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse that should be a BS1362ASTA approved type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug

fitted in its place. If the mains plug contains a fuse, this should have a value of 3A.

If a plug without a fuse is used,the fuse at the distribution board should not be greater than 5A.

Note: the severed plug must be destroyed to avoid a possible shock hazard, should it be inserted into an

appropriate socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

- BLUE - "NEUTRAL" ("N")

- BROWN - "LIVE" ("L")

1. The BLUE wire must be connected to the terminal,which is marked with the letter "N" or

coloured BLACK.

2. The BROWN wire must be connected to the terminal,which is marked with the letter "L" or

coloured RED.

3. Do not connect either wires to the earth terminal in the plug that is marked by the letter“E”or by

the safety earth symbol or coloured green or green-and-yellow.Before replacing the plug cover,make

certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Please wait before connecting your receiver - read on.

2 Product description

2.1 Unpacking

Unpack your receiver and check that the following cables and accessories are also included in the

package:

- 1remote control - 1mains cord

- 2 batteries (2 x LR6AA 1,5V) - 1user manual

- 1SCART lead - 1WorldwideWarranty booklet

- 1RF coaxial lead

Plastic bag can be dangerous.To avoid suffocation keep the bag away from babies and

children

PRODUCT DESCRIPTION 7

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 7

1STANDBY button: . . . . . . . . . . . . . . . . . . . . . . . Switch the receiver ON or to standby.

2LED1(Red): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Display receiver status (see status indicator table).

3LED2 (Green/Orange): . . . . . . . . . . . . . . . . . . . Display receiver status (see status indicator table).

4Remote control receiver window

Status indicator table

8PRODUCT DESCRIPTION

English

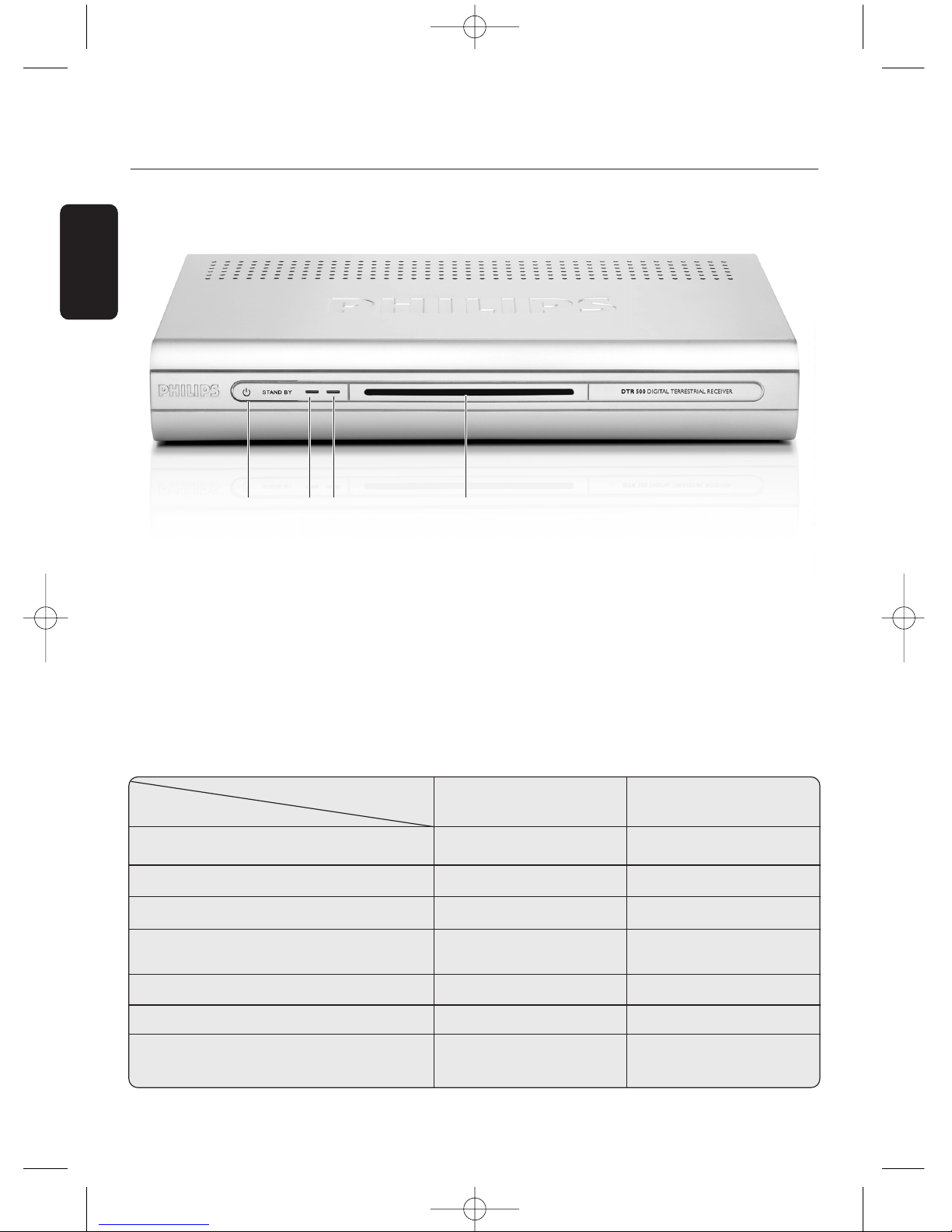

2.2 Front view

LED LED1LED2

Mode (Red) (Green/Orange)

Receiver in Standby ON OFF

WatchingTV OFF green

Listening to the radio OFF blinking green/orange

Pressing a remote control button blinking Depending on

current mode

Timer active ON green

Timer active in Standby ON orange

Software download blinking Depending on

current mode

Q W E R

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 8

English

PRODUCT DESCRIPTION 9

2.3 Rear view

1AERIAL IN (*): . . . . . . . . . . . . . . . . . . . . . . . . . Input to connect your UHF aerial.

2RF OUT (*): . . . . . . . . . . . . . . . . . . . . . . . . . . . . RF output to be connected to the aerial input of your

video recorder orTV set, refer to chapter 4 for

recommended connection diagrams.

3TV(*): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect yourTV set or a video

projector (2).

4SERIAL (*): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RS232 socket for serial data transfer during servicing.

5VCR (*): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect your video recorder.

6LAN: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Currently idle. For future use.

7L/RAUDIO OUT (*):. . . . . . . . . . . . . . . . . . Left/Right analogue audio-cinch outputs to connect your

HiFi/audio receiver system.

8DIGITAL (*): . . . . . . . . . . . . . . . . . . . . . . . . . . . . Digital audio-cinch output to connect your HiFi/audio

receiver system.

9230V~50Hz 15W max (**): . . . . . . . . . . Socket to connect the mains cord.

The label showing the type and serial number is underneath the receiver.

(1) SCART is also called Euroconnector or Peritel.

(2)To connect a video projector to theTV SCART socket refer to paragraph 4.3.

* Safety Extra LowVoltage

** HazardousVoltage

Q E R U I

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 9

10 REMOTE CONTROL

English

3 Remote control

3.1 Installing the batteries

- Remove the back cover

- Insert two batteries (type R06G/AA - 1.5V) supplied.

- Position them as shown in the diagram situated in the remote battery compartment.

- Replace the cover.

- Your remote is now ready to control your digital terrestrial receiver.

Note: batteries are removable from the remote control with common household tools (e.g. screwdriver).

Do not dispose of the batteries

with your household waste.

NOTICE DTR 500.qxd 7/09/2004 15:24 Page 10

Table des matières

Autres manuels Philips Récepteur

Philips

Philips TransCast DLV92009/10 Manuel utilisateur

Philips

Philips Digital Cable Receiver DCR2022 Manuel utilisateur

Philips

Philips PFS0001/12 Manuel utilisateur

Philips

Philips DSR2015/00 Manuel utilisateur

Philips

Philips DSX6073/03A Manuel utilisateur

Philips

Philips HTS3100 Series Manuel utilisateur

Philips

Philips MX999D Manuel utilisateur

Philips

Philips Streamium SL50i Manuel utilisateur

Philips

Philips MX5500D/21S Manuel utilisateur

Philips

Philips DTR6600/00 Manuel utilisateur

Philips

Philips CED780 Manuel utilisateur

Philips

Philips SLA5500NS Guide de démarrage rapide

Philips

Philips Matchline DSR5600 Manuel utilisateur

Philips

Philips STU801/05R Manuel utilisateur

Philips

Philips DIT9719 Manuel utilisateur

Philips

Philips FR-984 Manuel utilisateur

Philips

Philips MX1015D37 Manuel utilisateur

Philips

Philips MRD300/37 Manuel utilisateur

Philips

Philips SL400I/37B Manuel utilisateur

Philips

Philips FR-975 Manuel utilisateur

Philips

Philips AE3805 Manuel utilisateur

Philips

Philips DTR 1000 Manuel utilisateur

Philips

Philips FR752/01X Manuel utilisateur

Philips

Philips DSX 5500 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
