WELCOME

Congratulations on your choice of PHILIPS satellite receiver. This PHILIPS satellite receiver will

allow you to obtain digital satellite programmes and services.

Note:

- This product is destined for Netherlands.

- You need to take out a subscription to access the services of CANALDIGITAAL. Refer to your "Welcome

packet".

CONTENTS

English

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 1

2CONTENTS

10 Radio channels _________________23

11 The channels ___________________24

11.1 List of the channels _____________24

11.2 Altering the numbering of the

channels ______________________24

11.3 Adding new channels ____________25

11.4 Removing channels ______________25

11.5 Reinstalling channels _____________25

12 Subscription programmes (not yet

available) ______________________26

13 Information for subscribers (not yet

available) ______________________26

15 Troubleshooting ________________27

16 Technical specifications _________29

17 More on your remote control ____30

17.1 TV mode (TV) _________________31

17.2 VCR and DVD mode (VCR, DVD) _32

17.3 Amplifier/Tuner mode (AMP) ______33

English

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 2

SAFETY INSTRUCTIONS 3

All the safety and operating Instructions

should be read and understood before the

appliance is operated.

For best results:

- position your receiver away from

radiators or other heat sources. Leave a

space of at least 3 cm around the

receiver for ventilation making sure that

the ventilation holes are not obstructed.

- This receiver is intended for use in a

domestic environment only and should

never be operated or stored in

excessively hot, humid or damp

conditions.

- Make sure no objects or fluids enter the

housing through the ventilation slots.

Should this happen, disconnect your

receiver from the mains and consult your

retailer.

- For cleaning, use a damp chamois leather.

Never use any abrasive cloth, sponge or

cleaner.

- When connecting or disconnecting cables

to the receiver always ensure the

receiver is disconnected from the mains.

Do not disassemble the equipment. There

are no user serviceable parts.

Mains connection

Before connecting the receiver to the

mains, check that the mains supply voltage

corresponds to the voltage printed on the

rear of the receiver. If the mains voltage is

different, consult your dealer.

Plastic bags can be dangerous. To avoid

suffocation keep the bag away from babies

and children.

The Symbol on the packaging

means that material is recyclable.

If the receiver will not be used for a long

time, unplug the mains cord from the wall

socket.

1 Safety instructions

English

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 3

2 Product description

2.1 Front view

2.1.1 Type 1 Front

1Stand-by button: Switch receiver On or Standby.

Reset the receiver, in case of hanging up, after a 5 second keypress.

2"W": Move down in the screens or select the previous program.

3"V": Move up in the screens or select the next program

4Smart card reader.

5OK button: Confirm your selection

6Display: Display the program number whenever the receiver is operating (*)

Display time whenever the receiver is in Stand-by mode (*)

(*) The text "auto-update" is running on the display when a free over-the-air upgrade of your receiver is

taking place. Do not interrupt this operation, which may last several minutes. Wait until the word "Stor" is

displayed on the display.

2.1.2 Type 2 Font

1Stand-by button: Switch receiver On or Standby.

Reset the receiver, in case of hanging up, after a 5 second keypress.

2OK button: Button to confirm your selection.

3Smart card reader.

English

4PRODUCT DESCRIPTION

123

456

3456

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 4

PRODUCT DESCRIPTION 5

4"W" button: Channel down.

5Red LED indicator: Is lit whenever the receiver is operating.

Is lit with lower intensity whenever the receiver is in Stand-by mode (*).

6“V” button: Channel up.

(*): Note: if the LED is slowly blinking, it indicates that a free over the air upgrade of your receiver is taking

place. Do not interrupt this operation which may last several minutes. Wait until the LED stops blinking.

The LED blinks rapidly when receiving remote control signal.

2.2 Rear view

1TV (*): SCART (1) socket to connect to your TV set.

2Digital audio output (*): Coaxial Digital audio output to connect your HIFI / Audio receiver

system.

3Serial (*): RJ 9 socket for serial data transfer during servicing.

4230V~50Hz 25W max (**): Socket to connect the Mains cord.

5Label showing the type and serial number of the receiver.

6VCR (*): SCART (1) socket to connect your video recorder.

7L/R Audio out (*): Left/Right audio-cinch outputs to connect your HIFI / Audio receiver

system.

8SAT IN (*): Socket for satellite dish.

1) SCART is also called Euroconnector or Peritel.

(*): SELV: Safety Extra Low Voltage.

(**): HV: Hazardous Voltage.

English

45 6 78

123

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 5

6PRODUCT DESCRIPTION

English

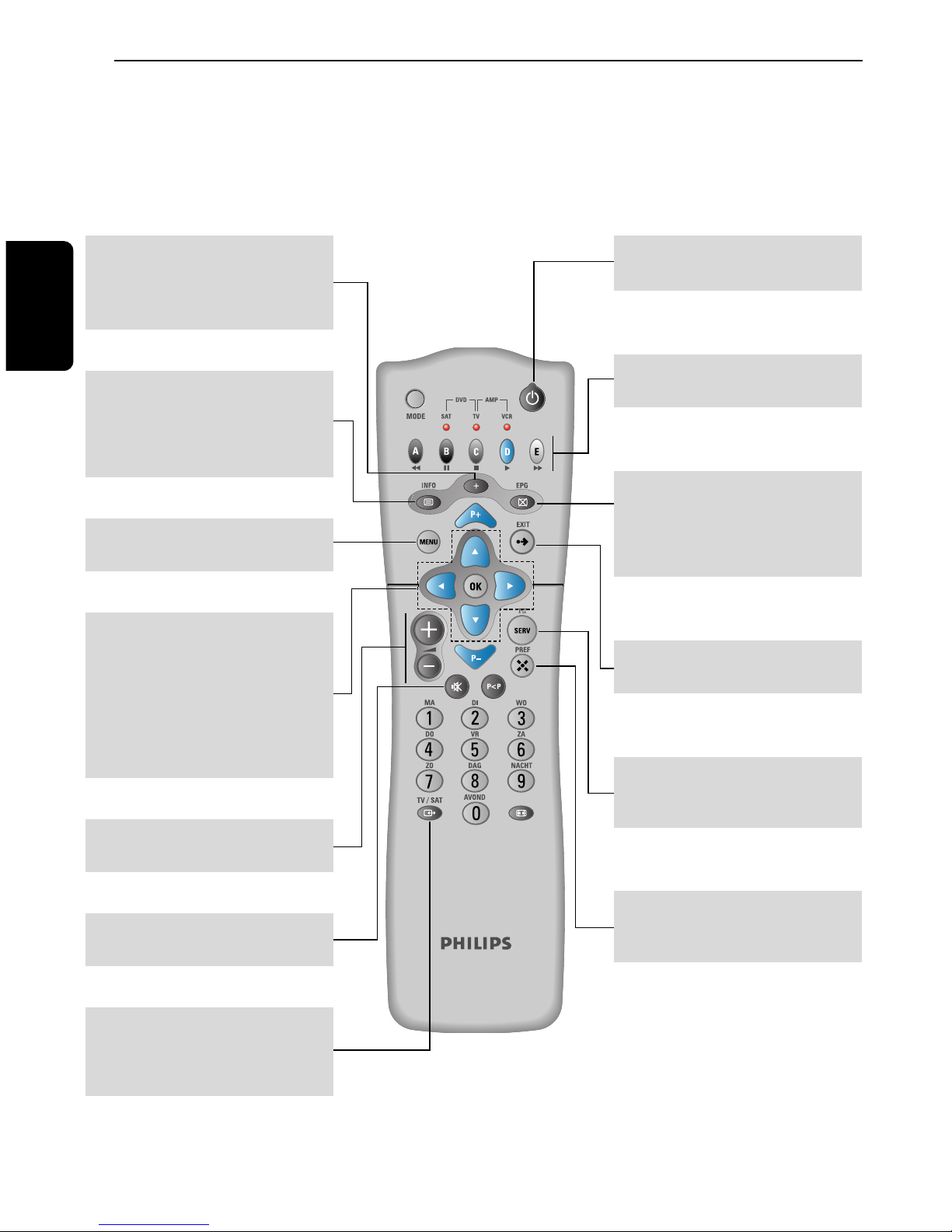

2.3 The remote control

SATELLITE MODE (SAT)

To reach the main menu.

Detailed information about a

programme or selection of

language and/or subtitling.

INFO

To display on screen an

information bar with

information about the

programme.

TV/SAT

Switch between watching from

digital receiver or directly from

the TV cable.

Button to confirm your

selection.

CBVW

Buttons to select the menus,

programmes or to adjust the

volume.

+ -

Adjusts the TV volume.

Mute/demute the sound.

Standby B

On/Off button.

A, B, C, D, E:

Function buttons.

PREF

To switch your favourite

channels on and off.

SERV

Information about your

subscription.

EPG

ELECTRONICAL

PROGRAMME GUIDE with

information about the

programmes.

EXIT

To return to a TV programme.

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 6

PRODUCT DESCRIPTION 7

English

Your 5 in 1 Remote Control enables you to

control most of your Audio/Video

Equipment through various modes:

satellite receiver, TV, VCR, DVD and

Amplifier Tuner.

Pressing the MODE button once will remind

you of the MODE you are in through

blinking lights: left for SAT, middle for TV,

right for VCR, left/middle for DVD,

middle/right for Amp/Turner.

To set the MODE, press the MODE button

several times until the desired mode is

reached. The sequence is: SAT->TV-

>VCR->DVD->Amp/Tuner.

At every keypress, lights blink to indicate in

which MODE you are in.

Note:

some keys are shortcut keys to other MODES. In

this case, the lights do not indicate the current

MODE! (e.g. if you are in VCR MODE, pressing

the volume keys will light the TV/middle

indicator).

Chapter 16 gives you all the information

about the functions available in TV, VCR,

DVD and Amp/Tuner modes as well as

instructions on how to setup you remote

control for your different audio-video

appliances.

• Remove the battery cover.

• Insert the two batteries (type LR6/AA -

1.5 V) supplied.

• Position them as shown in the diagram, in

the battery compartment.

• Replace the cover.

The Philips batteries supplied with your

receiver's remote control do not contain

any heavy metals such as Mercury or Nickel

Cadmium. Nevertheless, in many countries,

used batteries may not be disposed of with

your household waste.

Please inquire about the local regulations

regarding the disposal of used batteries.

Do not dispose of

them with

your household

waste.

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 7

8CONNECTING UP THE RECEIVER

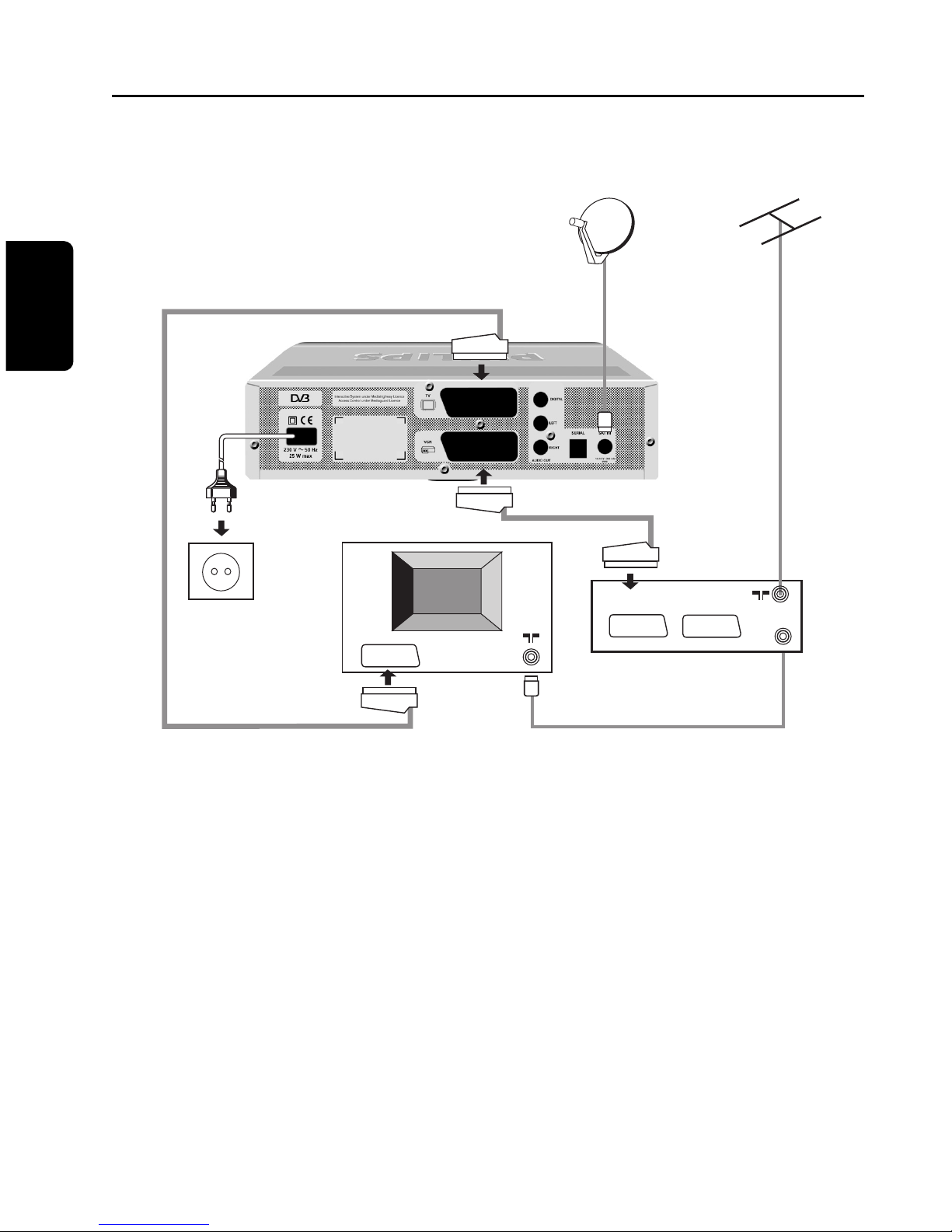

3 Connecting up the receiver

In this chapter, you will learn how to connect up the Philips digital satellite receiver to your

existing equipment, such as a TV or VCR.

Note:

- To watch a video cassette.

We advise you, when you want to watch a video cassette, to put your receiver on stand by.

- Digital cordless telephone.

If you have a digital cordless telephone (DECT), it may sometimes block the signal of your receiver / TV.

We advise you not to keep both appliances close to one other.

- Smart card.

Please leave your smart card in the receiver so that your subscription can be extended every month.

- Further guarantees.

If the satellite receiver breaks down within the period of guarantee, Philips Nederland will exchange it. In

this case, the customer agrees to return the original appliance purchased.

EXT1

EXT2

EXT1

Satellite dish

Scart socket

Satellite receiver

Mains plug

Scart socket

Video recorder

English

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 8

CONNECTING UP THE RECEIVER 9

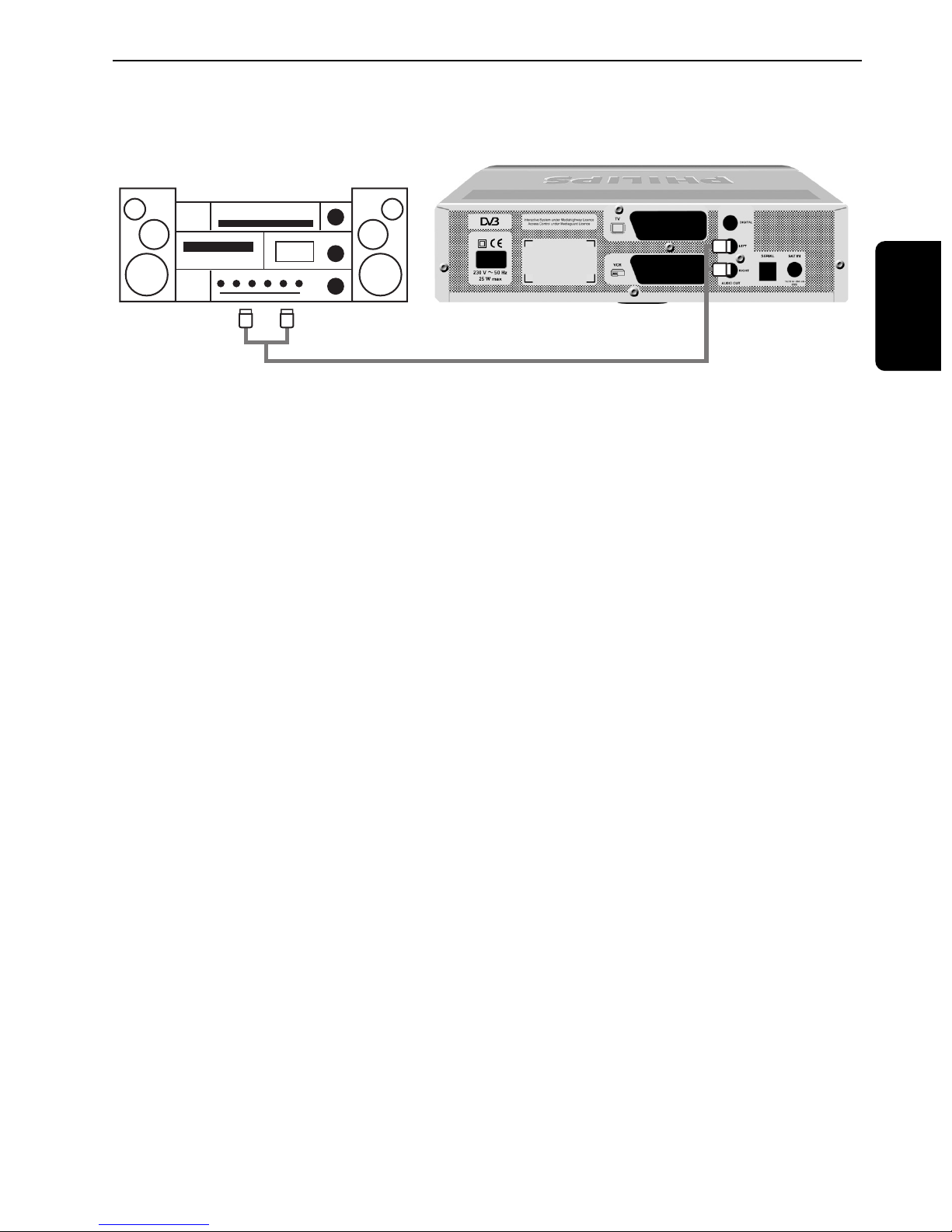

3.1 Connecting to your HiFi/Audio receiver equipement

(Analogue/Digital)

Depending on your HiFi / Audio receiver equipment, you might have several options to connect

your digital receiver.

ANALOGUE CONNECTION

Connect the L/R audio output sockets to the relevant L/R audio input sockets of your audio

equipment using a double CINCH cable (not supplied). Consult the user manual of your

HiFi/Audio receiver equipment to choose the proper analogue audio inputs.

Note: With this connection set up you can control the audio volume up/down and mute using your digital

receiver or Hi-fi remote control.

DIGITAL CONNECTION

Connect the audio "DIGITAL" output socket to the relevant digital audio input socket of your

audio equipment using a single CINCH cable (not supplied). Consult the user manual of your

HiFi/Audio receiver equipment to choose the proper digital audio input.

Note: With this connection set up you can only control the audio volume up/down and mute with your HiFi /

Audio Receiver remote control, refer to the relevant user manual.

Satellite receiver

HiFi

English

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 9

10 MENU STRUCTURE

4 Menu structure

English

MENU TERUG NAAR TV

PROGRAMMA'S OPNEMEN

VOORKEURKANALEN KIEZEN

CODE EN KINDERSLOT

INSTELLINGEN

KANALEN INSTALLEREN

INFORMATIE ABONNEMENT EN BRIEVENBUS

TECHNISCHE INFORMATIE

Setting the time and the channel to tape a video.

Setting your favourite channels.

Entering and altering of the code and entering of a

parental lock.

Installation of the receiver, TV, VCR and modem.

To enter, add and remove channels, to alter the

sequence of the channels and the summary of the

channel list.

To consult the period of validity of the subscription

and read the CanalDigitaal messages.

Checking the reception signal strength, installation

of the aerial and consulting the decoder and

software version.

INSTELLINGEN

A TERUG NAAR MENU

INSTELLEN DECODER

2INSTELLEN TV/VIDEORECORDER

TECHNISCHE INFORMATIE

A TERUG NAAR MENU

SIGNAALSTERKTE

2DECODERVERSIE

Altering the TV and VCR standard settings.

Altering the volume, subtitling, spoken language,

length of time the information bar remains on the

screen, the reminder and the time.

Checking the LNB installations and setting the

aerial.

Consulting the decoder and software version.

DSR2210-2211GB.qxd 17/11/2005 10:33 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Récepteur

Philips

Philips DSR5005 Manuel utilisateur

Philips

Philips STU330A Manuel utilisateur

Philips

Philips FR-975 Manuel utilisateur

Philips

Philips DRE420SY Manuel utilisateur

Philips

Philips STU801/05R Manuel utilisateur

Philips

Philips FR740 Manuel utilisateur

Philips

Philips FR 931 Manuel utilisateur

Philips

Philips LX 3700D Manuel utilisateur

Philips

Philips RFX2001/27 Manuel utilisateur

Philips

Philips Digital Cable Receiver DCR2022 Manuel utilisateur

Philips

Philips FR735 Manuel utilisateur

Philips

Philips FR 752 Guide de démarrage rapide

Philips

Philips HTS3105MKI Manuel utilisateur

Philips

Philips MX2500/01 Manuel utilisateur

Philips

Philips DTP2340 - S Manuel utilisateur

Philips

Philips Streamium SL50i Manuel utilisateur

Philips

Philips MX6050D Manuel utilisateur

Philips

Philips SLA5500NS Guide de démarrage rapide

Philips

Philips MX1015D37 Manuel utilisateur

Philips

Philips Streamium SLA5520 Manuel utilisateur

Philips

Philips D2902 Manuel utilisateur

Philips

Philips ShowView LX9000R Manuel utilisateur

Philips

Philips Streamium SL50i Guide de démarrage rapide

Philips

Philips AW2000 Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
