Philips MCM233 Manuel utilisateur

Version 1.2

MCM233

3141 785 34892

Sleek micro music system -/12/55/79/78/98

Published by LX 1042 Service Audio Subject to modification

system or transmitted, in any form or by any means, electronic, mechanical, photocopying,

or otherwise without the prior permission of Philips.

CONTENTS

Technical specification ..................................................................1-2

Service measurement setup..........................................................1-3

Service aids .................................................................................1-4

Instructions on CD playability ...............................................2-1.. 2-2

Block diagram................................................................................3-1

Wiring diagram ..............................................................................3-2

Main board

Circuit diagram ..................................................................4-1..4-2

Layout diagram..................................................................4-3..4-4

Key board

Circuit diagram .........................................................................5-1

Layout diagram.........................................................................5-2

Exploded view diagram .................................................................8-1

Revision list....................................................................................9-1

LCD board

Circuit diagram .........................................................................6-1

Layout diagram.........................................................................6-2

Headphone board

Circuit diagram .........................................................................7-1

Layout diagram.........................................................................7-2

Ampli?er

Total output power 2 x 10 W RMS

Frequency

response 80 Hz - 16 kHz, ± 3 dB

Signal to noise ra o > 60 dB

MP3 link input 0.5 V RMS 20 k

Disc

Laser type Semiconductor

Disc diameter 12 cm /8 cm

Support disc C D -DA, C D -R, C D -

RW, MP3-C D, W MA-

Audio DA C 24 Bits / 44.1 kH z

Total harmonic

distor on < 1.5%

Frequency

response

60 Hz -16 kHz (44.1

kHz)

Signal to noise ra o > 55 dBA

Tuner

Tuning range FM: 87.5 - 108 MHz

Tuning grid 50 KHz

Number of presets 20

Speakers

Speaker impedance 2 x 10 W , 6

General informa on

AC power 100-240V~ ,

50/60H Z

Opera onPower

Co nsump on

15 W

Standby Power Co nsump on 1 W

Eco Power Standby Power

Co nsump on

0.8 W

USB Direct Version 2.0/1.1

Dimensions

- Main Unit (W x H x D )

565 x 245 x

104 mm

Weight

-MainUnit 2.7kg

TECHNICAL SPECIFICATION

1 - 2

Type /Versions:

Features

Board in used:

MCM233

Service policy

KEY BOARD

LCD BOARD

* TIPS : C -- Component Lever Repair.

M -- Module Lever Repair

√-- Used

Feature diffrence

RDS & DAB

VOLTAGE SELECTOR

ECO STANDBY - DARK

Type /Versions:

/12

VERSION VARIATION

√

POWER KEY BOARD

MCM233

/12 /55

OPEN/CLOSE BOARD C

/55

√

/79

REMOTE INCEPT BOARD

RADIO BOARD

MAIN BOARD

USB BOARD

/98

M/C

/79 /98

√

/78

M/C

/78

√

1-3

LF Generator

e.g. PM5110

Recorder

Use Universal Test Cassette CrO2 SBC419 4822 397 30069

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion met

e.g. Sound Technology ST170

DUT

or Universal Test Cassette Fe SBC420 4822 397 30071

LEVEL METER

e.g. Sennheiser UPM550

with FF

filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

Use Audio Signal Disc

(replaces test disc 3)

SBC429 4822 397 30184

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

S/N and distortion meter

e.g. Sound Technology ST1700B

Frame aerial

e.g. 7122 707 89001

Tuner AM (MW,LW)

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.

Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

RF Generator

e.g. PM5326

Ri=50:

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

RF Generator

e.g. PM5326

S/N and distortion meter

e.g. Sound Technology ST1700B

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Ri=50:

Tuner FM

MEASUREMENT SETUP

1-4

SERVICE AIDS

GB WARNING

All ICs and many other semi-conductors are

susceptible to electrostatic discharges (ESD).

Careless handling during repair can reduce life

drastically.

When repairing, make sure that you are

connected with the same potential as the mass

of the set via a wrist wrap with resistance.

Keep components and tools also at this

potential.

ESD

CLASS 1

LASER PRODUCT

Safety regulations require that the set be restored to its original

condition and that parts which are identical with those specified,

be used

Safety components are marked by the symbol !.

Lead free

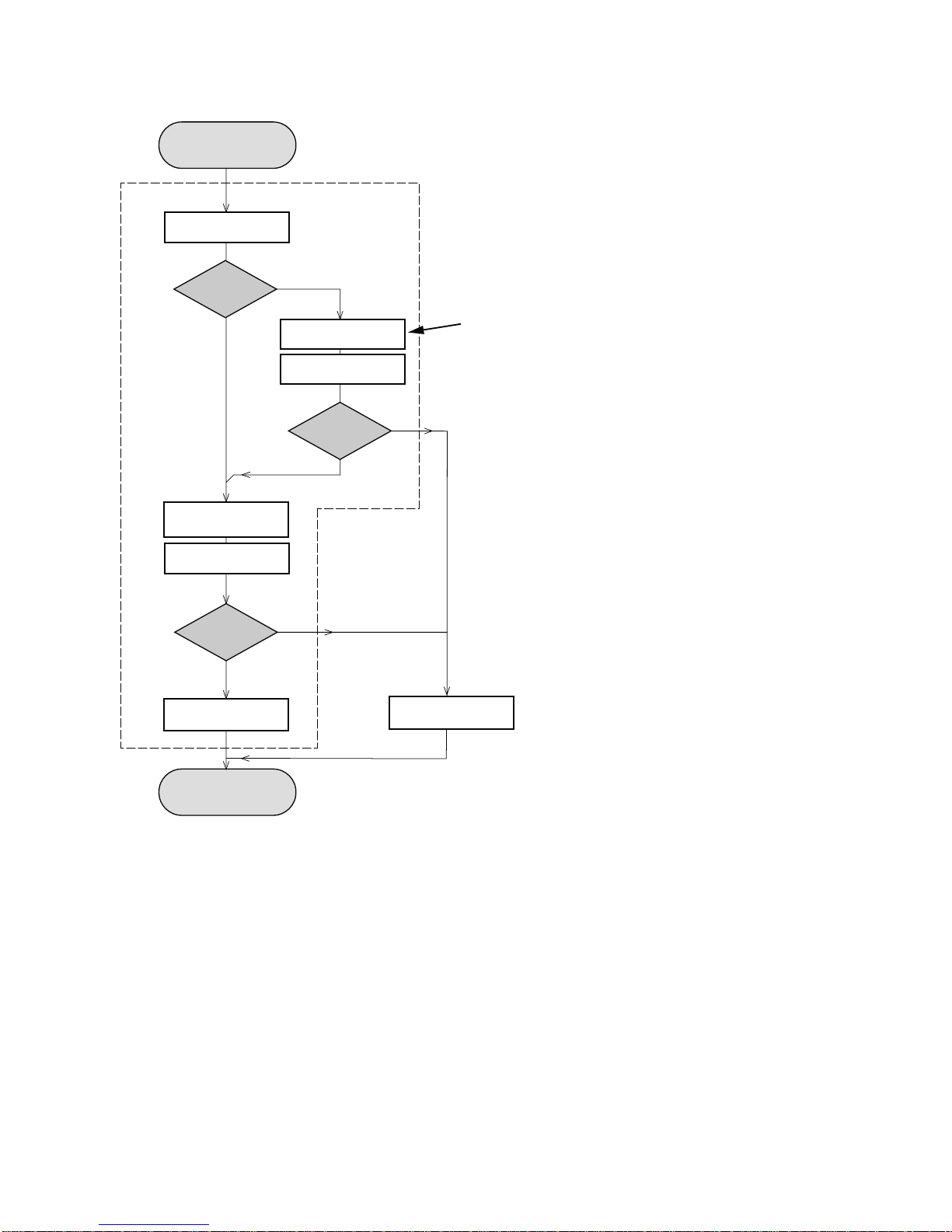

Set remains closed!

Play a CD

for at least 10 minutes

playability

ok ?

playability

ok ?

add Info for customer

"SET OK"

check playability

playability

ok ?

check playability

return set

Customer complaint

"CD related problem"

"fast" lens cleaning

3For flap loaders (= access to CD drive possible)

cleaning method 4is recommended

INSTRUCTIONS ON CD PLAYABILITY

2 - 1

Exchange CDM

1-4For description - see following pages

PLAYABILITY CHECK

For sets which are compatible with CD-RW discs

use CD-RW Printed Audio Disc....................7104 099 96611

TR 3 (Fingerprint)

TR 8 (600µ Black dot) maximum at 01:00

• playback of these two tracks without audible disturbance

playing time for: Fingerprint 10seconds

Black dot from 00:50 to 01:10

• jump forward/backward (search) within a reasonable time

For all other sets

use CD-DA SBC 444A..................................4822 397 30245

TR 14 (600µ Black dot) maximum at 01:15

TR 19 (Fingerprint)

TR 10 (1000µ wedge)

• playback of all these tracks without audible disturbance

playing time for: 1000µ wedge 10seconds

Fingerprint 10seconds

Black dot from 01:05 to 01:25

• jump forward/backward (search) within a reasonable time

CUSTOMER INFORMATION

It is proposed to add an addendum sheet to the set which

informs the customer that the set has been checked

carefully - but no fault was found.

The problem was obviously caused by a scratched, dirty or

copy-protected CD. In case problems remain, the customer

is requested to contact the workshop directly.

The lens cleaning (method 3) should be mentioned in the

addendum sheet.

The final wording in national language as well as the printing

is under responsibility of the Regional Service Organizations.

LIQUID LENS CLEANING

Because the material of the lens is synthetic and coated

with a special anti-reflectivity layer, cleaning must be done

with a non-aggressive cleaning fluid. It is advised to use

“Cleaning Solvent

The actuator is a very precise mechanical component and

may not be damaged in order to guarantee its full function.

Clean the lens gently (don’t press too hard) with a soft and

clean cotton bud moistened with the special lens cleaner.

The direction of cleaning must be in the way as indicated in

the picture below.

Before touching the lens it is advised to clean the

surface of the lens by blowing clean air over it.

This to avoid that little particles make scratches on

the lens.

INSTRUCTIONS ON CD PLAYABILITY

2 - 2

SET BLOCK DIAGRAM

3 - 1 3 - 1

SET WIRING DIAGRAM

3 - 2 3- 2

Set disassembly diagram

1)Romove the 12pcs screws(BT3x12) on the side cabinet to discharge the rear cabinet and place it well;

3-3 3-3

1)R

omove

pcs screws

(BT3

12)

e s

e ca

arge

e rear ca

ace

;

2)Remove the FFC cable on IPOD BD from Main BD,1st get remote control lens out, then remove the 4pcs screws (PA 2.3x8) which fix IPOD BD to discharge IPOD BD;

3)Remove all cables on Main BD;

PS: Get your hand to the Main BD as close as possible when you unplug the cables to avoid destroying cables;

4)Remove the 4pcs screws(PT 3x8) on Main BD rip off the black paper from FCC cable on CD deck discharge Main BD and place it well;

4)Remove

the

4pcs

screws(PT

3x8)

Main

rip

off

the

black

paper

from

FCC

cable

deck

discharge

Main

and

place

well;

IPOD cable Display BD

cable

Motor

Cable

Open

button

FFC cable

to CD

deck

IPOD Assembly

IPOD cable

DC cable

Display BD

cable

Motor

Cable

2P cable to

right SPK

Open

button

FFC cable

to CD

deck

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

pic1pic2pic3pic4

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

pic1pic2pic3pic4

5)Remove the 4pcs screws(PT3x8) on CD deck, please add some soldering on the weld protect point and keep it in a ant-static bag;

6)Remove the 4pcs screws(PA 2.3x8 ) on Display BD, discharge Display BD and paste protect film on it and place it well;

7)Draw the CD door with your right hand,press one buckle with your left hand(pic 7-1),then press the other buckle(pic 7-2),discharge CD door and place it well;

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

pic1pic2pic3pic4

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

bkl

pic1pic2pic3pic4

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

protect

weld

point

buckle

pic1pic2pic3pic4

IPOD Assembly

IPOD cable

Remote

Control

DC cable

Display BD

cable

Motor

Cable

2P cable to

left SPK

2P cable to

right SPK

Open

button

6P Deck cable

FFC cable

to CD

deck

protect

weld

point

buckle

pic1pic2pic3pic4

pic5pic6pic7‐1pic7‐2pic7‐3

4 - 14 - 1

CIRCUIT DIAGRAM - MAIN BOARD

PART 1

Autres manuels pour MCM233

Table des matières

Autres manuels Philips Système audio micro

Philips

Philips DualDock DCM3260 Manuel utilisateur

Philips

Philips MCD1060/93 Manuel utilisateur

Philips

Philips DCM278/12 Manuel utilisateur

Philips

Philips MC-55 Manuel utilisateur

Philips

Philips BTM2312 Manuel utilisateur

Philips

Philips MCD268/93 Manuel utilisateur

Philips

Philips MCD289/98 Manuel utilisateur

Philips

Philips DCM2060/93 Manuel utilisateur

Philips

Philips MCM277/12 Manuel utilisateur

Philips

Philips DCB188/05 Manuel utilisateur

Philips

Philips DCD2030 Manuel utilisateur

Philips

Philips BTM2180/37 Manuel utilisateur

Philips

Philips MCD122/77 Manuel utilisateur

Philips

Philips DCM3100 Manuel utilisateur

Philips

Philips MCD710/12 Manuel utilisateur

Philips

Philips BTM2360/77 Manuel utilisateur

Philips

Philips MCM1350/55 Manuel utilisateur

Philips

Philips MCM761/12 Manuel utilisateur

Philips

Philips DCB2070/10 Manuel utilisateur

Philips

Philips DCM105/05 Manuel utilisateur

Philips

Philips MCM2300 Fiche d'information produit

Philips

Philips MCM103B/77 Manuel utilisateur

Philips

Philips DCB3270W Manuel utilisateur

Philips

Philips DCD2030/55 Manuel utilisateur

Manuels Système audio micro populaires d'autres marques

Rautz

Rautz MC-5100DU Manuel utilisateur

Sanyo

Sanyo DC-D9 Manuel utilisateur

Curtis

Curtis RCD744 Manuel utilisateur

Samsung

Samsung MM-UC8 Manuel utilisateur

Akai

Akai AMP300UCI Manuel utilisateur

Hyundai

Hyundai MS 132 DU3BL Manuel utilisateur

JVC

JVC UX-GP5 Manuel utilisateur

Tiger Electronics

Tiger Electronics Hitclips Beat Bot 6000 Manuel utilisateur

Optimus

Optimus SYSTEM 731 Manuel utilisateur

Hitachi

Hitachi AXM209UK Manuel utilisateur

Sharp

Sharp XL-MP110DVD Manuel utilisateur

Tiger Electronics

Tiger Electronics Hitclips Micro Music Watch 59947 Manuel utilisateur

ProAudio

ProAudio MC 9010 iP Manuel utilisateur

Samsung

Samsung MM-ZJ9 Manuel utilisateur

Sharp

Sharp MD-X7 Manuel utilisateur

Sharp

Sharp DK-KP95P Manuel utilisateur

Akura

Akura APTCDC832PR Manuel utilisateur

iLive

iLive IHB248B Manuel utilisateur
