Philips MCM148 Manuel utilisateur
MCM148/55
©Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without
the prior permission of Philips.
Published by SL 0731 Service Audio Printed in The Netherlands Subject to modification
Micro System
Version 1.0
CLASS 1
LASER PRODUCT
©3141 785 32030
TABLE OF CONTENTS Page
Location of PCBs..................................................................1-2
Specifications .......................................................................1-3
Measurement Setup.............................................................1-4
Service Aids, Safety Instruction, etc.....................................1-5
CD Playability Check..................................................1-6 to 1-8
Software Version Checking .....................................................2
Set Block Diagram...................................................................3
Set Wiring Diagram .................................................................4
Main Board..............................................................................5
Front/MCU Board ....................................................................6
Set Mechanical Exploded View & Parts List............................7
Revision List............................................................................9
Electrical Parts List..................................................................8
PCBS LOCATION
FRONT BOARD
MAIN BOARD
1-2
1-3
AMPLIFIER
Output power ........................................... 2 x 2W RMS
Signal-to-noise ratio .......................... ı60 dBA (IEC)
Frequency response ....................... 125 – 16000 Hz
Impedance loudspeakers ........................................... 8"
CD PLAYER
Frequency range ............................... 125 – 16000 Hz
Signal-to-noise ratio ............................................ 65 dBA
TUNER
FM wave range ................................... 87.5 – 108 MHz
MW wave range ................................ 530 – 1700 kHz
Sensitivity
– FM 26 dB sensitivity .......................................... 20 µV
– MW 26 dB sensitivity ................................... 5 mV/m
Total harmonic distortion..................................... İ5%
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 134 x 230 x 152 (mm)
GENERAL INFORMATION
AC Power ............................ 110 – 127 / 220 – 240V
....................................................... 50/60 Hz, switchable
Dimensions (w x h x d) .. 148 x 233 x 216 (mm)
Weight (with/without speakers) ..................................
......................................................... approx. 3.65 / 1.53 kg
Power consumption
Active .......................................................................... 15 W
Standby .................................................................... < 4 W
Specifications and external appearance are
subject to change without notice.
SPECIFICATIONS
LF Generator
e.g. PM5110
Recorder
Use Universal Test Cassette CrO2 SBC419 4822 397 30069
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
or Universal Test Cassette Fe SBC420 4822 397 30071
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
CD
Use Audio Signal Disc
(replaces test disc 3)
SBC429 4822 397 30184
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
RF Generator
e.g. PM5326
Ri=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Ri=50Ω
Tuner FM

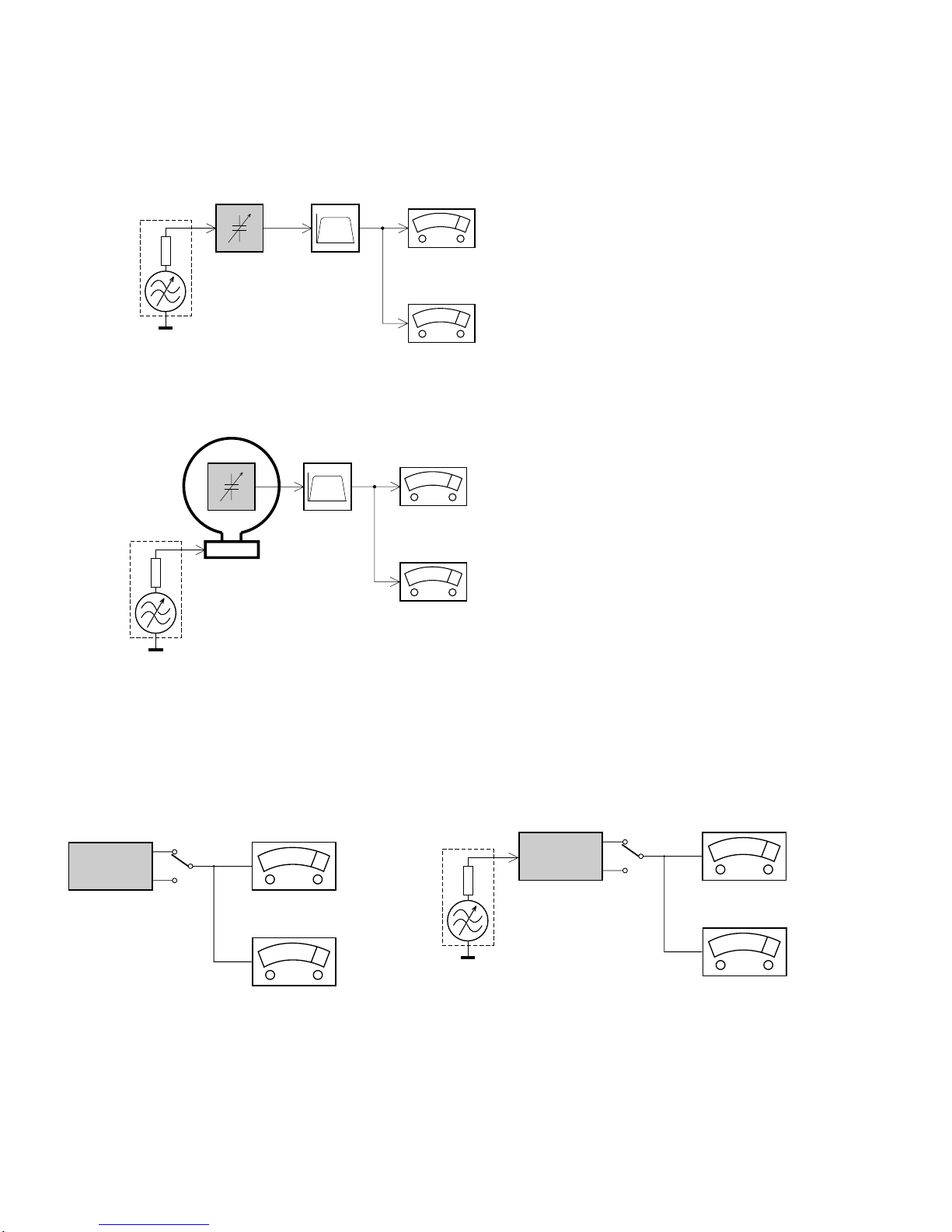

MEASUREMENT SETUP
1-4
1-5
Service Tools:
Universal Torx driver holder .................................4822 395 91019
Torx bit T10 150mm ...........................................4822 395 50456
Torx driver set T6-T20 .........................................4822 395 50145
Torx driver T10 extended .....................................4822 395 50423
Compact Disc:
SBC426/426A Test disc 5 + 5A ...........................4822 397 30096
SBC442 Audio Burn-in test disc 1kHz .................4822 397 30155
SBC429 Audio Signals disc .................................4822 397 30184
Dolby Pro-logic Test Disc ....................................4822 395 10216
SERVICE AIDS
GB WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
ESD
CLASS 1
LASER PRODUCT
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used
Safety components are marked by the symbol !.
Lead free
Set remains closed!
Standard repair procedure
N
Y
Play a CD
for at least 10 minutes
Y
playability
ok ?
N
playability
ok ?
add Info for customer
"SET OK"
playability
ok ?
Y
N
check playability
N
Y
playability
ok ?
check playability
check playability
EYE-Pattern
ok ?
N
Y
check "EYE-Pattern"
replace CD Drive
Laser current
ok ?
N
Y
check Laser current
CD Drive offsets
ok ?
N
Y
check CD Drive offsets
clean the lens
check playability
return set
Customer complaint
"CD related problem"
return set
return set
replace CD Drive
return set
replace CD Drive
return set
replace Signal Processor
return set
"fast" lens cleaning
1
2
3
4
5
6
7
For flap loaders (= access to CD drive possible)
cleaning method 4is recommended
1- 7For description - see following pages
INSTRUCTIONS ON CD PLAYABILITY
1-6
1
PLAYABILITY CHECK
For sets which are compatible with CD-RW discs
use CD-RW Printed Audio Disc....................7104 099 96611
TR 3 (Fingerprint)
TR 8 (600µ Black dot) maximum at 01:00
• playback of these two tracks without audible disturbance
playing time for: Fingerprint ≥10seconds
Black dot from 00:50 to 01:10
• jump forward/backward (search) within a reasonable time
For all other sets
use CD-DA SBC 444A..................................4822 397 30245
TR 14 (600µ Black dot) maximum at 01:15
TR 19 (Fingerprint)
TR 10 (1000µ wedge)
• playback of all these tracks without audible disturbance
playing time for: 1000µ wedge ≥10seconds
Fingerprint ≥10seconds
Black dot from 01:05 to 01:25
• jump forward/backward (search) within a reasonable time
2
CUSTOMER INFORMATION
It is proposed to add an addendum sheet to the set which
informs the customer that the set has been checked
carefully - but no fault was found.
The problem was obviously caused by a scratched, dirty or
copy-protected CD. In case problems remain, the customer
is requested to contact the workshop directly.
The lens cleaning (method 3) should be mentioned in the
addendum sheet.
The final wording in national language as well as the printing
is under responsibility of the Regional Service Organizations.
3
FAST LENS CLEANING (dry brush)
Use lens cleaning CD
SBC AC300...........................................9082 100 00043
Insert the lens cleaning CD, press PLAY and follow the
voice guide´s instructions on the CD.
4
LIQUID LENS CLEANING
Because the material of the lens is synthetic and coated
with a special anti-reflectivity layer, cleaning must be done
with a non-aggressive cleaning fluid. It is advised to use
“Cleaning Solvent B4-No2”, available with codenumber
4822 389 10026.
The actuator is a very precise mechanical component and
may not be damaged in order to guarantee its full function.
Clean the lens gently (don’t press too hard) with a soft and
clean cotton bud moistened with the special lens cleaner.

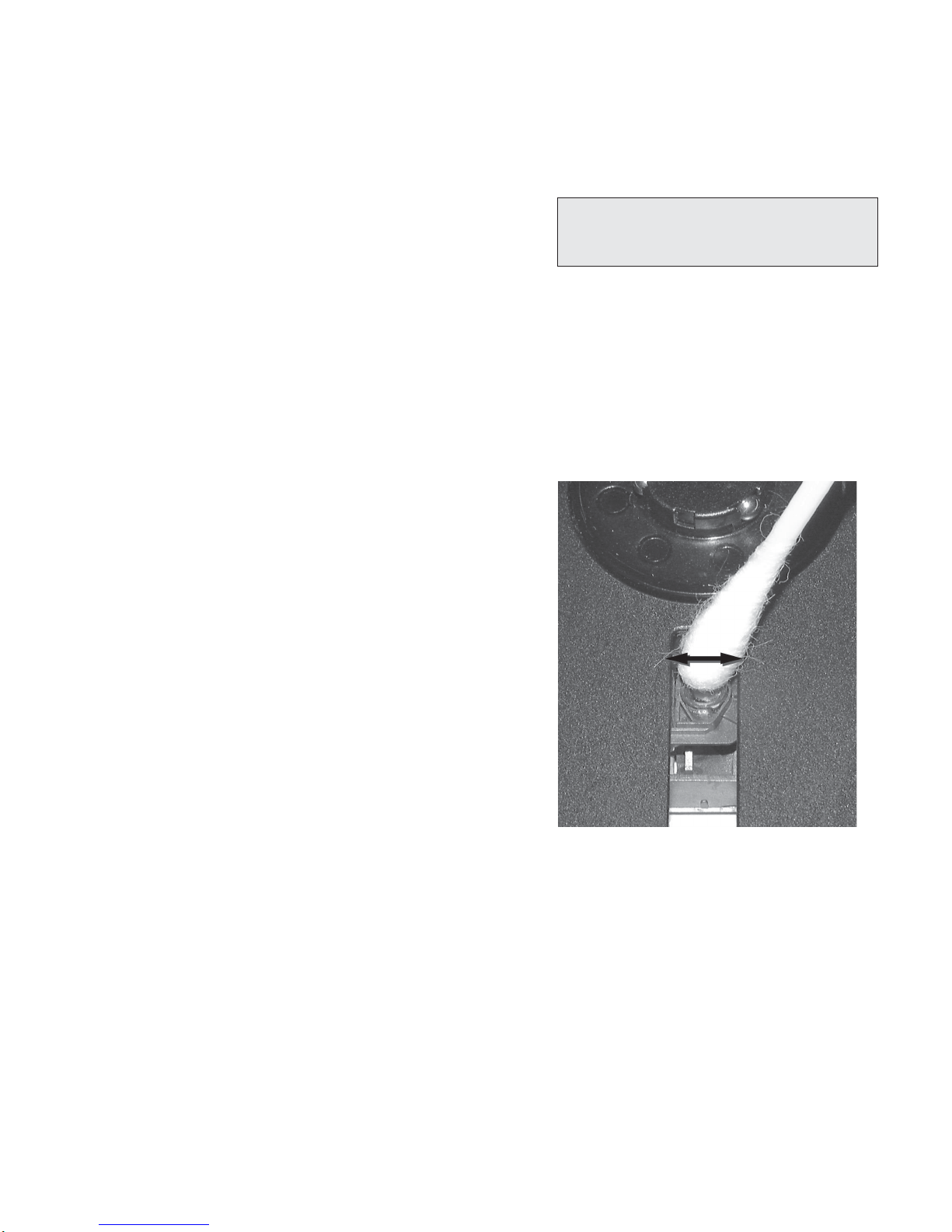

The direction of cleaning must be in the way as indicated in
the picture below.
Before touching the lens it is advised to clean the
surface of the lens by blowing clean air over it.
This to avoid that little particles make scratches on
the lens.
INSTRUCTIONS ON CD PLAYABILITY
1-7
5
EYE-PATTERN SIGNAL – JITTER MEASUREMENT
Measure the signal on the input of the Signal processor
using an analog oscilloscope. Please find the exact
measuring point in your Service Manual.
See below examples of the signal. Amplitude should read at
least 700mVpp using SBC444A.
good
bad
If the oscilloscope shows a signal like the ‘bad’ one, and/or
the amplitude decreases within 1 minute - the CD drive has
to be replaced.
6
CD DRIVE – LASER CURRENT MEASUREMENT
The laser current can be measured as a voltage drop on a
resistor. The resistor is marked in every Service Manual.
The value depends on the type of CD drive.
typical value most probably defect
VAMxxxx : 150-230mV ≥350mV
MCDxx : 170-230mV ≥300mV
DA1x : 210-250mV ≥350mV
DA2x : 175-200mV ≥250mV
Use SBC444A (CD-DA) for measurement.
7
CD DRIVE – OFFSET MEASUREMENT
The photodiodes of the CD-drive may have an offset. These
offsets have to be compensated by the signal processor.
High offsets can lead to poor playability of some CDs
(skipping tracks).
To measure the offset values, start the Service Test
Program - section “Focus Test” without a CD.
The offsets can be measured with a DC Millivoltmeter
directly on the connector (see drawing below). Pin
numbering varies from drive to drive.
The values from diode A-D should read 0±10mV.
Diodes E and F are less critical.
If one of the offsets is higher than ±10mV the CD drive has
to be replaced. Otherwise replace the Signal Processor.
Sanyo DA12T3
CD Drive
A
A
F
C
B
E
C
D
E
VCC
B
VREF
F
D
9
10
11
12
13
14
15
16
1800
+5V_HF
VrefCD10
A
D
E
B
C
F
GND 8
E
D
A
B
C
F
Laser power control
100n
2878
470n
2876
3821
1R
1K
3823
2880
33p
+5V
BC807-40
7879
3817
47R
3820
4R7
47R
3819
1n
2879
2877
47u
1
8
4
7811-A
LM358D 3
2
10K
3822
47R
3818
2841
100n
47n
2869
+5V_HF
LASER DIODE
U >250mV
->Laser damaged !
4,6V
3V
3,3V
3,9V
2V
0,17V
0,17V
Sanyo
DA12T3
HF-Amplifier
D3
D2
D1
Drive detection
680R
3905
3903
3K3
BC847B
7877
47n
2818
1K5
3902
5
7
4
2
1
6
3
64
8
9
10
11
470R
3893
+3.3V
2K2
3908
10K
3923
BC847B
7878
BC847B
7876 4n7
2813
3896
100R
220u
2885
2881
560p
47n
2887
560R
3901
2883
470n
2817
4u7
3n3
2814
3898
220R
3895
27K
470n
2884
+3.3V
3909
820R
3907
100R
3920
33K
3897
2882
82p
3K3
3904
2K7
3899
3906
470R
+5V_HF
HFIN
VrefCD10
100p
28152816
22n
LDON
to 3826,3827
VREF GE
VDDA1
VRIN
VSSA1
ISLICE
LDON
D1
D2
D3
D4
HFIN
HFREF
IREF
CD_DA: 0V / CD_RW: 3V
Σ(A-D)
800mVpp
TB = 0.5µs/div
EYE-PATTERN
1,8V
1,2V
2,4V
2,6V
0,65V
INSTRUCTIONS ON CD PLAYABILITY
1-8
2-1 2-1
To hold DBB & SKIP
NEXT depressed
while plugging
in mains cord.
Display shows the
ROM version
"VER y.yy MTP xx-xx-2007" VER refers to Version
y.yy refers to Software version number of the uProcessor
(counting up from 01 to 99)
xx refers to date number of the production.
SOFTWARE VERSION CHECKING
3-1 3-1
SET BLOCK DIAGRAM
Autres manuels pour MCM148
2
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Philips Système audio micro
Philips
Philips DCM3020/05 Manuel utilisateur
Philips
Philips MCD710/79 Manuel utilisateur
Philips
Philips WAS6050/05 Manuel utilisateur
Philips
Philips MCM119 Manuel utilisateur
Philips
Philips BTM2056 Manuel utilisateur
Philips
Philips MCM305/55 Manuel utilisateur
Philips
Philips MCM1150 Manuel utilisateur
Philips
Philips MCM1006/93 Manuel utilisateur
Philips
Philips MCM761/61 Manuel utilisateur
Philips
Philips MZ110037 Manuel utilisateur
Philips
Philips DCM105/05 Manuel utilisateur
Philips
Philips MCM205/12 Manuel utilisateur
Philips
Philips DCM2060/12/93/96/79 Manuel utilisateur
Philips
Philips MC147/61 Manuel utilisateur
Philips
Philips MCM239/96 Manuel utilisateur
Philips
Philips DCM1170 Fiche d'information produit
Philips
Philips DCM278/79 Manuel utilisateur
Philips
Philips MC-55 Manuel utilisateur
Philips
Philips MC135/25 Manuel utilisateur
Philips
Philips DCM1130/12 Manuel utilisateur
Manuels Système audio micro populaires d'autres marques
JVC
JVC UX-GP5 Manuel utilisateur
Tiger Electronics
Tiger Electronics Hitclips Beat Bot 6000 Manuel utilisateur
Optimus
Optimus SYSTEM 731 Manuel utilisateur
Hitachi
Hitachi AXM209UK Manuel utilisateur
Sharp
Sharp XL-MP110DVD Manuel utilisateur
Tiger Electronics
Tiger Electronics Hitclips Micro Music Watch 59947 Manuel utilisateur
