English

7 Adjust sound 18

Adjust volume level 18

Select a preset sound effect 18

Enhance bass 18

Mute sound 18

8 Adjust settings 19

System settings 19

Playback settings 19

Video settings 21

Audio settings 21

9 Other features 22

Set the alarm timer 22

Set the sleep timer 23

Listen to an external device 23

10 Product information 23

Specications 23

USB playability information 24

Supported MP3 disc formats 24

11 Troubleshooting 25

No sound or poor sound 25

12 Glossary 26

Contents

1 Important 4

Safety 4

Notice 6

2 Your DVD Micro Theater 7

Introduction 7

What’s in the box 7

Overview of the main unit 8

Overview of the remote control 9

3 Connect 11

Preparations 11

Connect speakers 11

Connect TV 11

Connect power 12

4 Get started 12

Prepare the remote control 12

Auto install radio stations 13

Set clock 13

Turn on 13

Set up the TV 14

5 Play 14

Play discs 14

Play from USB devices 15

Play DivX video 15

View pictures 15

Play control 15

Play options 16

6 Listen to radio 17

Tune to a radio station 17

Program radio stations automatically 17

Program radio stations manually 18

Select a preset radio station 18

MCD107_93_UM_V2.0.indb 3 7/14/2011 3:31:33 PM

hDo not install near any heat sources

such as radiators, heat registers, stoves,

or other apparatus (including ampliers)

that produce heat.

iProtect the power cord from being

walked on or pinched, particularly at

plugs, convenience receptacles, and

the point where they exit from the

apparatus.

jOnly use attachments/accessories

specied by the manufacturer.

kUse only with the cart,

stand, tripod, bracket,

or table specied by

the manufacturer or

sold with the apparatus.

When a cart is used, use

caution when moving the cart/apparatus

combination to avoid injury from tip-

over.

lUnplug this apparatus during lightning

storms or when unused for long periods

of time.

m Refer all servicing to qualied service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus,

the apparatus has been exposed to rain

or moisture, does not operate normally,

or has been dropped.

nBattery usage CAUTION – To prevent

battery leakage which may result in

bodily injury, property damage, or

damage to the unit:

Install all batteries correctly, + and -•

as marked on the unit.

Do not mix batteries (old and new•

or carbon and alkaline, etc.).

Remove batteries when the unit is•

not used for a long time.

1 Important

Safety

Know these safety symbols

This ‘bolt of lightning’ indicates uninsulated

material within your unit may cause an

electrical shock. For the safety of everyone

in your household, please do not remove

product covering.

The ‘exclamation point’ calls attention to

features for which you should read the

enclosed literature closely to prevent

operating and maintenance problems.

WARNING:Toreducetheriskofreor

electric shock, this apparatus should not be

exposedtorainormoistureandobjectslled

with liquids, such as vases, should not be

placed on this apparatus.

CAUTION: To prevent electric shock, match

wide blade of plug to wide slot, fully insert.

aRead these instructions.

bKeep these instructions.

cHeed all warnings.

dFollow all instructions.

eDo not use this apparatus near water.

fClean only with dry cloth.

gDo not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

MCD107_93_UM_V2.0.indb 4 7/14/2011 3:31:33 PM

Hearing safety

Listen at a moderate volume.

Using headphones at a high volume can•

impair your hearing. This product can

produce sounds in decibel ranges that

may cause hearing loss for a normal

person, even for exposure less than a

minute. The higher decibel ranges are

offered for those that may have already

experienced some hearing loss.

Sound can be deceiving. Over time your•

hearing ‘comfort level’ adapts to higher

volumes of sound. So after prolonged

listening, what sounds ‘normal’ can

actually be loud and harmful to your

hearing. To guard against this, set your

volume to a safe level before your hearing

adapts and leave it there.

To establish a safe volume level:

Set your volume control at a low setting.•

Slowly increase the sound until you can•

hear it comfortably and clearly, without

distortion.

Listen for reasonable periods of time:

Prolonged exposure to sound, even•

at normally ‘safe’ levels, can also cause

hearing loss.

Be sure to use your equipment•

reasonably and take appropriate breaks.

Be sure to observe the following guidelines

when using your headphones.

Listen at reasonable volumes for•

reasonable periods of time.

Be careful not to adjust the volume as•

your hearing adapts.

Do not turn up the volume so high that•

you can’t hear what’s around you.

You should use caution or temporarily•

discontinue use in potentially hazardous

situations. Do not use headphones while

operating a motorized vehicle, cycling,

skateboarding,etc.;itmaycreateatrafc

hazard and is illegal in many areas.

oApparatus shall not be exposed to

dripping or splashing.

pDo not place any sources of danger on

the apparatus (e.g. liquid lled objects,

lighted candles).

qThis product may contain lead and

mercury. Disposal of these materials

may be regulated due to environmental

considerations. For disposal or recycling

information, please contact your local

authorities or the Electronic Industries

Alliance: www.eiae.org.

rWhere the MAINS plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain

readily operable.

Warning

Never remove the casing of this apparatus.•

Never lubricate any part of this apparatus.•

Never place this apparatus on other electrical•

equipment.

Keep this apparatus away from direct sunlight,

•

nakedamesorheat.

Never look into the laser beam inside this

•

apparatus.

Ensure that you always have easy access to the

•

power cord, plug or adaptor to disconnect this

apparatus from the power.

Caution

Use of controls or adjustments or•

performance of procedures other than herein

may result in hazardous radiation exposure or

other unsafe operation.

English

MCD107_93_UM_V2.0.indb 5 7/14/2011 3:31:33 PM

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and

old equipment.

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

DivX,DivXCertied,andassociatedlogosare

trademarks of DivX, Inc. and are used under

license.

Windows Media and the Windows logo are

trademarks, or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

This apparatus includes this label:

Notice

Anychangesormodicationsmadetothis

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When this crossed-out wheeled bin symbol

is attached to a product it means that the

product is covered by the European Directive

2002/96/EC.

Please inform yourself about the local

separate collection system for electrical and

electronic products.

Please act according to your local rules and

do not dispose of your old products with your

normal household waste. Correct disposal of

your old product helps to prevent potential

negative consequences for the environment

and human health.

Your product contains batteries covered by

the European Directive 2006/66/EC, which

cannot be disposed with normal household

waste.Please inform yourself about the local

rules on separate collection of batteries

because correct disposal helps to prevent

negative consequences for the environmental

and human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

MCD107_93_UM_V2.0.indb 6 7/14/2011 3:31:34 PM

What’s in the box

Check and identify the contents of your

package:

Main unit•

Loudspeaker boxes x 2•

Remote control with battery•

Audio/video cable•

MP3 link cable•

Quick start guide•

User manual•

2 Your DVD

Micro Theater

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.Philips.com/welcome.

Introduction

With this unit, you can:

watch video from DVD/VCD/SVCD or•

USB devices

enjoy audio from audio CDs, external•

devices, or USB devices

view pictures from discs or USB devices•

listen to FM radio•

You can enrich sound output with the

following sound effects:

Digital Sound Control (DSC)•

Dynamic Bass Boost (DBB)•

The unit supports the following media formats:

You can play DVDs with the following region

code:

DVD region code Countries

China

English

MCD107_93_UM_V2.0.indb 7 7/14/2011 3:31:34 PM

jVOLUME +/-

Adjust volume.•

Stop play or erase a program.•

l∞/§

Search fast forward or fast•

backward.

Tune to a radio station.•

Adjust time.•

Start or pause play.•

Turn on the unit, or switch to•

standby mode.

Open/close the disc compartment.•

Overview of the main unit

aDisc compartment

bIR

Remote control sensor•

cDisplay panel

Show current status.•

dMP3 LINK

Jack for an external audio device.•

Headphone jack•

USB socket•

gSOURCE

Select a source: Disc, USB, FM tuner,•

or MP3 link.

hMODE

Selectarepeat/shufeplaymode.•

iDBB

Turn on or off dynamic bass•

enhancement.

MCD107_93_UM_V2.0.indb 8 7/14/2011 3:31:34 PM

Overview of the remote

control

Turn on the unit, switch to standby•

mode.

pPower cord

qFM antenna

Improve FM reception.•

English

MCD107_93_UM_V2.0.indb 9 7/14/2011 3:31:34 PM

nZOOM

Zoom in or out a picture/video•

image on the TV screen.

oAUDIO

For DVD/DivX video, select an audio•

language.

For VCD, select stereo, mono-left or•

mono-right MIX MONO output.

pMUTE

Mute or restore audio output.•

Stop play or erase a program.•

rVOL +/-

Adjust volume.•

sDBB

Turn on/off bass enhancement.•

tTIMER/SLEEP

Set the sleep timer.•

Set the alarm timer.•

uDISC MENU

Access or exit the disc menu.•

vCLOCK/DISPLAY

Set the clock.•

Display information on the TV•

screen during play.

bSource selection keys (DISC, USB,

TUNER, MP3 Link)

Select a source.•

cMODE

Selectarepeat/shufeplaymode.•

dSYSTEM MENU

Access or exit the system setup•

menu.

eREPEAT A-B

Mark the section for repeat play, or•

turn off repeat mode.

Search fast forward or fast•

backward.

Tune to a radio station.•

Navigate left/right in the disc menu•

or system setup menu.

Adjust time.•

gDSC

Select a preset sound setting.•

Start or pause play.•

Skip to the previous/next title/•

chapter/track.

Select a preset radio station.•

jNumeric keypad 0-9

Selectaspeciedtitle/chapter/track•

directly.

kPROG/ANGLE

Program radio stations.•

Select a DVD camera angle.•

Program titles/chapters/tracks.•

Select 12 hour or 24 hour format.•

lGOTO

Skiptoaspecicsectionofthedisc•

during play quickly.

mSUBTITLE

Select a subtitle•

MCD107_93_UM_V2.0.indb 10 7/14/2011 3:31:35 PM

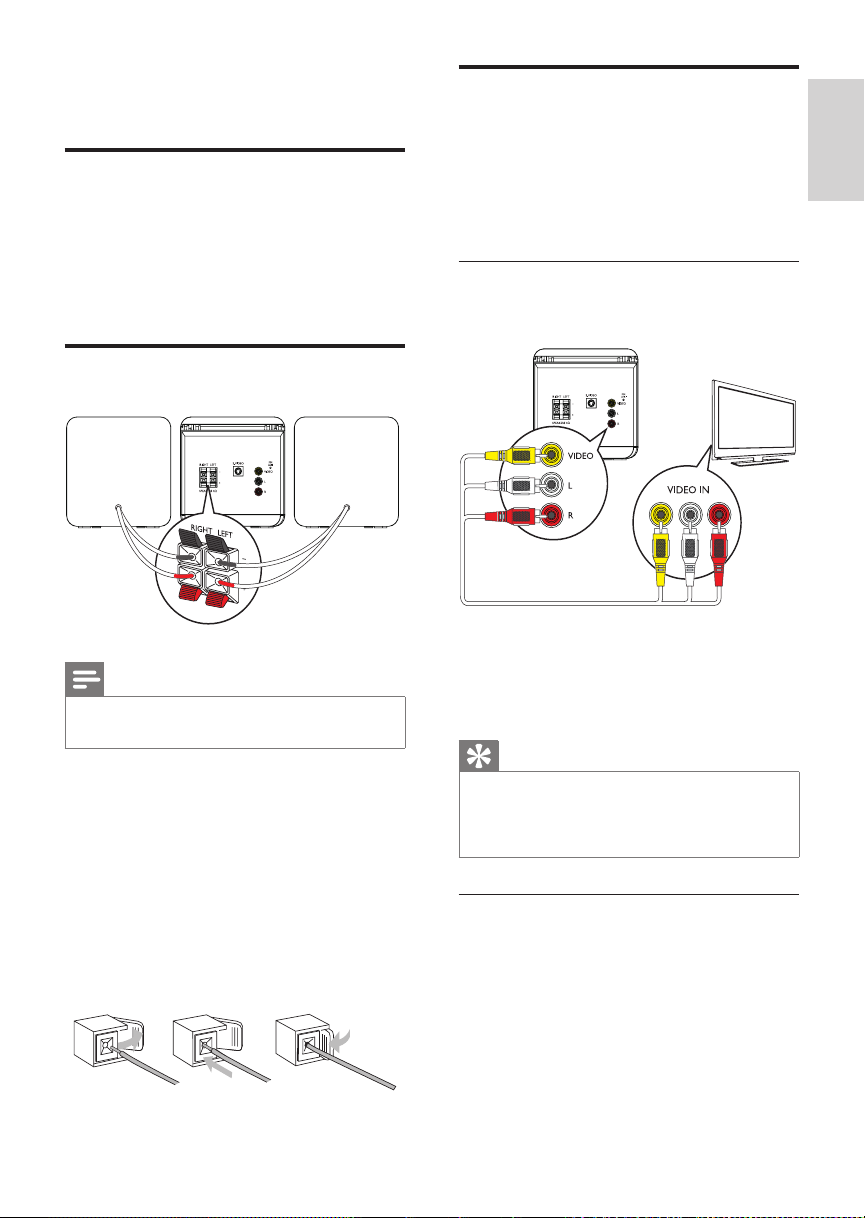

Connect TV

You can watch video from this unit on the TV

screen.

Option 1: Connect through AV cable•

Option 1: Connect through S-Video•

socket

Option 1: Connect through AV cable

AV out provides basic analogue connectivity.

1Connect AV cable (red/white/yellow) to:

AV OUT (• VIDEO,L, R ) sockets on

the unit.

AV input sockets on the TV.•

Tip

If you want to listen to sound from the unit•

instead of from TV, connect the video cable

(yellow) only. Do not connect the audio cable

(red and white).

Option 2: Connect through S-Video

socket

S-video provides better picture quality than

AV out connections.

1Connect an S-video cable (not supplied)

to:

the• S-VIDEO socket on this unit.

the S-Video socket on the TV.•

3 Connect

Preparations

1 Placeasoftclothonahard,at,stable

surface.

2Place the unit onto the cloth.

3Remove the socket cover.

Connect speakers

Note

Ensure that the colors of the speaker wires•

and terminals are matched.

1 Holddownthesocketap.

2Insert the stripped part of the wire

completely.

Insert the right speaker wires to•

“RIGHT”, left speaker wires to

“LEFT”.

Insert the red wires to “• +”, black

wires to “-”.

3 Releasethesocketap.

abc

English

MCD107_93_UM_V2.0.indb 11 7/14/2011 3:31:35 PM

Autres manuels pour MCD107/93

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Système audio micro

Philips

Philips BTM2180 Manuel utilisateur

Philips

Philips TAM8905 Manuel utilisateur

Philips

Philips MBD3000/12 Manuel utilisateur

Philips

Philips DCB2020 - Manuel utilisateur

Philips

Philips MC147/12 Manuel utilisateur

Philips

Philips MCM2050/12 Manuel utilisateur

Philips

Philips MCM1150 Manuel utilisateur

Philips

Philips MCM1050/93 Manuel utilisateur

Philips

Philips DCM2068 Fiche d'information produit

Philips

Philips DCM292/05 Manuel utilisateur

Philips

Philips MCM355/12 Manuel utilisateur

Philips

Philips MCM2300/55 Manuel utilisateur

Philips

Philips Streamium MC-i250 Manuel utilisateur

Philips

Philips DCM3060/93 Manuel utilisateur

Philips

Philips MCM2250 Manuel utilisateur

Philips

Philips DCM713/93 Manuel utilisateur

Philips

Philips MCM3000 Manuel utilisateur

Philips

Philips DCM3020/12 Manuel utilisateur

Philips

Philips MCM169/61 Manuel utilisateur

Philips

Philips MCM760/05 Manuel utilisateur

Philips

Philips DCM292 Manuel utilisateur

Philips

Philips DCM3060/98 Manuel utilisateur

Philips

Philips MCM2000 Manuel utilisateur

Philips

Philips MCM1115/51 Manuel utilisateur

Manuels Système audio micro populaires d'autres marques

Rautz

Rautz MC-5100DU Manuel utilisateur

Sanyo

Sanyo DC-D9 Manuel utilisateur

Curtis

Curtis RCD744 Manuel utilisateur

Samsung

Samsung MM-UC8 Manuel utilisateur

Akai

Akai AMP300UCI Manuel utilisateur

Hyundai

Hyundai MS 132 DU3BL Manuel utilisateur

JVC

JVC UX-GP5 Manuel utilisateur

Tiger Electronics

Tiger Electronics Hitclips Beat Bot 6000 Manuel utilisateur

Optimus

Optimus SYSTEM 731 Manuel utilisateur

Hitachi

Hitachi AXM209UK Manuel utilisateur

Sharp

Sharp XL-MP110DVD Manuel utilisateur

Tiger Electronics

Tiger Electronics Hitclips Micro Music Watch 59947 Manuel utilisateur

ProAudio

ProAudio MC 9010 iP Manuel utilisateur

Samsung

Samsung MM-ZJ9 Manuel utilisateur

Sharp

Sharp MD-X7 Manuel utilisateur

Sharp

Sharp DK-KP95P Manuel utilisateur

Akura

Akura APTCDC832PR Manuel utilisateur

iLive

iLive IHB248B Manuel utilisateur
