Philips BVP528 Manuel utilisateur

BVP528 HGB

BVP528 BV

BVP518 HGB

BVP518 BV

220 V

400 V

OptiVision LED gen3.5

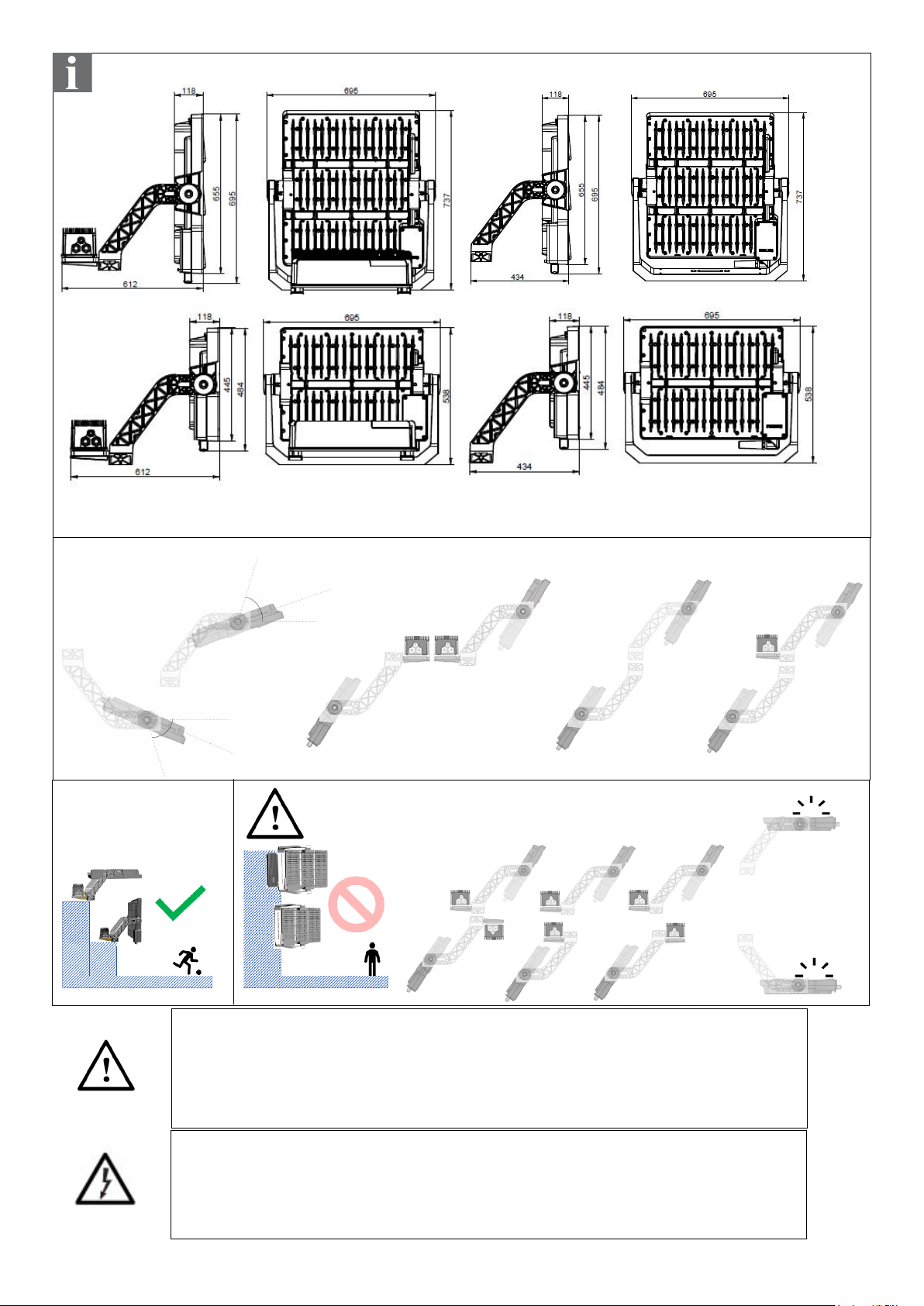

BVP528/BVP518

1 RG1

*Lumen maintenance at median useful life 50Khrs is L80

Any modication on the luminaire will cancel the warranty

SCx

Performance is not guaranteed for rated NOMINAL mains voltage of below 220Vac and over 400Vac.

Tolerance for voltage uctuations: safety ±10%, performance -8/+6%, is part of the design and as per standard EN 62384.

1/24

Printed in Spain

Data subject to change without notice

Keep for future reference: www.philips.com/lighting

443000021241_A

HGB BV 90º HGB

BVP528 33 26,5 0,47

BVP518 29 22 0,33

Conguration 0º 15º 30º 40º 50º 65º 90º

BVP518 HGB 0,18 0,22 0,25 0,27 0,27 0,29 0,33

BVP518 HGB+ EXTERNAL LOUVER 0,23 0,25 0,27 0,26 0,25 0,25 0,32

BVP518 BV 0,10 0,17 0,21 0,24 0,26 0,30 0,34

BVP518 BV+EXTERNAL LOUVER 0,13 0,18 0,22 0,25 0,25 0,26 0,32

BVP528 BV 0,12 0,20 0,29 0,33 0,33 0,41 0,48

BVP528 BV+EXTERNAL LOUVER 0,14 0,24 0,29 0,31 0,34 0,38 0,44

BVP528 HGB 0,20 0,27 0,30 0,32 0,33 0,41 0,47

BVP528 HGB+EXTERNAL LOUVER 0,23 0,30 0,32 0,32 0,34 0,39 0,44

OPERATING

TEMPERATURE MAX. MIN.

OUTDOOR 45ºC -40ºC

INDOOR 45ºC -40ºC

2/24

BVP528 50000h 757 203000 1500 20ºC

BVP528 50000h 740 203000 1500 20ºC

BVP528 50000h 730 189000 1500 20ºC

BVP528 50000h 757 202000 1500 25ºC

BVP528 50000h 740 202000 1500 25ºC

BVP528 50000h 730 188000 1500 25ºC

BVP528 50000h 757 194000 1420 30ºC

BVP528 50000h 740 194000 1420 30ºC

BVP528 50000h 730 180000 1420 30ºC

BVP528 50000h 757 185000 1340 35ºC

BVP528 50000h 740 185000 1340 35ºC

BVP528 50000h 730 172000 1340 35ºC

BVP528 50000h 757 176000 1270 40ºC

BVP528 50000h 740 176000 1270 40ºC

BVP528 50000h 730 164000 1270 40ºC

BVP528 50000h 757 167000 1200 45ºC

BVP528 50000h 740 167000 1200 45ºC

BVP528 50000h 730 155000 1200 45ºC

BVP528 100000h 757 194000 1420 20ºC

BVP528 100000h 740 194000 1420 20ºC

BVP528 100000h 730 182000 1420 20ºC

BVP528 100000h 757 187000 1340 25ºC

BVP528 100000h 740 187000 1340 25ºC

BVP528 100000h 730 174000 1340 25ºC

BVP528 100000h 757 178000 1270 30ºC

BVP528 100000h 740 178000 1270 30ºC

BVP528 100000h 730 166000 1270 30ºC

BVP528 100000h 757 169000 1200 35ºC

BVP528 100000h 740 169000 1200 35ºC

BVP528 100000h 730 157000 1200 35ºC

BVP528 100000h 757 160000 1120 40ºC

BVP528 100000h 740 160000 1120 40ºC

BVP528 100000h 730 149000 1120 40ºC

BVP528 100000h 757 146000 990 45ºC

BVP528 100000h 740 146000 990 45ºC

BVP528 100000h 730 136000 990 45ºC

BVP528 50000h 757 167000 1200 35ºC

BVP528 50000h 740 167000 1200 35ºC

BVP528 50000h 757 144000 990 45ºC

BVP528 50000h 740 144000 990 45° C

BVP528 100000h 757 146000 990 35ºC

BVP528 100000h 740 146000 990 35ºC

BVP528 100000h 757 131000 880 45ºC

BVP528 100000h 740 131000 880 45° C

BVP518 50000h 757 135000 1000 20ºC

BVP518 50000h 740 135000 1000 20ºC

BVP518 50000h 730 126000 1000 20ºC

BVP518 50000h 757 134000 1000 25ºC

BVP518 50000h 740 134000 1000 25ºC

BVP518 50000h 730 125000 1000 25ºC

BVP518 50000h 757 129000 945 30ºC

BVP518 50000h 740 129000 945 30ºC

BVP518 50000h 730 120000 945 30ºC

BVP518 50000h 757 123000 895 35ºC

BVP518 50000h 740 123000 895 35ºC

BVP518 50000h 730 115000 895 35ºC

BVP518 50000h 757 117000 850 40ºC

BVP518 50000h 740 117000 850 40ºC

BVP518 50000h 730 109000 850 40ºC

BVP518 50000h 757 111000 800 45ºC

BVP518 50000h 740 111000 800 45ºC

BVP518 50000h 730 103000 800 45ºC

BVP518 100000h 757 129000 945 20ºC

BVP518 100000h 740 129000 945 20ºC

BVP518 100000h 730 120000 945 20ºC

BVP518 100000h 757 125000 895 25ºC

BVP518 100000h 740 125000 895 25ºC

BVP518 100000h 730 116000 895 25ºC

BVP518 100000h 757 119000 850 30ºC

BVP518 100000h 740 119000 850 30ºC

BVP518 100000h 730 110000 850 30ºC

BVP518 100000h 757 113000 800 35ºC

BVP518 100000h 740 113000 800 35ºC

BVP518 100000h 730 105000 800 35ºC

BVP518 100000h 757 106000 745 40ºC

BVP518 100000h 740 106000 745 40ºC

BVP518 100000h 730 99000 745 40ºC

BVP518 100000h 757 97000 660 45ºC

BVP518 100000h 740 97000 660 45ºC

BVP518 100000h 730 90000 660 45ºC

BVP518 50000h 757 111000 800 35ºC

BVP518 50000h 740 111000 800 35ºC

BVP518 50000h 757 96000 660 45ºC

BVP518 50000h 740 96000 660 45° C

BVP518 100000h 757 97000 660 35ºC

BVP518 100000h 740 97000 660 35ºC

BVP518 100000h 757 87000 585 45ºC

BVP518 100000h 740 87000 585 45° C

In luminaire version for swimming pool applications (SWP):

Fixture mounting system (including fasteners) needs to be compliant with EN

13451-1 or MIS 1203

Mounting system and product shall be a subject of periodical inspection at least

every year.

Any rusted element needs to be replaced.

The light source contained in this luminaire shall only be replaced by the manu-

facturer or his service agent or a similar qualied person.

If the external exible cable or cord of this luminaire is damaged, it shall be ex-

clusively replaced by the manufacturer or his service agent or a similar qualied

person in order to avoid a hazard

NOT ALLOWED

LIGHT FACING UP

POSITIONS ALLOWED

POSITIONS NOT ALLOWED

80º

3/24

FLAT WASHER NEEDED

ACCORDING TO

DIN9021

In case of using only one xation point

and if the luminaire is higher >3m, the

use of a 2nd xing security system is

needed

The fasteners have to resist environment corrosion.

Stainless steel screws not recommended and protective coating might be

applied.

30mm

2XM20 SCREW 1XM20 SCREW

123

4If luminaire placed as

shown, rotation angle

limited (only HGB

version, BV version no

limitation):

28º<angle<76º

angle<28º or >76º





Attention: do not hold the luminaire by the cable gland

100

17 50

• In case of using only one screw, use uniquely the position 1. Never use

one single screw in Pos.2 or Pos.3

• If using the Pos.2, the second screw must be in the opposite Pos. 2.

• If using the Pos.3, the second screw must be in the opposite Pos. 3.

92,5mm

A cable can be used as second security system.

Section has to be enough for the installation and support

environmental conditions (e.g. sheathed steel)

4/24

CLEANING TECHNIQUES

1. Always test the sample with the cleaner and

according to the chosen technique before

2. Do not leave cleaners on plastic parts for a

long period

3. Do not apply cleaners in direct sunlight or at

elevated temperatures

1. Remove physical elements that can block

and modify the aircooling (heatsink ns)

2. Cleaning Frequency (depending on installa-

tion place and environment)

CLEANING PARTS

RECOMMENDED

Mild Soap

Lukewarm Water

Soft/Grid free Cloth

Sponge

Water Cleaning

Cleaning Interval

(months)

Pollution Category

High Medium Low

12 0,91 0,92 0,93

18 0,90 0,91 0,92

24 0,88 0,89 0,91

30 0,85 0,88 0,9

36 0,83 0,87 0,9

CLEANING

The list is not exhaustive

FORBIDDEN

Abrasive Cleaners

Highly Alkaline Cleaners

Aromatic Solvents

Halogenated Solvents

Brushes

Steel Wood

5/24

ACCESSORIES

12NC: 912300024868 ZVP418 EXTERNAL LOUVER

LOUVRE (External louvre (1 per module, 2 or 3 pieces per luminaire)

PRECISION AIMING DEVICE

12NC: 912300024470 AIMING DEVICE WITHOUT VISOR

123

TURN TO CORRECT POSITION

4a 5a 6a

12x screws to

be removed

12x screws

BVP528

4b 5b 6b

BVP518

20 1.6

Always align the direc-

tion TOP and BOTTOM

when installing the

louver

6/24

CHANGE FROM BV TO HGB

CONNECTIONS IN NEXT SLIDES

COMPONENT TORQUE

TOOL

SCREW M5 (4X)

SCREW M10 (2X)

WASHER -

CABLE SEE 8-9

25 3.5

17 50

12NC

912300024570 A AVOV G3 RAW DRV SUPPORT V2 AND CABLE

912300024571 A AVOV G3 LGR DRV SUPPORT V2 AND CABLE

912300024572 A AVOV G3 DGR DRV SUPPORT V2 AND CABLE

GEN 3 BRACKET

7/24

EVP500

OptiVision LED gen3.5

Driver box

EVP500

145

500

477

129

120

Iin (Mains 220V-240V) 8A

Iin (Mains 380V-400V) 4.6A

Inrush (220V-240V) 20 A during 160 µs

Inrush (380V-400V) 30 A during 160 µs

Power Factor > 0.95 at full power

Surge Protection* 10kV Com. Mode

6kV Dif. Mode

Maximum Heat Disipation** 75W

Driver box Features

L<50 page 9

50<L<200 page 12

Distances between driver and luminaire

-40

** According to the maximum

heat disipation, a thermal

study should be done for a

cabinet installation

* A surge protection device should

be integrated in the installation

before the luminaire

6,3

220 V

400 V

8/24

ELECTRICAL CONNECTION FOR EVP500 DALI L< 50m

CONNECTION

BOX DALI

MAINS MAINS CONNECTION

BOX

Cable from Driver box

to Connection Box

MAINS

DALI

Ø min

(mm)

Ø max

(mm)

TORQUE MAX VOLTAGE

SUPPORTED

RECOMMENDED CABLE TYPE CONNECTOR

SECTION

MAX

DALI Cable M20 Ø6Ø12 3 Nm 1000 V

H05VV-F (3182-Y) 2

core x 1.5mm or H05VV-F (3182-Y) 2

core x 2.5mm

2.5 mm2

MAINS Cable M25 Ø13 Ø18 5 Nm 1000 V H07RN-F 450V/750V 4 mm2

Connection Box M25 Ø13 Ø18 4.5 Nm 1000 V H07RN-F 450V/750 or A11VV U-600/1000V 2.5 mm2

20 1.6 L

9/24

STRIPPING LENGTH:

8-9 mm

ELECTRICAL CONNECTION L< 50m (only on special requests)

MAINS

Cable from Driver box

to Connection Box

DMX (2 entries)

Ø min

(mm)

Ø max

(mm)

TORQUE MAX VOLTAGE

SUPPORTED

RECOMMENDED CABLE TYPE CONNECTOR

SECTION MAX

DMX Cable M20 2 x Ø6mm

+/-1mm NA 4.5 Nm 1000 V 2x ETHERNET shielded cable CAT5

MAINS Cable M25 Ø13 Ø18 5 Nm 1000 V H07RN-F 450V/750V 4 mm2

Connection Box M25 Ø13 Ø18 4.5 Nm 1000 V H07RN-F 450V/750 or A11VV U-600/1000V 2.5 mm2

TERMINATOR RJ45 (not supplied by Philips)

For safety reasons the terminator must have

isolated housing

CONNECTION BOX

DMX

1) Remove plugs only when needed

2) Slip the DMX cable without RJ45

plug through the cable gland

3) Crimp the RJ45 modular plug on

the DMX cable inside the driver

MAINS

Ø13-18mm

Pin numbering and color in accordance with ANSI/TIA/EIA-568

scheme T568B

PIN # COLOR FUNCTION

1 WHITE/ORANGE DATA 1+

2 ORANGE DATA 1-

3 WHITE/GREEN DATA 2+ (Optional)

6 GREEN DATA 2- (Optional)

4 BLUE Not assigned

5 WHITE/BLUE Not assigned

7 WHITE/BROWN Signal Common for data 1 (0 V)

8 BROWN Signal Common for Data 2 (0 V)

9 DRAIN

20 1.6 L

10/24

STRIPPING LENGTH:

8-9 mm

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Équipement d'éclairage

Philips

Philips eW Cove QLX Powercore Manuel utilisateur

Philips

Philips 30504 Manuel utilisateur

Philips

Philips 17435/**/P7 Series Manuel utilisateur

Philips

Philips Selecon Manuel utilisateur

Philips

Philips StoreSet Linear SM504TI Manuel utilisateur

Philips

Philips InteGrade LED engine system Manuel utilisateur

Philips

Philips 69087/**/16 Manuel utilisateur

Philips

Philips 56432-31-16 Manuel utilisateur

Philips

Philips bodine B30 Manuel utilisateur

Philips

Philips Selecon Fresco Manuel utilisateur

Philips

Philips MASTER Colour CDM-R111 Manuel utilisateur

Philips

Philips Illuminate Manuel utilisateur

Philips

Philips Stylid Evo Compact Manuel utilisateur

Philips

Philips BN012C Guide de l'utilisateur

Philips

Philips GreenPower LED production module DR/B Manuel utilisateur

Philips

Philips Arcitone 57985/48/16 Manuel utilisateur

Philips

Philips Lightolier Solution Series Manuel utilisateur

Philips

Philips VL3015 Spot Luminaire Manuel utilisateur

Philips

Philips TrueLine RC530B ELP3 Manuel utilisateur

Philips

Philips 40898/**/16 Manuel utilisateur

Philips

Philips CR434B Manuel utilisateur

Philips

Philips SP160P LED40S 840 W60L60 PSU SI Guide de l'utilisateur

Philips

Philips Lightstrip Plus 71901/U8 Series Manuel utilisateur

Philips

Philips 32158-31-16 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
