OPERATIONMANUAL

SPX

This manual covers the following models:

SPX 15- 35Zoomspot

SPX 25- 50Zoomspot

SPX 14Fixed Beam

SPX 19Fixed Beam

SPX 26Fixed Beam

SPX 36Fixed Beam

SPX 50Fixed Beam

THANK YOU FOR PURCHASING A PHILIPS SELECON SPX LUMINAIRE. WE HAVE DESIGNED THIS

LUMINAIRE TO PROVIDE YOU WITH A SUPERIOR FITTING IN PERFORMANCE, DESIGN AND

ENGINEERING. WE ARE CONFIDENT THAT IT WILL PERFORM TO YOUR EXPECTATIONS FOR MANY

YEARS TO COME.

Caution!

Installation is entirely at your risk. Read this manual from cover to cover before attempting installation. Do not

attempt installation unless you are suitably qualified. If you do not understand a point in this manual, don’t

guess. Don’t take short cuts. If in doubt, stop! Contact Philips Selecon or one of its authorised distributors for

advice. Don’t be afraid to ask for help.

IMPORTANT NOTE: The SPX sets new standards in product safety.

As it is double insulated it has a simpler testing procedure than

conventional luminaires. Refer to the testing section inside.

Before discarding the packaging ensure you have the suspension bolt

set, colour frame &/or the lamp.

SPX Operation Manual 2

Important!

Read this manual from cover to cover before attempting to install, operate or maintain the luminaires to which

it relates. It contains important installation, operating, maintenance and safety procedures. The customer must

strictly comply with them.

Along with such procedures mentioned in this document, the customer should also observe such other

procedures generally applicable to lighting equipment.

Follow the instructions in this manual carefully. Philips Selecon accepts no responsibility if the customer fails

to do so.

For each customer, operating conditions will vary, sometimes greatly. Such variations may affect the

luminaires’ performance. Philips Selecon has no control over the customer’s unique operating environment.

Hence, Philips Selecon makes no representations or warranties concerning the luminaires’ performance under

the customer’s actual operating conditions. All operating parameters must be validated for each customer

application by the customer’s technical experts.

If the customer does not follow the installation, operating, maintenance and safety procedures in this manual,

as well as those generally applicable to lighting equipment, the luminaire may not perform as expected. More

seriously, it may cause property damage, personal injury or other losses.

Philips Selecon accepts no liability for direct, indirect, incidental, special, or consequential damages resulting

from the customer’s failure to follow the installation, operating, maintenance and safety procedures in this

manual or those generally applicable to lighting equipment. The foregoing limitation extends to damages for

personal injury, property damage, loss of operations, loss of profits, loss of product or loss of time, whether

incurred by the customer, the customer’s employees or a third party.

Philips Selecon used all due care in preparing this manual. However, Philips Selecon accepts no liability for

errors or omissions. Philips Selecon reserves the right to change the specifications of its luminaires, or the

information in this manual, without necessarily giving its customers notice thereof.

Installation, operation and maintenance are entirely at the customer’s risk.

Philips Selecon luminaires should be installed, operated and maintained by suitably qualified personnel. Such

personnel should have previous experience with lighting equipment as well as general electrical experience.

This manual is intended to provide general guidance to such suitably qualified personnel. For specific

guidance and technical support, contact Philips Selecon or its authorised representative.

Information in this manual shall not be deemed a warranty, representation or guarantee concerning a

luminaire’s suitability or fitness for a specific purpose.

Subject to the right to use its luminaires, Philips Selecon does not convey any right, title or interest in its

intellectual property, including, without limitation, its patents, copyrights and know-how.

SPX Operation Manual 3

Please read this information carefully to ensure that you are fully conversant with its operation.

Safety Warnings ...................................................................................................................................................4

Operating your Luminaire for the First Time.........................................................................................................4

Centering the lamp ...............................................................................................................................................5

Optimising the Output...........................................................................................................................................5

Lamps...................................................................................................................................................................6

Mounting your Luminaire......................................................................................................................................6

To Mount on a Theatre Standard Scaffold Pipe...................................................................................................6

Operating your Luminaire.....................................................................................................................................7

Pan and Tilt Adjustment........................................................................................................................................7

Focusing SPX Zoomspot Models.........................................................................................................................7

Focusing SPX Fixed Beam Profiles......................................................................................................................7

Shutter System.....................................................................................................................................................7

Shutter Lock..........................................................................................................................................................7

Rotatable Shutters................................................................................................................................................8

Accessory Mounting Positions..............................................................................................................................8

Changing the Lens Tube ......................................................................................................................................9

Colour Filter Life ...................................................................................................................................................9

Safe Practice ......................................................................................................................................................10

Rigging Check-list...............................................................................................................................................10

Maintenance.......................................................................................................................................................10

Electrical Test Procedure....................................................................................................................................10

Cleaning the Reflector........................................................................................................................................11

Cleaning the Lens...............................................................................................................................................12

Safety..................................................................................................................................................................12

Limited Warranty.................................................................................................................................................13

Accessories and Order Codes............................................................................................................................14

Contacting Philips Selecon.................................................................................................................................14

SPX Operation Manual 4

SafetyWarnings

Not for residential use.

CAUTION: Hot Surfaces, Avoid contact by persons or materials.

The SPX has some hot surfaces. Be careful to avoid burns. Take care with the lamphouse

and heat-sink. We suggest the use of leather gloves when focusing these luminaires.

SAFETY – Double Insulated

The SPX range is a Class 2 appliance that is double insulated for increased safety and

lower maintenance. Earth continuity testing is not needed. Refer to page 11 for testing

procedure.

SAFETY - Mains Power Isolation

The SPX range is fitted with a micro-switch that automatically disconnects the mains

power when the lamp holder is removed. However, it is also recommended that the

luminaire should always be electrically isolated from mains power before re-lamping,

cleaning or servicing.

CAUTION: Risk of fire - use with maximum 800W lamp.

CAUTION: These luminaires are not suitable for mounting on a normally flammable

surface.

These luminaires are not suitable for outdoor use. They are rated at IP00.

The luminaire should be at least 1.2 metres/4 ft away from the nearest object it is lighting.

The SPX range can be operated only through a range of angles 90either side of

horizontal.

OperatingyourLuminairefortheFirstTime

Familiarise yourself with the way the shutter and reflector assembly can be rotated by loosening the rotating

clamp (drawing page 9), and turning the assembly. Note how the colour frame is locked into the front of the

lens tube with the front accessory cover.

The SPX provides for mounting 2 pattern holders. Practice inserting them into both the front and rear position

as it is easier to familiarise yourself before rigging the luminaire.

The SPX has a shutter lock. Make sure this is in the unlocked position. Refer P.7

LampingProcedure

Remove the lamp module by loosening the

2 locking thumbscrews on the rear. Align

the pins of the new lamp to the holes in the

lamp socket and push the lamp firmly home.

Do not touch the quartz envelope of the

lamp with your fingers. Replace the lamp

module and tighten the locking

thumbscrews. Reconnect the mains power.

Always take great care when making

adjustments to the lamp, as its filament

is fragile. N.B. The mains power supply is automatically

disconnected by a microswitch as the lamp module mount

SPX Operation Manual 5

Peak

symbol

screws are loosened.

Lamp Replacement and Adjustment

Isolate electrically before re-lamping the luminaire. Also be aware that the lamp and/or luminaire may still be

hot, so exercise necessary caution to avoid burns.

To ensure optimum performance from your SPX luminaire, follow the steps below:

Centringthelamp

1 Remove the lamp holder as described above.

2 Level the lamp socket plate by adjusting the lamp

alignment screws.

3 Turn the peak/flat gear

4 Carefully replace the lamp holder module and tighten

the thumbscrew to lock it into position. Reconnect the

luminaire to the power supply.

5 Turn the peak/flat gear clockwise towards the peak

setting. This is indicated by the raised peak setting symbol on the peak/flat

gear. 5 half turns will shift the lamp into the approximate centre position.

6 Centre the lamp in the beam if necessary by adjusting the lamp

alignment screws.

OptimisingtheOutput

The lamp position can be altered to 'peak' or 'Flat' light output.

The peak beam gives a central hot spot falling off evenly to the beam

edges. This setting is useful for normal stage lighting purposes where

beams are overlapped to achieve an even cover.

Flat adjustment provides a visually even light beam suitable for gobo

projection. Take care to move the lamp carefully as the lamp filament is

burning white hot and at its most vulnerable.

Don't over-tighten the knobs; finger tight pressure is all that is required.

1 Adjust the beam to its narrow angle, with a sharp edge.

2 Peak the output (turn the centre gear clockwise towards the peak symbol) until you see light flare

around the edge of the beam.

3 Turn the centre gear anti-clockwise towards the flat symbol until the flare is removed and you have a

clean sharp-edged beam. This is the position of maximum light output.

4 A useful technique to check how well the lamp is centred is to push two of the shutters into the beam,

and then check if any reflection off the shutters is visible in the beam. If so, adjust the screw on the

side opposite to the reflection until it disappears.

5 To set a ‘FLAT’ beam, turn the centre gear anti-clockwise towards the flat symbol until the distribution

appears even across the beam.

SPX Operation Manual 6

Lamps

The SPX range lamp module has a TP-22 (G9.5) lamp base and is designed to run with GKV range of lamps.

Lamps suitable for this module include:

220-240V 120V

GKV: 600W, 220V -240V, 300 hrs GLA: 575W, 115V, 1500 hrs

GLB: 600W, 240V, 1500 hrs GLC: 575W, 115V, 300 hrs

GKV: 800W, 220V -240V, 300 hrs GLD: 750W, 115V, 300 hrs

GLE: 750W, 115V, 1500 hrs

GLG: 375W, 115V, 300 hrs

Important note: The GKV range of lamps uses a very compact filament in order to achieve its highly efficient

output. For this reason, the lamp filaments are close to each other and are therefore sensitive to shocks.

Great care should be taken when adjusting the lamp and focusing the luminaire to avoid shocks.

Important Note: The quoted performance figures are achieved with Philips lamps. Other manufacturers

lamps can be used, but no assumptions should be made as to relative performance.

Please refer to the instructions of the lamp manufacturer when disposing of failed lamps.

MountingyourLuminaire

A safety bond MUST always be used when rigging luminaires on bars, ladders, etc. The SPX is

supplied with a rated safety bond permanently attached. This is the only recommended anchor point

for the luminaire. Be careful to allow sufficient slack to allow the luminaire to be focused freely.

An extra safety bond attachment point has been provided for accessories placed

in the front of the lens tube. Do not use to secure accessories weighing more

than 2.5kgs / 5 ½ pounds.

The SPX uses universal burning position lamps. When possible however, it is

considered best practice to mount the luminaire so the yoke is horizontal and the

power cable at the bottom. Please note that the maximum tilt angles of the

luminaire are 90°either side of horizontal.

ToMountonaTheatreStandardScaffoldPipe

(48mm O.D.) Use a theatre hookclamp (Order Code: 20HC). Your luminaire is supplied with an M12 (or ½”

for North America) set screw, two washers and a nut. Pass the set screw through the yoke hole from the

inside, put on a washer, then the hookclamp, another washer and then tighten the nut.

The luminaire should be at least 1.2 metres / 4ft away from the nearest object it is lighting.



SPX Operation Manual 7

OperatingyourLuminaire

Please note that as the handles and knobs on the SPX range can reach high temperatures

depending on the position or orientation of the luminaire, and gloves should always be worn when

focusing these luminaires.

PanandTiltAdjustment

To pan the luminaire, loosen the nut at the top of the yoke and adjust, then retighten. To tilt, loosen the

locking clamp handle on the side of the luminaire, tilt and retighten finger tight.

FocusingSPXZoomspotModels

The beam of the SPX can be adjusted to a well controlled

soft-edged focus useful when merging one beam to the next,

or to a hard-edged focus useful for projections, specials, etc.

The variable beam of your SPX luminaire is altered by

adjusting the front or rear lens in relation to each other. The

front lens defines the beam spread; the rear, the focus degree

of "softness" or "sharpness" of the beam edge or shutters.

To focus your zoomspot, first define the beam size required

using the front lens. Then set the hardness/ softness of the

beam with the focus lens. A reference scale is on the bottom

of the lens tube. The reference scale allows you to record

your preferred beam settings.

Finger tight pressure only is necessary to lock the lens off in their chosen positions.

FocusingSPXFixedBeamProfiles

The lens can be moved to adjust the beam to in focus (sharp), or out of focus (soft). A

focus direction label is on the bottom of the lens tube.

To set a soft focus, move the lens forward of the hard focus

position.

NB: If you move it too far, the beam will become unusable and may cause the colour filter to fail prematurely.

ShutterSystem

The shutters are used to mask a portion of the beam, shaping it, masking light off scenery, curtains, etc. Note

that on the SPX range of luminaires, individual shutters are not removable.

ShutterLock

The shutter lock is used to fix the shutters in position

after they have been focused. To lock, slide the lever

to the closed position. To unlock, slide the lever to the

unlocked position.

NOTE: Do not run the luminaire with the shutters fully closed, as this may cause the luminaire to

over

heat

focus zoom

SPX Operation Manual 8

RotatableShutters

The shutter and reflector assembly can be rotated to

position the shutters for the best cut, or to move the

focus knobs into an optimum operating position.

1. Check that the front accessory cover is closed,

securing the colour frame. Ensure any pattern

holders or iris/ accessories are secured in the

accessory slots (refer above)

2. Loosen the top shutter and reflector assembly

screw clamp

3. Rotate the shutter and reflector assembly to the required position

4. Tighten the shutter and reflector assembly screw clamp.

AccessoryMountingPositions

The SPX range provides good image projection right across the beam.

NOTE: The SPX range has two different pattern holders.

SPXGHB For 'B' size steel patterns

SPXGHGB For “B” size glass patterns

The SPX provides for mounting 2 pattern holders.

The front accessory slot will house:

Glass pattern holder (code SPXGHB)

An adjustable iris (code 20IRIS)

A motorised gobo rotator (e.g. Rosco/Apollo)

The rear slot will house a Philips Selecon steel pattern holder

(order code: SPXGHB).

Refertowebsiteforalistofcompatiblethirdparty

accessories.

Tofitanaccessoryinthefrontslot

Slide the accessory slot cover forward to reveal the aperture. Slide the

accessory into the front slot. Slide the slot cover back into place to lock

in the accessory. Follow the instructions of the accessory manufacturer

in regards to operating and safety procedures.

Tofitanaccessoryintherearslot

Slide the accessory slot cover forward to reveal the aperture. Slide the

pattern holder into the rear slot. Slide the slot cover back into place to

lock in the pattern holder.

ToinsertanIris

To mount the Iris (20IRIS) slide the accessory slot cover forward to

reveal the aperture. Slide the iris into the front slot and push to the

bottom of the slot. Slide the slot cover back into place to lock in the iris.

NB: Do not operate and adjustable iris in a ½ closed to fully closed position for extended periods of

time as the heat may cause damage to iris leaves.

SPX Operation Manual 9

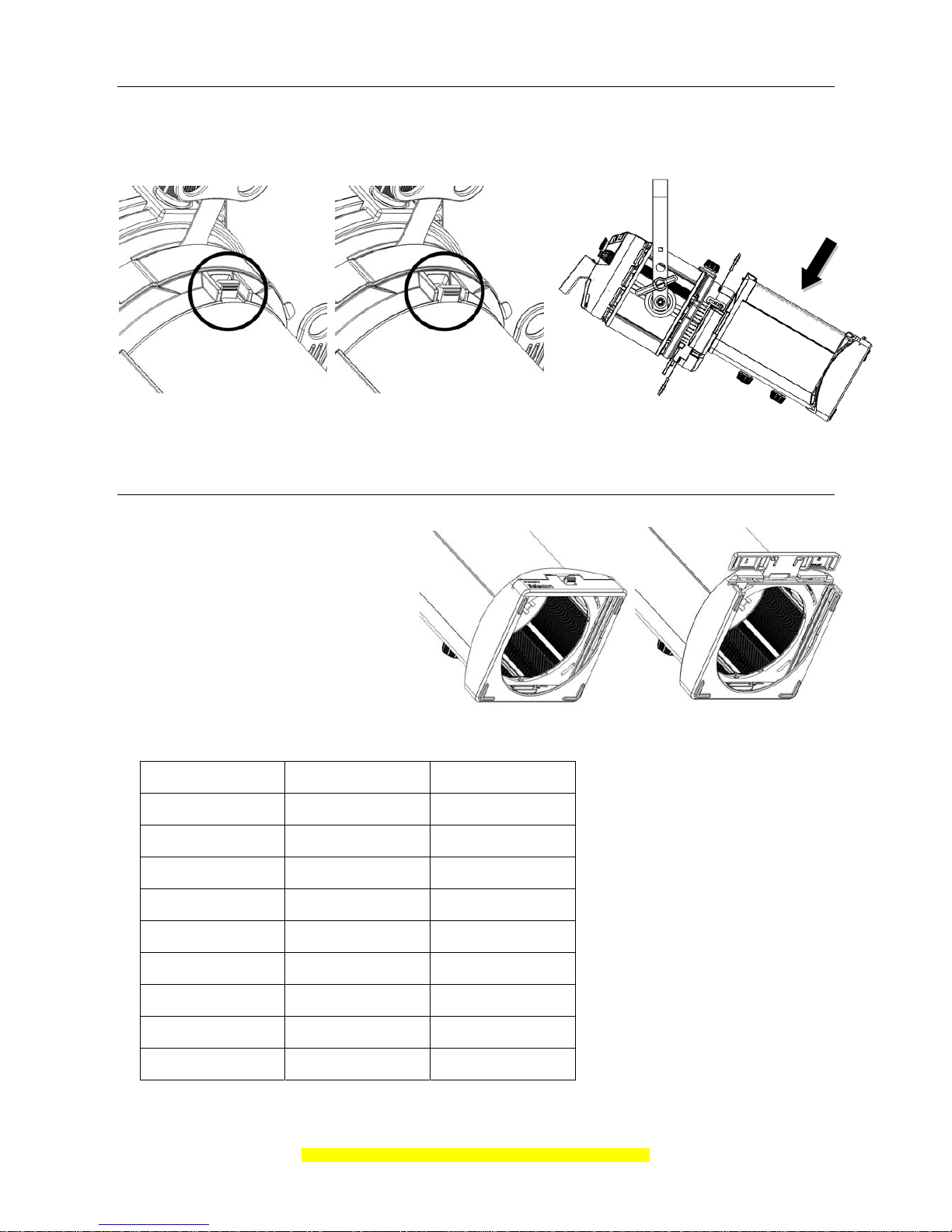

ChangingtheLensTube

The SPX fixed beam and zoom lens tubes are interchangeable. Move the lens knob(s) towards the front of the

tube. Slide the lens tube locking catch forward and lift out the lens tube. Replace it with the desired lens tube.

Ensure the lens tube locking catch is fully engaged.

ColourFilterLife

The SPX optical system has been designed

for maximum light output using modern

compact filament lamps, while optimising

colour filter life.

Colour filter life is of typical duration

compared to other ellipsoidals.

Please refer to the table below for more

performance information.

Tested with dark blue high performance gel using an 800W lamp, 240V.

Lens Tube Flat Peak

14° Excellent Excellent

19° Excellent Excellent

26° Good Good

36° Good Good

50° Good Okay

15° - 35° at 15° Excellent Excellent

15° - 35° at 35° Good Good

25° - 50° at 25° Excellent Excellent

25° - 50° at 50° Excellent Excellent

SPX Operation Manual 10

SafePractice

Heat

The SPX incorporates an innovative design to effectively remove the heat out of the luminaire, away from the

critical heat-sensitive components such as the lamp base and wiring. The components that form part of the

heat removal system and lamp house will operate at temperatures which can burn you!!!

Take care in handling the luminaire. We recommend the use of gloves when focusing.

TiltLock

Take care when releasing the tilt lock as the luminaire may suddenly swing down. Hold the lens tube with one

hand and release the tilt lock with the other.

Handles

The handle on the lamp module is designed to assist positioning of the luminaire during focusing. When cold,

cable can be wrapped around it for storage. Do not operate the SPX with cable wrapped around the handle.

It is also recommended that the luminaire should always be electrically isolated from mains power before re-

lamping, cleaning or servicing.

RiggingChecklist

When rigging your luminaire check:

Lens tube clamp is clipped in place correctly

All safety anchor bonds are fitted

Any accessories are correctly installed and secured

Accessory cover is locked down

The lamp module is secured in position with the lamp module locking knobs tightened.

Maintenance

ElectricalTestProcedure

The SPX is a Class 2 Electrical appliance. It is double insulated for maximum safety and simplified

maintenance. All exposed metalwork is separated from the conductors by two layers of insulation. An

earth conductor is not required in a Class 2 Electrical appliance.

Two tests must be performed on the SPX, a visual inspection and an Insulation Resistance Test for class 2

appliance. The SPX must have the Lamp Base Module correctly fitted to the luminaire in order to perform the

Insulation Resistance Test.

Before performing any electrical test a suitably qualified or competent person (as defined by the standard or

local laws) must first carry out a visual inspection.

Ensure the SPX is unplugged and at a safe handling temperature.

Check that the outer casing of the SPX is not damaged in a way that will give rise to electrical or

mechanical hazards.

Check that the plug is not damaged.

Check the electrical cable is not damaged, cable sheathing should be securely held at both the plug

and the fixture and should not be cut, twisted, kinked, perished or damaged in any way and must

not have been repaired with insulating tape or an unsuitable connector. The individual conductor

insulation should not be exposed and wire conductor should never be visible. Check under

insulation tape for damage. Damaged or defective cable should be replaced with the correct Philips

Table des matières

Autres manuels Philips Luminaire

Philips

Philips GreenPower LED toplighting Series Manuel utilisateur

Philips

Philips Lytecaster 1050 Series Manuel utilisateur

Philips

Philips iColor Cove QLX Manuel utilisateur

Philips

Philips selecon plcyc1 MKII Mode d’emploi

Philips

Philips 69108-60-PU Manuel utilisateur

Philips

Philips 6910130PH Manuel

Philips

Philips 4AWA Manuel utilisateur

Philips

Philips 69101-04-PH Manuel utilisateur

Philips

Philips Fortimo LEDFlex S Manuel utilisateur

Philips

Philips 33610-11-16 Manuel utilisateur

Philips

Philips Lytespan 23S39MR Manuel utilisateur

Philips

Philips LWL2 Series Manuel utilisateur

Philips

Philips 69112-32-PH Manuel utilisateur

Philips

Philips 8122 Manuel utilisateur

Philips

Philips Lytespan 23S20T4 Manuel utilisateur

Philips

Philips SpotOn Ultra 69141/04/PH Manuel utilisateur

Philips

Philips Lytespan 8202WH Manuel utilisateur

Philips

Philips Calculite C4T4GD-MHT4R Manuel utilisateur

Philips

Philips Lytecaster 1000ICV Manuel utilisateur

Philips

Philips EvoKit 2x4 P 36L 36W 835 2 0-107 G2 Manuel utilisateur

Philips

Philips Pacific II TCW097 Manuel utilisateur

Philips

Philips Lytecaster 1101HSW Manuel utilisateur

Philips

Philips Calculite IS-PE Manuel utilisateur

Philips

Philips Tangent FXS Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Lightolier

Lightolier LP200 Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Calculite CS8226 Manuel utilisateur

ArtFox

ArtFox Beam 15R extreme Manuel utilisateur
