Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle Version A

Salad maker

HR1388/50

12/09

PRODUCT INFORMATION

Fresh homemade salads made easy

Perfect results in any shape and any size in seconds

The Philips SaladMaker combines a powerful 200 W

motor with 6 stainless steel disc inserts. It can cut your

favorite ingredients in any shape and size. Preparing

your favotite homemade salad just the way you like has

never been so easy!

Maximum versatility

• Cuts all your favorite ingredients. Even French-fries

• 6 disks for a variety of results in any shape and size

• Slicing, grating, Julienne and a French-fry disk

Perfect results in seconds

• Powerful 200 W motor

• Stainless steel disk inserts for perfect cutting results

• Large output cuts directly into your bowl, ready to

serve

Effortlessly easy

• No cutting needed upfront with the XL feeding tube

• Dishwasher proof parts

• Easy cord storage

Safety

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Voltage : 220 V - 240 V

• Frequency : 50 Hz - 60 Hz

• Power : 200 W

• Cord length : 1,2 m

• Safety : Safety lock system

Design

• Color(s) : Star white and red

• Material disc (inserts) : Stainless steel

General specications

• Dishwasher safe accessories

• Cord storage

• Non-slip feet

Accessories included

• Coarse slicing disc

• Fine slicing disc

• Coarse shredding disc

• Fine shredding disc

• Julienne disc

• French-fry disc

Product size

• Length : 192 mm

• Width : 223 mm

• Height : 313 mm

• Weight : 1480 g

2-5

HR1388/50

TECHNICAL INFORMATION

Used materials:

• Housing : PP

• Bottom : PP

• Lid : SAN transparent

• Stirrer : POM

• Coupling adapter : PA 6+ 30 % GF

• Rotary Knob : ABS

• Cutting unit : Plastic bowl including a not removable safety lever

• Pusher : PP

• Insert holder : ABS

• Inserts : Stainless steel

Motor:

• Supplier : Power Motor

• Type : Universal motor PU5421230-4105

• Environment condition : ± 80 °C (for the case of no separate motor cooling)

• Fixation : Screwed (2x) onto gearbox assy

Power cord

Changeable exible sheathed cable including a plug for safety class II appliance!

• Type : H03VVH2-F

• Length : For all versions min. 1.2 m free length

(Free cord length = end of plug to top side of device)

DISASSEMBLY- AND RE-ASSEMBLY ADVICE

• No specific issues

REPAIR INSTRUCTIONS

• No specific issues

OPTIONAL (accessories)

• No specific issues

3-5

HR1388/50

3 4

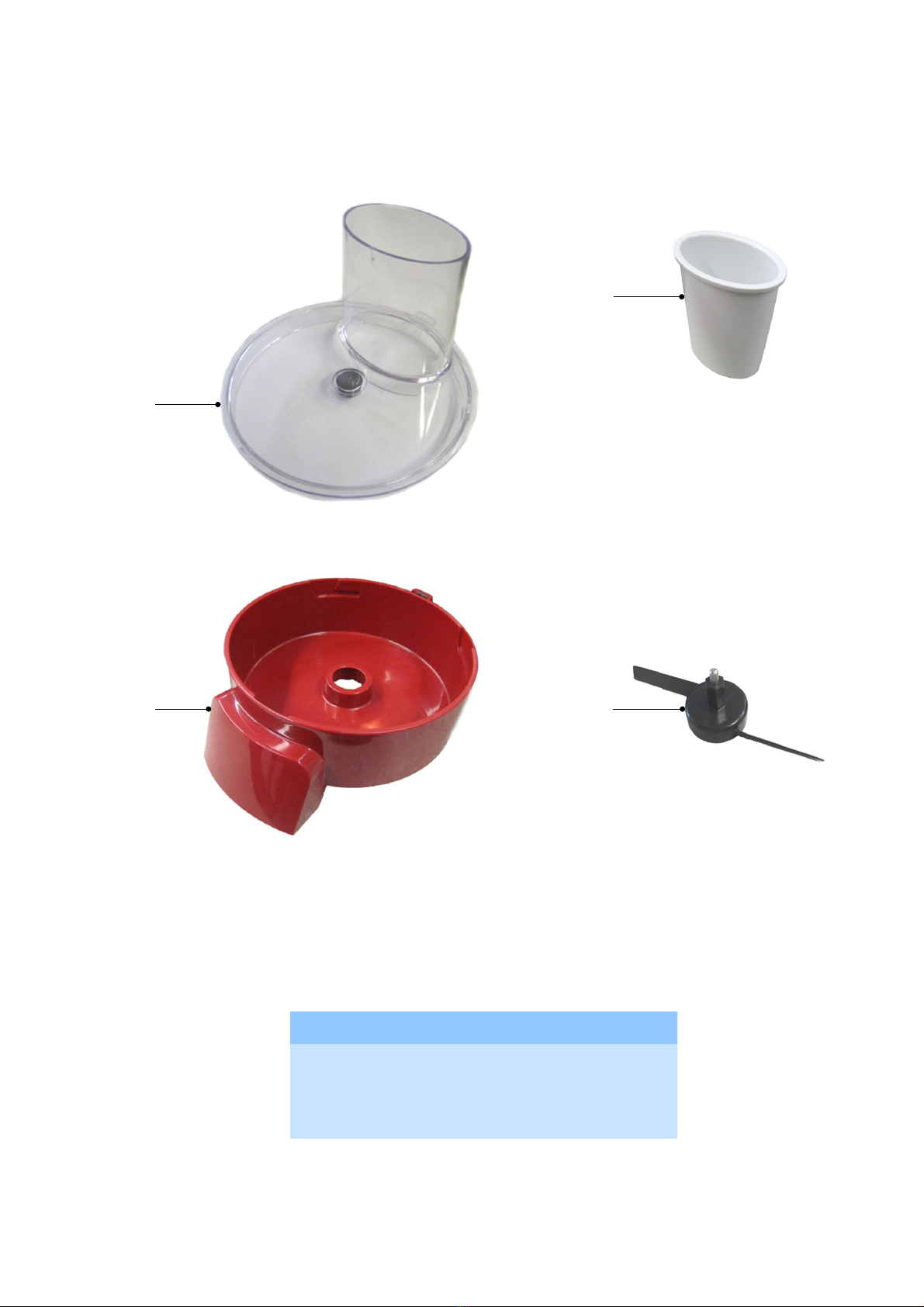

PARTSLIST + 3D view (CRP‘s)

Pos Service code Description

4203 036 00471

4203 035 54651

4203 036 00481

4203 035 54671

Pusher

Lid

Bowl with spout

Tool holder

4-5

HR1388/50

5 6

7 8

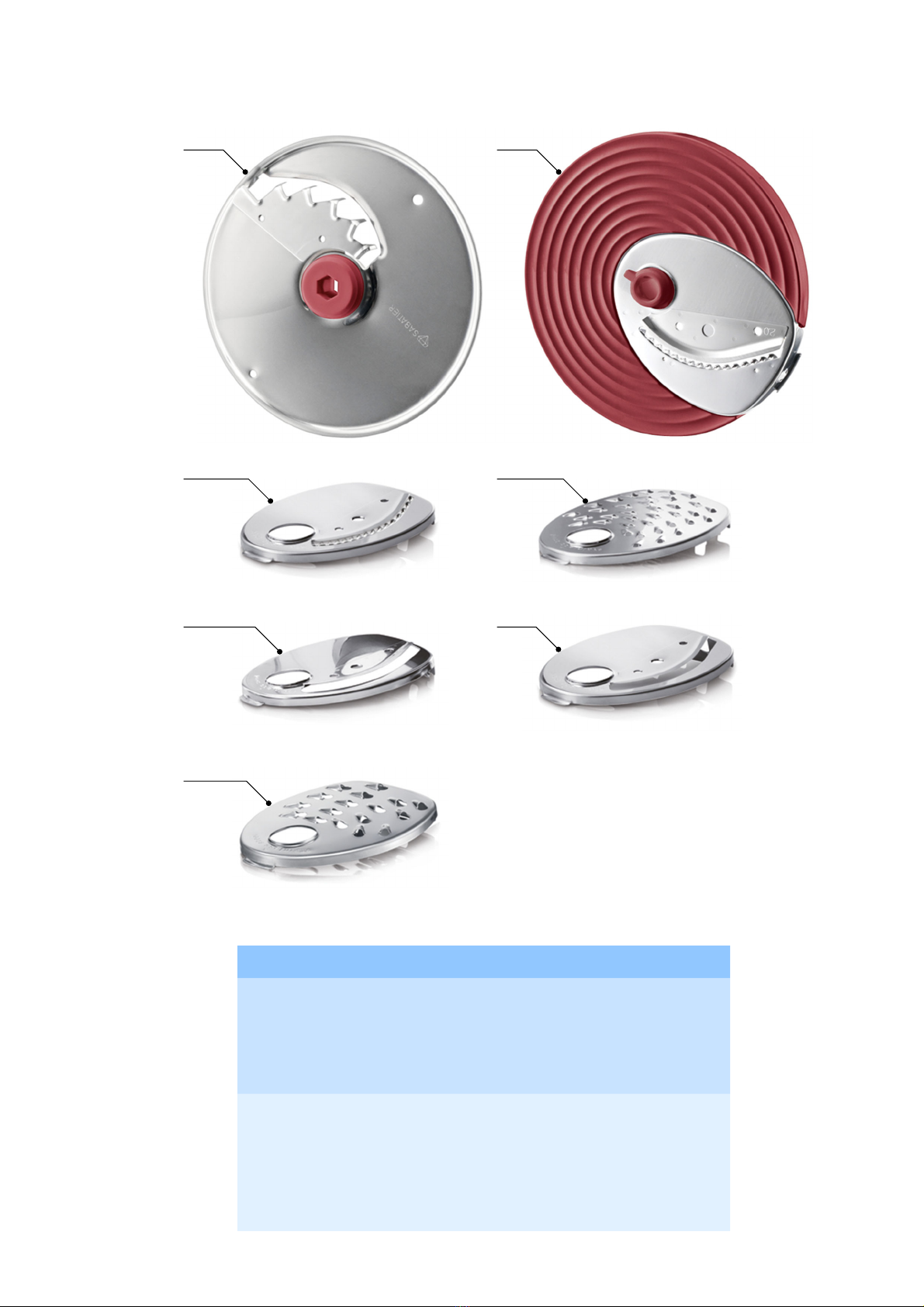

PARTSLIST + 3D view (Discs)

Pos Service code Description Remark

4203 035 54681

4203 035 54691

4203 035 54631

4203 065 61550

(4203 035 88700)

French fries disc

Disc holder

Julienne disc

Fine shredding disc

Red (without disc)

4203 065 61530

(4203 035 88720)

4203 065 61540

(4203 035 88710)

4203 065 61560

(4203 035 88690)

Fine slicing disc

Coarse slicing disc

Coarse shredding disc

(1,2 mm)

(2,4 mm)

5-5

HR1388/50

12 16

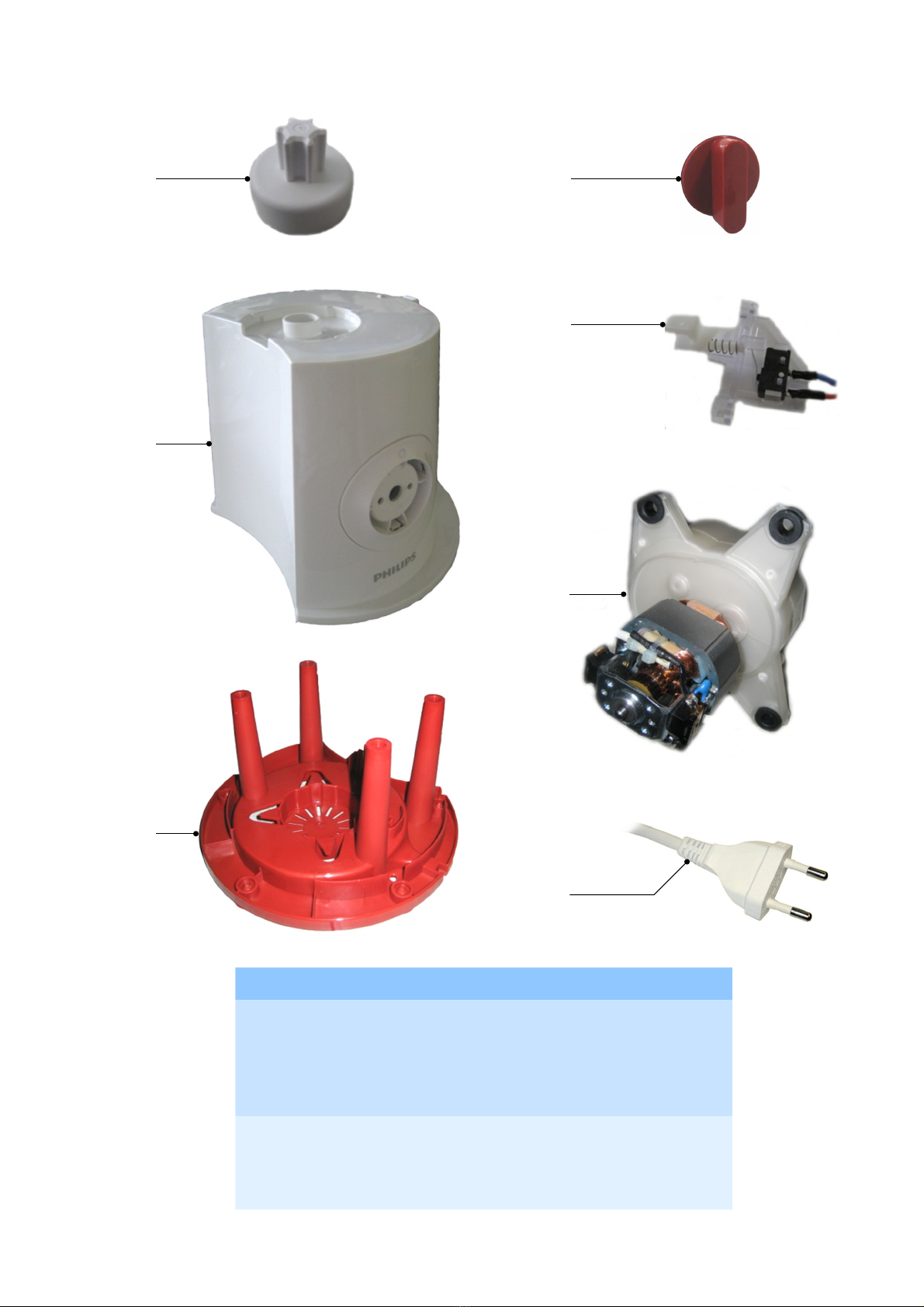

PARTSLIST + 3D view for repair

Pos Service code Description Remark

4203 035 54701

4203 035 54711

4203 035 54721

4203 035 54731

4203 036 00491

Coupling

Housing

Bottom + 5 studs

Stud (1 pcs.)

On/Off knob

(Not shown)

4203 035 54751

4203 036 00031

4203 035 54761

4203 035 54771

Safety switch + Spring + Lever

Motor (HV) + Gearing unit

Powercord
