ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Steamer

HD9140/90

09/01

PRODUCT INFORMATION

- Product meets the requirements regarding interference

suppression on radio and television.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as laid

down officially established at this moment.

TECHNICAL INFORMATION

- Voltage : 220 - 240 V or

110 - 127 V

- Frequency : 50 - 60 Hz

- Power consumption HV : 755 - 900 W

LV : 755 - 1010 W

- Thermostat switch-off temp. : 150 ±5 °C

- Thermal fuse cut-off temp. : 188 +3/−1° C

- Timer : 0 - 99 Minutes

- Food type programming : Buttons

- Food ready indication : Audible

- Water tank refill indication : Audible and visible

- Contents water tank : 1100 cc

- On/off indication : Power-on light

- Descale indication : Audible and visible

after 15 h of steaming

- Color setting : Black/Metal/Red

- Size : 320 x 226 x 423 mm

(L x W x H)

- Weight : 2 Kg

- SAP coding : HD9140/90

HD9140/90

2-3

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- To disassemble the base cover, remove the 7 screws

(5 of them hidden under the rubber feet).

REPAIR INSTRUCTION

- Electrical circuit

When the appliance does not work, check the electrical

circuit.

- Decalcification

Fill the water tank to the MAX level with white vinegar

(8 % acetic acid). Do not use any other type of descaler!

Put the drip tray, all bowls and the lid on the base properly.

Plug in a wall socket and set timer for 25 minutes to begin

steaming.

WARNING: If vinegar begins to boil over the edge of base,

unplug the unit and reduce the quantity of vinegar slightly.

When the 25 minutes have elapsed, unplug the appliance

and allow the vinegar to cool down before pouring it out.

Rinse the water basin several times with cold water.

Note: Repeat the procedure if there is still some scale in the

water tank.

- Cleaning filter

Clean the filter by rinsing it under a running tap.

If necessary, a soft nylon brush can be used.

The filter can also be cleaned by de-scaling it.

Let the filter soak in a cup of warm water with some white

vinegar.

Take the filter out of the cup and rinse it thoroughly.

OPTIONAL (accessories)

- No specific issues.

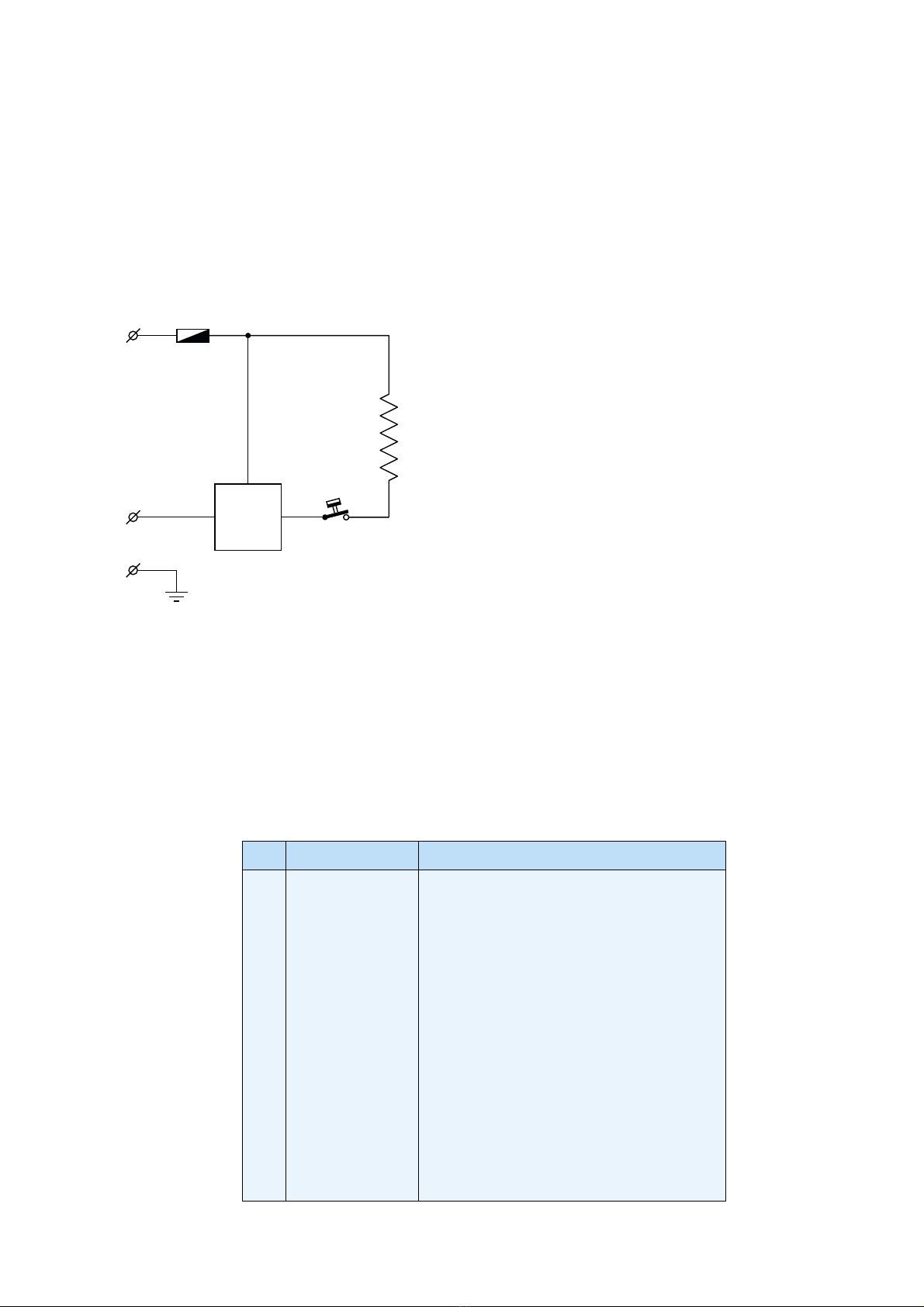

Thermostat

Therm.

Fuse

Control

PCB

220 - 240 V AC

755 - 900 W

110 - 127 V AC

755 - 1010 W

PARTS LIST

Pos Service code Description

4222 459 45357

4222 459 45358

4222 459 45356

4222 459 45363

4222 459 45404

4222 459 45405

4222 459 45364

4222 459 45365

4222 459 45366

4222 459 45406

4222 459 45369

4222 459 45407

4222 459 45367

4222 459 45368

4222 459 45370

Water receiver incl. Supporter Black

Cover incl. Handle Black

Steam cap incl. Support

Filter

Rice bowl

Upper steam bowl

Heating element incl. thermostat 220 - 240 V

Heating element incl. thermostat 110 - 127 V

Fuse assy incl. wires

Middle steam bowl

Tube 8*13.4 L = 45mm

Lower steam bowl

Base cover

Rubber foot (1 pc)

Bend pipe

HD9140/90

3-3

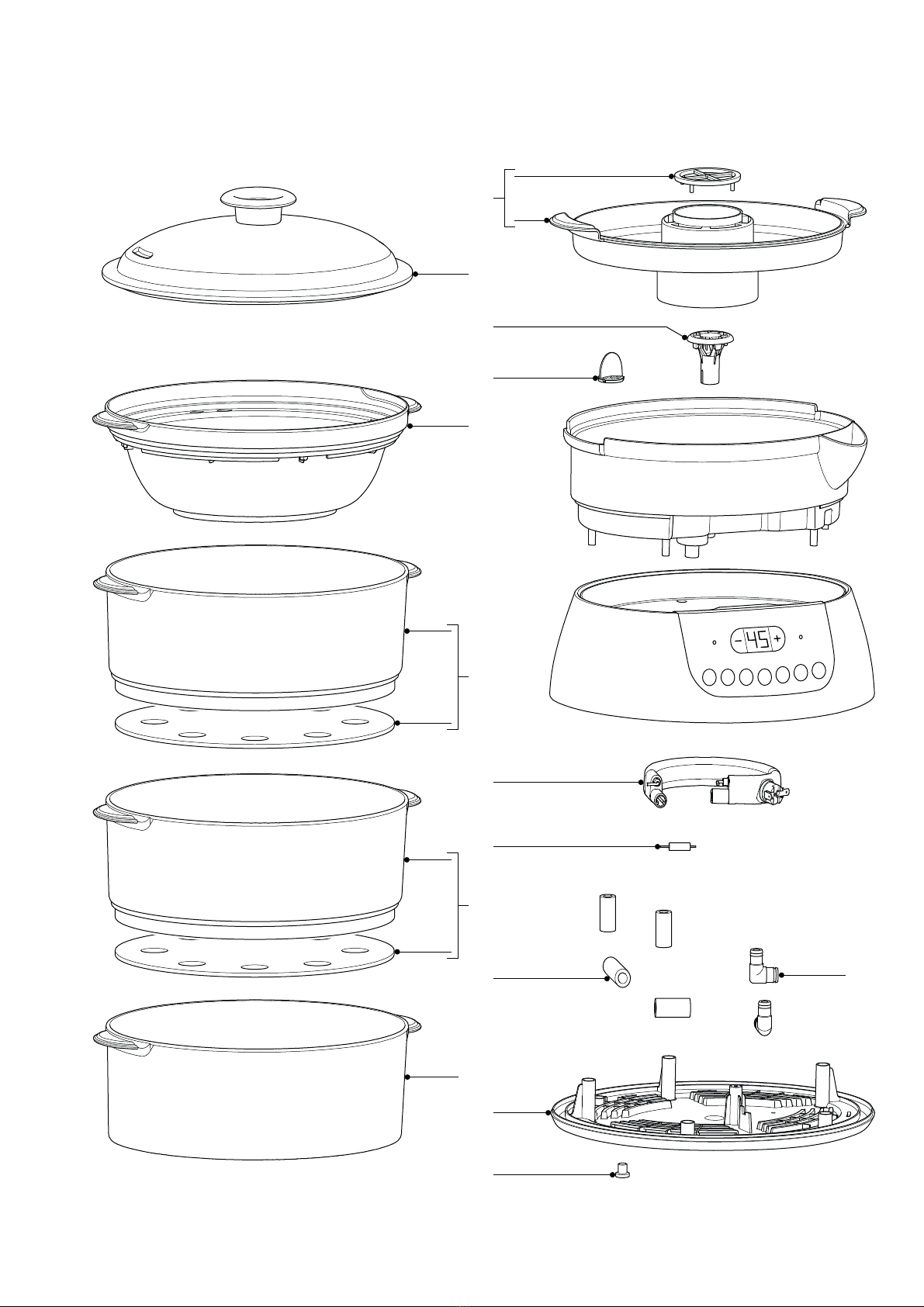

EXPLODED VIEW
