Philips Provapor GC6268 Manuel utilisateur

ServiceManual

Philips Consumer Lifestyle

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Boiler steam iron Provapor Azur

GC6268

09/03

PRODUCT INFORMATION

Features

Iron

- Careeza soleplate

- Max steam output 95 grams/min

- Shot of steam (SOS)

- Cord length 1.9 m

Boiler

- Inox boiler

- Capacity 1 litre

- Stainless steel tray assy

- Ergonomic backrest

- Vario steam

- Steam ready light indicator

- Anti-scaling funnel

Safety Information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power consumption : Iron : 800 W

Boiler : 1200 W

Pressure : 4.0 bar

Dimension (F-box) : 41 x 38 x 20 cm

Weight : 3850 grams

Water advice : Suitable for tap water use. However if

the tap water in your area is very hard,

we advise you to mix it with a equal

portion of distilled water or to use

distilled water only.

Soleplate

Careeza is a multi layer chemical substance that gives an

excellent gliding over various fabrics and better care for the

garments.

Vario steam

The vario steam function allows user to have control over the

steam rate and this prevent over moisturising the cloth.

Anti calc

The anti calc is integrated in the funnel and softens the water

that goes into the boiler.

GC6268

REPLACE DIAL 1

REPLACE BACKPLATE 2

disassemble DIAL 1

remove screw A

remove connection

remove hose

REPLACE INLAY 3

STEAM KNOB 4

IRON LAMP 5

MICRO SWITCH 6

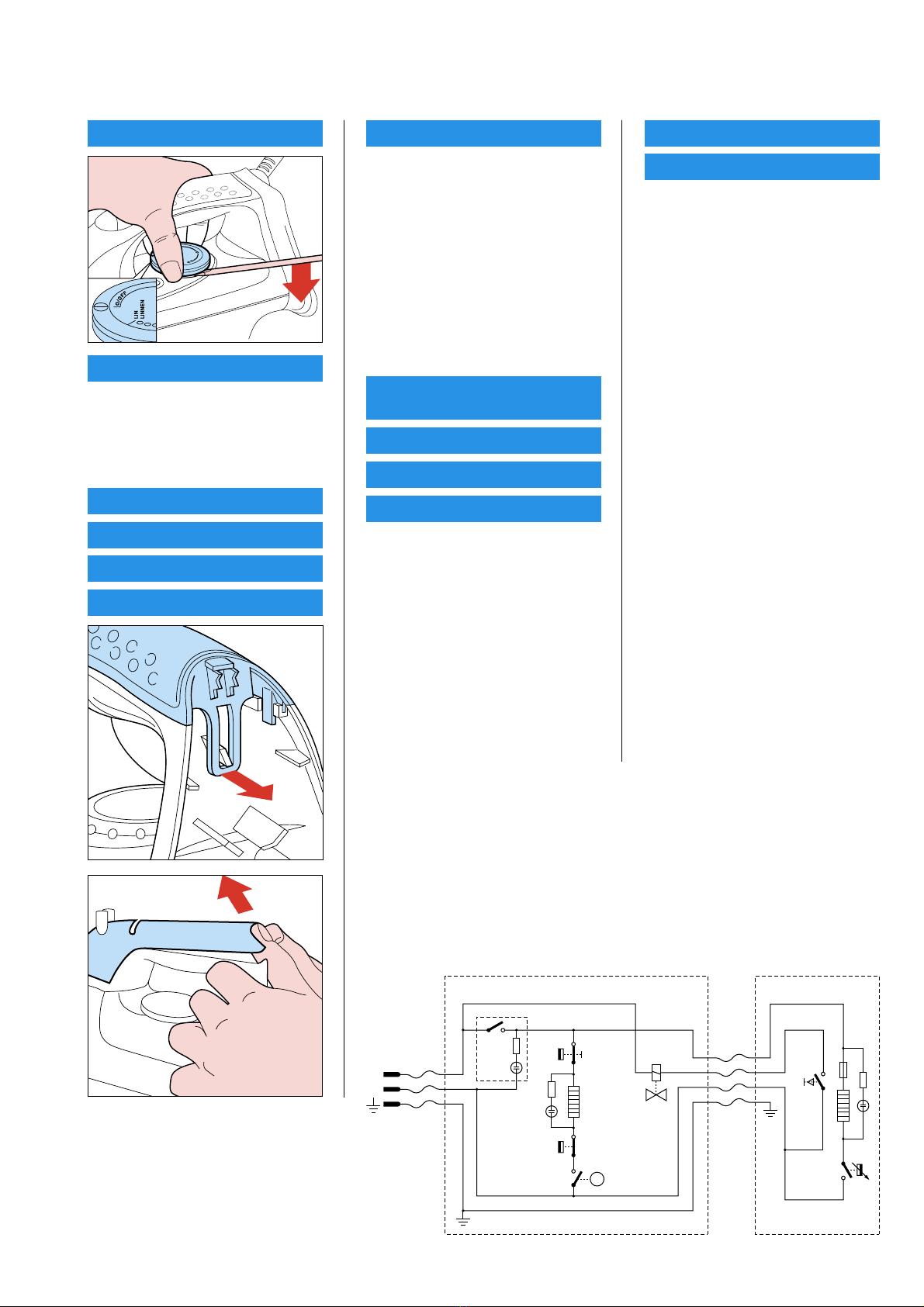

DISASSEMBLY ADVICE - IRON

REPAIR INSTRUCTIONS - IRON

- For disassembly, you will need a Torx screwdriver: 362 TR T20 x 100

REPLACE IRON HANDLE 7

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

STEAM KNOB 4

IRON LAMP 5

MICRO SWITCH 6

remove screw B (3x)

REPLACE

INTERMEDIATE CABLE 8

SWIVEL 9

DEVIATOR ASSY 10

THERMOSTAT BUSH 11

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

STEAM KNOB 4

IRON LAMP 5

MICRO SWITCH 6

remove screw B (3x)

disassemble IRON HANDLE 7

REPLACE IRON SKIRT 12

SOLEPLATE UNIT 13

disassemble DIAL 1

remove screw A

remove connection

remove hose

disassemble BACKPLATE 2

disassemble INLAY 3

STEAM KNOB 4

IRON LAMP 5

MICRO SWITCH 6

remove screw B (3x)

disassemble IRON HANDLE 7

disassemble INTERMEDIATE

CABLE 8

SWIVEL 9

DEVIATOR ASSY 10

THERMOSTAT

BUSH 11

remove screw C (3x)

Cut

out

Steam

ready

Boiler

thermostat

Main

switch

STAND IRON

Steam-

switch

Thermostat

Electro-

valve

Boiler

heating

element

2-5

GC6268

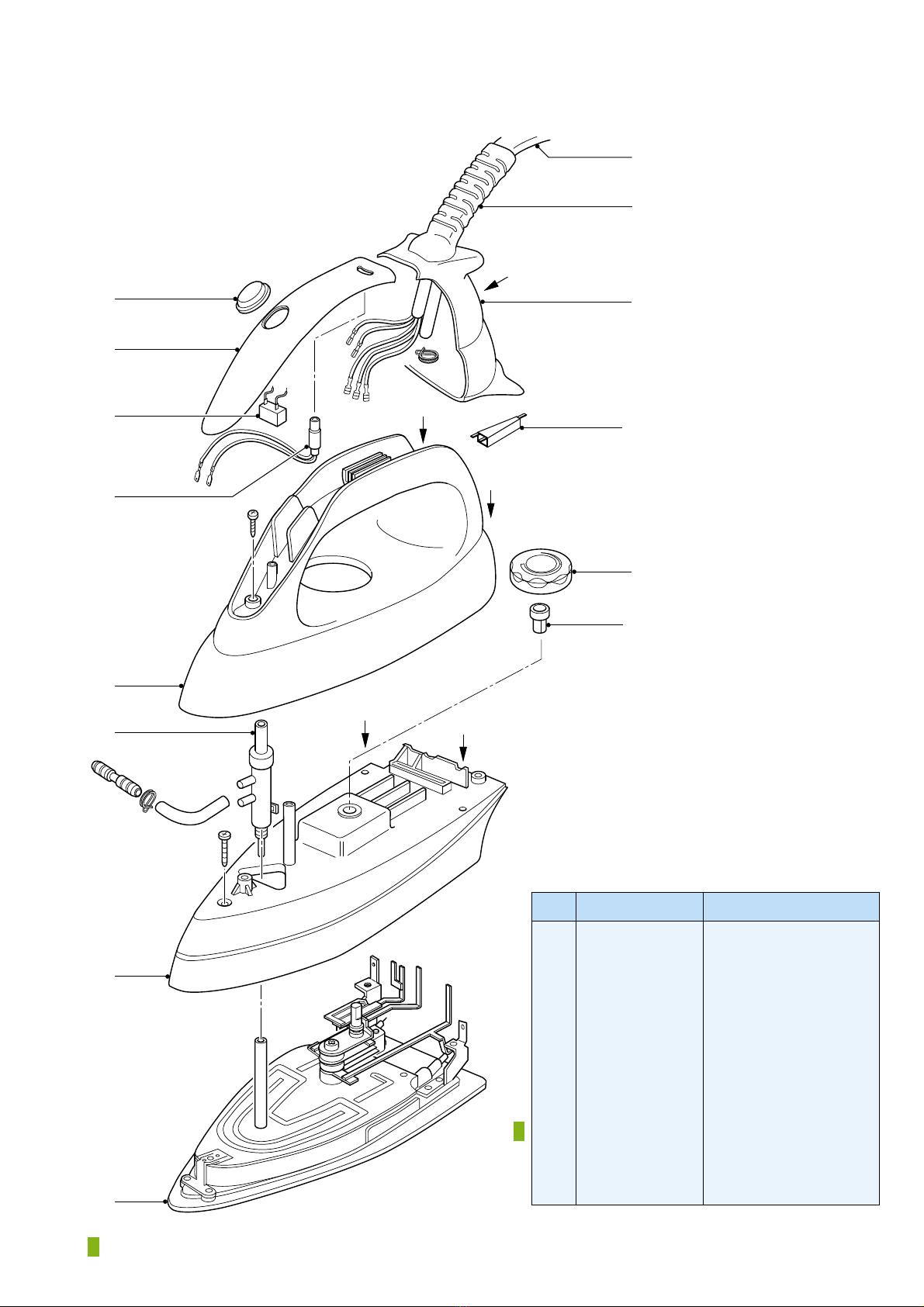

PARTS LIST & EXPLODED VIEW - IRON

C1 C2

3-5

Pos Service code Description

4239 021 19670

4239 026 15690

4239 026 15680

4239 026 15670

4239 021 19630

4239 017 08950

4239 021 19660

4239 021 19570

4239 026 15580

4239 021 19620

4239 026 13220

4239 026 15620

4239 021 19510

4239 026 15650

Dial

Backplate

Inlay

Jet of steam knob

Iron Lamp

Micro switch

Iron Handle

Intermediate Cord

Swivel

Steam deviator assy

Thermostat bush

Iron skirt

Soleplate unit

Electrovalve trigger

= changed

GC6268

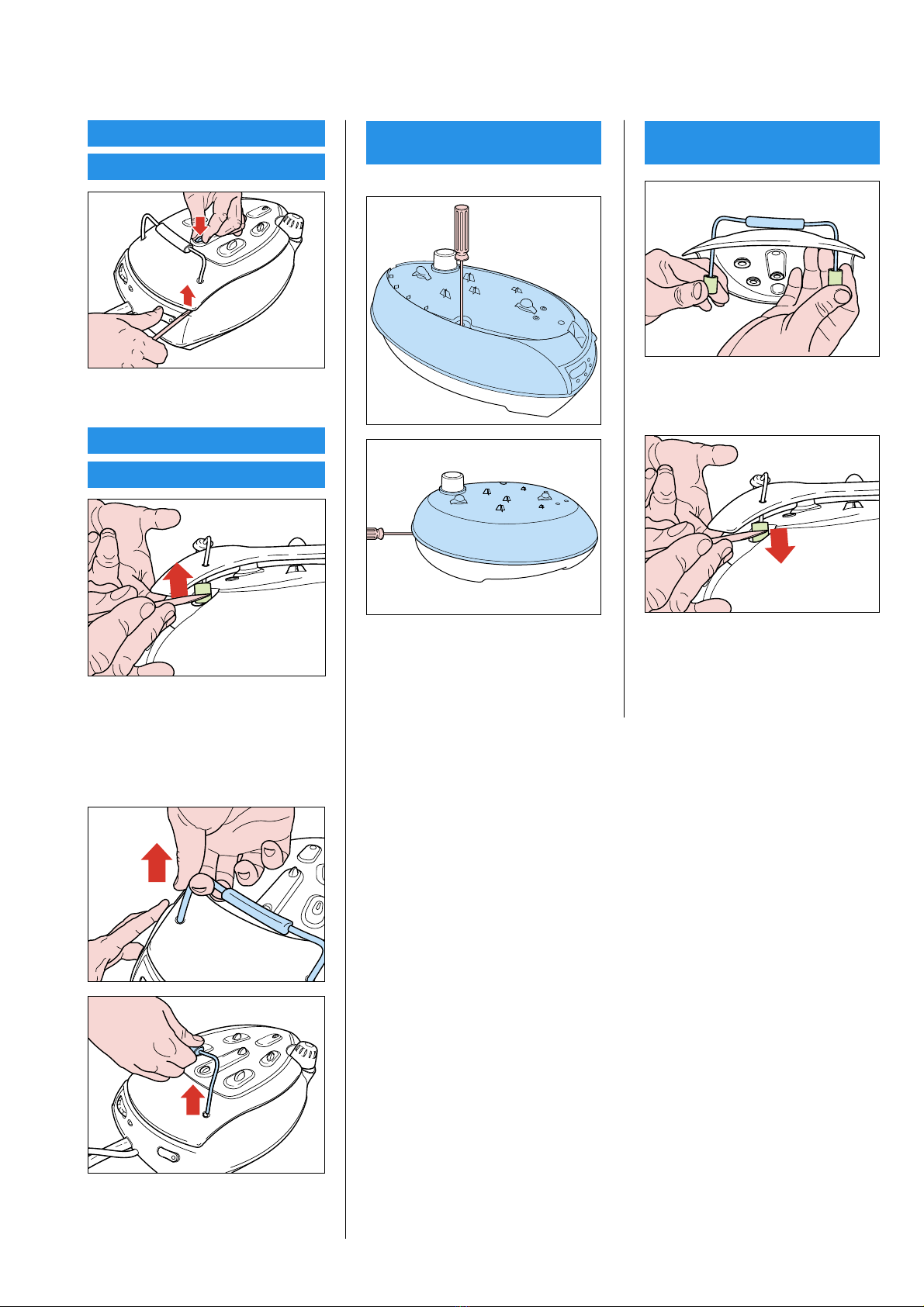

DISASSEMBLY & REASSEMBLY ADVICE - STAND

SAFETY CAP 21

COMPLETE TRAY 22

Press tray anchorage rubber 23 through

the tray

BACK REST ASSY 34

HOSE CLAMP 35

With tray lifted, use a screw driver to

upwardly unplug hose clamps at the

foot of back rest.

Note: Hose clamps MUST BE

unplugged before back rest can

be removed.

When both hose clamps are unplugged,

remove back rest by pulling one leg

ﬁrst, then the other leg.

SUPERIOR STAND

PRINTED 32

Remove screws A (4x)

A 4x

Remove the SUPERIOR STAND and

you will see the respective parts of the

Boiler.

REASSEMBLY

COMPLETE TRAY 22

Insert back rest through the complete

tray, hose clamps added to the legs of

the back rest as shown above.

REMEMBER to plug in the hose

clamps after inserting back rest to the

superior stand.

Note: The hose clamps lock the back

rest into position.

REPAIR INSTRUCTIONS - STAND

- For disassembly, you will need a Torx screwdriver 362 TR T20 x 100

- Be careful of the sharp edges of the stainless steel tray assy. Use a thick glove when

removing the tray assy.

- To avoid damage to the sealings and components of the boiler, NEVER clean the

boiler with vinegar, descaling agent or other chemicals.

- Apply loctite to the screws on the boiler heating element upon any unscrewing/

screwing operation.

- The boiler is required to be rinsed after every 10 times usage.

- ALWAYS replaced boiler assy (Pos 26) when

•mechanical safety valve at the cap has been activated

•thermal fuse/thermostat at boiler bottom is open

4-5

GC6268

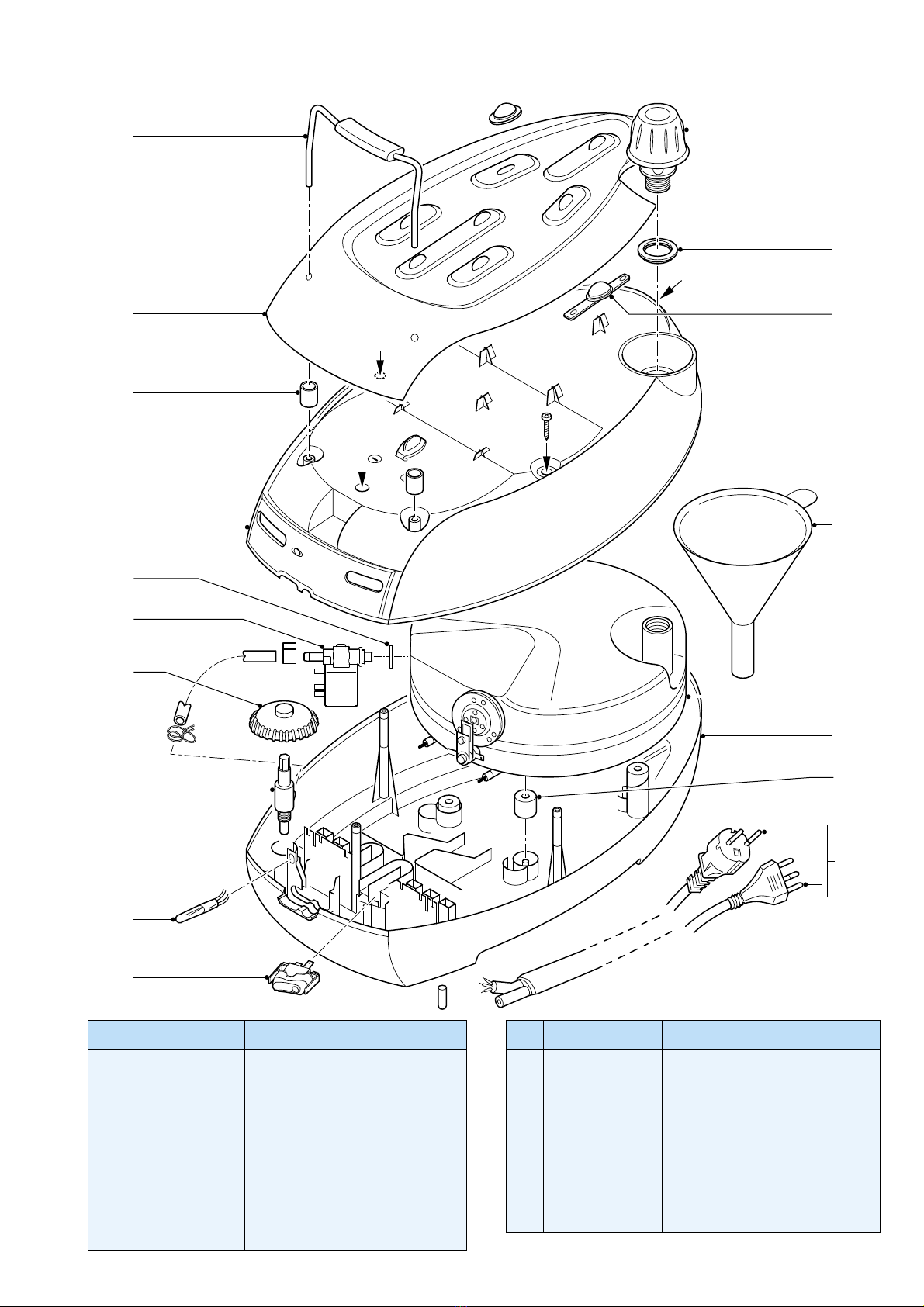

PARTS LIST & EXPLODED VIEW - STAND

34 21

5-5

Pos Service code Description

4239 021 19600

4239 021 19590

4239 015 55310

4239 015 55280

4239 000 09150

4239 000 09260

4239 021 19540

4239 010 08870

4239 026 15610

4239 021 19610

Safety cap printed assy

Complete tray

Tray rubber foot

Boiler rubber foot

Intermediate supply cable (Europe)

Intermediate supply cable (Italy)

Boiler assy welded

Electrovalve

Steam Dial

Steam regulator

Pos Service code Description

4239 017 08960

4239 017 08810

4239 021 19580

4239 026 15770

4239 021 19650

4239 026 00230

4239 015 55300

4239 021 19680

4239 017 09151

Lamp

Main switch

Superior stand

Inferior stand

Back rest assy

Hose clamp

Filling hole gasket

Anti calc funnel assy

Teﬂon ring
