Philips PowerLife GC2510 Manuel utilisateur
ServiceManual
Philips Consumer Lifestyle
Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification
Steam Iron PowerLife
GC2510
08/03
PRODUCT INFORMATION
Features
- Colour: Blue
- Non-stick soleplate
- Pointed tip soleplate
- Steam output: 30 g/min
- Steam boost: 90 g/min
- 3 steam level control
- Spray feature
- Tank capacity: 300 ml
- Cord length: 2 m
- 360 degrees ball swivel
- Filling door
- Calc clean feature
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements and
legal regulations as officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 110 V, 220 - 240 V
Frequency : 50 - 60 Hz
Power : 1300 W, 1830 - 2150 W
Dimension (F-box) : 303 (L) x 120 (W) x 152 (H) mm
Product weight : 1.2 kg
Water Advice
Suitable for tap water use. Advice to mix with equal portion
of distilled water or use only distilled water if the tap water is
very hard.
Non-stick Soleplate
3 layer coating silver soleplate. This soleplate glides smoothly,
is non-stick & easy to clean.
Pointed Tip
This feature allows soleplate to reach tricky area.
Steam Boost
The steam boost of 90 g/min helps to remove stubborn
wrinkles easily.
Calc Clean Function
This function flush scale particles out of the iron, hence iron
enjoy longer life.
GC2510
2-5

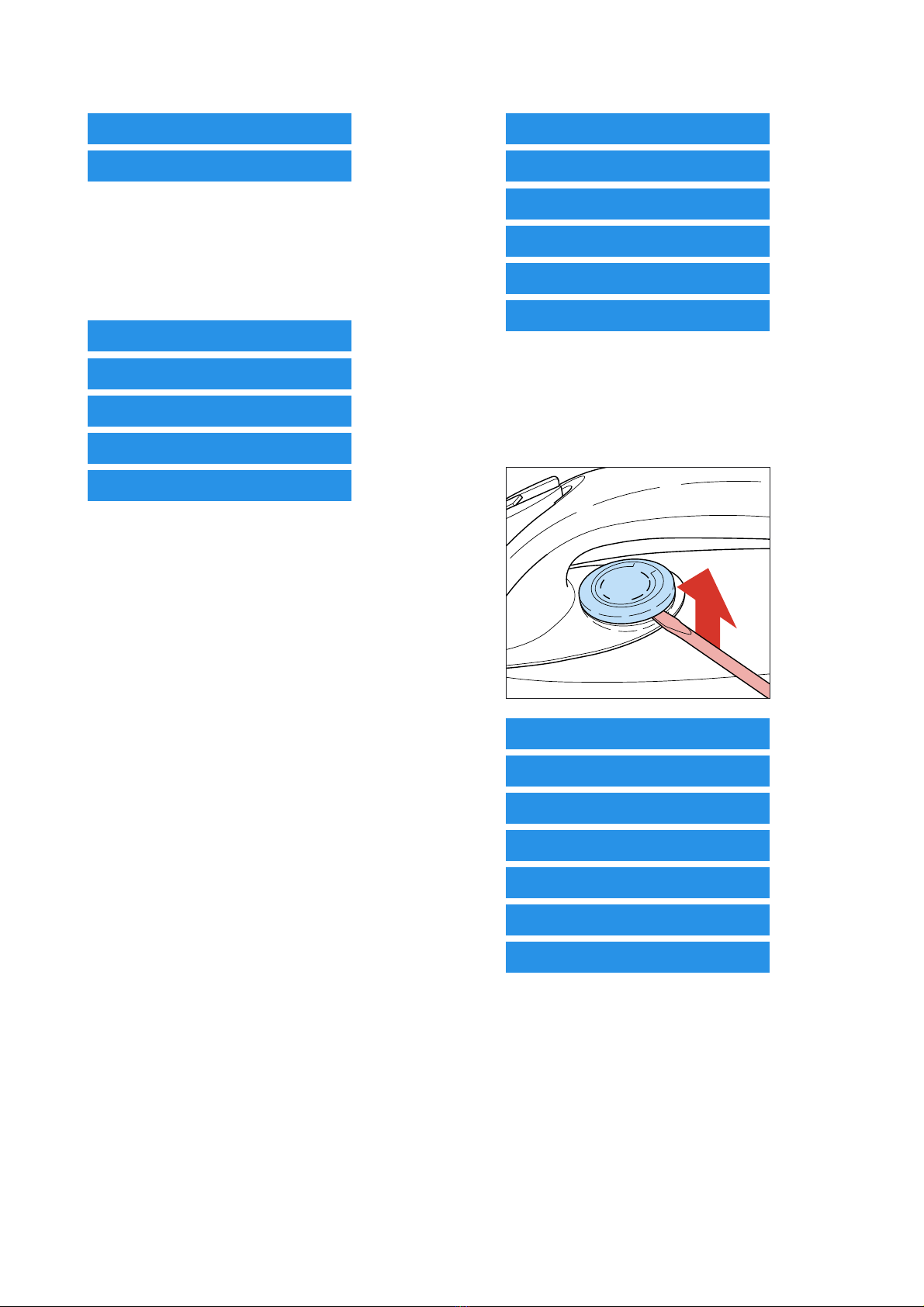

DISASSEMBLY ADVICE
BACKPLATE 17
CORDSET 20
Remove screw A
Disassemble BACKPLATE 17
Remove screws B1, B2
Remove cord clamp
Disconnect 3x quick-connectors of CORDSET 20
Disassemble CORDSET 20
LAMP ASSY 6
DOSING ASSY 22
SUB INLAY CAP 27
SUB INLAY ASSY 16
INLAY 15
Disconnect 2x quick-connectors of LAMP ASSY 6
Disassemble LAMP ASSY 6
Remove DOSING ASSY 22
Remove screw C1
Remove SUB INLAY CAP 27
Remove screw C2
Disassemble SUB INLAY ASSY 16
Release rear catch of INLAY 15
Disassemble INLAY 15
SOS KNOB 13
SPRAY KNOB 14
PUMP ASSY (SOS) 11
PUMP ASSY (SPRAY) 10
TANK SEAL 9
THERMOSTAT DIAL PRINTED 19
Disassemble SOS KNOB 13
Disassemble SPRAY KNOB 14
Disassemble PUMP ASSY (SOS) 11
Disassemble PUMP ASSY (SPRAY) 10
Disassemble TANK SEAL 9
Disassemble THERMOSTAT DIAL PRINTED 19
WATER TANK ASSY 7
PILOT LAMP COVER 5
THERMOSTAT BUSH 4
COVER 3
RYTON RING 2
DOSING SOS SEAL 12
SOLEPLATE ASSY 1
Remove screws D1, D2
Disassemble WATER TANK ASSY 7
Disassemble PILOT LAMP COVER 5
Disassemble THERMOSTAT BUSH 4
Remove screws E1, E2, E3
Disassemble COVER 3
Disassemble RYTON RING 2
Disassemble DOSING SOS SEAL 12
Disassemble SOLEPLATE ASSY 1
GC2510
3-5
REPAIR INSTRUCTIONS
- Due to the high wattage of the iron, only the specified cord set must be used.
- Should damage be observed on the CORDSET 20, it must be replaced.
Continued usage is not allowed.
- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as
laid down & officially established at this moment.
- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.

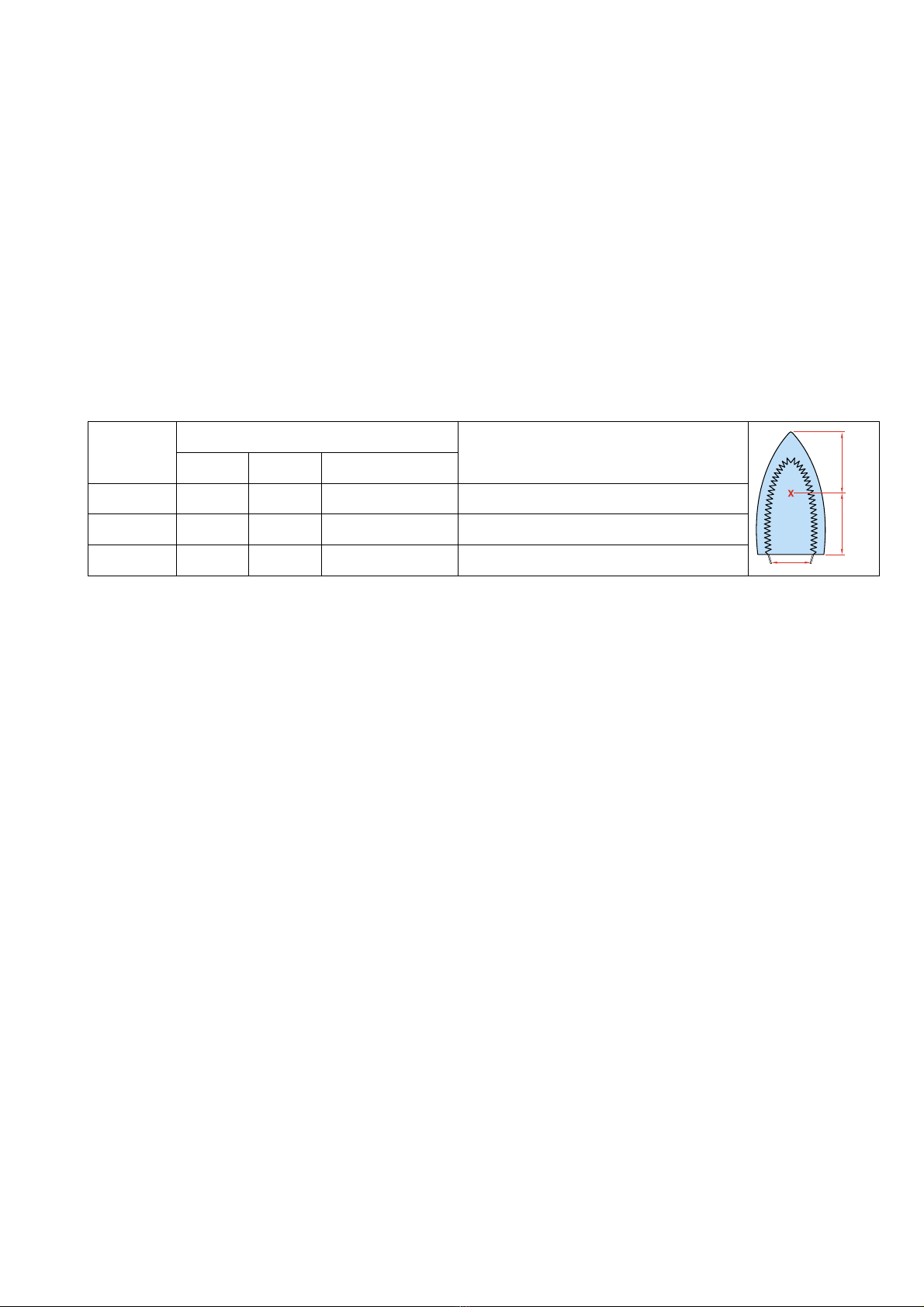

1. Soleplate temperature
Check that soleplate temperature is within IEC requirement.
Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15 minutes.
The table below shows the temperature requirement.
Marking
Soleplate temperature (Deg C)
Material, for example
Test-
point
==
Minimum Maximum Nominal + Tolerance
•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene
•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool
••• (3 dots) 140 210 175 ± 35 Cotton, linen
2. Leakage current
Check that leakage current is within IEC requirement.
Measure leakage current between LIVE/NEUTRAL & EARTH.
IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.
3. Water leakage / Functionality
Check that there is no water leakage from any part of the product during operation.
Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working properly.
4. Loose part
Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.
GC2510
4-5

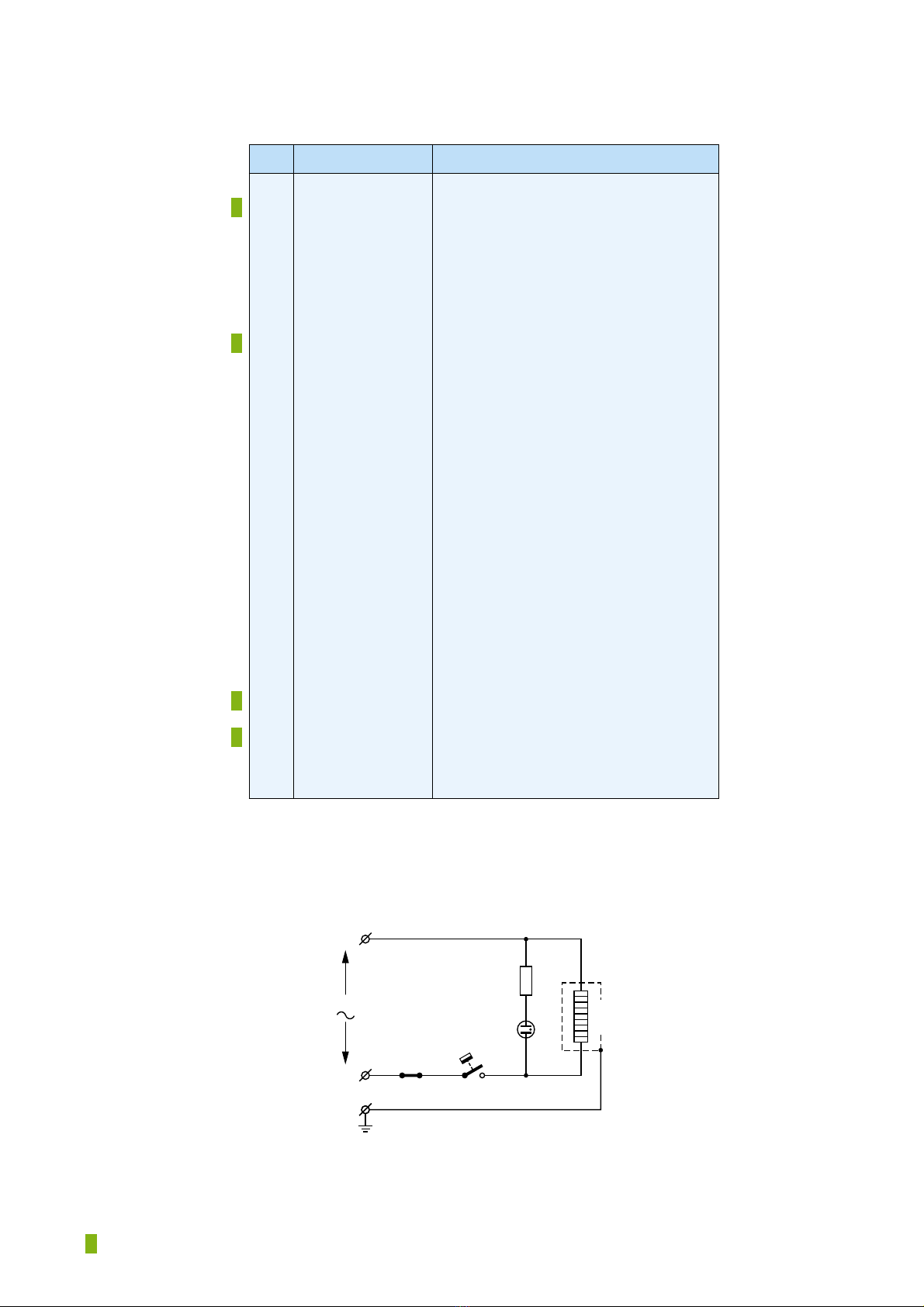

PARTS LIST
RESISTOR
LAMP
FUSE
N
L
E
HEATING
UNIT
INPUT
THERMOSTAT
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
27
4239 021 34520
4239 021 38760
4239 015 70150
4239 026 23350
4239 026 13220
4239 026 23430
4239 021 34200
4239 021 33880
4239 021 38720
4239 026 23510
4239 026 23490
4239 020 90560
4239 021 33830
4239 015 56440
4239 026 23410
4239 026 23420
4239 026 23370
4239 021 34720
4239 026 23440
4239 025 92070
4239 021 35540
4239 021 35560
4239 021 33970
4239 000 08850
4239 000 08380
4239 000 08660
4239 000 08550
4239 021 34740
4239 021 38700
4239 026 23990
4239 026 25260
Soleplate assy 230 V Ceralon
Soleplate m. a. 110 V
Ryton ring
Cover (non Drip-Stop)
Thermostat bush
Pilot lamp cover
Lamp assy
Water tank assy
Water tank assy 110 V
Plastic rattle spring
Tank seal
Pump assy (Spray)
1.2 cc Pump assy (SOS)
Dosing SOS seal
SOS knob
Spray knob
Inlay
Sub inlay assy
Backplate
Ball swivel
Thermostat dial printed ENG
Thermostat dial printed ITA/SPA/POR
Thermostat dial printed FRE/DUT
Cordset EU
Cordset UK
Cordset South Africa
Cordset 110 V
Dosing assy
Dosing assy 110 V
Aesthetic cover
Sub inlay cap
= changed
GC2510
5-5

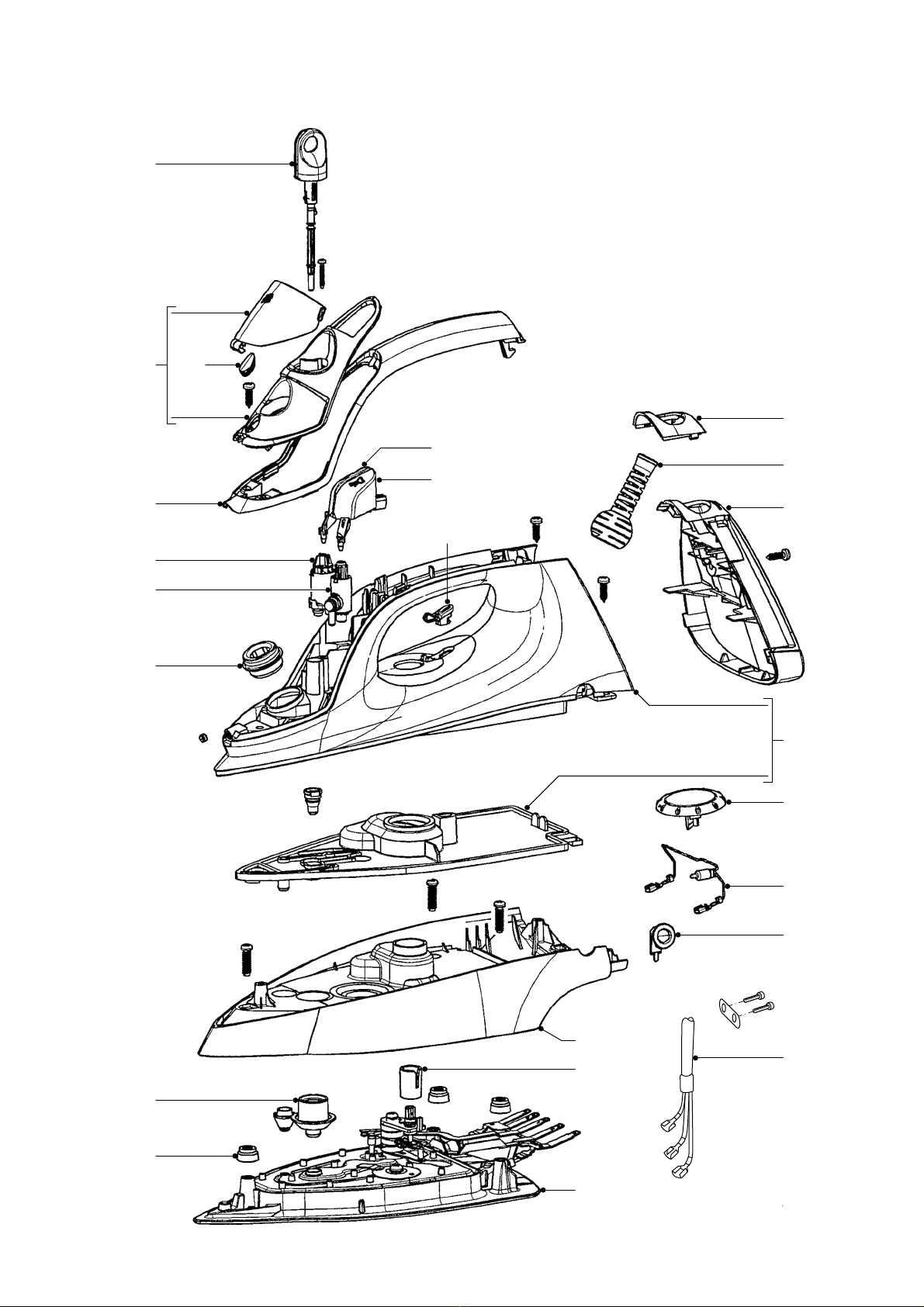

EXPLODED VIEW
20
5
19
17
18
22
6
4
1
3
13
14
8
7
2
12
9
15
27
21
16
11
10
B1
E1
E2 E3
A
D1
D2
C1
C2
B2
