Philips GC4720 Manuel utilisateur

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Azur Steam Iron

GC4720

10/06

PRODUCT INFORMATION

Features

- SteamGlide soleplate

- Easy reach steam tip

- Continuous steam up to 40 g/min

- Shot of steam up to 165 g/min

- Vertical shot of steam

- Drip stop

- Double active calc clean

- Water tank capacity 335 ml

- Power cord length 3.0 m

- Cord winder

- Cord binder (Velcro)

- Ergonomic soft grip

- Automatic safety shut off

EMF & Safety Information

- This product meets the requirements regarding

interference suppression on radio & TV.

- After the product has been repaired, it should function

properly & has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power : 2000 - 2400 W

Dimension (F-box) : 13.5 cm x 33.5 cm x 16.8 cm

Product weight : 1.72 kg

SteamGlide Soleplate

This specially treated soleplate is designed with 2 distinctly

different types of steam vents:

- Large vents for maximum crease removal

- Fine vents for best glide

Double active calc clean

Anti-calc cassette inside water tank & calc cleaning feature

provide double protection against scale build-up.

Cord binder

Velcro strap attachment on the cord allows easy cord storage.

Automatic safety shut off

The iron shuts off automatically if remain motionless for

30 sec in horizontal position or 8 min in vertical position.

GC4720

BACKPLATE COVER 16

BACKPLATE BUNG 24

BACKPLATE 14

INLAY ASSY 18

ASO NON IONIC 21

FILLING DOOR ASSY 17

TANK TOP SEAL 9

SOS KNOB 22

SPRAY KNOB 23

WATER TANK-HOUSING-COVER

TRIM ASSY 6

CORDSET 25

BALL SWIVEL 15

Disassemble BACKPLATE COVER 16

Disassemble BACKPLATE BUNG 24

Remove Screw A

Disassemble BACKPLATE 14

Disassemble Inlay cap

Remove Screw B

Disassemble INLAY ASSY 18

Disassemble ASO NON IONIC 21

Remove Screws C1, C2

Remove Cord clamp

Remove Screws E1, E2, E3, F3

Disassemble WATER TANK-HOUSING-COVER

TRIM ASSY 6

Disengage Quick-connectors of CORDSET 25

Disassemble CORDSET 25

DISASSEMBLY ADVICE

HOUSING 11

COVER TRIM 5

SPRAY PUMP ASSY 7

SOS PUMP ASSY 8

THERMOSTAT DIAL 27

THERMOSTAT BUSH 26

HEAT SHIELD 13

COVER BOTTOM 12

RYTON SPACER 3

DOSING SEAL 4

SOS SEAL 2

SOLEPLATE ASSY 1

Remove Screws D1, D2, D3

Disassemble HOUSING 11

Disassemble SPRAY PUMP ASSY 7

Disassemble SOS PUMP ASSY 8

Disassemble THERMOSTAT DIAL 27

Remove Screws F1, F2

Disassemble COVER TRIM 5

Remove Screw G3

Disassemble HEAT SHIELD 13

Remove Screws G1, G2

Disassemble COVER BOTTOM 12

Disassemble DOSING SEAL 4

Disassemble SOS SEAL 2

2-5

GC4720

REPAIR INSTRUCTIONS

- Due to the high wattage of the iron, only the specified cord set must be used.

- Should damage be observed on the CORDSET 25, it must be replaced.

Continued usage is not allowed.

- If COVER 12 is provided without type plate information eg. type number, voltage etc. When replacing the cover, engrave the

type number & voltage on the type plate with a sharp object.

- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as

laid down & officially established at this moment.

- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.

1.Soleplate temperature

Check that soleplate temperature is within IEC requirement.

Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15

minutes. The table below shows the temperature requirement.

Marking

Soleplate temperature (Deg C)

Material, for example

Test-

point

Minimum Maximum Nominal + Tolerance

•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene

•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool

••• (3 dots) 140 210 175 ± 35 Cotton, linen

2.Leakage current

Check that leakage current is within IEC requirement.

Measure leakage current between LIVE/NEUTRAL & EARTH.

IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.

3.Water leakage / Functionality

Check that there is no water leakage from any part of the product during operation.

Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working

properly.

4.Loose part

Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.

3-5

GC4720

PARTS LIST & ELECTRICAL DIAGRAM

Brown

INPUT

Blue

ASO

Control

Unit

Red

Black

Heating

Element

Thermostat

Thermal

Fuse

4-5

Pos Service code Description

4239 021 54050

4239 015 57670

4239 025 98250

4239 015 57350

4239 021 52230

4239 015 55800

4239 026 35780

4239 010 11000

4239 026 36530

4239 026 35790

4239 026 35800

4239 021 52270

4239 021 52290

4239 021 52881

4239 026 35820

4239 026 35830

4239 026 35840

4239 000 09950

4239 026 28140

4239 021 53520

4239 026 05990

Soleplate mounted assy Non Ionic 230 V / 2200 W

SOS seal

Ryton spacer

Dosing seal

Water Tank-Housing-Cover Trim Assy

Tank top seal

Cover bottom

Heat shield

Backplate

Ball swivel

Backplate cover

Filling door assy

Inlay assy

ASO 230 V - Non Ionic

SOS knob

Spray knob

Backplate bung

Cordset EU

Thermostat bush

Thermostat dial printed - Ger/Swe

Filling cup

= changed

GC4720

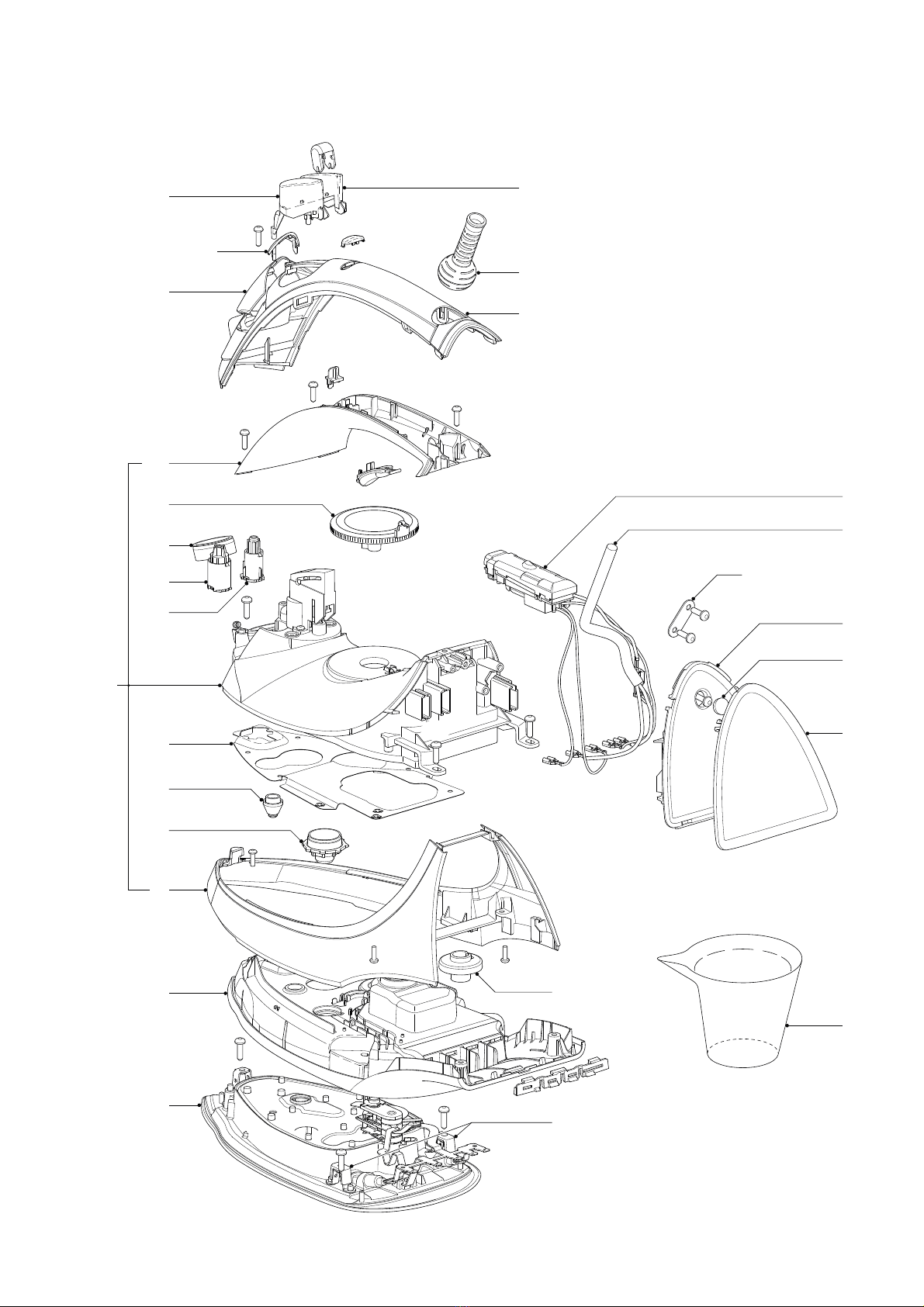

EXPLODED VIEW

MAX

F2 F1

Inlay cap

Cord clamp

5-5
