Hairclipper

HQ-C888

03/03

PRODUCT INFORMATION

General description:

The Philishave ProStyler HQ-C888 is especially designed for men who want to choose their own personal style but do not accept

any compromise on end results. Its unique and NEW 3D -technology enables men to perfectly create their own individual style.

Materials used:

- housing : ABS

- combs : PA / PC

- others : PA / POM / PP / SAN / SEBS / steel

Features:

Lubrication for life - Maintenance free cutting unit ensures consistent high performance

3D rounded teeth - For ultimate skin protection

Prcision Zoom Lock with

15 lenghts settings (1-41 mm) - 2 guide combs are included

Styler set - Styling comb, cleaning brush, scissors, cape

Interactive CD rom - The ultimate interactive way to help you style your hair (not available as spare)

Protective hard case - Durable hard case for safe storage or travel

SAP coding: HQC888

HQ-C888

Never use again a deformed housing clamp (4).

After the product has been repaired, it should function

properly and has to meet the safety requirements as laid

down and ofﬁcally established at this moment.

Product meets the requirements regarding interference

suppression on radio and TV.

Power supply - Rechargeable and corded (RC/AC)

Charging time - 10 h

Cordless operation time - 50 min

Adapter

primary (EU) - 220-240 V - 50/60 Hz

secondary (EU) - 1,3 V - 1500 mA

primary (CDN / USA) - 120 V - 60 Hz

secondary (CDN / USA) - 1,3 V - 1500 mA

Dimensions F-box - 20,5 x 9,1 x 24,0 cm

Weight F-box - 1,3 kg

Weight product (with comb) - 154 g

NOTES :

• In order to guarantee the longest possible

workinglife of the battery:

- do not charge for more than 24 hours

- do not keep the charging unit permanently

plugged in

- discharge the battery completely once a year by

letting the motor run until it stops

• The appliance should be charged again, when not

used for a long period

TO OPEN THE APPLIANCE:

Remove COMB (1 or 2)

CUTTER (3)

SCREWS (Z)

Remove HOUSING CLAMP (4)

TILTHOUSING (5)

COMBHOLDER (6)

Turn the zoomring (7), till the comb-

holder (6) is on its highest position.

After that, go on turning the zoomring

(7), with a little bit more force, till the

combholder (6) comes out of his seat.

Could fall down !

Remove ZOOMRING (7)

ZOOMRING SPRING (8)

open HOUSING PARTS (9)

Note:

When you are opening the housing parts (9), you have to order them new, because of breaking snap hooks. Also you have

to use the LED insert (X), switch lever (Y), on/off knob (11) and the panel (10) from the old housing parts, because a new

ordered housing set (9) comes without above mentioned parts.

TECHNICAL INFORMATION & DISASSEMBLY ADVISE

2-4

HQ-C888

ASSEMBLY ADVISE

Before closing the housing parts (9), be sure, that all wirings are on their correct

positions, the switch slide is at the “off” position (back position) and the reset spring

is in the center of the appliance (because you are able to turn the motor unit left and

right).

Reset spring

Here is the switch slide

in "off" position

Take care, that the nocks of the comb

holder (6), ﬁt perfectly into the

grooves of the zoom ring (7).

REPAIR INSTRUCTIONS

- No specific issues

OPTIONAL (ACCESSORIES)

- No specific issues

PARTS LIST

Pos Service code Description

4203 035 78940

4203 035 78950

4203 035 78960

4203 035 78970

4203 035 78980

4203 035 79000

4203 035 78990

4203 035 71380

4203 035 79070

4203 035 79030

4203 035 79020

4203 035 79050

4203 035 77100

4822 138 10551

4203 035 79040

4203 035 73670

4822 690 30434

4822 690 30433

4822 479 30183

4822 690 30441

4822 690 30442

4822 690 30443

4822 690 30444

4822 219 10149

Large comb

Small comb

Cutter

Housing clamp

Tilthousing

Combholder

Zoomring

Spring Zoomring

Housing set

Panel

On / Off Knob

Accuholder

Rechargeable Battery NiCd

Rechargeable Battery NiMh

PCB

Motor - DC

Scissors

Barbers comb

Cleaning brush

Adapter - EU

Adapter - GB

Adapter - USA

Adapter - CANADA

Adapter - AUS

3-4

HQ-C888

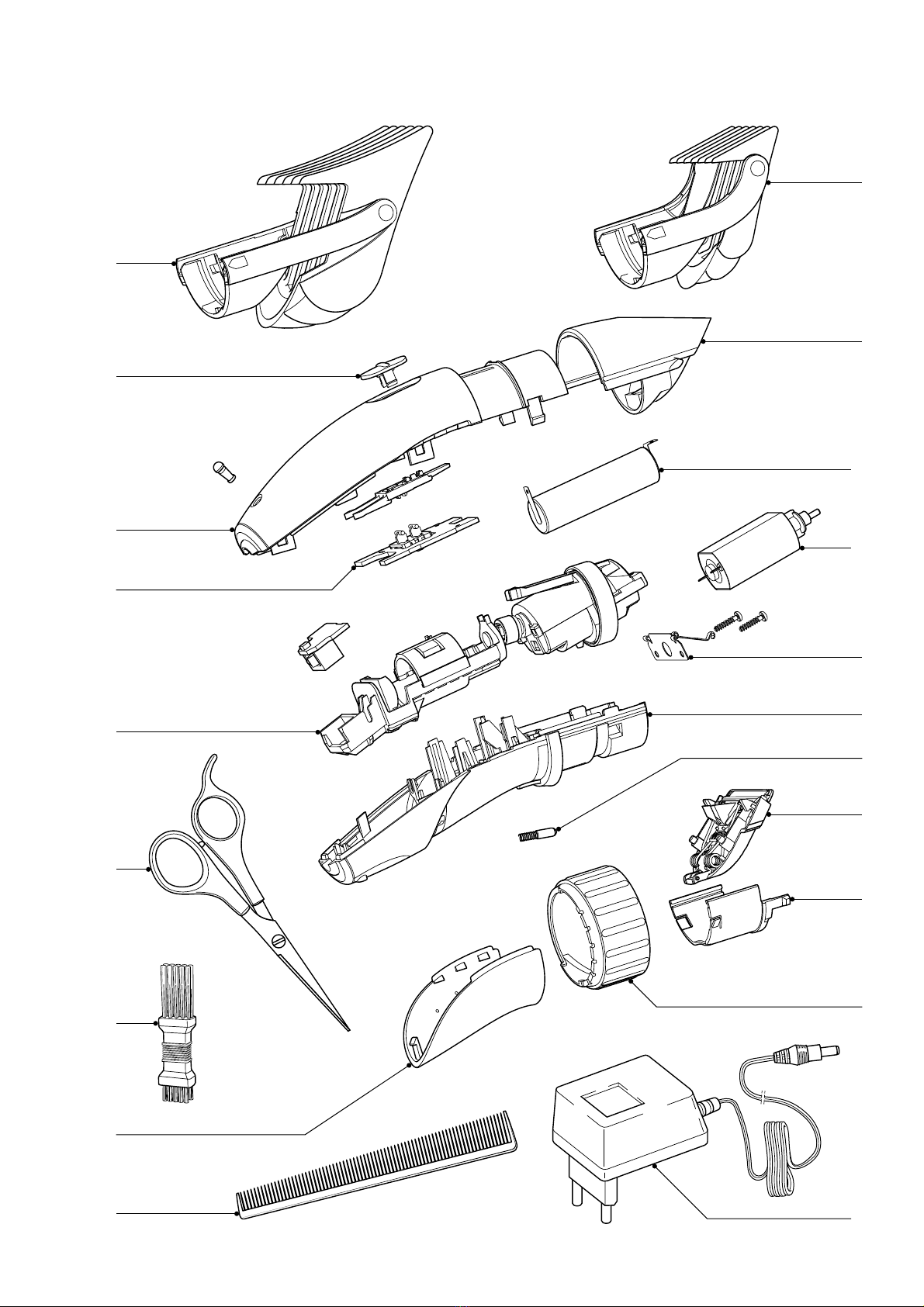

EXPLODED VIEW
