Philips HQC884/00 Manuel utilisateur

HOME HAIR CUTTING KIT

888

RECHARGEABLE

& CORDED

884

RECHARGEABLE

& CORDED

ProStyler

Mode d’emploi

Conseils & Coiffures

Instructions for use

Modelling & Styling

Mode d’emploi

Conseils & Coiffures

Instructions for use

Modelling & Styling

1234

5678

910 11 12

13 14 15 16

17 18

DIRECTIONS FOR USE

ENGLISH 6

DEUTSCH 12

FRANÇAIS 18

NEDERLANDS 24

ESPAÑOL 30

ITALIANO 36

PORTUGUÊS 42

 48

TÜRKÇE 55

STYLING BOOKLET

ENGLISH 62

DEUTSCH 69

FRANÇAIS 77

NEDERLANDS 84

ESPAÑOL 91

ITALIANO 98

PORTUGUÊS 105

 112

TÜRKÇE 120

HQC888, HQC884

Introduction

◗Dear customer, you have made the right choice!Your new Philips

3D Hair Clipper adapts to the contours of the head and enables

comfortable use.

◗To enjoy using this Philips 3D hair clipper for a long time, we

advise you to read the following information.

◗In the enclosed booklet 'Modelling and Styling' and on the

interactive instruction CD-ROM you can find instructions and

many useful tips on how to create the haircut you want.

Important

Appliance

◗Keep the appliance and the adapter dry.

◗Check if the voltage indicated on the mains plug corresponds to

the mains voltage in your home before you connect the

appliance.

◗This appliance is suitable for mains voltages from 220 to 240

Volts.

◗Only use the adapter supplied to charge the appliance.

◗The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this will cause a hazardous

situation

◗If the adapter is damaged, always have it replaced by one of the

original type in order to avoid a hazard.

◗Use, charge and store the appliance at a temperature between

15cand 35c.

◗Keep the appliance out of the reach of children.

◗This appliance is only intended for clipping human hair. Do not

use it for any other purpose.

Charging

Charge the appliance for 12 hours (HQC888)/ 8 hours (HQC884)

before you start using it for the first time.

A fully charged appliance has a cordless clipping time of up to

50 minutes (HQC 888)/ 35 minutes (HQC 884).

ENGLISH6

Do not charge the appliance for more than 24 hours.

1Make sure the appliance is switched off while charging.

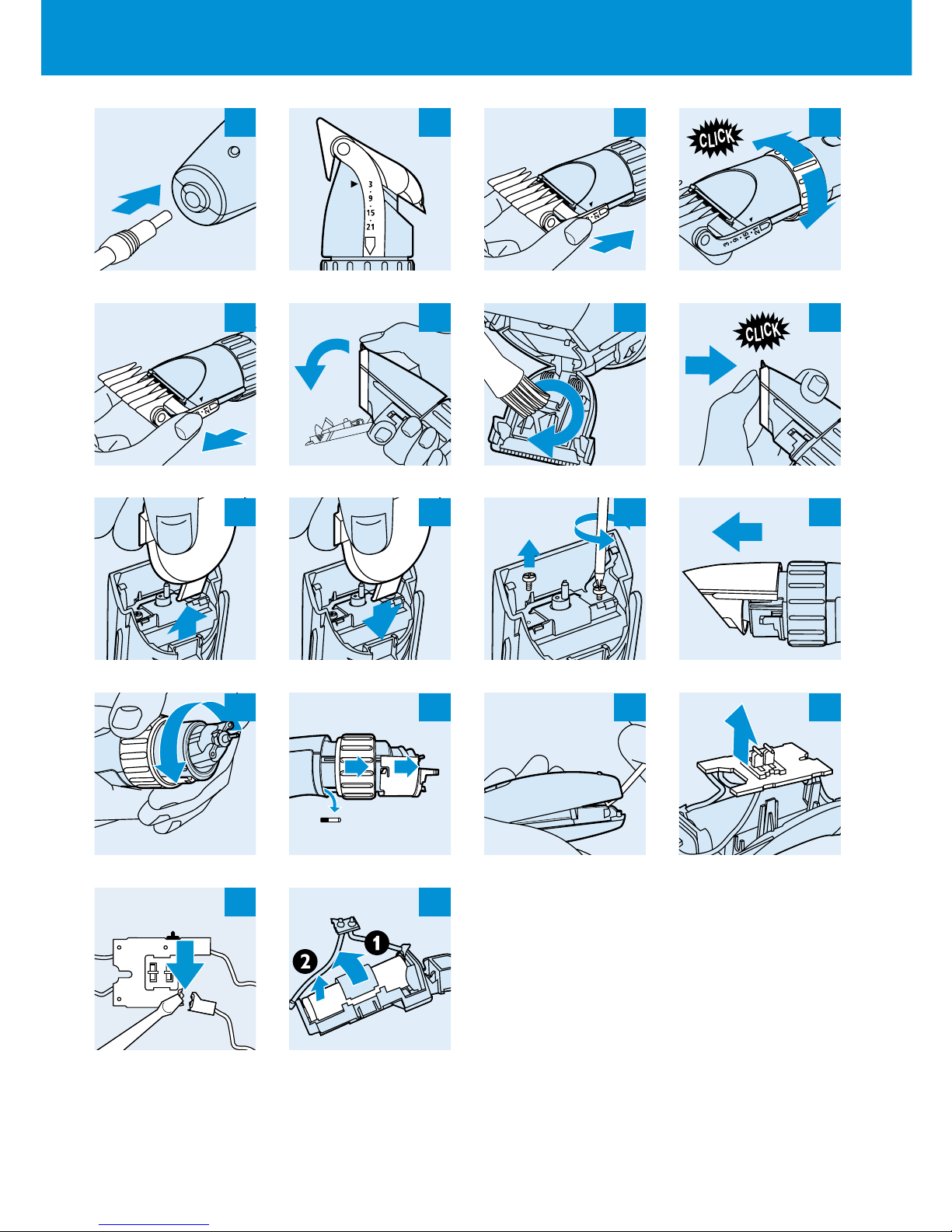

2Insert the appliance plug into the appliance (fig. 1).

3Insert the adapter into the wall socket.

The pilot light will go on to indicate that the appliance is charging.

Optimising the lifetime of the battery

- After the appliance has been charged for the first time, do not

recharge it between clipping sessions. Continue using it and

recharge it only when the battery is (almost) empty.

- Discharge the battery completely twice a year by letting the motor

run until it stops.

- Do not keep the appliance plugged into a wall socket all the time.

- If the appliance has not been used for a long period of time, it must

be recharged for 12 hours.

Corded clipping

Do not run the appliance from the mains when the battery is fully

charged.

To use the hair clipper when it is connected to the mains:

1Switch the hair clipper off, connect it to the mains and wait a few

seconds before switching it on.

2If the battery is completely empty, wait a few minutes before

switching the appliance on.

Using the appliance

Also see the interactive instruction CD-ROM.

Clipping with comb attachment

Select the small or large comb attachment, depending on the desired

hair length.

ENGLISH 7

Hair length settings

◗The hair length settings are indicated in millimetres on the arms

of the comb attachment.The settings correspond to the

remaining hair length after cutting (fig. 2).

- The small comb cuts hair to a length of 3 mm, 6 mm, 9 mm,

12 mm, 15 mm, 18 mm or 21 mm.

- The large comb cuts the hair to a length of 23 mm, 26 mm, 29 mm,

32 mm, 35 mm, 38 mm or 41 mm.

1Slide the arms of the comb attachment into the guiding grooves

of the appliance until you hear a click (fig. 3).

Make sure that the arms of the comb attachment have been properly

slid into the grooves on both sides.

2Set the comb to the desired hair length by turning the hair length

adjustment ring (Precision Zoom Lock`) to the right or to the

left until the comb has been set to the desired hair length (fig. 4).

◗We advise you to start clipping at the highest setting (large

comb) and to reduce the hair length setting in small steps until

you reach the desired hair length.

3Switch the appliance on.

◗Choose the appropriate hair cutting method from the booklet

'Modelling and Styling' or consult the interactive instruction

CD-ROM.

Tip: If a lot of hair has accumulated in the comb, remove the comb

attachment and blow and/or shake the hair from the comb. Removing

the comb does not change the hair length setting.

Tip:Write down the hair length settings selected to create a certain

hairstyle as a reminder for future clipping sessions.

Clipping without comb attachment

You can use the clipper without comb attachment to contour the

neckline and the area around the ears.You can also find instructions and

tips on the instruction CD-ROM.

ENGLISH8

1Remove the comb attachment by pulling it off the appliance

(fig. 5).

Never pull at the flexible top of the comb attachment. Always pull at

the bottom part.

The comb attachment keeps the cutting unit at a certain distance

from your head.This means that, if you use the clipper without the

comb attachment, your hair will be cut off very close to the skin.

Cleaning

Clean the appliance every time you have used it.

Do not use abrasives, scourers or liquids such as alcohol, petrol or

acetone to clean the appliance.

The appliance and the adapter may only be cleaned with the brush

supplied.

1Make sure the appliance is switched off and disconnected from

the mains before you start cleaning it.

2Remove the comb attachment (fig. 5).

3Open the cutting unit by applying pressure to the centre of the

unit (fig. 6).

4Clean the cutting unit and the inside of the appliance with the

brush supplied (fig. 7).

5Close the cutting unit by pushing it back onto the appliance until

you hear a click (fig. 8).

The appliance does not need any lubrication.

Replacement

A worn or damaged cutting unit should only be replaced with an

original Philips cutting unit.

1Open the cutting unit by applying pressure in the centre and then

remove it by pulling it upwards (fig. 9).

ENGLISH 9

2Place the two lugs of the new cutting unit into the guiding slots

and push the unit back onto the appliance (fig. 10).

Environment

The built-in rechargeable battery contains substances which may

pollute the environment.

Remove the rechargeable battery when you discard the appliance.

Do not throw the battery away with the normal household waste but

dispose of it at an official collection point.

You can also take the appliance to a Philips service centre, which will

remove the battery for you and will dispose of it in an environmentally

safe way.

1Disconnect the appliance from the mains and let the appliance

run until the motor stops.

2Open and remove the cutting unit (See chapter 'Cleaning').

3Undo the screws and remove the metal clip by means of a

screwdriver (fig. 11).

4Remove the top part by pulling it off the appliance (fig. 12).

5Turn the zoom ring until the comb holder is in its highest

position (fig. 13).

6Then use some force to turn the zoom ring still further until the

comb holder comes loose from the appliance (fig. 14).

7Separate the two housing parts by means of a screwdriver

(fig. 15).

8Pull out the printed circuit board (fig. 16).

9Insert a screwdriver into the small slot in the printed circuit

board. Push the screwdriver down until part of the printed circuit

board breaks off (fig. 17).

10 Open the plastic battery holder and take out the rechargeable

battery (fig. 18).

ENGLISH10
