Philips SCF870/20 Manuel utilisateur

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Baby food Steamer & Blender

SCF870/20

SCF870/21

SCF870/22

SCF870/23

12/04

PRODUCT INFORMATION

Type number: SCF870/20

Device description:

Preparation of healthy food for children up to an age of

24 months at home. Steam and blend fruits, vegetables,

pasta, meat and ﬁsh without transfer.

Features

- Steam and blend without transfer

- Quick steam time: Perceived as fast as the best

competitor

- 600 ml minimum food capacity

- Auto switch off after steaming with a clear indicator

- Easy to clean with detachable knife interface

(dishwasher safe)

The Wasabi is a kitchen device for fast and easy preparation

of healthy home made food for babies and weaners.

The parents steams fresh foods, add additional ingredients

and blend them together to a mash within the same jar.

The appliance is intended for:

• Dry use.

• Home use.

Safety

- This product meets the requirements regarding interference

suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Tool speed: No load : 5800 rpm

- Steam rate : 10 g/min

- Boiler net volume : 200 ml

- Boiler gross volume : 300 ml

The overall size and weight of the device is:

- Total height : 308 mm

- Total width : 187 mm

- Total depth : 201 mm

- Weight (empty) : < 3 kg

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- No specific issues.

REPAIR INSTRUCTION

- No specific issues.

OPTIONAL (accessories)

- No specific issues.

SCF870/20 /21 /22 /23

2-9

PARTS LIST

Pos Service code Description

4203 035 94561

4203 035 88920

4203 035 88930

4203 035 94381

4203 035 88940

4203 035 88950

4203 035 88960

4203 035 90650

4203 035 94891

4203 035 96261

4203 035 96271

4203 035 96281

4203 035 96291

4203 035 96301

4203 035 98541

4203 035 99221

Lid

Steam Mesh

Transparent Jar (used till prod. Week 1045)

Transparent Jar (used from prod. Week 1046 onwards)

Measuring cup

Blade holder

Spatula

Lid Assy for watertank

Valve part (incl. Rubber seal)

Valve kit APMEA

Valve kit WEu 1

Valve kit WEu 2

Valve kit EEu

Valve kit KR

Silicon plate

Switch assy

= changed

SCF870/20 /21 /22 /23

3-9

EXPLODED VIEW

SCF870/20 /21 /22 /23

4-9

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

DISASSEMBLY

1st operation:

- Detach the water cap by pulling it towards the side and, unscrew 1 piece of 3,5 x 13 special safety screw and 3 pieces of

3,5 x 13 screw.

2nd operation: Detaching the cables from terminal block

- Remove the bottom lid and unscrew the screws of terminal block to remove brown and black cables which are attached to rotary

switch.

3rd operation: Detaching the internal cables and thermostat cables

- Remove the thermostat cable and other internal cables.

- Pull the female terminals by gripping them at the cable-end side.

ATTENTION: Female terminals can be deformed during disassembly and get loose. If these terminals are reused, there will be

risk for self detaching, electric arc occurance, and/or malfunction. Additionally, when the female terminals are gripped over the

sleeves, this may damage or rip the sleeves. Heat sleeves should be removed before detaching the terminals.

- Unscrew the M3 nut to remove the thermofuse holder.

SCF870/20 /21 /22 /23

5-9

4th operation: Removing boiler body screws

- Remove 3 pcs of 3,5 x 13 screws which are shown in below photos.

5th operation:

- Remove the boiler body.

6th operation: Detaching the switch group

- Remove 2 pcs of 2,9 x 16 screws which connects the safety microswitch group to the main body.

- Do not detach any cable, take the safety microswitch group outside the main body.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

SCF870/20 /21 /22 /23

6-9

7th operation: Detaching the soldering of microswitch

- Cut the shrinkage sleeves on the microswitch terminals and remove the sleeves.

- Remove the soldering on the terminals by using a soldering iron.

ATTENTION: If the soldering iron is kept near the microswitch more than 3 seconds, switch may be non functional.

RE-ASSEMBLY

1st operation: Putting the shrinkage sleeves on the cables and soldering the cables on the microswitch terminals and heating

the shrinkage sleeves

- Put the shrinkage sleeves on the cables which are previously detached.

- Insert the cable inside the hole on the microswitch terminal and bend it as shown in the photo below.

- Make the soldering to connect the cable and microswitch terminal.

ATTENTION: If the soldering iron is kept near the microswitch more than 3 seconds, switch may be non functional.

- After the soldering process is ﬁnished, slide the shrinkage sleeve on the soldered area until it touches the switch body.

- Shrink the sleeve by using a heating gun.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

SCF870/20 /21 /22 /23

7-9

2nd operation Assembly of the switch holder to the body

- Put the switch holder in position and screw 2 pcs of 2,9 x 16 screws with a torque between 0.50 - 0.60 Nm.

- Tidy up the cables as shown in the photos to prevent the cables from damages during boiler body assembly.

3rd operation Boiler body assembly

- Align the boiler body water inlet with the main body water inlet (shown with arrow in the photo below) and position the boiler

body.

- Screw 3 pcs of 3,5 x 13 screws with a torque between 0.72 - 0.84 Nm.

ATTENTION: Sealing tests that are completed on the production line are not meaningful (should be repeated) after boiler body

is reattached.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

SCF870/20 /21 /22 /23

8-9

4th operation Melting fuse assembly

- Place the melting fuse under the melting fuse holder. Without moving the melting fuse, tighten the M3 nut of the melting fuse

holder with a torque between 0.55 - 0.60 Nm.

ATTENTION: The melting fuse body must be exactly under the melting fuse holder, and sleeve should fully cover the melting fuse

and its cables. Otherwise the fuse will be non functional.

- Attach the female terminal at the end of melting fuse cable to the inner side male terminal on the heating plate.

- After attaching the terminal, check the tightness of the connection by pulling the terminal. Terminal must not detach or be loose.

ATTENTION: Female terminals can be deformed during disassembly and get loose. If these terminals are reused, there will be

risk for self detaching, electric arc occurance, and/or malfunction. Checking the tightness by pulling is a must for these terminals.

Additionally, electrical tests that are completed on the production line are not meaningful (should be repeated) after this

connections are reattached.

5th operation Attaching the heating plate cable and thermostat cables

- Attach the female terminal on the thermostat connection cable group to the outer terminal on the heating plate.

- Attach the remaining female terminals to the thermostat, and check the tightness by pulling.

(Place the cables as shown on the photos).

6th operation Attaching the cables to the terminal block.

- Place the cables inside the terminal block by matching the cable colors, and screw the tightening screws with a torque between

0.30 - 0.37 Nm.

- Check the tightness by pulling the cables out, cables must not be detached.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

SCF870/20 /21 /22 /23

9-9

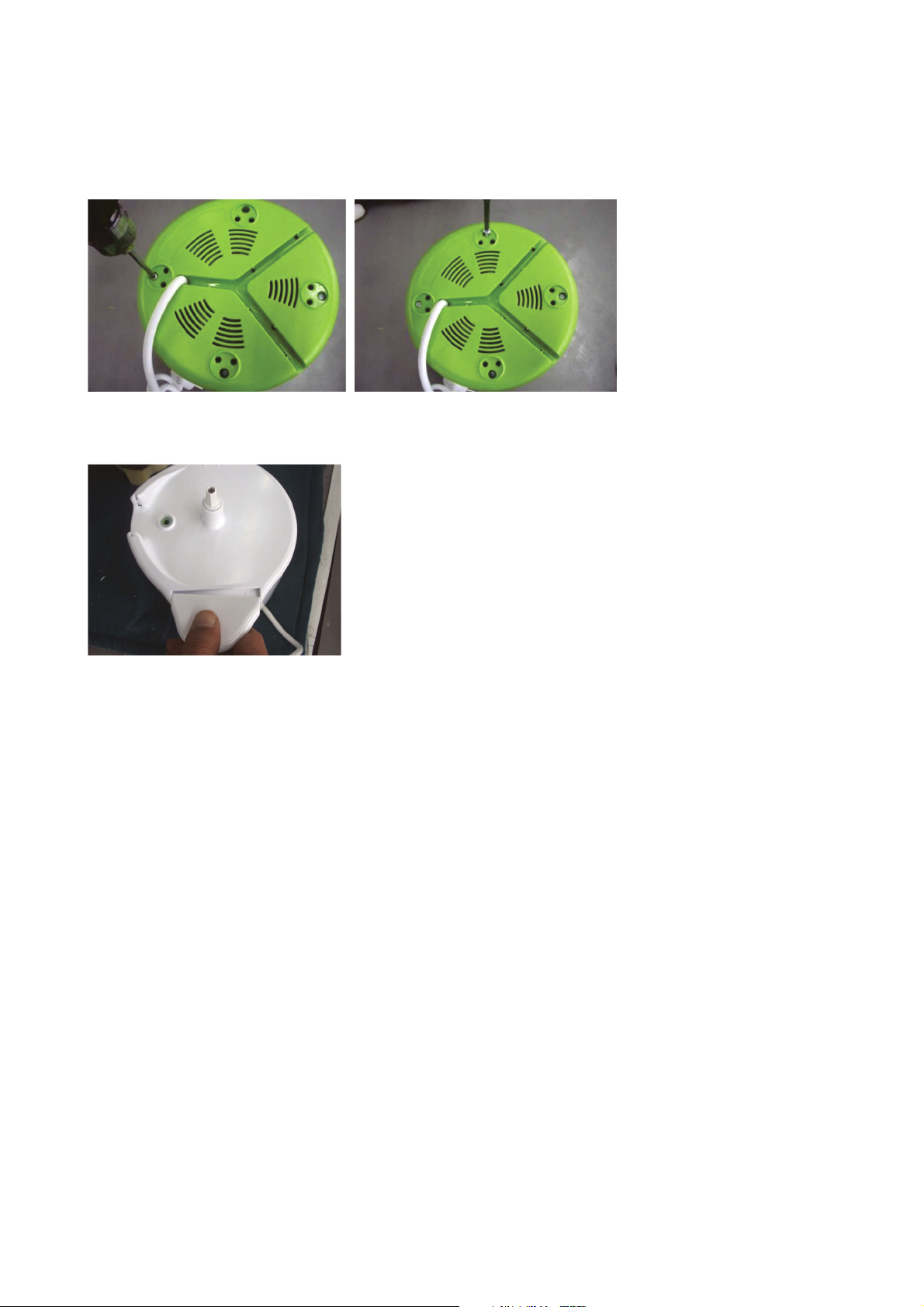

7th operation Closing the bottom lid

- Pull the power cord outwards to pull out the extra cable inside the block.

- Align the feeder on the lid with the cavity on the body and place the bottom lid in position.

- Tighten 1 piece of 3,5 x 13 special safety screw, as well as 3 pcs of 3,5 x1 3 screws with a torque between 0.72 - 0.84 Nm.

8th operation Place the water cap.

- Place the water cap by gently pushing its pins into holes on the body.

Check the operation and switches of the device after assembly.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE
