Philips PT927 Manuel utilisateur

User manual

PT927

PT927CC

PT925

PT923

PT923CC

PT920

PT877

PT876

PT875

PT870

PT927, PT927CC, PT925, PT923, PT923CC, PT920, PT877, PT876, PT875, PT870

ENGLISH 4

INDONESIA 20

한국어 37

BAHASA MELAYU 54

ภาษาไทย 71

 86

繁體中文 103

简体中文 119

149

164

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips.com/

welcome.

Please read this user manual, as it contains information about the wonderful

features of this shaver as well as some tips to make shaving easier

and more enjoyable.

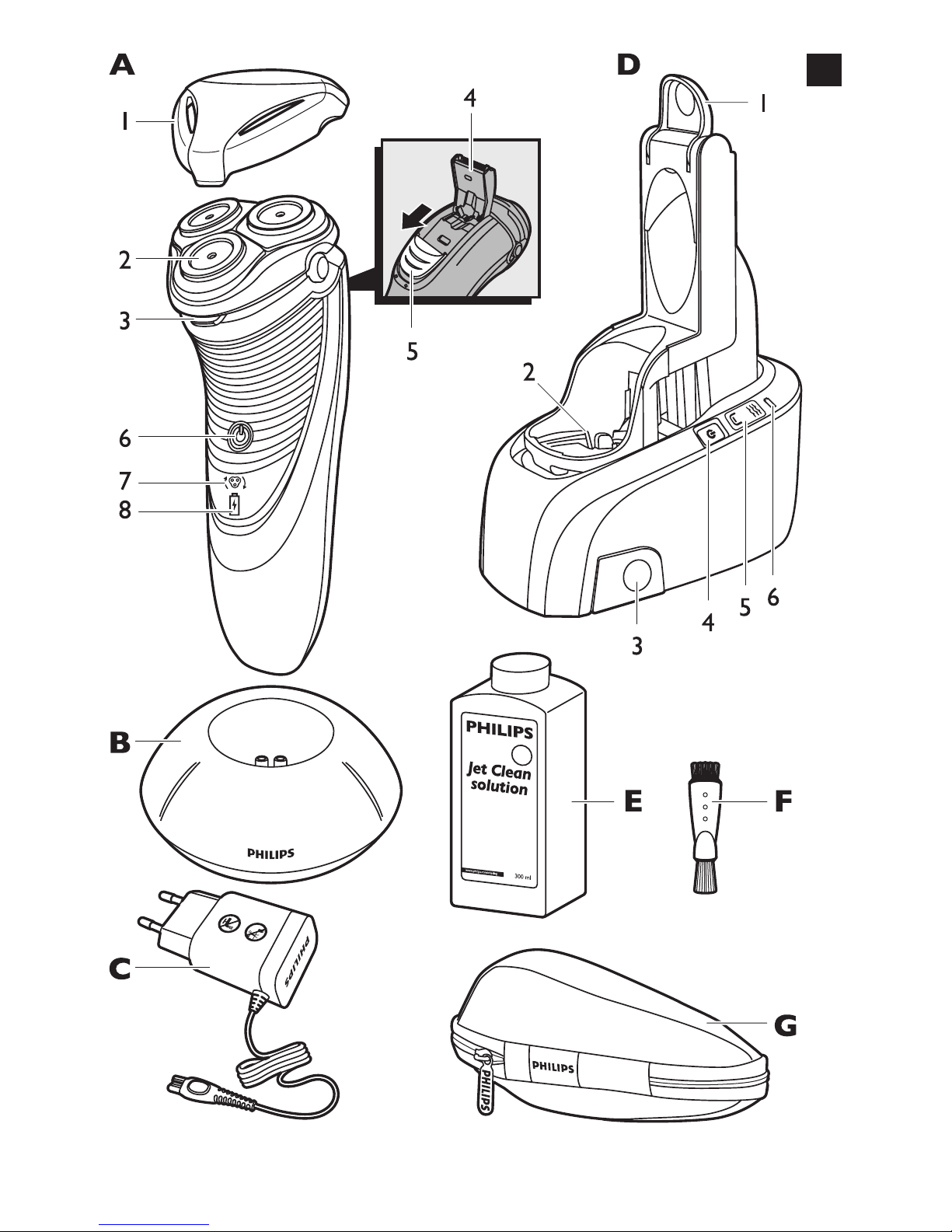

General description (Fig. 1)

A Shaver

1 Protection cap

2 Shaving unit

3 Shaving unit release button

4 Trimmer

5 Trimmer release slide

6 Shaver on/off button

7 Shaving head symbol

8 Battery symbol

B Charging stand (PT927/PT925/PT923/PT920/PT876/PT875 only)

C Adapter

D Jet Clean System (PT927CC/PT923CC only)

1 Locking lever

2 Shaver holder

3 Cleaning chamber release button

4 Jet Clean System on/off button

5 Cleaning symbol and ‘uid low’ symbol

6 Battery symbol

E Jet Clean solution (HQ200)

F Cleaning brush

G Storage pouch (PT927CC/PT927/PT925/PT923CC/PT920/PT876

only)

Note: You can nd the type number on the back of the shaver.

Important

Read this user manual carefully before you use the shaver, the Jet Clean System

(PT927CC/PT923CC only) and the charging stand (PT927/PT925/PT923/

PT920/PT876/PT875 only). Save the user manual for future reference.

Danger

- Keep the adapter dry.

Warning

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- The shaver and the Jet Clean System are not intended for use

by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of these

appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with

the shaver and the Jet Clean System.

- Always unplug the shaver before you clean it under the tap.

ENGLISH

Caution

- Never immerse the shaver in water.

- Never immerse the Jet Clean System or the charging stand in water

nor rinse it under the tap.

- Do not use the shaver in the bath or in the shower.

- Never use water hotter than 80°C to rinse the shaver.

- Be careful with hot water. Always check if the water is not too hot, to

prevent your hands from getting burnt.

- The shaver, the Jet Clean System, the charging stand and the other

accessories are not dishwasher-proof.

- Water may leak from the socket at the bottom of the shaver when you

rinse it.This is normal and not dangerous because all electronics are

enclosed in a sealed power unit inside the shaver.

- Do not use the shaver, Jet Clean System, adapter, charging stand or any

other part if it is damaged, as this may cause injury. Always replace a

damaged adapter, charging stand or part with one of the original type.

- Use, charge and store the shaver and the Jet Clean System at a

temperature between 10°C and 35°C.

- Always place and use the shaver and the Jet Clean System on a surface

that is uid-resistant.

- Only use the adapter, charging stand and accessories supplied.

- Always put the protection cap on the shaver to prevent damage and

to avoid dirt accumulation in the shaving heads.

- Only use the Jet Clean System with the original Jet Clean solution

(HQ200).

- Always place the Jet Clean System on a stable, level and horizontal

surface to prevent leakage.

- When the Jet Clean System is ready for use, do not move it to

prevent leakage.

- The Jet Clean System thoroughly cleans but does not disinfect your

shaver, therefore do not share the shaver with others.

- Empty the cleaning chamber of the Jet Clean System and clean the

cleaning chamber thoroughly by rinsing it with hot tap water every

15 days.

- If the shaver and the Jet Clean System are subjected to a major

change in temperature, pressure or humidity, let them acclimatise

for 30 minutes before you use them.

ENGLISH 5

Compliance with standards

- This Philips appliance complies with all applicable standards and

regulations regarding exposure to electromagnetic elds (EMF) can be

safely cleaned under the tap.

General

- The appliance is equipped with an automatic voltage selector and is

suitable for mains voltages ranging from 100 to 240 volts.

- The adapter transforms 100-240 volts to a safe low voltage of less than

24 volts.

Charging

It takes approx. 1 hour to fully charge the shaver.

When you charge the shaver for the rst time or after a long period of

disuse, let it charge until the white battery lights up continuously.

A fully charged shaver provides up to 60 (PT927CC/PT927/ PT925/PT923/

PT923CC/PT920) or 50 shaving minutes (PT877/PT876/PT875/PT870).

The shaving time may be less than 60(PT927CC/PT927/PT925/PT923/

PT923CC/PT920) or 50 shaving minutes (PT877/PT876/PT875/PT870) as

a result of your shaving behaviour, your cleaning habits or your beard type.

Charge indications

Battery low

- When the battery is almost empty (when there are only 5 or fewer

shaving minutes left), the battery light starts to ash orange.

- When you switch off the shaver, the battery light continues to ash

orange for a few seconds.

Quick charging

- When you start charging the empty battery, the battery light ashes

white and orange.

Note: When the battery light ashes white and orange towards only white, you

can have a quick shave of three minutes.

Charging

- When the shaver is charging, the battery light ashes white.

ENGLISH6

Battery fully charged

- When the battery is fully charged, the battery light lights up white

continuously.

Note: After approx. 30 minutes, the battery light goes out to save energy.

Charging with the adapter

Do not charge the shaver in a closed pouch (PT927CC/PT927/PT925/

PT923CC/PT923/PT920/PT877 only).

1 Put the small plug in the shaver.

2 Put the adapter in the wall socket.

,The battery symbol show the charging status of the shaver

(see section ‘Charge indications’ in this chapter).

Charging in the charging stand (PT927/PT925/PT923/PT920/

PT876/PT875 only)

1 Put the small plug in the charging stand.

2 Put the adapter in the wall socket.

3 Place the shaver in the charging stand.

,The battery symbol show the charging status of the shaver (see

section ‘Charge indications’ in this chapter).

Charging in the Jet Clean System (PT927CC/PT923CC only)

1 Put the small plug in the Jet Clean System.

2 Put the adapter in the wall socket.

3 Place the shaver without protection cap upside down in the shaver

holder.

Note: The shaver cannot be placed in the Jet Clean System when the protection

cap is on the shaving unit.

ENGLISH 7

4 Push down the locking lever completely to lock the shaver into place.

,The battery symbol on the Jet Clean System ashes to indicate that

the shaver is being charged.

Note: When the Jet Clean System is performing the cleaning program, the

battery symbol is out.

,When the battery is fully charged, the battery symbol on the Jet

Clean System lights up continuously.

Note: After approx. 30 minutes, the battery symbol goes out to save energy.

5 To remove the shaver from the Jet Clean System, move the locking

lever upwards until it does not go any further and remove the shaver.

Using the shaver

Note: You can also use the appliance directly from the mains. Simply connect

the shaver to the mains.

Shaving

1 Press the on/off button once to switch on the shaver.

2 Move the shaving heads over your skin. Make circular movements.

- Your skin may need 2 or 3 weeks to get accustomed to the Philips

shaving system.

3 Press the on/off button once to switch off the shaver.

4 Clean the shaver (see chapter ‘Cleaning and maintenance’).

ENGLISH8

Trimming

You can use the trimmer to groom your sideburns and moustache.

1 Press the on/off button once to switch on the shaver.

2 Push the trimmer slide downwards to open the trimmer.

,You can now start trimming.

3 After trimming, close the trimmer and switch off the shaver.

Cleaning and maintenance

Never use compressed air, scouring pads, abrasive cleaning agents or

aggressive liquids such as petrol or acetone to clean the shaver, the

charging stand (PT927/PT925/PT923/PT920/PT876/PT875 only) and the

Jet Clean System (PT927CC/PT923CC only).

- The best and most hygienic way to clean the shaver is in the Jet Clean

System (PT927CC/PT923CC only).You can also rinse the shaver under

the tap or clean it with the cleaning brush supplied.

- Clean the shaver after every shave for optimal shaving performance.

- Regular cleaning guarantees better shaving performance.

- For the best cleaning results, we advise you to use the Philips Cleaning

spray (HQ110) and (PT927CC/PT923CC only) the Jet Clean solution

(HQ200).

- Be careful with hot water. Always check if the water is not too hot, to

prevent your hands from getting burnt.

Note: Water may leak from the socket at the bottom of the shaver when you

rinse it. This is normal and not dangerous because all electronics are enclosed

in a sealed power unit inside the shaver.

ENGLISH 9

Cleaning the shaving unit under the tap

1 Switch off the shaver and disconnect it from the mains.

2 Press the release button to open the shaving unit.

Rinse the shaving unit and hair chamber under a hot tap for 30 seconds.

Be careful with hot water.Always check if the water is not too hot, to

prevent your hands from getting burnt.

- Rinse the hair chamber and the inside of the shaving unit.

- Rinse the outside of the shaving unit.

4 Close the shaving unit and shake off excess water.

Be careful not to hit the shaving unit against anything while shaking off

excess water.

Never dry the shaving unit and the hair chamber with a towel or tissue,

as this may damage the shaving heads and the coupling spindles.

5 Open the shaving unit again and leave it open to let the shaver dry

completely.

Cleaning the shaving unit with the cleaning brush

1 Switch off the shaver and disconnect it from the mains.

2 Press the release button to open the shaving unit.

3 Pull the shaving unit off the shaver.

ENGLISH10

Autres manuels pour PT927

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Philips Rasoir électrique

Philips

Philips T970 AccuVac Manuel utilisateur

Philips

Philips HQ7260/17 Manuel utilisateur

Philips

Philips 9160XL Manuel utilisateur

Philips

Philips HQ7800/20 Manuel utilisateur

Philips

Philips HQT885/00 Manuel utilisateur

Philips

Philips NORELCO 9000 Series Manuel utilisateur

Philips

Philips Norelco T-5600 Manuel utilisateur

Philips

Philips PQ227 Manuel utilisateur

Philips

Philips NORELCO MG7750/59 Manuel utilisateur

Philips

Philips RQ1100 Series Manuel utilisateur

Philips

Philips BT7210/15 Manuel utilisateur

Philips

Philips Norelco NT9145 Manuel utilisateur

Philips

Philips OneBlade QP2522 Manuel utilisateur

Philips

Philips HQ10/15 Manuel utilisateur

Philips

Philips PQ206 Manuel utilisateur

Philips

Philips HQ5812 Manuel utilisateur

Philips

Philips NT5650 Manuel utilisateur

Philips

Philips SS572/90 Manuel utilisateur

Philips

Philips S131 Series Manuel utilisateur

Philips

Philips HQ 7415 Manuel utilisateur

Philips

Philips Norelco Ladyshave HP6319 Manuel utilisateur

Philips

Philips Speed-XL HQ8140 Manuel utilisateur

Philips

Philips HQ7825/19 Manuel utilisateur

Philips

Philips MG3711 Manuel utilisateur

Manuels Rasoir électrique populaires d'autres marques

Norelco

Norelco Quadra 7610X Manuel utilisateur

Braun

Braun WaterFlex WF2s Manuel utilisateur

Daga

Daga MT-400 Manuel

Remington

Remington BHT100 Manuel utilisateur

Kompernass

Kompernass KH 5537 Manuel utilisateur

Remington

Remington BHT6100 Manuel utilisateur

MIA

MIA Aqua Body Manuel utilisateur

Matheo

Matheo MLR 15 Manuel utilisateur

CTC Union

CTC Union Clatronic HSM 3441 NE Manuel utilisateur

Remington

Remington XR7000 Manuel utilisateur

Eldom

Eldom G47 Manuel utilisateur

Braun

Braun silk-epil 5 Manuel utilisateur

SEVERIN

SEVERIN SÉRIE E700 0533 Guide de l'utilisateur

Remington

Remington PR1355 Manuel utilisateur

Aurora

Aurora AU 3543 Manuel utilisateur

Braun

Braun InterFace 3614 Manuel utilisateur

Wahl

Wahl 8061 5-STAR Manuel utilisateur

Norelco

Norelco 4404LC Manuel utilisateur
