ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

BeardTrimmer

HQ-T 388

PRODUCT INFORMATION

Features :

- Adjustable attachment comb for even cutting result.

- Adjustable to 9 different beard lengths up to 18 mm.

- Stubble setting for 1.5 mm stubble beard.

- Easy length adjustment by zoom ring construction.

- Length indication window.

- Maintenance free cutting element - no oiling required.

- Precision pop-up trimmer.

- Green pilot light to indicate charging.

- Mains operating possible when batteries are empty.

TECHNICAL DATA

Power system : rechargeable

Batteries : 1 x AA NiCd

Charging period : 10 hours

Capacity : 40 minutes

Voltage : 100 - 240Volt / 50 -60 Hz

4322 277 00040

99/12

PCS 101 335

Product meets the requirements regarding

interference suppression on radio andTV.

NOTES :

In order to guarantee the longest possible working life of

the battery :

- Do not charge for more than 24 hours.

- Do not keep the cord permanently plugged in.

- A weaker motor sound indicates that the rechargeable

battery will be empty soon.

- Only plug in the cord when you hear this weaker sound.

- Discharge the battery completely once a year by letting the

motor run until it stops.

- If you haven’t used the appliance for a long period,

charge it before use.

If the battery is completely empty the trimmer might not

start immediately. In this case switch off the product, charge

for one minute and switch again.

PCS 101 335

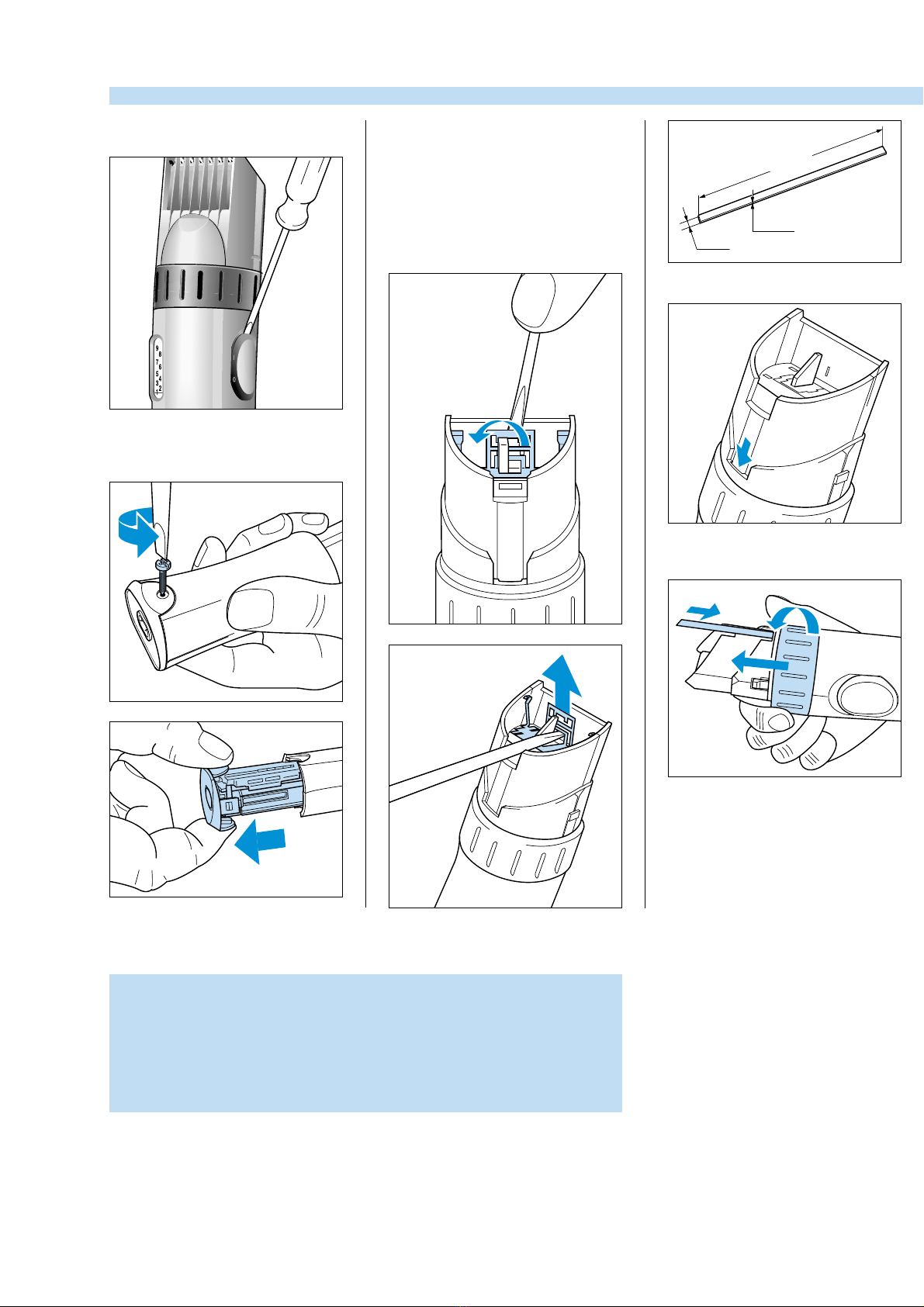

DISASSEMBLY ADVICE

to replace SPRING ON/OFF

SWITCH (4)

to replace BATTERY (6)

PCB (7)

remove SCREW A

N.B. Never use again a deformed trimmer clamp (10).

Before reassembling the battery holder, make sure that the

internal wiring is guided.

After the product has been repaired, it should function properly

and has to meet the safety requirements as laid down and ofﬁcially

established at this moment.

to replace ZOOM RING +

GUIDE PART (8)

SPRING ZOOM RING (9)

SPRING POP-UP

TRIMMER (11)

POP-UP TRIMMER (12)

remove COMB (1)

remove CUTTER (2)

remove TRIMMER CLAMP (10) 5 mm

0.5 mm

± 80 mm

Prepare a disassembly tool of a metal strip.

Insert the disassembly tool into the small

gap on the rear side of the product.

Turn and push the zoom ring as shown in

the picture.

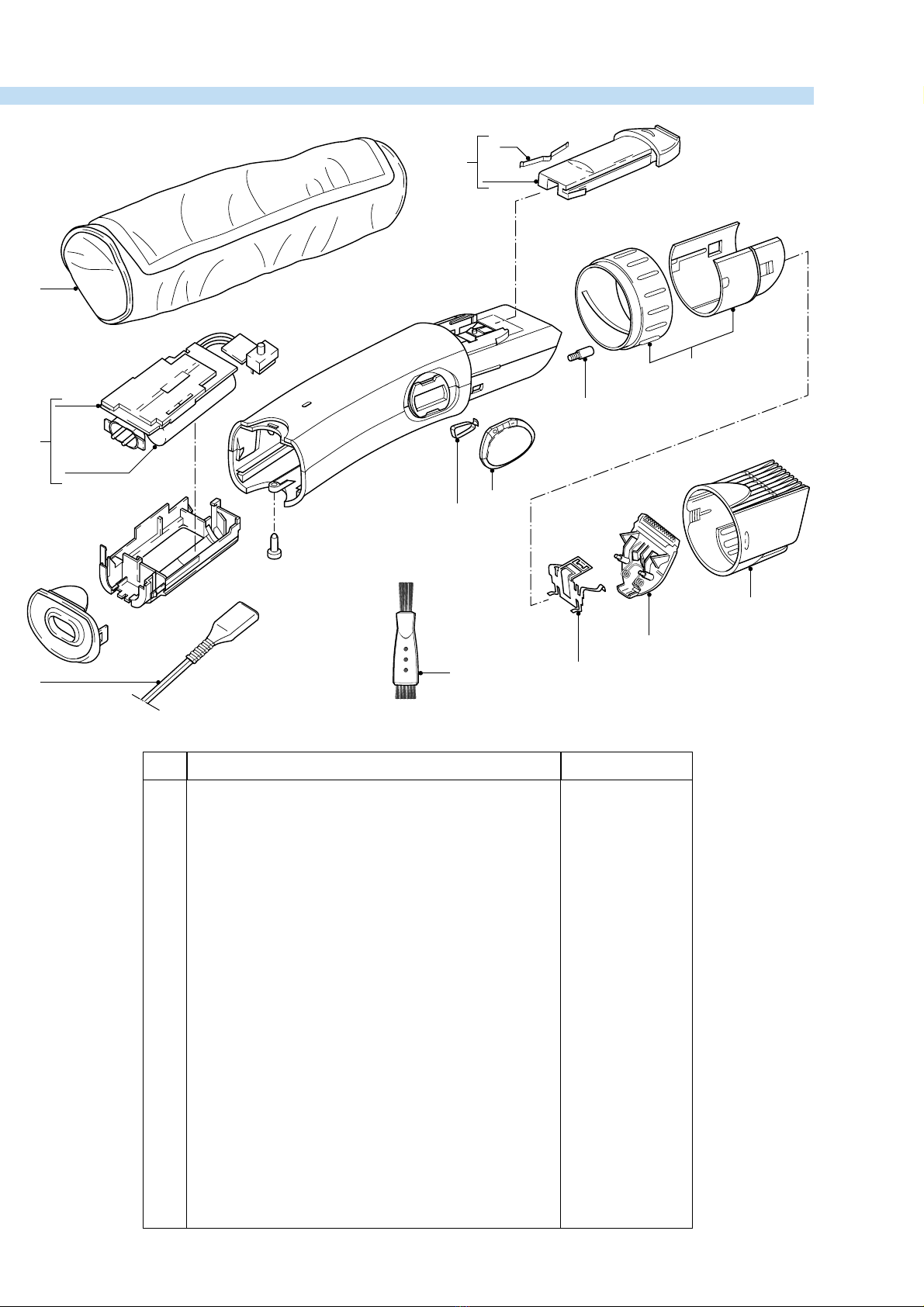

EXPLODED VIEW + PARTS LIST HQ-T 388

Pos Description Service code

Comb

Cutter

Cleaning brush

Spring ON/OFF switch

Slide ON/OFF switch

Battery (NiCd)

PCB 110 - 240Volt (NiCd battery included)

Zoom ring + guide part

Spring zoom ring

Trimmer clamp

Spring pop-up trimmer

Pop-up trimmer, spring (11) included

Cord set (Euro)

Cord set (UK)

Cord set (CND)

Cord set (Aus/NZ)

Cord set (USA)

Pouch

Dir. for use: UK, D, S, N, SF, DK, GR

Dir. for use: UK, D, F, NL, E, P, I,TR

Dir. for use: UK, Russian, Polish, Estonian, Latvian, Lithuanian

Dir. for use: UK, Russian, Ukrainian, Croatian, Slovenian, Czech,

Slovak, Hungarian, Rumanian

4203 035 72190

4822 690 10174

4822 479 30183

4822 492 71508

4822 277 11808

4822 138 10336

4203 035 72210

4203 035 71430

4203 035 71380

4203 035 72280

4203 035 72200

4203 035 71440

4822 321 10095

4822 321 10096

4822 321 10097

4822 321 10148

4822 321 10344

4203 035 72180

4203 035 72240

4203 035 72250

4203 035 72260

4203 035 72270
