Philips DVD616K/031 Manuel utilisateur

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise

without the prior permission of Philips.

Published by Jianfeng Liu 0263 BPAVC

DVD616K/ 031/691/751/782/931

CLASS 1

LASER PRODUCT

COMPACT

DIGITAL AUDIO

DVD PLAYER

Service Manual

Service

CONTENTS

Page

5 Dismantling instruction and exploded view ......................... 4

1 Tec nical specifications ....................................................... 2

2 Warnings ............................................................................. 2

3 Service ints ....................................................................... 3

4 Amendment ........................................................................ 3

7 Electrical diagrams and print-layouts ................................... 8

8 Spare parts list DVD616K/031 ............................................. 24

9 Spare parts list DVD616K/691 ............................................. 28

10 Spare parts list DVD616K/751 ............................................ 32

11 Spare parts list DVD616K/782 ............................................ 36

12 Spare parts list DVD616K/931 ............................................ 40

Power board..... .........................................................................

Mpeg board...... ........................................................................... 10

Front board..... ............................................................................ 20

MIC board..... ............................................................................ 22

6 Block- and wiring diagram ..................................................... 6

3122 785 12050

Tec nical Specifications

DVD616K/

031/691/751/782

Specifications

2. Warnings

HANDLING CHIP COMPONENTS

SERVICE TOOLS

3. Service ints

Test discs

Audio signals disc -------------------------------------------------------------4822 397 30184

Torx screwdrivers

Set (straig t, T2 to T20) --------------------------------------------------------4822 395 50145

Set (square, T10, T15, T20) ---------------------------------------------------4822 395 50132

4. Revision information

Service manual version: 1.0

Issue Date : 18t , Marc , 2002

Revision information: N/A

5. Dismantling instructions and exploded view

DISMANTLING INSTRUCTIONS DVD616K/031/691/751/782/931

See exploded view for item numbers

Cover 232

Remove 7 screws 228, 233

Lift cover at rearside to remove

Front assy 200

Unlock front from frame by

releasing successively snaps

Place front assy in front of

t e set (service position)

Display board 1004

Remove 6 screws 211,212

(board to front)

Demount board

Remove volume knob

by pulling it forward

Remove 2 screws 209

(board to front), pay attention

to t e eart spring 261

Demount board

MIC board 1005 Switc assy

Remove 2 screws 211

Demount switc assy

Loader module 1003

Remove 4 screws 215

(loader to bracket)

Demount loader module

Remove connections to

MPEG and PSU board

Remove 2 screws 221

(MPEG board to frame)

Remove 5 screws 227

(MPEG board to back plate)

Demount board

Remove flex connections to

MPEG board

Remove 3 screws 222

(PSU board to frame)

Release snap of 1 spacer

226 (board to frame)

Demount board

Remove flex connections to

PSU board

MPEG board 1002 PSU board 1001

Mounting

Demounting

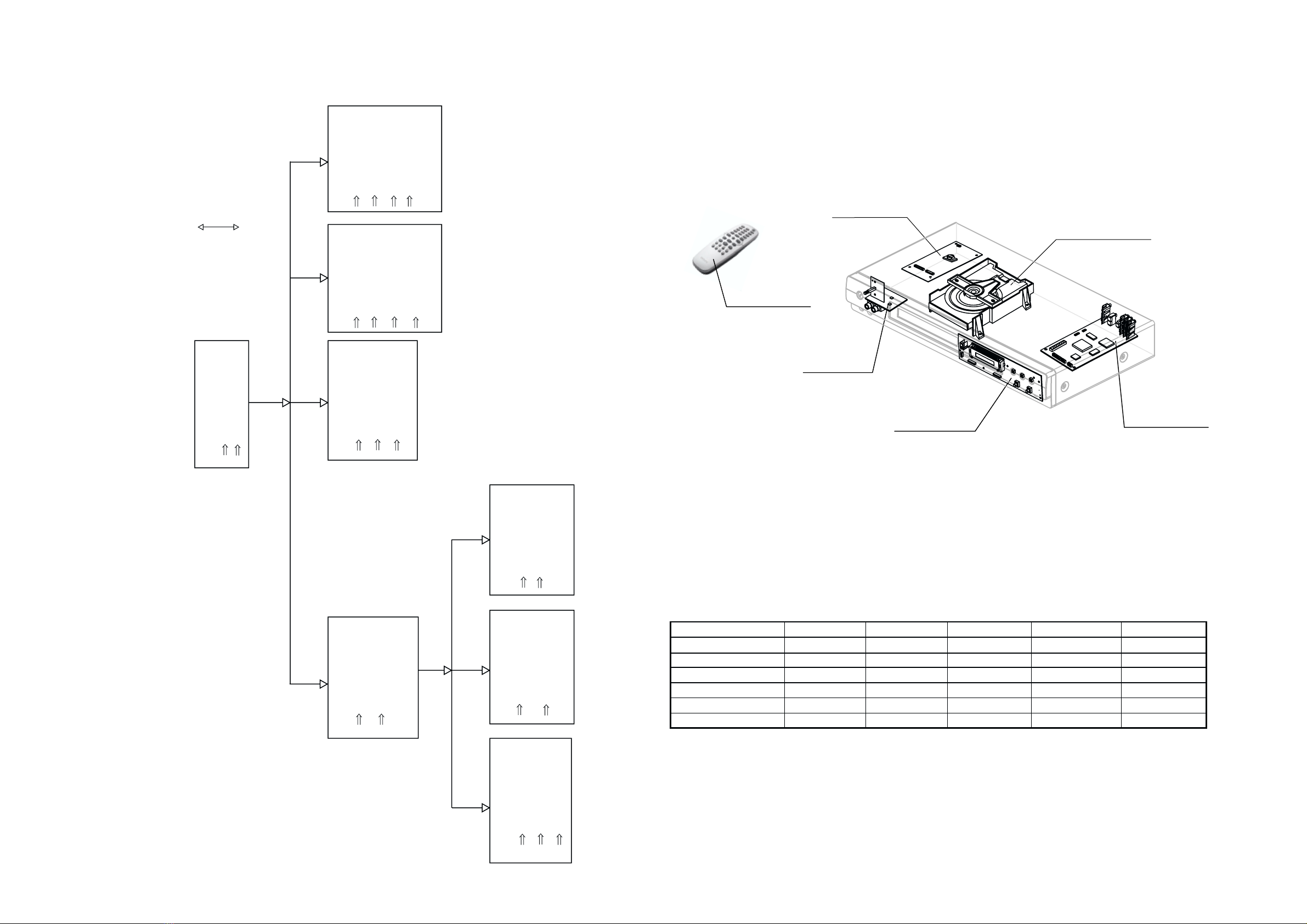

PCB LOCATION DVD616K/

031/691/751/782/931

5. Dismantling instructions and exploded view

1001

Power board

1002

MPEG board

Remote Control

1005

MIC board

1004

Front board

1003

Loader module

PARTS 12NC LIST

DVD616k/031 DVD616K/691 DVD616K/751

1001 PSU board 3141 018 02930

1002 MPEG board 3141 018 02810

1003 Loader module 3141 018 02660

1004 Front board

1005 Front board 3141 018 02560

Remote control

3141 017 90161

DVD616K/782 DVD616K/931

3141 018 02550

3141 018 02930

3141 018 02780

3141 018 02660

3141 018 02560

3141 017 90161

3141 018 02550

3141 018 02930

3141 018 02790

3141 018 02660

3141 018 02560

3141 017 90161

3141 018 02550

3141 018 02930

3141 018 02800

3141 018 02660

3141 018 02560

3141 017 90161

3141 018 02550

3141 018 02930

3141 018 02770

3141 018 02660

3141 018 02560

3141 017 90171

3141 018 02550

5. Dismantling instructions and exploded view

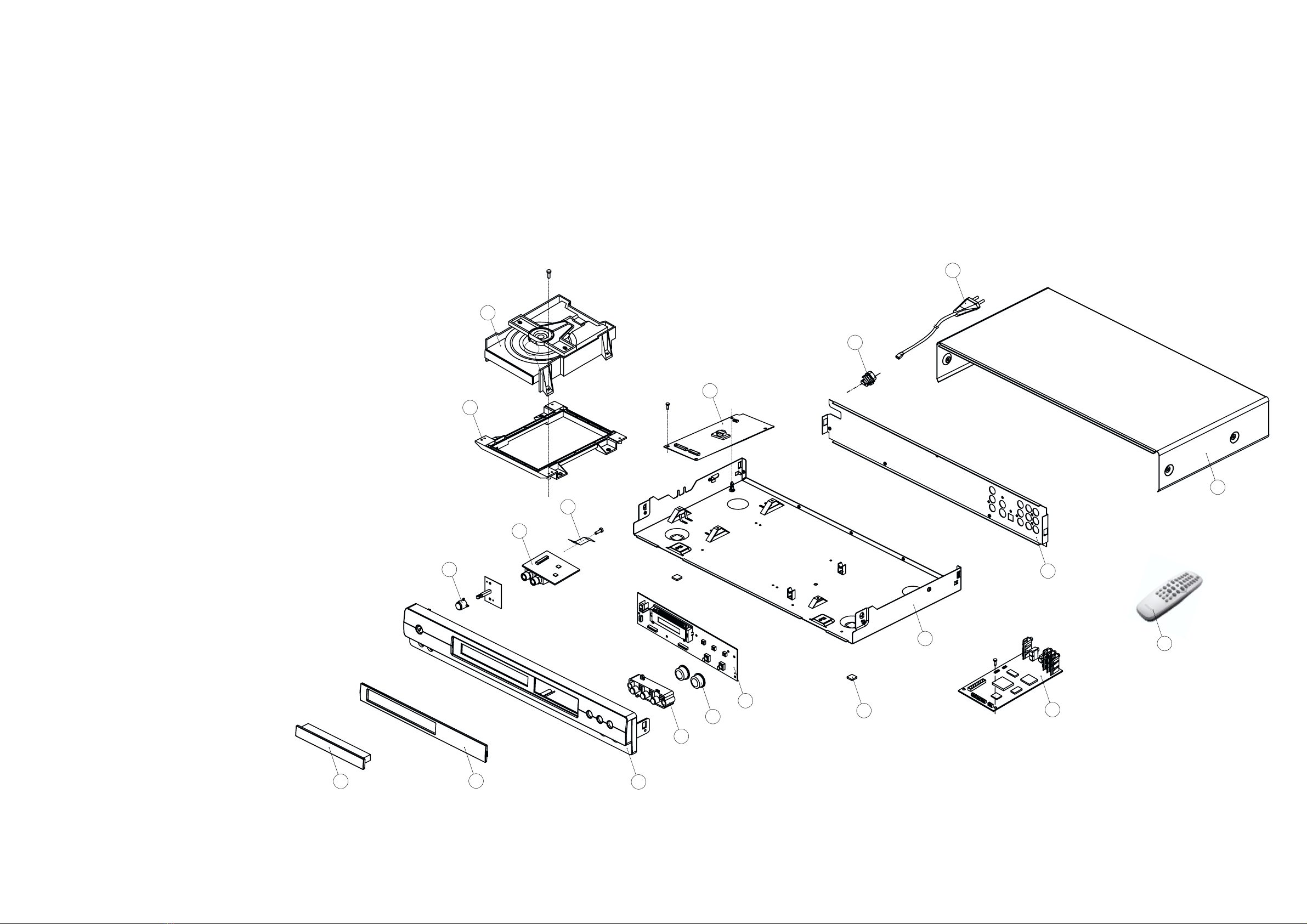

DVD616K/691 EXPLODED VIEW

384

219 204 200

240

208

249

205

261

1004

1001

1003

1005

1002

224

213

232

5001

260

201

MECHANICAL PARTS LIST DVD616K/691

ITEM CODE NUMBER DESCRIPTION

200 314101776140 CAB FRONT DVD616K/691 PNT PRT

201 314101424720 BRACKET

204 314101776220 WINDOWDVD616K

205 314101775590 BUTTON POWER DVD616K PNT PRT

208 314101775580 VOLUME KNOB DVD616K PNT

213 314101121300 FRAME DVD616K

219 314101775600 DOOR DVD616K PRT

224 314101775830 BACK PLATE DVD616K/691PNTPRT

232 314101775610 COVER TOP DVD616K PNT

240 314101775570 BUTTON CONTROL DVD616K PNT PRT

249 313924310080 CUSHION

260 482253260948 BUSH, PLASTIC

261 314101160520 EARTH PLATE DVD616K

384 314101790161 REMOTE CONTROL

1001 314101802930 PBAS PSU90PS-132WRBILLION

1002 314101802780 PBASMPEGDVD616K/691

1003 314101802660 DVD LOADER MODULE A95H

1004 314101802550 PBAS FRONTDVD616K/931

1005 314101802560 PBAS MICDVD616K/931

5001 314101871300 MAIN CORD M7.92VH 1.60M

8001 314101021160 CWAS 40RK/40RK 30040 28S

8002 314101021140 CWAS08XH/08XH 3508 WH 26S

8003 314101021150 CWAS 04XH/04LC 300 22S

6. Block- and wiring diagram

BLock diagram DVD616K/031/691/751/782/931

RECEIVER

POWER

BUTTON

SLAVE PROCESSOR

(

PT6312)

CPU & DECODER

(ES4428)

SDRAM FLASH

MEMORY

ADC

DAC

VIDEO ENC LOW PASS

DRIVER

MUTE

MIC INPUT

VOLUME

CONTROL

Y/CB/CR

VIDEO

S-VIDEO

OPTICAL OUTPUT

DIGITAL COAXIAL

Only used for DVD616K/931

SR + SL

SW + CEN

FR + FL

R + L

MPEG BOARD

POWER SUPPLY

LOADER MODULE

FRONT BOARD

MIC BOARD

KEYBOARD

6. Block- and wiring diagram

Wiring diagram DVD616K/031/691/751/782/931

POWER SUPPLY

BOARD

FRONT BOARD

MPEG BOARD

LOADER

MIC BOARD

181

STDBY

-12VA

GND

+12VA

+5VD

+12VL

+5VL

GND

1200

+12V

D5V

GND

140

1609

1601

CN01

CON2

CON5

1404

1402

1608

8004/260

8002/500

8003/460

8402/170

8401/180

8001/230

+5VD

GND

-30V

+3.5V

-3.5V

CON412

OFF-1

OFF-2

1405

OFF-1

OFF-2

1403

+5VD

GND

-30V

+3.5V

-3.5V

8STDBY

-12VA

GND

+12VA

+5VD

PM1

PM2

MGND

PM3

PM4

+5V

-12V

MICA

MGND

PM1

PM2

MGND

PM3

PM4

+5V

-12V

MICA

MGND

DATA

CLK

GND

-12V

MICA

MGND

DATA

CLK

GND

-12V

MICA

MGND



































































  !"

#



$$

%#&

'('(%$)'*(+'*(+!'*(+,)#%









-(



.



+



/







-0(0 

 

.1 



 



























!



!

"

!#



!



#



$ ! $



!



!







% 



 &

"

&



&



 &



&



&







'()



%

2

%







*

+

!







&











,

 

#



!

+

!







&







*









*

"



#



&



!







%(







!#



&!



 



!



!





 

+





#



 &!



&!





 +

  &



%

2

%



%



!



$ ! -



#

" 

 %(



 



 







"



$ ! -

 %(

"

%





%

 

% 







!

 

!

















,











*



 

#

.

/

.



.

/

.

/

.

/

01234





*

 5  %(

 %(

,

,

2

%

2 

%

 

!

 

!

 "

!#







!

"

(

 %(





 

&

 

&

 

&

 

&



!#









,

 "

%

. 

 

.

/

 

 

. 







/



!





*





!



%

















*













,



&

2 

% 



!#



!







*

"



!



!



#

 



5!/5



!







*

"



!







 



#





#





!

"

 &!







6%'&

+

&

""+

6

 &



% 





)#$

 45 4



Layout Power supply board DVD616K/031/691/751/782/931

Component side

Copper side

Blockdiagram

MPEG board DVD616K/031/691/751/782/931

12345678

HRST#

HIORDY

HD(0..15)

CVBS

LD(0..7)

YUV(0..7)

LA(0..19)

ATAPI INTERFACE

LRCLK

AUDIO DAC

HCS1#

HRD#

AUDIO FILTER

HSYNC

SCLK

VIDEO FILTER

MD(0..15)

RESET

VIDEO ENCODER

RESET

L(FL)

CENTER

HCS3#

27M

MA(0..11)

HA(0..2)

RESET

VSYNC

27M

HWR#

LFE

BCLK

RESET

HIOCS16#

R(FR)

4M FLASH

HIRQ

DATD

64Mbit SDRAM CLOCK AND RESET

MPEG DECODER AND CPU
