Philips 4000 series Manuel utilisateur

All parts of this document are the property of Philips.

collected, except where express authorisation has been provided in writing or through a contractual agreement.

Published by Philips Subject to modication EN 421940000041

Service

Coee Machine

OTCCMF AMF

PHILIPS 4000

2017-JANUARY-XX

ServiceManual

Rev. 00 May 2017

TYPE 12NC DESCRIPTION

HD8841/01 882884101010 PHI 4000 CMF BK 230 WE

HD8841/09 882884109300 PHI 4000 CMF BK 230 CEE

HD8841/11 882884111010 PHI 4000 CMF AN 230 WE

HD8842/09 882884209870 PHI 4000 CMF BK 230 RU

HD8844/01 882884401010 PHI 4000 AMF BK 230 WE

HD8844/09 882884409300 PHI 4000 AMF BK 230 CEE

HD8847/01 882884701010 PHI 4000 OTC BK 230 WE

HD8847/06 882884706660 PHI 4000 OTC BK 120 TW

HD8847/09 882884709300 PHI 4000 OTC BK 230 CEE

HD8847/11 882884711010 PHI 4000 OTC AN 230 WE

HD8847/15 882884715470 PHI 4000 OTC AN 220 KR

HD8847/17 882884717710 PHI 4000 OTC AN 220 CN

HD8847/19 882884719300 PHI 4000 OTC AN 230 CEE

HD8848/09 882884809870 PHI 4000 OTC BK 230 RU

TYPE 12NC DESCRIPTION

EP4010/00 882860700010 PHI 4000 CMF BK 230 WE

EP4010/00 882860700220 PHI 4000 CMF BK 230 DE

EP4010/00 882860700300 PHI 4000 CMF BK 230 CEE

EP4010/10 882860710010 PHI 4000 CMF SL 230 WE

EP4050/10 882860910010 PHI 4000 OTC SL 230 WE

EP4050/10 882860910220 PHI 4000 OTC SL 230 DE

EP4050/10 882860910300 PHI 4000 OTC SL 230 CEE

EP4051/10 882861410010 PHI 4000 OTC SL 230 WE

EP4051/10 882861410220 PHI 4000 OTC SL 230 DE

HISTORY OF CHANGES TO THE SERVICE MANUAL

From Rev. To Rev. Chapter Inserted Modied

Rev.05 Rev00 - Service Manual relative only for Philips 4000;

- New layout.

PHILIPS 4000

Table of contents Page

1. Introduction

1.1. General Information 1

1.2. Tecnical specication 1

1.3. Consumer Replaceable Parts (CRP) List 2

1.4 Specic tools and equipment 4

1.5. Material 4

1.6. Safety warnings 4

1.7. Water circuit diagram 5

1.8. Electrical diagram 6

1.9. Service POLICY grid as used for coee machine 7

1.10. Error codes 8

1.11. Internal machine parts 9

2. Technical specications

2.1. Specication for the measurement of the coee products

temperature.

2.2. Specication for the measurement of the Milk products

temperature.

2.3. Machine parameters and performance 4

3. Operating logic

3.1. Single microswitch gear motor 1

3.2. Temperature sensor (adjustment) 1

3.3. Coee grinder 230V 2

3.4.1. Autodose system description 230V 2

3.4.2. Coee lack detection and coee grinder blocked 3

3.5. Coee grinder 120V 3

3.6.1. Low bean level detection, dose quantity adjustment, cof-

fee grinder blocked

3.6.2. Dose self-learning (SAS) 4

3.7. Coee cycle 5

3.8. Milk Carafe (OTC version) 6

3.9. Water level detection (water tank) 6

3.10. Water lter HD models 7

3.11. Descaling request HD models 7

3.12. AquaClean water lter EP models 8

3.13. Descaling request EP models 8

Table of contents Page

4. Diagnostic mode

4.1. Test Mode. 1

4.2. SteamOut 7

5. Saeco Service Center

5.1. Saeco Service Center - Quick Start Guide 1

6. Machine Repair Flow

6.1. Repair Flow 1

7. Disassembly

7.1. Outer Shell 1

7.2. Coee grinder 2

7.3. Grinder blades 2

7.4. Coee grinder adjustment 3

7.5. Carafe connection and hot/Steam water dispenser

(Philips 4000 OTC)

7.6. Hot water dispenser (Philips 4000 AMF-CMF) 4

7.7. Central plate 4

7.8. Pin boiler 4

7.9. Gear motor 5

7.10. Pump 5

7.11. Flow-meter 6

7.12. Boiler 6

7.13 CPU board 6

7.14. Programming access for SSC (Saeco Service Center) 6

7.15. KYB interface and display 6

7.16. Fitting and removing Oetiker clamps 7

PHILIPS 4000

CHAPTER 1

INTRODUCTION

PHILIPS 4000 01 INTRODUCTION

1/9

General Information

Description Value

Housing material ermoplastic material

Size (w x h x d) 215mm x 330mm x 429 mm

Weight 6.7 kg for CMF-AMF 7.5 Kg for OTC (data may vary depending on the model)

Power Cord length 120 cm

Cup size Up to 152 mm

Water tank 1.8 litres - Removable type

Water leter EP models: Acquaclean lter 12NC-421944050461 (CA6902/00); HD models: Brita lter 12NC-

996530071872 (CA6702/00)

Coee bean hopper capacity 250 g

Coee grounds drawer capacity 15

Milk carafe capacity 0,5 l (OTC Version)

Energy Eciency Label B

Energy saving mode consumption < 1 Wh

Pump pressure 15 bar

Boiler Stainless steel type

Safety devices ermal fuse

Nominal voltage - Power rating –

Power supply Data stored on the below label placed inside the service door

Serial Number TW90xxyy768226 TW90= product + production location - xxyy = year & Production week - 768226 = unique following

number

Technical specication

Description Value

Power supply and output: 240 V~ 50 Hz 1850 W - 230 V~ 50/60 Hz 1850 W

120 V~ 60 Hz 1500 W

Power consumption: During heating phase- approx. 5.6 A

Coee heat exchanger output: Stainless steel (230 V~) 1900 W - (120 V~) 1300 W - (100 V~) 1100 W

for coee, hot water and steam dispensing

Safety system: 2 thermostats at 190°C one shot

Temperature monitoring: (NTC) variable resistor sensor - transmits the value to the electronic card

Automatic dosage: Dose adjustment controlled by the electronic system

Gear motor: 2 rotation directions; power supply 24VC

Coee grinder: Direct current motor with at ceramic grinder blades

Pump: Ulka Type EP5/S GW approx. 13-15 bar with reciprocating piston and thermal switch 100°C 48 W, 230V,

50 Hz, 120V, 60Hz 100V, 50/60 Hz

Overpressure valve: Opening at approx. 16-18 bar

1.1. General Information

1.2. Tecnical specication

PHILIPS 4000 01 INTRODUCTION

2/9

Water circuit lling time: Approx. 15 sec Max. on rst lling cycle

Heating time: Approx. 45 sec.

Grinding time: Approx. 8-10 sec.

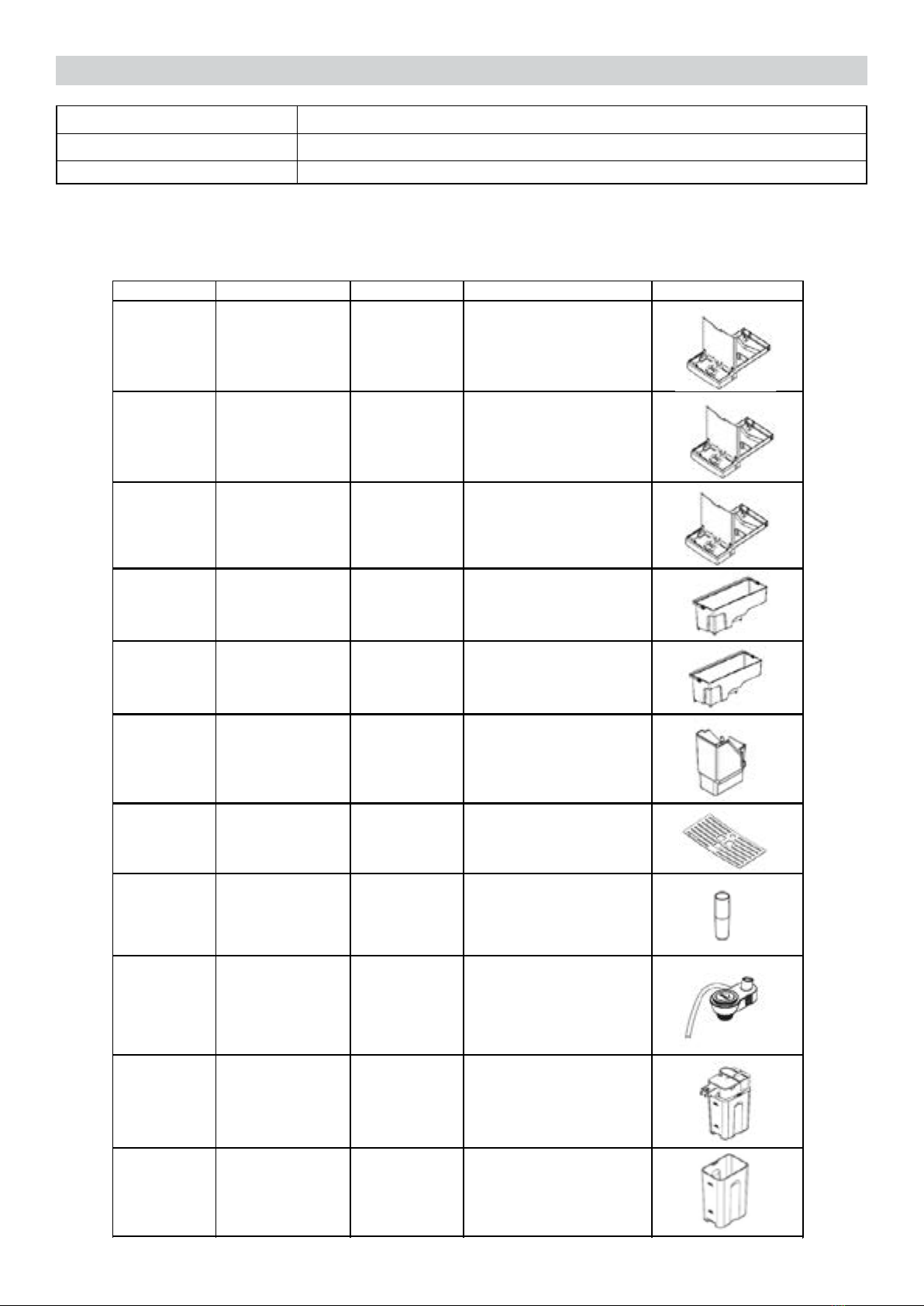

CRP CTN 12NC Description Compatible for (models): Picture (assembled)

CP0165/01 421941308111 Dip tray HD8841-HD8842-HD8844-

EP4010

CP0167/01 421941308131 Dip tray HD8847-HD8848

CP0507/01 421941310521 Dip tray EP4050-EP4051

CP0150/01 996530073476 Water tank HD8841-HD8842-HD8844-

HD8847-HD8848

CP0228/01 421944052271 Water tank EP4010- EP4050-EP4051

CP0166/01 421941308121 Coffee grounds

container ALL MODELS

CP0151/01 421944034471 Drip tray cover ALL MODELS

CP0329/01 996530000926 Classic milk

frother HD8841-HD8842-EP4010

CP0152/01 421944031491 Automatic milk

frother HD8844

CP0153/01 421944029451 Complete milk

carafe

HD8847-HD8848 - EP4050 -

EP4051

CP0154/01 421944032881 Transparent

caraffe

HD8847-HD8848 - EP4050 -

EP4051

CP0155/01 421941307041 Top cover carafe HD8847-HD8848 - EP4050 -

EP4051

Consumer Replaceable Parts are parts which we encourage consumers to replace themselves (as required);

these parts can be removed without help of a screwdriver

1.3. Consumer Replaceable Parts (CRP) List

PHILIPS 4000 01 INTRODUCTION

3/9

CRP CTN 12NC Description Compatible for (models): Picture (assembled)

CP0165/01 421941308111 Dip tray HD8841-HD8842-HD8844-

EP4010

CP0167/01 421941308131 Dip tray HD8847-HD8848

CP0507/01 421941310521 Dip tray EP4050-EP4051

CP0150/01 996530073476 Water tank HD8841-HD8842-HD8844-

HD8847-HD8848

CP0228/01 421944052271 Water tank EP4010- EP4050-EP4051

CP0166/01 421941308121 Coffee grounds

container ALL MODELS

CP0151/01 421944034471 Drip tray cover ALL MODELS

CP0329/01 996530000926 Classic milk

frother HD8841-HD8842-EP4010

CP0152/01 421944031491 Automatic milk

frother HD8844

CP0153/01 421944029451 Complete milk

carafe

HD8847-HD8848 - EP4050 -

EP4051

CP0154/01 421944032881 Transparent

caraffe

HD8847-HD8848 - EP4050 -

EP4051

CP0155/01 421941307041 Top cover carafe HD8847-HD8848 - EP4050 -

EP4051

CP0156/01 421944007561 Lid of milk carafe HD8847-HD8848 - EP4050 -

EP4051

CP0157/01 996530067584 Milk tube HD8847-HD8848 - EP4050 -

EP4051

CP0158/01 996530068626 Milk tube

connector

HD8847-HD8848 - EP4050 -

EP4051

CP0159/01 421941306191 Water spout HD8847-HD8848 - EP4050 -

EP4051

CP0160/01 421944052451 Brew group ALL MODELS

CP0164/01 421944033301 Coffee

measuring scoop ALL MODELS

CP0504/01 421944070662 Lid of coffee

bean container

EP4010- EP4050 - EP4051

(HD8841 - HD8842 -HD8847-

HD8848 FROM S/N.

TW901645704032)

PHILIPS 4000 01 INTRODUCTION

4/9

1.4. Specic tools and equipment

As well as the standard equipment, the following is required:

12NC Description Notes

-Screwdriver

-Pliers for Oetiker clamps

-CC -A - Vdc tester

-Digital thermometer Scale limit > 150°C

996530009845 Serkit Tool needed for programming with SSC

- SSC (Saeco Service Center) Tool used to ash the SW on the machines (for SW

upgrade and diagnostics mode). Refer to SDA_111359.

1.5. Material

12NC Material Code and Description

-ermal paste Heat resistance > 200°C

996530067222 Descaler “ACC SAE DECALCIFIER 5 L 1 UNIT”

132253695601 Grease solvent “PARALIQ GB 363”

996530045784 Silicone grease “ACC TUBE FIN FOOD GREASE 2 400 ML”

1.6. Safety warnings

Please, read the Service manual of the machine before starting any maintenance.

Operation, maintenance and/or repair of this device may be carried out only by qualied persons, trained for

work at or with electric devices.

During the machine disassembly the operator has to pay attention to hot and under pressure parts.

All parts involved can be nd in the hydraulic circuit below schema (Image 1-par.1.7.).

e machine hydraulic circuit can reach maximum pressure of 16/18 bar.

To operate under safety condition is recommended to perform the Steam Out procedure in order

to remove the pressure and hot water inside the hydraulic circuit.

When the machine arrives at the Service Center in descaling mode interrupted, or making Descaling , take

EXTREME CARE to avoid any unintentional contacts with the descaler.

Aer the product has been repaired, it should function properly and has to meet the safety requirements and

legal regulations as ocially laid down at this moment.

e technicians to operate under safety conditions, must:

1. Use personal safety devices;

2. Turn o the machine by the power switch is not an adequate safety precaution;

3. Disconnect the appliance from the power mains before repairing;

4. Before and aer repair, it is recommended to perform dielectric strength tests (is domestic

appliance is rated as insulation class 1).

PHILIPS 4000 01 INTRODUCTION

5/9

Pump

Safety valve

Water

discharge

Steam pipe

ter tank

Two-way solenoid valve

Brewing Unit

Flowmeter

Boiler

Water

Hot water /steam

From this point circuit

High temperaure

From this point circuit

in pressure

Flowmeter

Steam and hot water

Two-way solenoid valve

Pump

Brewing Unit

Boiler

Safety valve

Water

discharge

Water tank

Image 1

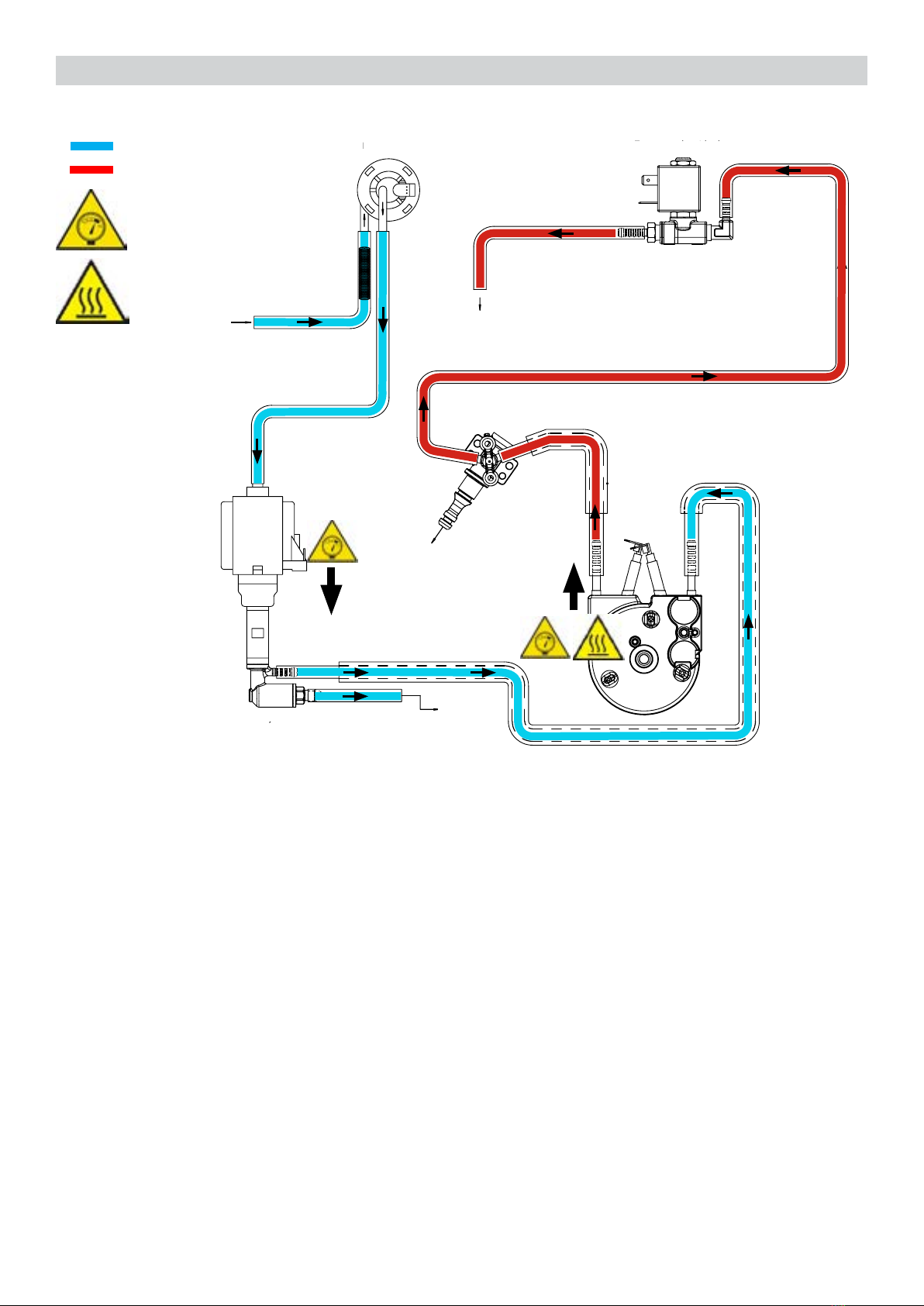

1.7. Water circuit diagram

PHILIPS 4000 01 INTRODUCTION

6/9

1.8. Electrical diagram

PHILIPS 4000 01 INTRODUCTION

7/9

1.10. External machine parts

1.9. Service POLICY grid as used for coee machine

For IN WARRANTY repairs is raccomanded to use when and where possible the single components, available

in the exploded views of the coee machines or of the specic components. If you nd the information “SEE

THE EXPLODED VIEW E........” in the assembly description eld, it means that the single components of the

assembly are available in the other pages of the exploded view. It’s possible to use the assembly only if there is

a specic Symptom Cure that include this possibility or when the single components are not available for the

order.

43 5 6

1 Power cord socket

2Power button

3 Grinder adjustment knob (HD models)

4 Coee bean hopper

5 Pre-ground coee compartment

6 Bean hopper (EP models)

7 Grind setting knob (EP models)

8 Classic Milk Frother (CMF)

9 Automatic Milk Frother (AMF )

10 Suction tube for Automatic Milk Frother

(AMF)

11 Milk carafe (OTC)

12 Water tank

13 Coee bean hopper lid

14 Service door

15 Brew group

16 Coee grounds drawer

17 Full drip tray indicator

18 Drip tray

19 Cup holder grill

20 Coee dispensing spout

21 Water dispensing spout (OTC)

22 Espresso/Coe selection level

1222 13

1617

Autres manuels pour 4000 series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Cafetière

Philips

Philips Senseo HD7812 Guide de démarrage rapide

Philips

Philips HD7476 Manuel utilisateur

Philips

Philips Senseo Twist HD7871/60 Manuel utilisateur

Philips

Philips EP Series Manuel utilisateur

Philips

Philips SENSEO Viva Cafe HD7836 Manuel utilisateur

Philips

Philips HD7817/20 Manuel utilisateur

Philips

Philips Carezza Deluxe RI8525/08 Manuel utilisateur

Philips

Philips Syntia HD8833 Manuel utilisateur

Philips

Philips Cafe Comfort HD7446/70 Manuel utilisateur

Philips

Philips HD7624/02 Manuel utilisateur

Philips

Philips HD7868 Manuel utilisateur

Philips

Philips Senseo HD7803 Manuel utilisateur

Philips

Philips HD7436 Manuel utilisateur

Philips

Philips CAFETIERE SENSEO VIVA HD6569/14 Manuel utilisateur

Philips

Philips HD8856/05 Manuel utilisateur

Philips

Philips Senseo HD6569 Manuel utilisateur

Philips

Philips Senseo HD7822 Manuel utilisateur

Philips

Philips Saeco Poemia HD8325/07 Manuel utilisateur

Philips

Philips Senseo Twist HD7870/80 Manuel utilisateur

Philips

Philips Cucina HD7524 Manuel utilisateur

Philips

Philips HD8856/04 Manuel utilisateur

Philips

Philips 5400 Series Manuel utilisateur

Philips

Philips Saeco INTELIA EVO HD8754 Manuel utilisateur

Philips

Philips HD8652/59 Manuel utilisateur

Manuels Cafetière populaires d'autres marques

Taurus

Taurus Livorno 6 Manuel utilisateur

Delta-q

Delta-q QUICK Manuel utilisateur

Bunn

Bunn LCA-1 Guide de dépannage

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instructions d'installation

Saeco

Saeco Vienna Plus Sup 018M Manuel utilisateur

DeLonghi

DeLonghi DC300 Manuel utilisateur

INCAPTO

INCAPTO BXCO1470E Manuel utilisateur

Bosch

Bosch TASSIMO finesse TAS16B Series Manuel utilisateur

Exido

Exido 245-072 Manuel utilisateur

Animo

Animo OptiVend Choco Manuel utilisateur

Siemens

Siemens TQ505DF Series Manuel utilisateur

DeLonghi

DeLonghi ECI341 Manuel utilisateur

Krups

Krups KT406511 Manuel utilisateur

Cimbali

Cimbali M32 Classic Manuel utilisateur

Bosch

Bosch TES 515 SERIES Manuel utilisateur

Tekmatix

Tekmatix TMFM - 65 Manuel utilisateur

Scarlett

Scarlett SC-CM33005 Manuel utilisateur

LAVAZZA

LAVAZZA CLASSY PLUS Manuel utilisateur
