CONTROLS

AZ 1140 /00 page 4

TOP AND FRONT PANELS

1POWER slider - selects the sound source

for CD/ TUNER/ TAPE OFF and also switches

the set off

2VOL - adjusts the volume level

3BATT LOW - indicates when battery power

is running low

4DBB (Dynamic Bass Boost) - enhances

the bass

5OPEN•CLOSE - opens/ closes the CD door

6CASSETTE RECORDER keys

RECORD 0- starts recording

PLAY 1 - starts playback

SEARCH 5/ 6

- fast winds/rewinds the tape

STOP•OPEN 9/ - stops the tape;

- opens the cassette

compartment

PAUSE ; - interrupts recording or playback

71-3 - programmes and selects your favourite

three radio stations

8PRESET 3,4- (up, down) selects preset

tuner stations

9BAND - selects waveband

0PLAY PAUSE 2; - starts /pauses

CD playback

!CD MODE - selects a different play mode

e.g. SHUFFLE/ REPEAT CD

tracks or programme in random

/repeated order

@STOP 9- stops CD playback or erase a CD

programme;

activates/ deactivates display

demo mode.

#Cassette door

$Display - shows the status of the set

%SEARCH ∞/ §

Tuner: (down, up) tunes radio stations.

CD: -

searches back and forward within a

track;

- skips to the beginning of a current

track/ previous/ later track

^PROGRAM -

Tuner - programmes preset radio stations;

CD - programmes

tracks

and reviews the

programme

BACK PANEL

&p- 3.5 mm stereo headphone jack

*Telescopic antenna - improves FM

reception

(BEAT CUT switch - eliminates possible

whistle tones during

MW/LW recordings

)AC MAINS - inlet for power cord

¡Battery compartment - for six batteries,

type R-14, UM-2 or C-cells

CAUTION

Use of controls or adjustments or performance of procedures other than herein

may result in hazardous radiation exposure or other unsafe operation.

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the

packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene

(buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized

company. Please observe the local regulations regarding the disposal of packing

materials, exhausted batteries and old equipment.

English

POWER SUPPLY

Whenever convenient, use the mains supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type

R-14, UM-2 or C-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

2. Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

–If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

Incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst.

Therefore:

•Do not mix battery types: e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries

with the new ones.

• Remove the batteries if the set is not to be used for a long

time.

•Batteries contain chemical substances, so they should

be disposed of properly.

For users in the U.K.: please follow the instructions on page 2.

Using AC MAINS

1. Check if the mains voltage as shown on the type plate on

the base of the set, corresponds to your local mains supply.

If it does not, consult your dealer or service centre.

2. If your set is equipped with a voltage selector, adjust the

selector so that it matches with the local mains supply.

3. Connect the mains lead to the wall socket and the set is now

ready for use.

4. To disconnect the set from the mains supply completely,

remove the plug from the wall socket.

AZ 1140/00 page 5

6 x R14 •UM-2 •C-CELLS

English

BASIC FUNCTIONS GENERAL INFORMATION

Switching on and off

• Adjust the POWER slider to the desired sound source: CD,

TUNER or TAPE/OFF.

• The set is switched off when the POWER slider is in the

TAPE/OFF position and the keys on the tape deck are released.

™The volume and tuner presets will be retained in the set's

memory.

Adjusting volume and sound

1. Turn the VOL control to increase or decrease VOLUME.

2. Adjust the DBB control to select dynamic bass boost on or off.

PHILIPS demo mode

1. On the set, press the CD STOP 9button for 5 seconds.

™PH..IL ..IPS scrolls across the display continuously.

2. To return to the current display you can either:

• press any function button on the front panel. This interrupts

the demo mode for 30 seconds;

• press the CD STOP 9button for 5 seconds. PH..IL ..IPS

scrolls once before the demo mode is cancelled.

GENERAL INFORMATION

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity,

rain, sand or excessive heat caused by heating equipment or

direct sunlight.

• To clean the set, use a soft, slightly dampened chamois

leather. Do not use any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these may harm the

housing.

Safety information

• Place the set on a hard and flat surface so that the system

does not tilt. Make sure there is adequate ventilation to

prevent the system from overheating.

• The mechanical parts of the set contain self-lubricating

bearings and must not be oiled or lubricated.

AZ 1140 /00 page 6

PROGRAM

REPEAT

ALL

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

DBB

VOL

TUNER

BATT

LOW

TAPE

OFF

PROGRAM

REPEAT

ALL

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

DBB

VOL

TUNER

BATT

LOW

TAPE

OFF

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

PROGRAM

English

DIGITAL TUNER

TUNING TO RADIO STATIONS

1. Select TUNER source.

™is displayed briefly and then the radio station

frequency is shown.

2. Press BAND once or more to select your waveband.

3. Press SEARCH ∞or §and release when the frequency in

the display starts running.

™The tuner automatically tunes to a station of sufficient

reception. Display shows during automatic tuning.

™If a FM station is received in stereo, STEREO is shown.

4. Repeat step 3 if necessary until you find the desired station.

• To tune to a weak station, press SEARCH ∞or §briefly and

repeatedly until you have found optimal reception.

5. Adjust the power slider to TAPE/OFF position to switch off the

set.

To improve radio reception

– For FM, pull out the telescopic aerial. Incline and turn the

aerial. Reduce its length if the signal is too strong (very close

to a transmitter).

– For MW/LW, the set is provided with a built-in aerial so the

telescopic aerial is not needed. Direct the aerial by turning the

whole set.

Favourite station selection

For your favourite 3 tuner stations, you can use the easy one-touch

programming and selection 1, 2or 3buttons.

1. Tune to your desired station (see Tuning to radio stations).

2. To store your station, press 1, 2or 3for 2 seconds or more.

™Display: shows PROGRAM briefly, your favorite preset station

number and the tuner frequency.

Programming radio stations

You can store up to a total of 30 radio stations in the memory.

1. Tune to your desired station (see Tuning to radio stations).

2. Press PROGRAM to activate programming.

– Display: PROGRAM flashes.

3. Press PRESET 4or 3once or more to allocate a number from

1 to 30 to this station.

4. Press PROGRAM again to confirm the setting.

– Display: PROGRAM disappears, the preset number and the

frequency of the preset station are shown.

5. Repeat the above four steps to store other stations.

– You can overwrite a preset station by storing another frequency

in its place.

Tuning to preset stations

Press 1, 2, 3 or PRESET 4or 3until the desired preset station is

displayed.

AZ 1140/00 page 7

PROGRAM

REPEAT

ALL

OP•OPEN

SEARCHPLAY

RECORD

BAND

PRESET

PROGRAM

SEARCHPLAY

RECORD

BAND

PRESET

PROGRAM

RAM

EAT

ALL

SEARCHPLAY

RECORD

BAND

PRESET

PROGRAM

English

CD PLAYER

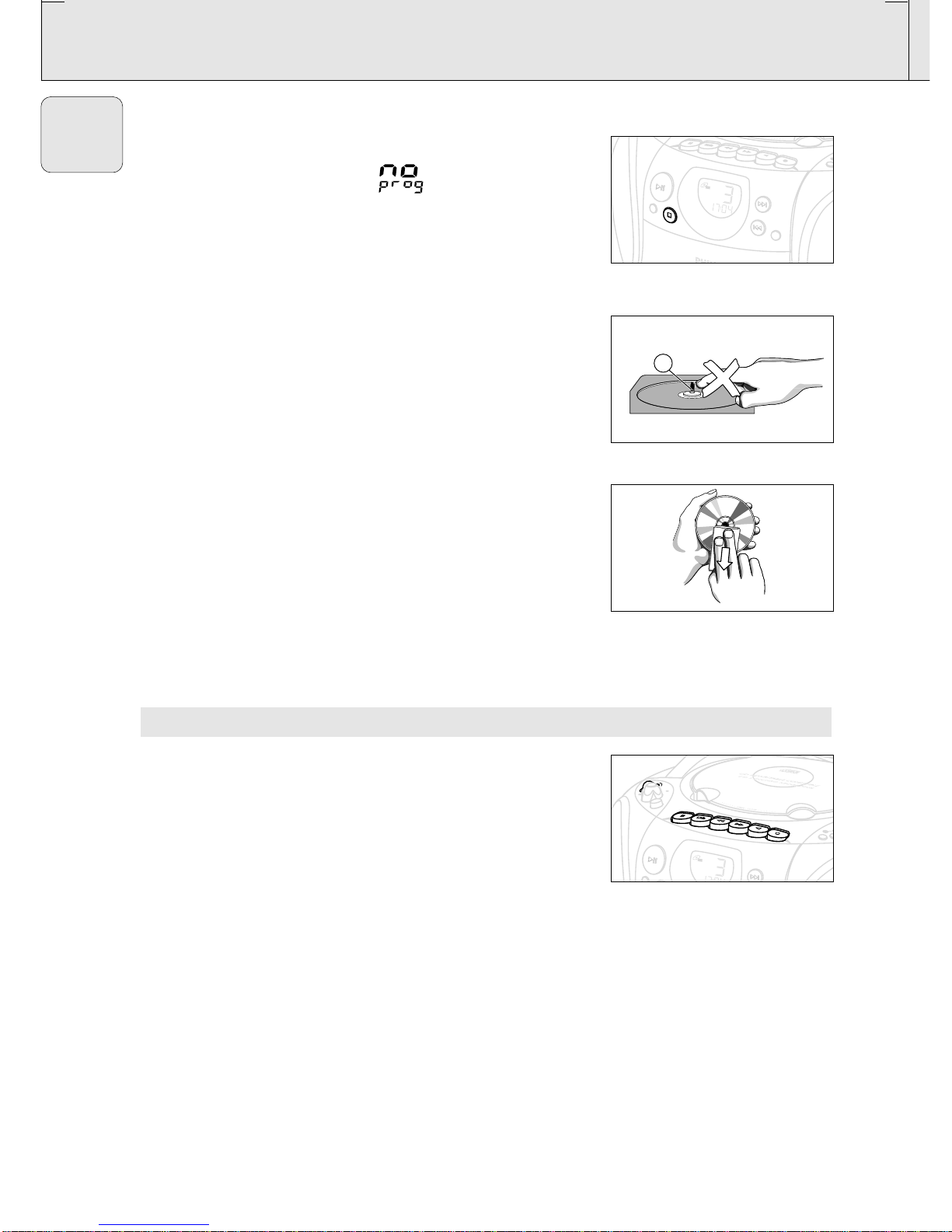

Playing a CD

1. Select CD source.

™is displayed briefly.

2. Lift the CD door open.

™Display: when you open the CD door.

3. Insert a CD or CD-R(W) with the printed side facing up and

close the CD door.

™Display: d1SC flashes as the CD player scans the contents of

a CD. The total number of tracks and playing time are then

shown.

Display: is shown if the CD-R(W) is blank or not

finalised.

4. Press PLAY•PAUSE 2; to start playback.

™Display: Current track number and elapsed playing time of the

track during CD playback.

5. To pause playback press PLAY•PAUSE 2;.

Press PLAY•PAUSE 2; again to resume play.

™The display freezes and the elapsed playing time flashes when

playback is paused.

6. To stop CD playback, press STOP 9.

Note: CD play will also stop when:

– the CD door is opened;

– the CD has reached the end

(unless you have selected REPEAT or REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞or §once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD

or in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

1. Press and hold down on SEARCH ∞or §.

™The CD is played at high speed and low volume.

2. When you recognize the passage you want,

release SEARCH ∞or §.

– Normal playback continues.

Note: During a CD programme or if SHUFFLE/ REPEAT active,

searching is only possible within a track.

AZ 1140 /00 page 8

PROGRAM

REPEAT

ALL

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCH PLAY

RECORD

DYNAMIC

BASS

BOOST

DBB

VOL

TUNER

BATT

LOW

TAPE

OFF

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCH PLAY

RECORD

DYNAMIC

BASS

BOOST

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCH PLAY

RECORD

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PLAY

RECORD

Z1140

CDRA

PROGRAM

English

CD PLAYER

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during

playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ programme are played in

random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme

continuously in random order

REPEAT ALL - to repeat the entire CD/ programme

REPEAT - to play the current track continuously

1. To select your play mode, press the CD MODE key before or

during playback until the display shows the desired function.

2. Press PLAY•PAUSE 2; to start playback if in the STOP

position.

3. To return to normal playback, press the CD MODE key until

the various SHUFFLE / REPEAT modes are no longer displayed.

– You can also press STOP 9to cancel your play mode.

Programming track numbers

Programme in the STOP position to select and store your CD tracks

in the desired sequence. If you like, store any track more than

once. Up to 20 tracks can be stored in the memory.

1. Use the SEARCH ∞or §on the set, to select your desired

track number.

2. Press PROGRAM.

™Display: PROGRAM and the selected track number.

appears briefly.

™If you attempt to programme without first selecting a track

number, is shown.

3. Repeat steps 1-2 to select and store all desired tracks.

™is displayed if you attempt to programme more than

20 tracks.

4. To start playback of your CD programme, press

PLAY•PAUSE 2;.

Reviewing the programme

In the STOP position, press and hold down PROGRAM for a while

until the display shows all your stored track numbers in sequence.

AZ 1140/00 page 9

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUS E

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

STO

P•OPEN

SEARCHPLAY

RECORD

PROGRAM

English

Erasing a programme

You can erase the programme by:

– pressing STOP 9once in the STOP position or twice during

playback. The display shows ' ' briefly.

– pressing the CD door open;

– switching to TUNER/TAPE source.

CD player and CD handling

• If the CD player cannot read CDs correctly, use a commonly

available cleaning CD to clean the lens before taking the set to

repair. Other cleaning methods may destroy the lens.

• The lens of the CD player should never be touched!

• Sudden changes in the surrounding temperature can cause

condensation to cloud over on the lens of your CD player.

Playing a CD is then not possible. Do not attempt to clean the

lens but leave the set in a warm environment until the

moisture evaporates.

• Always keep the CD compartment closed to avoid dust on

the lens.

• To take a CD out of its box, press the centre spindle while

lifting the CD. Always pick up the CD by the edge and return

the CD to its box after use to avoid scratching and dust.

• To clean the CD, wipe in a straight line from the centre

towards the edge using a soft, lint-free cloth. Do not use

cleaning agents as they may damage the disc.

•Never write on a CD or attach any stickers to it.

PLAYING A CASSETTE

1. Select TAPE source.

™The display shows tAPE throughout tape operation.

2. Press STOP•OPEN 9/ to open the cassette door.

3. Insert a recorded cassette and close the cassette door.

4. Press PLAY 1to start playback.

5. To interrupt playback, press PAUSE ;. To resume, press the

key again.

6. By pressing SEARCH 5or 6on the set,fast winding of the

tape is possible in both directions.

7. To stop the tape, press STOP•OPEN 9/.

– The keys are automatically released at the end of the tape

and the tAPE indication goes out, except if PAUSE ;has

been activated.

CD PLAYER CASSETTE RECORDER

AZ 1140 /00 page 10

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

PROGRAM

REPEAT

ALL

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCH PLAY

RECORD

DYNAMIC

BASS

BOOST

DBB

VOL

TUNER

BATT

LOW

TAPE

OFF

English

RECORDING

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use NORMAL

type cassettes (IEC I) on which the tabs have not been broken.

•The best recording level is set automatically. Altering the VOL

and DBB controls will not affect the recording in progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

SYNCHRO START CD RECORDING

1. Select CD source.

2. Insert a CD and if desired, programme track numbers.

3. Press STOP•OPEN 9/ to open the cassette door.

4. Insert a suitable cassette into the cassette deck and close the

cassette door.

5. Press RECORD 0to start recording.

– Playing of the CD programme starts automatically from the

beginning of the programme. It is not necessary to start the CD

player separately.

To select and record a particular passage within a track

•Press and hold down on SEARCH ∞or §.

•When you recognize the passage you want,

release SEARCH ∞or §.

•To pause CD playback press PLAY/PAUSE 2;.

•Recording will begin from this exact point in the track when

you press RECORD 0.

6. For brief interruptions during recording press PAUSE ;. To

resume recording, press PAUSE ;again.

7. To stop recording, press STOP•OPEN 9/.

AZ 1140/00 page 11

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

DBB

VOL

TUNER

BATT

LOW

TAPE

OFF

PROGRAM

REPEAT

ALL

STOP

CDMODE

PLAY•PAUSE

PAUSE

STOP•OPEN

SEARCHPLAY

RECORD

DYNAMIC

BASS

BOOST

PROGRAM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Lecteur CD

Philips

Philips EXP3482 Expanium Manuel utilisateur

Philips

Philips EXP5463/05 Manuel utilisateur

Philips

Philips AZ2558 Manuel utilisateur

Philips

Philips Jogproof AX3200 Manuel utilisateur

Philips

Philips AZ5160/98 Manuel d'utilisation

Philips

Philips AZ6834 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips CD SOUNDMACHINE AZ2060 Manuel utilisateur

Philips

Philips AZ9015 Manuel utilisateur

Philips

Philips AZ7261 - Cd Personal Manuel utilisateur

Philips

Philips AZ1627/12 Manuel utilisateur

Philips

Philips AT9230 Manuel utilisateur

Philips

Philips EXP2461 Expanium Manuel utilisateur

Philips

Philips AZ1021 Manuel utilisateur

Philips

Philips AZT9240/00 Manuel utilisateur

Philips

Philips AZ2605 Manuel utilisateur

Philips

Philips AZ330T/96 Manuel utilisateur

Philips

Philips CD 711 Manuel utilisateur

Philips

Philips AZ1515/05 Manuel utilisateur

Philips

Philips RD 1022 Manuel utilisateur

Philips

Philips AZ1017 Manuel utilisateur

Philips

Philips CD Soundmachine AZ1837 Manuel utilisateur

Philips

Philips CD-500/00B Manuel utilisateur

Philips

Philips AZ 7161 Manuel utilisateur

Philips

Philips CD840 - annexe 1 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur

Optimus

Optimus CD-8250 Manuel utilisateur

Audiovox

Audiovox CE101A - annexe 1 Manuel utilisateur
