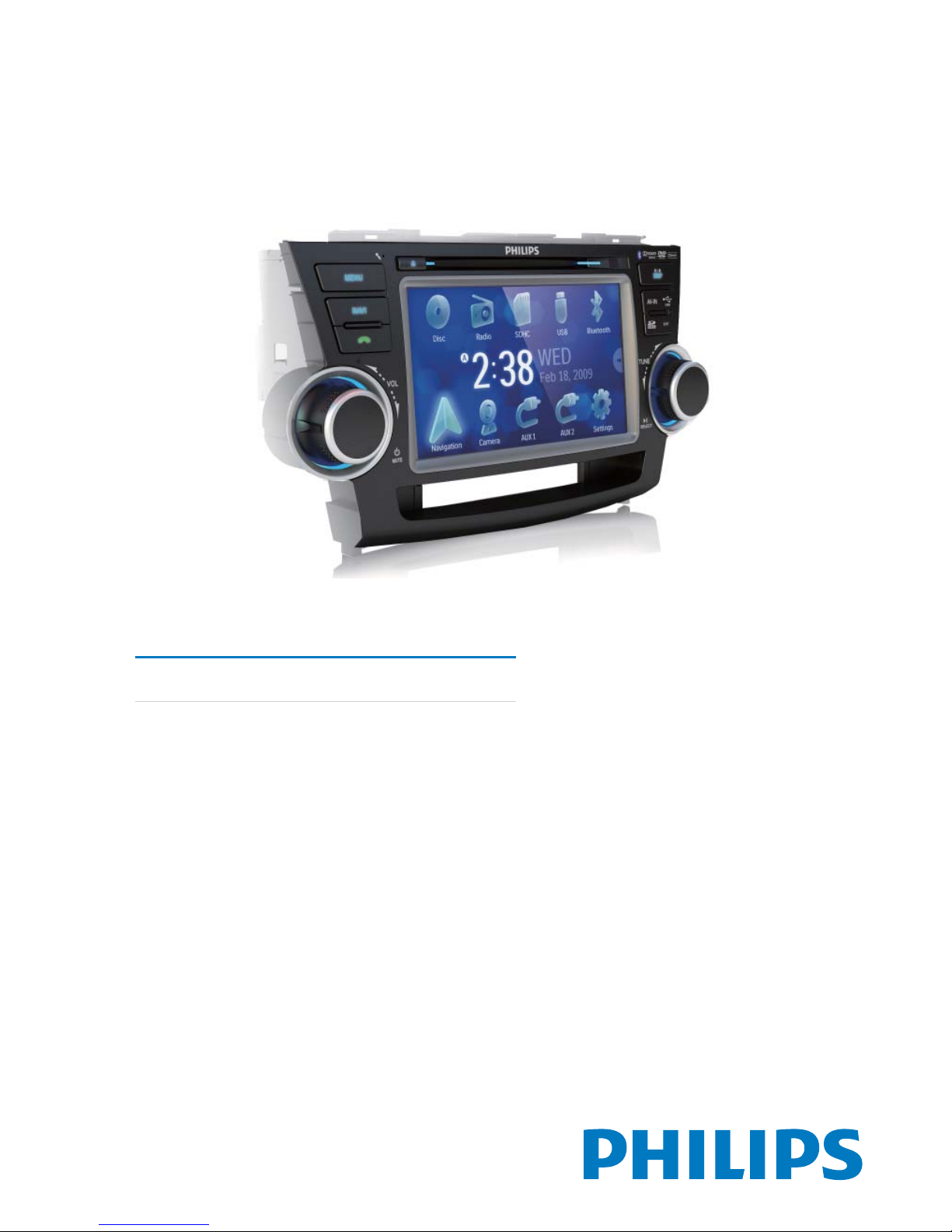

Philips CID3687/00 Manuel utilisateur

www.philips.com/welcome

EN Quick Start Guide

GPS antenna

Amplifier

Radio antenna

White

Red

Brown

Yellow

Black

Yellow Green Blue

Yellow

Blue/white

Pink

Green/white

Gearbox

AV system

AUX

Red

White

Yellow

Touch controller

Rear screen

White/

brown

Orange/

white

Brown/

black

English

Connect wires 1

1Check the car’s wirings carefully, then

connect them to the unit.

Mount in the dashboard 2

1If the car does not have an on-board drive

or navigation computer, disconnect the

negative terminal of the car battery.

2 Ensure that the horizontal slant of the car

dashboard opening is between 0 and 20

degrees. The unit cannot be used if the

dashboard opening’s slant angle is above 20

degrees.

3 Fix the four plastic buckles (supplied by

the car manufacturer for the original audio

system) to the unit. a

4Fix the mounting brackets to the unit with

screws (supplied by the car manufacturer). b

5Slide the unit into the dashboard and ﬁx it

to the car with four screws. c

6Reconnect the negative terminal of the car

battery.

Turn on

1Press and hold /MUTE/VOL to turn on

the unit.

The available OSD (On-Screen Display)»

languages are displayed.

2Tap a language to select.

To turn off the unit, press and hold• /

MUTE/VOL.

Set date and time

1 Tap to display main menu.

2 Tap in the middle right side of the screen.

3Tap [Settings].

4Tap [Time] .

Set date

1 Tap [Date].

2 Tap on the displayed date information.

3Tap or to set year, month and day.

Set clock mode

1 Tap [Clock mode] .

2 Tap on [12Hr] or [24Hr] to select clock

mode.

Set time

1Tap [Time].

2Tap on the displayed time.

3Tap or to set hour and minute.

Use map

Note

You may need to upgrade the map (sold•

separately) before using it.

1 Tap the upper left corner to display home

menu.

2 Tap [Navigation].

The navigation menu is displayed in a»

few seconds.

3Refer to the map manual to operate the

navigation tool.

Listen to Radio

1Tap to display home menu.

2 Tap [Radio].

3 Tap FM or AM to select band:

4 Brieﬂy tap or to tune to a radio station

by step.

Play disc 3

You can play video, audio or images stored on the

following discs:

DVD video, DVD-R, DVD-RW•

VCD•

Audio CD, CD-R, CD-RW•

1Insert a disc into the disc slot with the label

side facing up.

Play starts automatically.»

Connect USB device 4

1Open the AV-IN/USB/SD/MAP socket

cover.

2Insert the USB device to the USB socket.

Play starts automatically.»

Insert SD/MMC card 5

1Open the AV-IN/USB/SD/MAP socket

cover.

2Insert the SD/MMC card into the SD/MMC

card slot.

Play starts automatically.»

Make a call

To connect your Bluetooth device to the unit, you

need to pair the device to the unit.

1 Turn on the Bluetooth function on the

device.

2 Search for Bluetooth device with the

device.

3 Select “CID3687” in the pairing list.

4 Enter default password “0000”.

If pairing succeeds. phone call record is»

displayed.

5Tap or to select the paired phone, then

tap .

6Tap or to search for phone number

from the following list:

• [Missed calls]

• [Received calls]

• [Dialed calls]

• [Phone book]

• [Sim phone book]

• [Local phone book]

Or tap to dial number directly, then tap

to dial.

Receive call

By default, all incoming calls are received

automatically.

1If there is incoming call, [Incoming call...]

ﬂashes on the screen. Speak into the

Bluetooth microphone.

2When conversation ends, tap (red) to

terminate the call.

CID3687_00_QSG_V1.0
