Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 853-1062 13721

DESCRIPTION

The MC1458 is a high-performance operational amplifier with high

open-loop gain, internal compensation, high common-mode range

and exceptional temperature stability. The MC1458 is short-circuit

protected.

The MC1458/SA1458/MC1558 consists of a pair of 741 operational

amplifiers on a single chip.

FEATURES

•Internal frequency compensation

•Short-circuit protection

•Excellent temperature stability

•High input voltage range

•No latch-up

•1558/1458 are 2 “op amps” in space of one 741 package

PIN CONFIGURATION

4 5

– + +–

A B

V+

OUTPUT B

INVERTING INPUT B

NON -INVERTING INPUT B

OUTPUT A

INVERTING INPUT A

NON -INVERTING INPUT A

V–

D, N Packages

TOP VIEW

ORDERING INFORMATION

DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #

8-Pin Plastic Small Outline (SO) Package 0 to +70°C MC1458D 0174C

8-Pin Plastic Dual In-Line Package (DIP) 0 to +70°C MC1458N 0404B

8-Pin Plastic Small Outline (SO) Package -40°C to +85°C SA1458D 0174C

8-Pin Plastic Dual In-Line Package (DIP) -40°C to +85°C SA1458N 0404B

8-Pin Plastic Dual In-Line Package (DIP) -55°C to +125°C MC1558N 0404B

ABSOLUTE MAXIMUM RATINGS

SYMBOL PARAMETER RATING UNIT

VSSupply voltage

MC1458 ±18 V

SA1458 ±18 V

MC1558 ±22 V

TJJunction temperature +150 °C

PDMAX Maximum power dissipation,

TA=25°C (still-air)1

N package 1160 mW

D package 780 mW

VDIFF Differential input voltage ±30 V

VIN Input voltage2±15 V

Output short-circuit duration Continuous

TAOperating ambient temperature range

MC1458 0 to +70 °C

SA1458 -40 to +85 °C

MC1558 -55 to +125 °C

TSTG Storage temperature range -65 to +150 °C

TSOLD Lead soldering temperature (10sec max) 300 °C

NOTES:

1. The following derating factors should be applied above 25°C; N package at 9.3mW/°C; D package at 6.2mW/°C

2. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.

Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 60

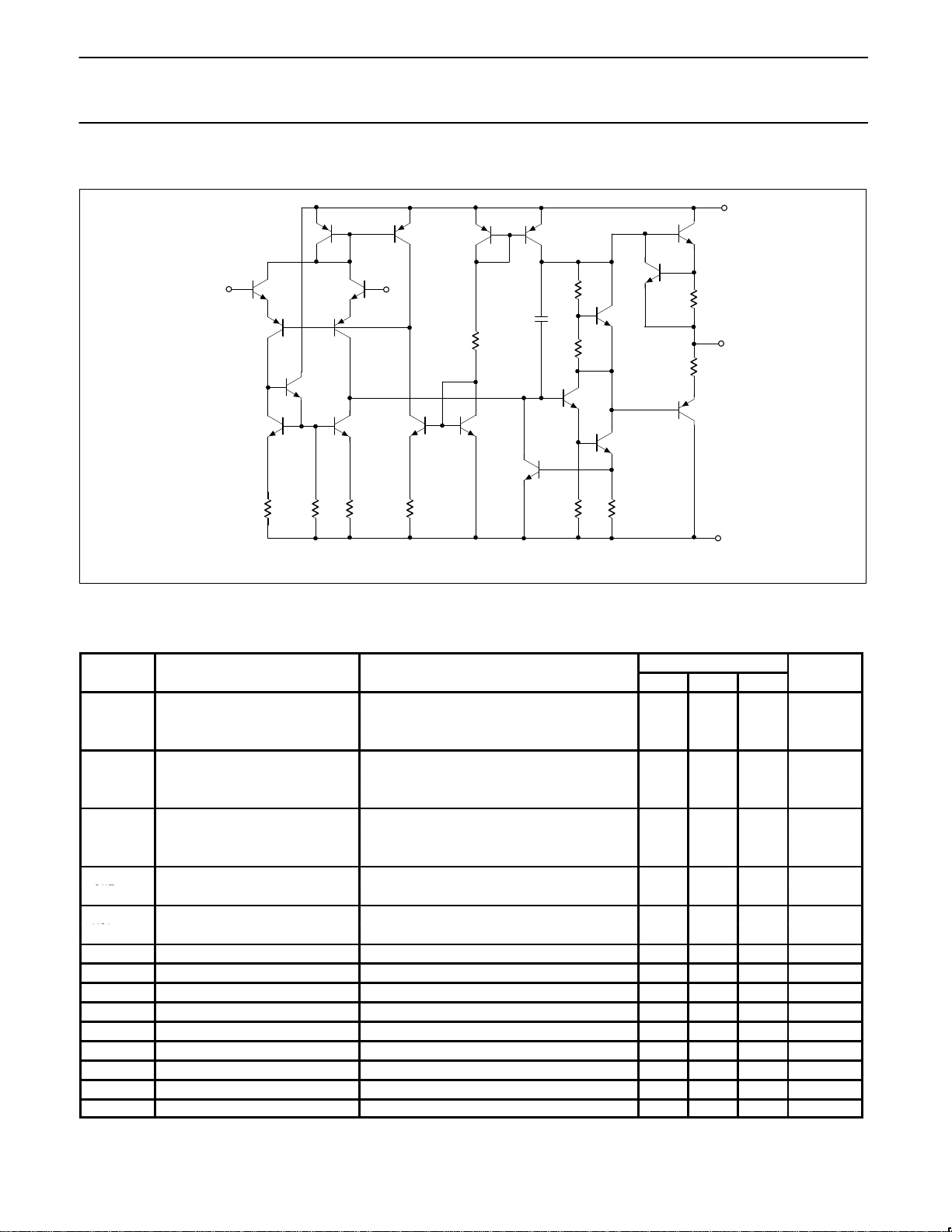

EQUIVALENT SCHEMATIC

Amplifier “A” of MC1458, SA1458, MC1558

NON–INVERTING

INPUT 3Q1

Q3 Q4

Q5 Q6

1KΩR2

50KΩR3

1kΩ

INVERT.

INPUT

Q9 Q12 Q13

39KΩ

Q10 Q11

Q22

V+

Q14

25Ω

1OUTPUT

R10

50Ω

Q20

Q16

Q17

Q18

Q15

4V–

R11

50Ω

R12

50kΩ

4.5KΩ

7.5KΩ

5kΩ

DC ELECTRICAL CHARACTERISTICS

TA=25°C, VS=±15V, unless otherwise specified.

SYMBOL

PARAMETER

TEST CONDITIONS

MC1558

UNIT

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max

UNIT

VOS Offset voltage RS=10kΩ1.0 5.0 mV

RS=10kΩ, over temperature 6.0 mV

∆VOS Offset voltage Over temperature 10 µV/°C

IOS Offset current 20 200 nA

Over temperature 500 nA

∆IOS Offset current Over temperature 0.10 nA/°C

IBIAS Input bias current 80 500 nA

Over temperature 1500 nA

∆IBIAS Bias current Over temperature 1.0 nA/°C

VOUT

Output voltage swing

RL=10kΩ, over temperature ±12 ±14

VOUT

Output voltage swing

RL=2kΩ, over temperature ±10 ±13

AVOL

Large-signal voltage gain

RL=2kΩ,VO=±10V 50 100

V/mV

AVOL

Large-signal voltage gain

RL=2kΩ, VO=±temperature 20

V/mV

Offset voltage adjustment range ±30 mV

PSRR Power supply rejection ratio RS≤10kΩ30 150 µV/V

CMRR Common mode rejection ratio 70 90 dB

ICC Supply current 2.3 5.0 mA

VIN Input voltage range ±12 ±13 V

PDPower consumption 70 150 mW

Channel separation 120 dB

ROUT Output resistance 75 Ω

ISC Output short-circuit current 10 25 60 mA

Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 61

DC ELECTRICAL CHARACTERISTICS (Continued)

TA=25°C VCC=±15V, unless otherwise specified.

SYMBOL

PARAMETER

TEST CONDITIONS

MC1458 SA1458

UNIT

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max Min Typ Max

UNIT

VOS Offset voltage RS=10kΩ2.0 6.0 2.0 6.0 mV

RS=10kΩ, over temp. 7.5 7.5 mV

∆VOS Offset voltage Over temperature 12 12 µV/°C

IOS Offset current 20 200 20 200 nA

Over temperature 300 500 nA

∆IOS Offset current Over temperature 0.10 0.10 nA/°C

IBIAS Input bias current 80 500 80 500 nA

Over temperature 800 1500 nA

∆IBIAS Bias current Over temperature 1.0 1.0 nA/°C

VOUT

Output voltage swing

RL=10kΩ, over temp. ±12 ±14 ±12 ±14

VOUT

Output voltage swing

RL=2kΩ, over temp. ±10 ±13 ±10 ±13

RL=2kΩ, VO=±10V 25 200 20 200 V/mV

AVOL Large-signal voltage gain RL=2kΩ, VO=±10V,

Over temperature 15 15 V/mV

Offset voltage adjustment range ±30 ±30 mV

PSRR Power supply rejection ratio RS≤10kΩ30 150 30 150 µV/V

CMRR Common-mode rejection ratio 70 90 70 90 dB

ICC Supply current 2.3 5.6 2.3 5.6 mA

VIN Input voltage range ±12 ±13 ±12 ±13 V

RIN Input resistance 0.3 1 0.3 1 MΩ

PDPower consumption 70 170 70 170 mW

Channel separation 120 120 dB

ISC Output short-circuit current 25 25 mA

AC ELECTRICAL CHARACTERISTICS

TA=25°C VS=±15V, unless otherwise specified.

SYMBOL

PARAMETER

TEST CONDITIONS

MC1458, SA1458,

MC1558

UNIT

SYMBOL

PARAMETER

TEST CONDITIONS

Min Typ Max

UNIT

RIN Parallel input resistance Open-loop, f=20Hz 0.3 MΩ

Common-mode input impedance f=20Hz 200 MΩ

Equivalent input noise voltage AV=100, RS=10kΩ, BW=1.0kHz, f=1.0kHz 30 nVHz



BW Power bandwidth AV=1, RL=2.0kΩ, THD≤5%, VOUT=20VP-P 14 kHz

Phase margin 65 degrees

AVGain margin 11 dB

Unity gain crossover frequency Open loop 1.0 MHz

Transient response unity gain VIN=20mV, RL=2kΩ, CL≤100pF

tRRise time 0.3 µs

Overshoot 5.0 %

SR Slew rate CL≤100pF, RL≥2kΩ, VIN=±10V 0.8 V/µs

Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 62

TYPICAL PERFORMANCE CHARACTERISTICS

VS= +15V

–55oC < TA< + 125OC

RL> 2kΩ

05 10 15 20

SUPPLY VOLTAGE — +V

PEAK–TO–PEAK OUTPUT SWING — V

Output Voltage Swing as a

Function of Supply Voltage

–55oC < TA< + 125OC

05 10 15 20

SUPPLY VOLTAGE — +V

COMMON MODE VOLTAGE RANGE – V

Input Common–Mode Range

as a Function of Supply Voltage

TA= 25oC

100

05 10 15 20

POWER CONSUMPTION — mW

SUPPLY VOLTAGE — +V

500

400

300

200

100

–60 –20 20 60 100 140

TEMPERATURE — oC

INPUT BIAS CURRENT — nA

VS= +15V

10.0

5.0

3.0

1.0

0.5

0.3

INPUT RESISTANCE — MΩ

0.1

–60 –20 20 60 100 140

TEMPERATURE — oC

TA= 25oC

0510 15 20

INPUT OFFSET CURRENT — nA

SUPPLY VOLTAGE — +V

Input Bias Current as a

Function Of Ambient Temperature Input Resistance as a

Function of Ambient Temperature

Power Consumption as a

Function of Supply Voltage

Input Offset Current as a

Function of Supply Voltage

VS= +15V

140

120

100

–60 –20 20 60 100 140

TEMPERATURE — oC

INPUT OFFSET CURRENT — nA

TEMPERATURE — oC

POWER CONSUMPTION — mV

–60 –20 20 60 100 140

Input Offset Current as a

Function of Ambient Temperature Power Consumption as a

Function of Ambient Temperature

0.1 0.2 0.5 10 2.0 5.0 1.0

LOAD RESISTANCE — kΩ

PEAK–TO–PEAK OUTPUT SWING — V

VS= + 15V

TA= 25oC

Output Voltage Swing as a

Function of Load Resistance

Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 63

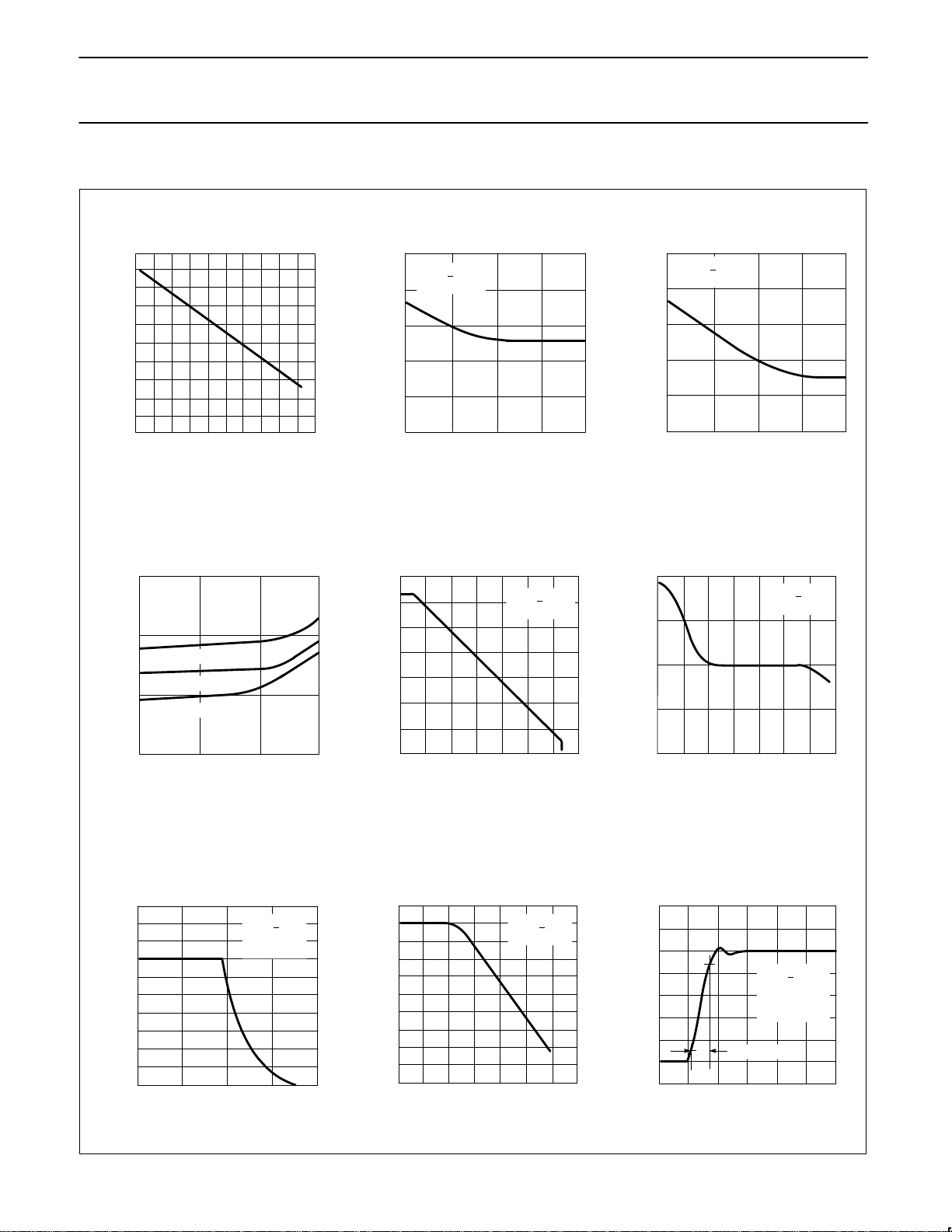

TYPICAL PERFORMANCE CHARACTERISTICS(Continued)

MEAN SQUARE VOLTAGE — A Hz

10–1kHz

–60 –20 20 60 100 140

TEMPERATURE — oC

SHORT CIRCUIT CURRENT — mA

VS= + 15V

TA= 25oC

10 –13

10 –14

10 –15

10 –16

10 –17

10 –18 10 100 1K 10K 100K

FREQUENCY — Hz

MEAN SQUARE VOLTAGE — V Hz

VS= + 15V

TA= 25oC

MEAN SQUARE CURRENT

10 –21

10 –22

10 –23

10 –24

10 –25

10 –2610 100 1K 10K 100K

FREQUENCY — Hz

100

0.1100 1K 10K 100K

10–100kHz

SOURCE RESISTANCE — Ω

TOTAL NOISE REFERRED TO INPUT — Vrmsµ

VS= + 15V

TA= 25oC

106

105

104

103

102

1 10 100 1K 10K 100K 1M 10M

FREQUENCY — Hz

VOLTAGE GAIN

1 10 100 1K 10K 100K 1M 10M

FREQUENCY — Hz

VS= + 15V

TA= 25oC

–45

–90

–135

–180

PHASE DEGREES

VS= + 15V

TA= 25oC

RL= 10kΩ

100 1K 10K 100K 1M

FREQUENCY — Hz

PEAK–TO–PEAK OUTPUT SWING — V

VS= + 15V

TA= 25oC

100

1 10 100 1K 10K 100K 1M 10M

FREQUENCY — Hz

COMMON MODE REJECTION RATE — dB

OUTPUT — mV

0 0.5 1.0 1.5 2.0 2.5

TIME — µs

VS= + 15V

TA= 25oC

RL= 2kΩ

CL= 100pF

RISE TIME

Output Short–Circuit Current as a

Function of Ambient Temperature Input Noise Voltage as a

Function of Frequency Input Noise Current as a

Function of Frequency

Broadband Noise for

Various Bandwidths Open–Looped Voltage Gain

as a Function of Frequency Open-Looped Phase Response

as a Function of Frequency

Output Voltage Swing

as a Function of Frequency Common–Mode Rejection Ratio

as a Function of Frequency Transient Response

Philips Semiconductors Linear Products Product specification

MC/SA1458/MC1558General purpose operational amplifier

August 31, 1994 64

TYPICAL PERFORMANCE CHARACTERISTICS(Continued)

010 100 1K 10K 100K

(VOLTAGE FOLLOWER)

+ 15 VOLT SUPPLIES

THD < 5%

V OUTPUT VOLTAGE (Vp–p)

OUT

FREQUENCY — Hz

Power Bandwidth

(Large–Signal Swing vs Frequency)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Amplificateur

Philips

Philips SDW5005GN Manuel utilisateur

Philips

Philips FA 911 Manuel utilisateur

Philips

Philips TDA7052A Manuel utilisateur

Philips

Philips TDA8920B Manuel utilisateur

Philips

Philips CGY2014TT Manuel utilisateur

Philips

Philips BGY583 Manuel utilisateur

Philips

Philips 22AH396 Manuel utilisateur

Philips

Philips PM8940 Manuel utilisateur

Philips

Philips TDA1576T Manuel utilisateur

Philips

Philips TDA6111Q Manuel utilisateur

Philips

Philips TDA1562Q Instructions d'installation et d'utilisation

Philips

Philips TDA8943SF Manuel utilisateur

Philips

Philips SDW5005O Manuel utilisateur

Philips

Philips CMP400 Manuel utilisateur

Philips

Philips SA741C Manuel du propriétaire

Philips

Philips Amplifier Manuel utilisateur

Philips

Philips FA741/00 Manuel utilisateur

Philips

Philips FA741 Manuel utilisateur

Philips

Philips TDA8566TH Manuel utilisateur

Philips

Philips TDA6107AJF Manuel d'exploitation

Philips

Philips TDA8586 Manuel utilisateur

Philips

Philips TDA8542 Manuel utilisateur

Philips

Philips TDA6107JF Manuel utilisateur

Philips

Philips TDA8920B Manuel d'exploitation

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
