Philips AC5659/80 Manuel utilisateur

1 2

Control buttons

Display panel

A B

EN User manual 1 ZH-T 使用手冊 19

3000.059.8254.1 (15/06/2021)

AC5659

3’

1EN

English

Contents

1 Important 2

Safety 2

2 Your air purier 5

Product overview (g.a) 5

Controls overview (g.b) 5

3 Getting started 6

Installing the lters 6

Wi-Fi connection 6

4 Using the air purier 7

Understanding the air quality light 7

Turning on and o 8

Changing the Auto mode setting 8

Changing the fan speed 9

Using the light on/o function 9

Switching the display indicator 9

Setting the child lock 10

5 Cleaning 10

Cleaning the body of the air

purier 10

Cleaning the air outlet cover 11

Cleaning the air quality sensor 11

Cleaning the pre-lter 11

6 Replacing the lters 12

Filter replacement indicator 12

Replacing the lters 12

Filter reset 13

7 Storage 14

8 Troubleshooting 15

9 Guarantee and service 17

Order parts or accessories 17

10 Notices 17

Electromagnetic elds (EMF) 17

Recycling 18

Notice 18

Environmental friendly paper used. Thanks for your contribution to save trees.

2EN

1 Important

Safety

Read this user manual carefully before

you use the appliance, and save it for

future reference.

Danger

• Do not let water or any

other liquid or flammable

detergent enter the

appliance to avoid electric

shock and/or a fire

hazard.

• Do not clean the

appliance with water,

any other liquid, or a

(flammable) detergent to

avoid electric shock and/

or a fire hazard.

• Do not spray any

flammable materials

such as insecticides or

fragrance around the

appliance.

Warning

• Check if the voltage

indicated on the

appliance corresponds to

the local power voltage

before you connect the

appliance.

• If the power cord is

damaged, you must have

it replaced by Philips, a

service center authorized

by Philips, or similarly

qualified persons in order

to avoid a hazard.

• Do not use the appliance

if the plug, the power

cord, or the appliance

itself is damaged.

• This appliance can be

used by children aged

from 8 years and above

and persons with reduced

physical, sensory or

mental capabilities or

lack of experience and

knowledge if they have

been given supervision or

instruction concerning use

of the appliance in a safe

way and understand the

hazards involved. Child

shall not play with the

appliance. Cleaning and

maintenance shall not be

made by children without

supervision.

• Do not block the air inlet

and outlet, e.g. by placing

items on the air outlet or

in front of the air inlet.

3EN

English

• Make sure that foreign

objects do not fall into the

appliance through the air

outlet.

• Standard WiFi interface

based on 802.11b/g/n at

2.4 GHz with a maximum

output power of 31.62 mW

EIRP.

Caution

• This appliance is not

a substitute for proper

ventilation, regular

vacuum cleaning, or use

of an extractor hood or

fan while cooking.

• If the power socket used

to power the appliance

has poor connections,

the plug of the appliance

becomes hot. Make

sure that you plug the

appliance into a properly

connected power socket.

• Always place and use the

appliance on a dry, stable,

level, and horizontal

surface.

• Leave at least 20cm free

space behind and on both

sides of the appliance

and leave at least 30cm

free space above the

appliance.

• Do not place anything on

top of the appliance.

• Do not sit or stand on

the appliance. Sitting or

standing on the appliance

may lead to potential

injury.

• Do not place the

appliance directly below

an air conditioner to

prevent condensation

from dripping onto the

appliance.

• Make sure all filters

are properly installed

before you switch on the

appliance.

• Only use the original

Philips filters specially

intended for this

appliance. Do not use any

other filters.

• Combustion of the filter

may cause inreversible

human hazard and/or

jeopardize other lives. Do

not use the filter as fuel or

for similar purpose.

• Avoid knocking against

the appliance (the air inlet

and outlet in particular)

with hard objects.

4EN

such as TVs, radios, and

radio-controlled clocks.

• The appliance is only

intended for household

use under normal

operating conditions.

• Do not use the appliance

in wet surroundings or in

surroundings with high

ambient temperatures,

such as the bathroom,

toilet, or kitchen.

• The appliance does

not remove carbon

monoxide (CO) or radon

(Rn). It cannot be used

as a safety device in

case of accidents with

combustion processes

and hazardous chemicals.

• If you need to move the

appliance, disconnect the

appliance from the power

supply first.

• Do not move the

appliance by pulling its

power cord.

• Always cleanse your

hands after changing the

filters.

• Do not insert your fingers

or objects into the air

outlet or the air inlet to

prevent physical injury

or malfunctioning of the

appliance.

• Do not use this appliance

when you have used

indoor smoke-type insect

repellents or in places

with oily residues, burning

incense, or chemical

fumes.

• Do not use the appliance

near gas appliances,

heating devices or

fireplaces.

• Always unplug the

appliance after use

and before cleaning,

or carrying out other

maintenance or replacing

the filters.

• Do not use the appliance

in a room with major

temperature changes,

as this may cause

condensation inside the

appliance.

• To prevent interference,

place the appliance at

least 2 meters away from

electrical appliances that

use airborne radio waves

5EN

English

Controls overview (g.b)

Control buttons

IPower on/off button

JLight on/off button

KAuto mode button

LFan speed button

MChild lock button

NReset button

Display panel:

Sleep mode

Speed 1

Speed 2

Speed 3

Turbo mode

Filter replacement alert

Pre-filter cleaning alert

Wi-Fi indicator

Gas display

PM2.5 display

Indoor Allergen Index display

General mode

Allergen mode

Bacteria & Virus mode

Child lock indicator

2 Your air purifier

Congratulations on your purchase, and

welcome to Philips!

To fully benefit from the support that

Philips offers, register your product at

www.philips.com/welcome.

Product overview (g.a)

AControl buttons

BAir outlet cover

CAir quality sensor

DDisplay panel

ENanoProtect filter HEPA Series 3

(FY5185)

FNanoProtect filter Active Carbon

(FY5182)

GPre-filter

HSide covers

6EN

3 Getting started

Installing the lters

Note

• There is one set of filters on each

side of the appliance. Each side is

equipped with one pre-filter and one

air purification filter.

• Make sure that you place the air

purification filter in the appliance first

and then the pre-filter.

• Make sure that the side with the tag is

pointing towards you when installing

the filter.

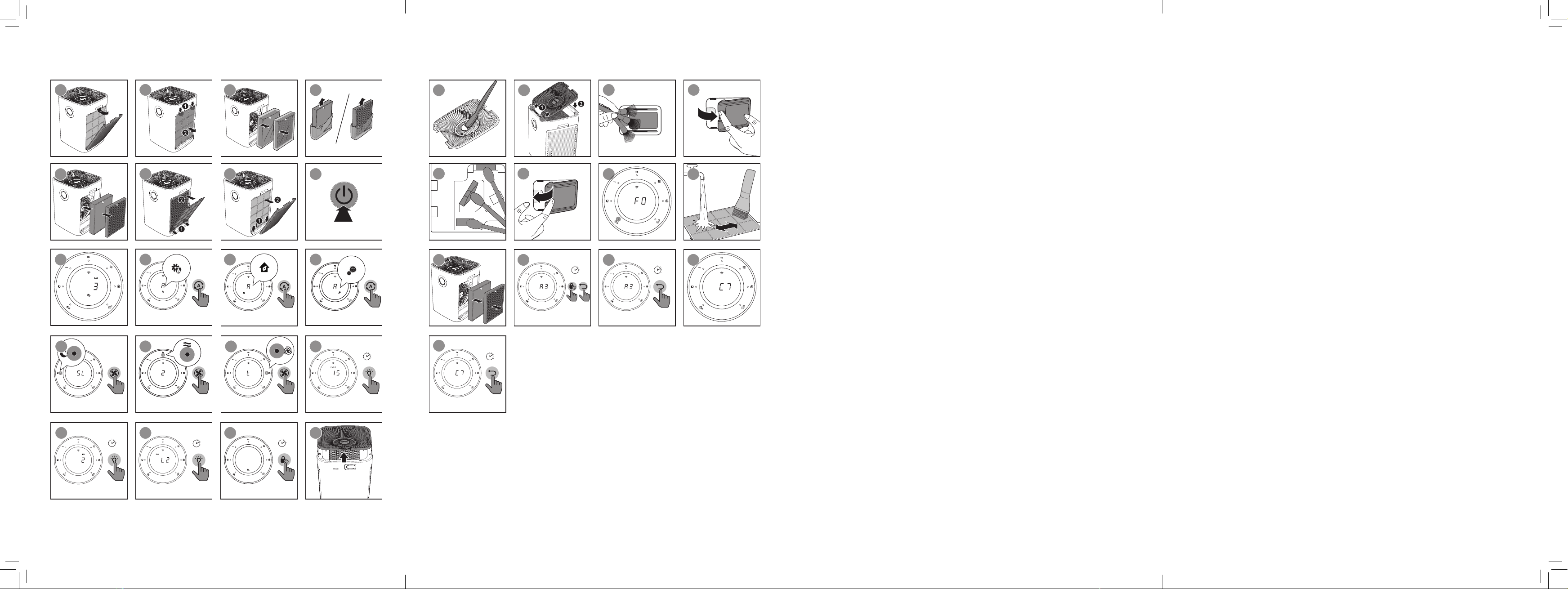

1 Pull the top part of the side panel

to remove it from the air purifier

(fig.c).

2 Press the two clips down (1) and

pull the pre-filter towards you (2)

(fig.d).

3 Remove all filters (fig.e).

4 Remove all packaging materials

from the filters (fig.f).

5 Place the thick filter (FY5185) into

the air purifier and then the thin AC

filter (FY5182). The model numbers

are shown on each filter (fig.g).

6 Attach the pre-filter back into the

air purifier (fig.h).

Note

• Make sure the side with the two clips

is pointing towards you, and that all

hooks of the pre-filter are properly

attached to the purifier.

7 Reattach the front panel by pressing

the top part of the panel onto the

top of the air purifier (1). Then,

gently push the panel against the

body of the air purifier (2) (fig.i).

8 Repeat the above steps and

assemble the filter for the other side

of the air purifier.

9 Wash your hands thoroughly after

installing filters.

Wi-Fi connection

Setting up the Wi-Fi connection

for the rst time

1 Download and install the Philips

"Clean Home+" app from the App

Store or Google Play.

2 Put the plug of the air purifier in the

power socket and touch to turn

on the air purifier.

»The Wi-Fi indicator blinks

orange for the first time.

3 Make sure that your smartphone or

tablet is successfully connected to

your Wi-Fi network.

4 Launch the "Clean Home+" app and

click on "Connect a New Device"

or press the "+" button on the top

of the screen. Follow the onscreen

instructions to connect the air

purifier to your network.

5 After the successful pairing and

connection, the Wi-Fi indicator

will light up white. If pairing

is not successful, consult the

troubleshooting section, or the

help section in the "Clean Home+"

App for extensive and up-to-date

troubleshooting tips.

7EN

English

4 Using the air

purifier

Understanding the air

quality light

IAI is a real-time numerical display that

provides visual and immediate feedback

on indoor allergen level.

IAI Air quality

light color

Air quality

level

1-3 Blue Good

4-6 Blue-Purple Fair

7-9 Purple-Red Poor

10-12 Red Very poor

The air quality light automatically goes

on when the air purifier is switched on,

and lights up all colors in sequence.

After approximately 30 seconds, the

air quality sensors select the color that

corresponds to the surrounding air

quality of airborne particles.

IAI

The professional-grade AeraSense

sensor detects the level of indoor air

allergen and with numerical feedback

from 1 to 12 the potential risk level of

indoor air allergens can be displayed.

1 indicates best air quality.

GAS

With an advanced as sensor, a display

ranging from L1 to L4 shows the density

level of potential harmful gases (incl.

VOC, odor, etc.) detected. L1 indicates

best air quality.

Note

• This instruction is only valid when

the air purifier is being set up for the

first time. If the network has changed

or the setup needs to be performed

again, consult section Reset the Wi-Fi

connection.

• If you want to connect more than

one air purifier to your smartphone or

tablet, you have to do this one by one.

Complete the set up of one air purifier

before you turn on the other air purifier.

• Make sure that the distance between

your smartphone or tablet and the air

purifier is less than 10 m without any

obstructions.

• This App supports the latest versions

of Android and iOS. Please check

www.philips.com/cleanhome for the

latest update of supported operating

systems and devices.

Reset the Wi-Fi connection

Note

• This applies when the default network

to which your purifier is connected has

changed.

• Reset the Wi-Fi connection when your

default network has changed.

1 Put the plug of the air purifier in the

power socket and touch to turn

on the air purifier.

2 Touch and simultaneously for

3 seconds until you hear a beep.

»The air purifier goes to pairing

mode.

»The Wi-Fi indicator blinks

orange.

3 Follow the steps 4-5 in "Setting up

the Wi-Fi connection for the first

time" section.

8EN

Turning on and o

Note

• Always place the air purifier on a

stable, horizontal, and level surface

with the front of the unit facing away

from walls or furniture.

• For optimum purification performance,

close doors and windows.

• Keep curtains away from the air inlet or

air outlet.

1 Put the plug of the air purifier in the

power socket.

»The air purifier beeps.

»All lights go on once and then

go out again.

2 Touch to switch on the air purifier

(fig.j).

»The air purifier operates under

the allergen mode by default.

»When the air purifier is warming

up, " " displays on the

screen. After measuring the

particulate matter only in the

air, the air purifier shows the IAI

level and operates in the auto

mode with displayed on the

screen (fig.k).

»After 30 seconds, the air

purifier shows the IAI level

on the screen. The air quality

sensor automatically selects

the appropriate air quality light

color.

3 Touch and hold for 3 seconds to

switch off the air purifier.

Note

• If the air purifier stays connected to

the electrical outlet after turning OFF,

the air purifier will operate under the

previous settings when turned ON

again.

Changing the Auto mode

setting

You can choose the Allergen mode

( ), the General mode ( ) or the

Bacteria & Virus mode ( ).

Allergen mode

The extra-sensitive allergen mode

is designed to react to even a small

change in allergen levels in the

surrounding air.

• Touch the Auto mode button to

select the Allergen mode (fig.l).

»Auto ( ) and display on the

screen.

General mode

A smart auto-setting that automatically

adjusts the air purifier’s settings to the

ideal level.

• Touch the Auto mode button to

select the General mode (fig.m).

»Auto ( ) and display on the

screen.

Bacteria & Virus mode

The bacteria & virus mode boosts the

airflow to quickly reduce bacteria &

viruses.

• Touch the Auto mode button to

select the Bacteria & Virus mode

(fig.n).

»Auto ( ) and display on the

screen.

Table des matières

Autres manuels Philips Purificateur d'air

Philips

Philips AC2729/90 Manuel utilisateur

Philips

Philips AP2266 Manuel utilisateur

Philips

Philips AC4054 Manuel utilisateur

Philips

Philips AC2882/70 Manuel utilisateur

Philips

Philips AC5655 Manuel utilisateur

Philips

Philips AC2959/53 Manuel utilisateur

Philips

Philips AC6676/00 Manuel utilisateur

Philips

Philips GoPure GP6201 Manuel utilisateur

Philips

Philips 3000i Series Manuel utilisateur

Philips

Philips 800i Series Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Philips

Philips AC1215/10 Manuel utilisateur

Philips

Philips AC2882/10 Manuel utilisateur

Philips

Philips HR4345/00 Manuel utilisateur

Philips

Philips AC0819 Manuel utilisateur

Philips

Philips AC2959/63 Manuel utilisateur

Philips

Philips AC4014 Manuel utilisateur

Philips

Philips AC1213/40 Manuel utilisateur

Philips

Philips HR4335/00 Manuel utilisateur

Philips

Philips AC4063 s Manuel utilisateur

Philips

Philips 4000i Series Manuel utilisateur

Philips

Philips GoPure 7101 Manuel utilisateur

Philips

Philips AC2729 Manuel utilisateur

Philips

Philips AC4055 Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur

vollara

vollara Air & Surface Pro+ Manuel utilisateur
