Phanteks ENTHOO PRO II Manuel utilisateur

USER MANUAL V1.0

ENTHOO PRO II

SERVER EDITION

Thank you

for choosing

TABLE OF CONTENTS ENTHOO PRO II SE

Introduction

Specications

Exploded View

Accessories

Congure your Enthoo Pro 2

Getting started

Installing the Motherboard

Installing the Power Supply

Installing a Server Power Supply

Installing Fans

Repositioning fan bracket

Installing Drives

Installing Water Cooling

Installing Drain Port

Installing GPU Support Bracket

Connecting Front I/O

Cable Management

Dust Filters

Optional Upgrades

Installing the 5.25 inch bay

Warranty

1. WHAT’S INSIDE?

2. CHOOSE YOUR SETUP 3. SUPPORT

INTRODUCTION ENTHOO PRO II SE

Welcome to Phanteks!

The Enthoo Pro 2 has been designed with extreme performance in mind, featuring

Phanteks’ innovative ‘High-Performance Fabric’ that sets a new airow performance

standard in the PC enclosure industry. With an extremely spacious and versatile

interior design and state-of-the-art features, the Pro 2 is ready to house any high-end

conguration. From SSI-EEB motherboards to extreme water cooling to extensive storage

capabilities, anything is possible. The Pro 2 Server Edition expands support for more PCIe

devices, server grade hardware and direct cooling.

Phanteks believes that meaningful designs are created through

the fusion of form and function.

The Phanteks team

SPECIFICATIONS

INCLUDED ACCESSORIES

330 x 345 mm

13.0 in(W) x 13.6 in(L)

195 mm (7.7 in)

503 mm (19.95 in)

[email protected]

5 Years

3.5” Stackable HDD Bracket

Accessory Bag

GPU Anti-Sag Bracket

PSU rubber pad

PSU rubber pad (high)

Max Motherboard size

CPU Cooler Clearance

GPU Clearance

Contact (International)

Contact (America)

Warranty

CLEARANCE

SUPPORT

240 mm x 580 mm x 560 mm

(9.45 x 22.83 x 22.05 in)

Full Tower

Steel chassis, Tempered glass window**

SSI-EEB, ATX, Micro-ATX, Mini-ITX, E-ATX,

XL-AT X

Power button, 4x USB 3.0, Microphone,

Headphone, Reset Button,

USB 3.1 GEN 2 Type-C

11x

10x (4 included)

11x (11 included)

4x 3x

3x 3x

1x -

4x -

Up to 480 Up to 420

Up to 360 Up to 280

120 -

Up to 480 -

Dimension

(WxDxH)

Form Factor

Materials

MB Support

Front I/O

PCI slots

Internal 3.5”

Internal 2.5”

Front

Top

Rear

Right Side

Left Side

Front

Top

Rear

Side

CASE SPECIFICATIONS

PCI SLOTS & DRIVE BAYS

FAN

RADIATOR

120 MM

140 MM

ENTHOO PRO II SE

** Only PH-ES620PTG model is equipped with a tempered glass sidepanel

1. Chassis

2. Front Panel

3. Right Side Panel

4. Left Side Panel*

5. Server PSU Bracket

6. SSD Cover

7. Front Dust Filter

8. Top Dust Filter

9. Side Dust Filter

10. Bottom Dust Filter

11. HDD Bracket

12. SSD Bracket

EXPLOADED VIEW ENTHOO PRO II SE

4* PH-ES620PC_BK version is not

equipped with a tempered glass panel

TOOLBOX PSU RUBBER PAD

GPU SUPPORT BRACKET FAN BRACKET

ACCESSORIES

3.5” MODULAR HDD BRACKET

- 4 included in accessory box

- For 3.5”or 2.5”Drive

Supports up to 4 GPU’s

simultanuously

Supports

3x 120 mm

fans

SERVER PSU BRACKET

- Included in accessory box

- Riser Cable is sold separately

Rubber pad included to protect your server grade PSU from scratches when

installing with the bracket.

ENTHOO PRO II SE

Fan screw

M3x5 mm

Motherboard /

SSD screw

6-32x6 mm

Hex screw

Motherboard Stand-o

+ tool

6-32x6 mm

Thumb screw

6-32x9 mm

HDD screw

38x

10x 16x7x

CONFIGURE YOUR ENTHOO PRO II

STORAGE - P16.

WATERCOOLING - P19.

AIR COOLING- P14.

The Enthoo Pro 2 has a versatile chassis design, providing you with a myriad of options. With so many possibilities to pick from, you can use

this overview to choose and plan the best conguration for your build.

ENTHOO PRO II SE

PULL CORNER

GETTING STARTED

PREPARATIONS

The Enthoo Pro 2 case is designed to support installation in a standing position.

Don’t turn on the power to your system until installation is complete.

Discharge your body’s static electric charge by touching a grounded surface before performing any hardware procedure.

Make sure to consult the manuals of your hardware before installation.

If you do not feel comfortable with performing the installation

procedure, consult a qualied computer technician.

REMOVING FRONT PANEL

ENTHOO PRO II SE

Autres manuels pour ENTHOO PRO II

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Phanteks Enceinte

Phanteks

Phanteks Enthoo Evoly series Manuel utilisateur

Phanteks

Phanteks Enthoo Series Manuel utilisateur

Phanteks

Phanteks NV9 Manuel utilisateur

Phanteks

Phanteks Eclipse P200A Manuel utilisateur

Phanteks

Phanteks Enthoo Series Manuel utilisateur

Phanteks

Phanteks Enthoo Pro M Manuel utilisateur

Phanteks

Phanteks PH-ES314ETG Manuel utilisateur

Phanteks

Phanteks ECLIPSE P350X Manuel utilisateur

Phanteks

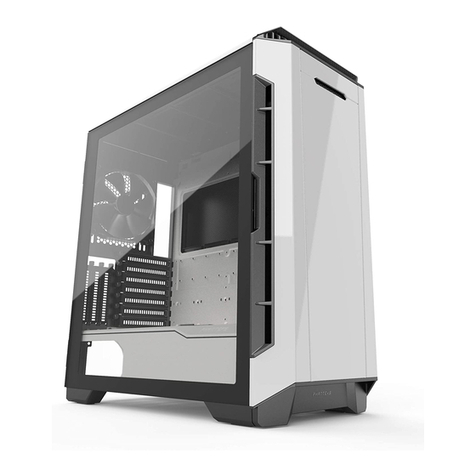

Phanteks Eclipse P600s Manuel utilisateur
