IOLAN SCR1618 RDAC

Quick Start Guide

_____________________________________

This guide covers basic installation and configuration and is

intended for first time setup or product evaluation.

Complete details can be found in the following guides at

www.perle.com/downloads.

•IOLAN SCR User’s Guide

•IOLAN SCR Command Line Reference Guide

•IOLAN SCR1618 RDAC Hardware Installation Guide

What’s in the box?

•IOLAN SCR Chassis

✓16 RS232 RJ45 Ethernet ports

✓16 RS232 serial RJ45 ports

•Quick Start Guide (this guide)

•Rack Mount Kit

What’s you need to supply

•Serial cables to connect serial devices to your IOLAN

•Ethernet CAT5e 10/100/1000BASE-T cables to connect

Ethernet devices to your IOLAN

Setting up the IOLAN SCR

1. Connecting dual or single power to the IOLAN SCR.

2. Configuring the IOLAN SCR.

3. Connecting Ethernet devices.

4. Connecting Serial devices.

IOLAN SCR1618 RDAC Quick Start Guide –5500463-11 (Rev B)

Version #A05.29.2020

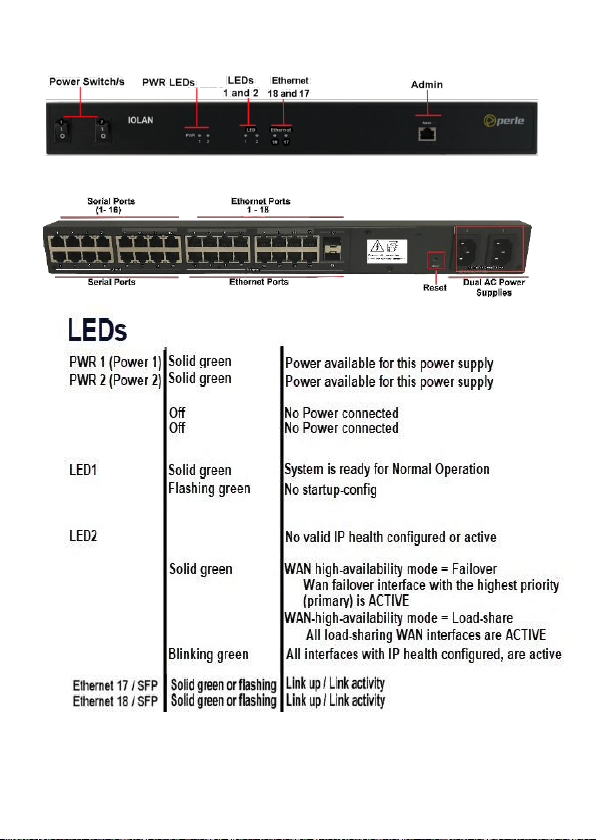

SCR Front View

SCR Back View

Connecting the Power

Connect 1 or 2 power to power sources. Once power is

connected, the IOLAN will cycle through several sequences.

The LED 1, PWR 1 and 2 will show solid green when the

IOLAN is fully booted and ready to configure. If dual power

was used, then both PWR LEDs and LED 1 and 2 will be lit.

Setup Mode

Setup mode provides a simple method of doing an initial

setup from a PC. Your IOLAN is shipped in factory default

mode.

1. Complete the Connecting the Power step.

2. Set your PC to obtain an IP address automatically using

DHCP.

3. Plug your PC into any of the IOLAN’s Ethernet ports

(located on the back of the unit).

4. Use a standard web browser and enter http://192.168.0.1

to access your IOLAN.

On the setup screen, select, Getting Started.

5. Once connected, fill in the required fields, apply changes

to save and exit. The configuration changes will be

immediately applied to the IOLAN.

6. The IOLAN’s web configuration sign on screen will be

displayed. Using the credentials, you previously defined

in Step 4, you can now access your IOLAN’s full

configuration.

Connecting Ethernet Devices

The Ethernet RJ45 ports provide the standard Ethernet

interface speeds of 10/100/1000 Mbps. By default, all

10/100/1000 Ethernet ports will automatically set themselves

up to match the speeds of attached devices.

Ethernet Port

Connecting Serial Devices

Connect devices, workstations, servers or routers using a

straight through serial cable.

SFP Ports

The following SFPs are supported –1 Gbps fiber, 2.5 Gbps

fiber and SGMII copper.

Connecting the Fiber

Ensure that the cable implements the proper TX to RX

crossover. Once the device is connected and the link is

established the corresponding SFP LED will turn green.
