PerfectVision PV-NPRM Series Manuel utilisateur
INSTALLATION INSTRUCTION
UNPACKING INSTRUCTIONS
Carefully open the packaging, remove contents and lay out parts on a protective surface to avoid damage.
•
Check package contents against the Supplied Parts List in the next page(s) to assure that all components were received
•
undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.
•
IMPORTANT SAFETY INFORMATION
Install reinforcement with care. Please read these instructions before beginning this installation, and carefully follow all
instructions contained herein. Use proper safety equipment and protocol during installation.
Please consult Perfect 10 for help if you:
Don't understand these directions or have any doubts about the safety of the installation.
•
Are uncertain or unfamiliar with the nature of the existing structure to be reinforced.
•
For questions and consulting please call Perfect 10 at 1-800-205-8620. Ask for product support.
NPRM INSTALLATION INSTRUCTION
DATE: 5/3/2016
1 OF 5

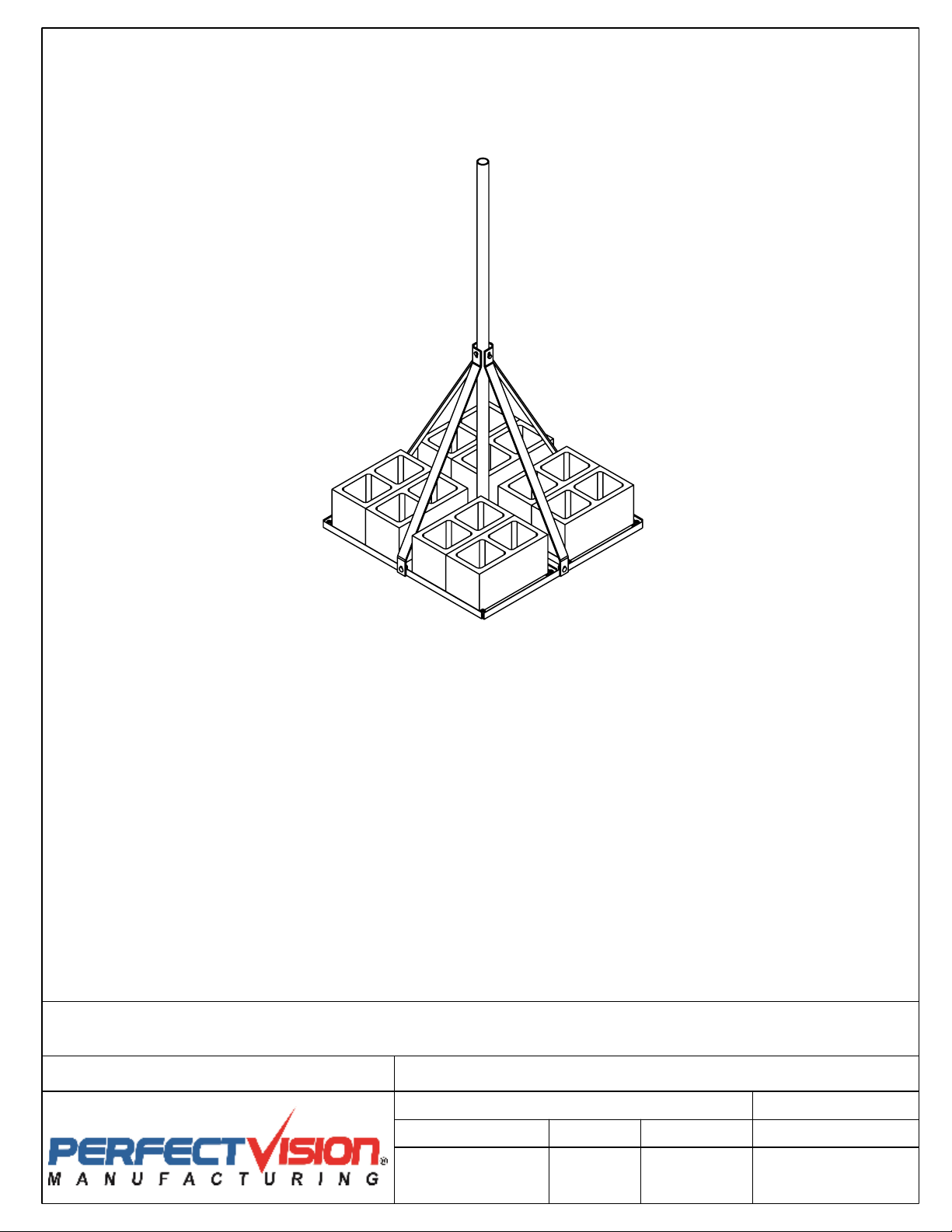

NON PENETRATING ANTENNA MOUNT
REVISION
PAGE NUMBER
0
NONE
PART #: PV-NPRM-##
---
DRAWN BY
LGL
NPRM - T-1
SHEET
Do not use this product for any purpose or in any configuration not explicitly stated in this instruction. We hereby disclaim
any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
1 1/4"
2 3/4"
1 1/4"
1 1/4"
1 1/4"
1 1/4"

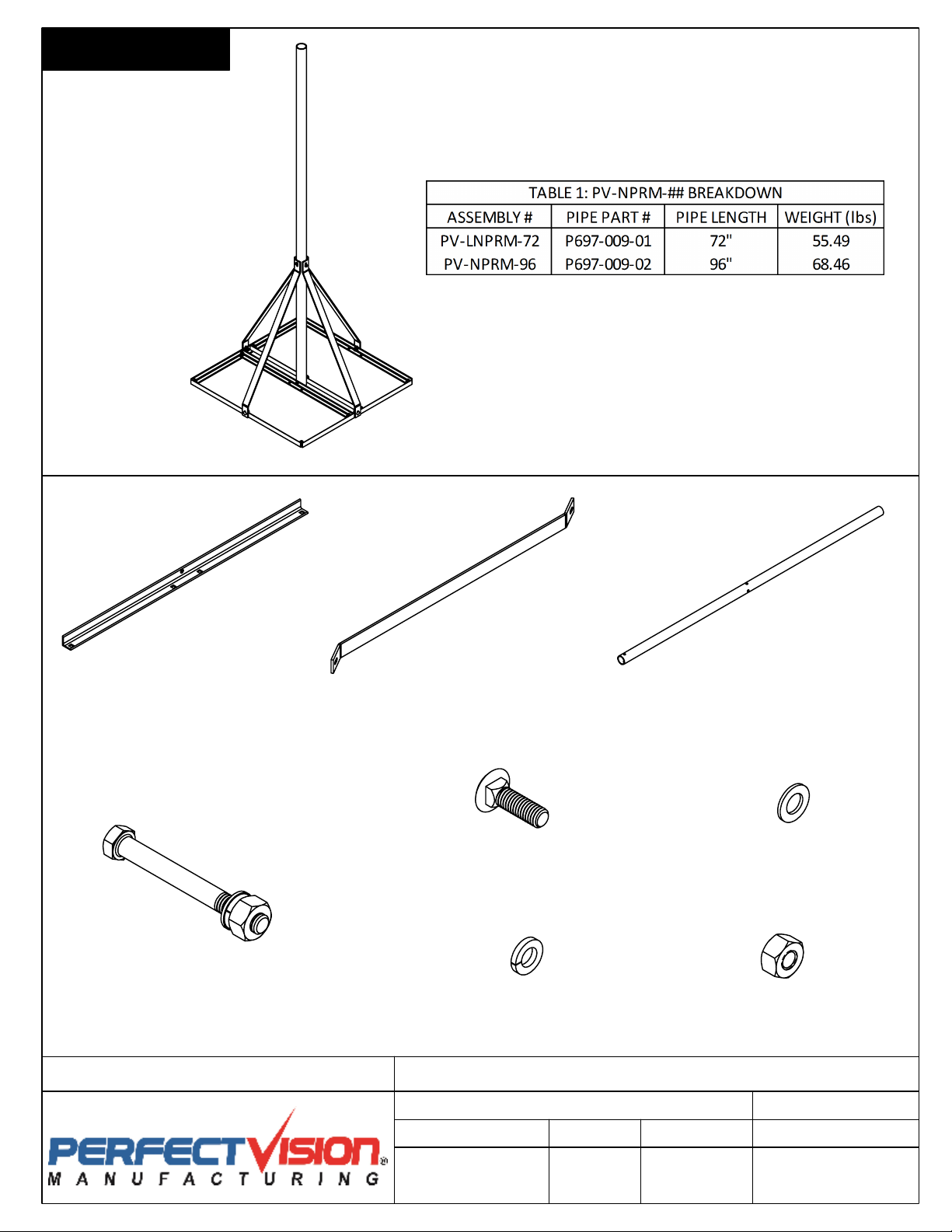

PV-NPRM-##
NON PENETRATING ANTENNA MOUNT
P297-015-01
BASE ANGLE
QTY: 6
WEIGHT: 3.01 LBS EACH
P697-009-##*
ANTENNA PIPE
QTY: 1
*SEE TABLE 1 FOR PART NUMBER
P597-059-01
BRACE PLATE
QTY: 4
WEIGHT: 4.95 LBS EACH
HK1-0635-10
3/8" x 3.5" x 1" BOLT HW KIT
QTY: 3
WEIGHT: 0.17 LBS EACH
H03-0006-01
3/8" FLAT WASHER
QTY: 12
H04-0006-01
3/8" SPRING LOCK WASHER
QTY: 12
PV-H81-0612-10
3/8" x 1-1/4" CARRIAGE BOLT
QTY: 12
H02-0006-16
3/8" HDG NUT
QTY: 12
PV-NPRM-96
P10 - NON PENETRATING TRIPOD MOUNT - 2-3/8"X96" PIPE
QTY:
WEIGHT: 68.46 LBS EACH
ELEVATION:
ITEM NO.
PART #
DESCRIPTION
REV.
QTY. QTY.
1
HK1-0635-10
3/8" x 3.5" x 1" BOLT HW KIT
0
-
3
2
P297-015-01
P10 - TRIPOD ANTENNA MOUNT - BASE - ANGLE
0
-
6
3
P597-059-01
P10 - TRIPOD ANTENNA MOUNT - BRACE
0
-
4
4
P697-009-02
P10 - TRIPOD ANTENNA MOUNT - NPS 2 SCH 40 PIPE - 96"
0
-
1
5
PV-H81-0612-
10
3/8"-16 x 1-1/4" x 1-1/4" SQUARE NECK CARRIAGE BOLT
HW KIT
0
-
12
1 1/4"
2 3/4"
1 1/4"
1 1/4"
1 1/4"
1 1/4"
DATE: 5/3/2016
2 OF 5
REVISION
PAGE NUMBER
0
NONE
68.46
---
DRAWN BY
LGL
SHEET
Supplied Parts List
NPRM INSTALLATION INSTRUCTION
PART #: PV-NPRM-##
NON PENETRATING ANTENNA MOUNT
NPRM - PL-1
3/8"
3/8"
4 1/2"
1"
BASE ANGLE (x6)
CONNECT ANGLES USING:
(1) 3/8" X 1-1/4" CARRIAGE BOLT
(1) 3/8" FLAT WASHER
(1) 3/8" LOCK WASHER
(2) 3/8" NUT
TYP (8) LOCATIONS

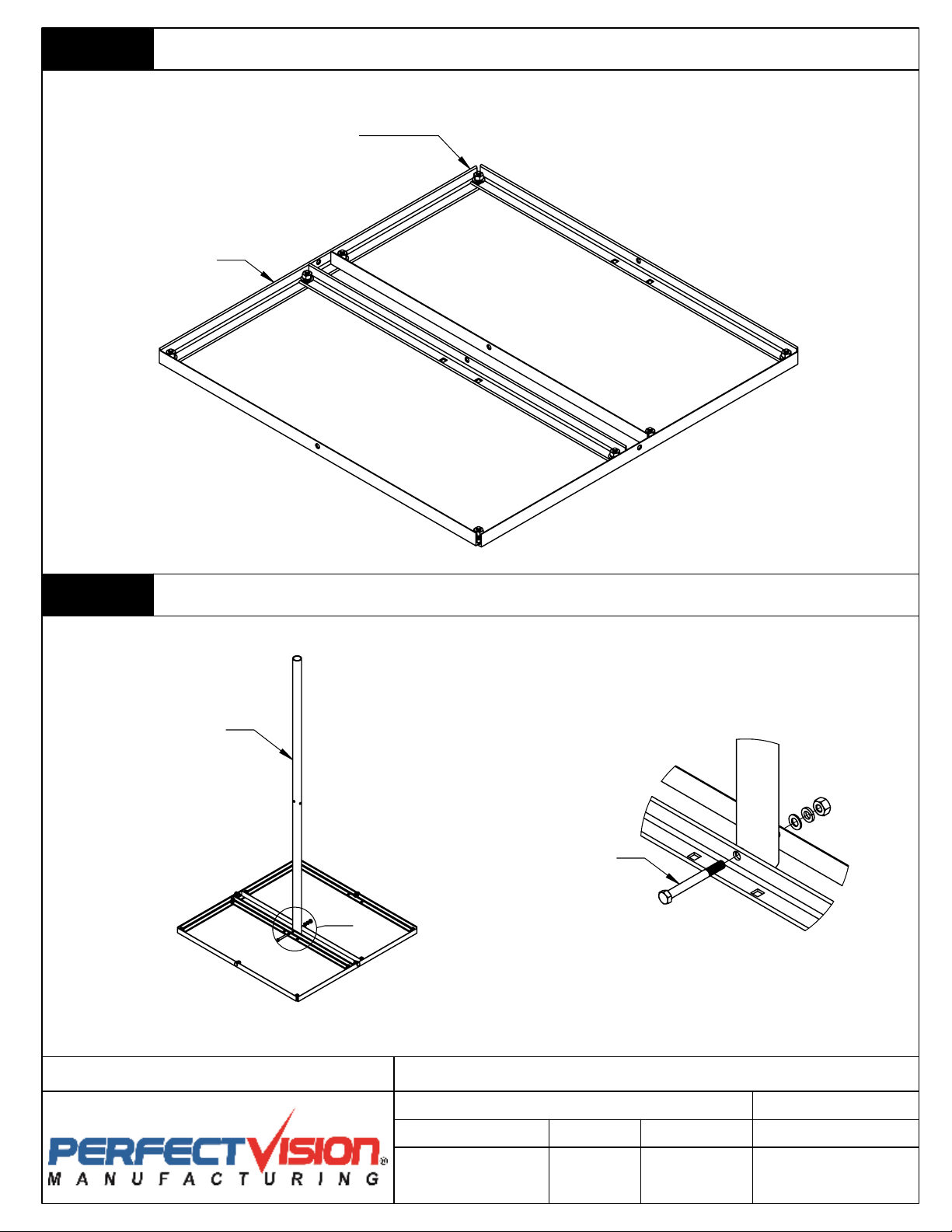

DETAIL A
BALLAST FRAME ASSEMBLY
C
DETAIL B
ANTENNA PIPE ASSEMBLY
ANTENNA PIPE
DETAIL C
CONNECTION DETAIL
INSTALL ANTENNA PIPE TO
FRAME ASSEMBLY USING:
(1) 3/8" x 3-1/2" BOLT W/HW
Connect (6) Base Angles as shown in Detail A. Use 3/8" x 1-1/4" Carriage Bolts with hardware for all
connections.
ASSEMBLING THE BALLAST FRAME
Connect Antenna Pipe to the Ballast Frame Assembly from Step 1 as shown in Details B & C.
CONNECTING ANTENNA PIPE TO BALLAST FRAME
DATE: 5/3/2016
3 OF 5
REVISION
PAGE NUMBER
0
NONE
68.46
---
DRAWN BY
LGL
SHEET
STEP 2
STEP 1
NPRM INSTALLATION INSTRUCTION
PART #: PV-NPRM-##
NON PENETRATING ANTENNA MOUNT
NPRM - D-1
3/8"
3/8"
4 1/2"
1"
E
F

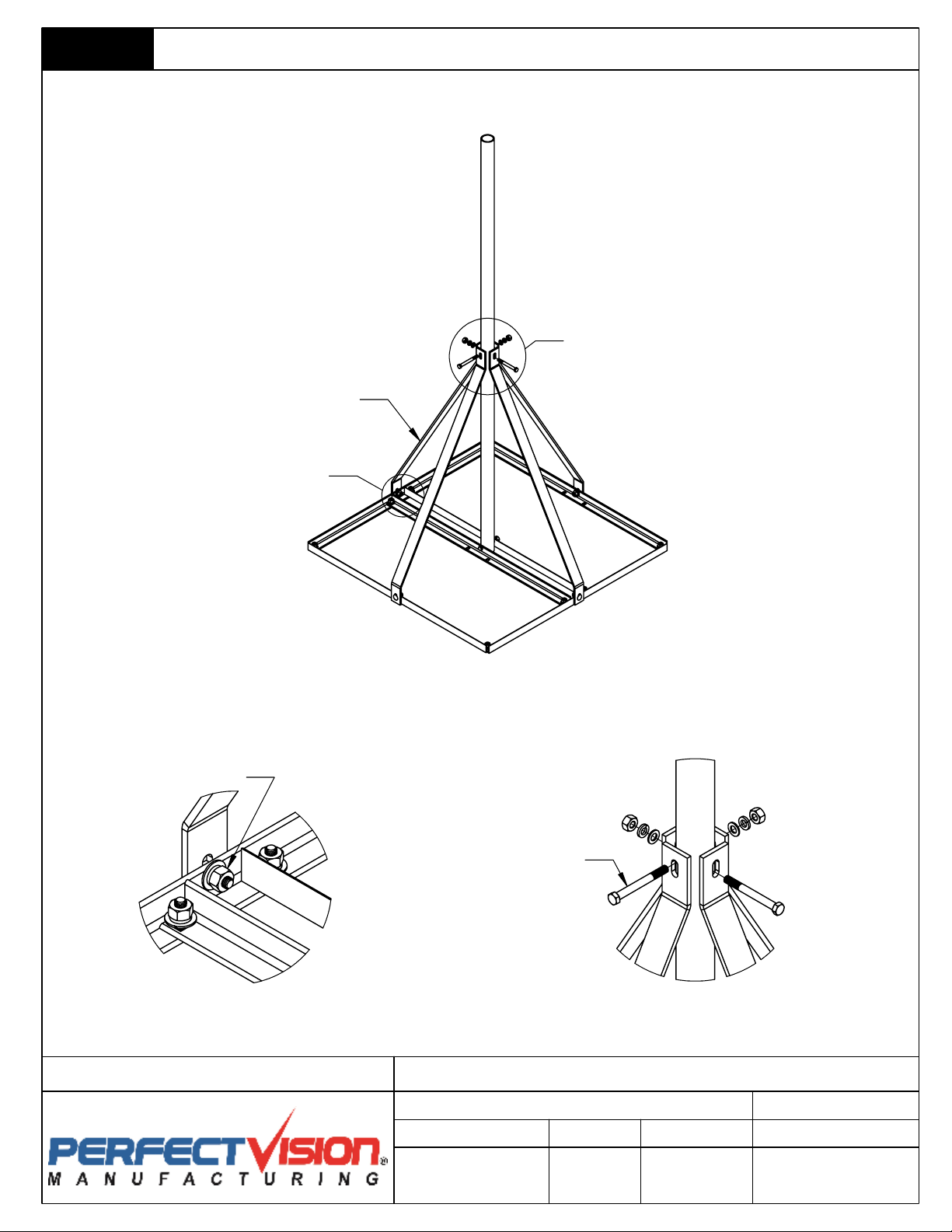

DETAIL D
BRACE PLATE ASSEMBLY
BRACE PLATE (x4)
DETAIL E
CONNECTION DETAIL
CONNECT BRACING PLATE
TO FRAME USING:
(1) 3/8" X 1-1/4" CARRIAGE BOLT
(1) 3/8" FLAT WASHER
(1) 3/8" LOCK WASHER
(2) 3/8" NUT
TYP (4) LOCATIONS
DETAIL F
CONNECTION DETAIL
BOLT BRACING PLATES TO
ANTENNA PIPE USING:
(2) 3/8" x 3-1/2" BOLT W/HW
Connect (4) Brace Plates to the Ballast Frame and Antenna Pipe as shown in Detail E & F.
INSTALLING BRACE PLATES
DATE: 5/3/2016
4 OF 5
REVISION
PAGE NUMBER
0
NONE
55.49
---
DRAWN BY
LGL
SHEET
STEP 3
NPRM INSTALLATION INSTRUCTION
PART #: PV-NPRM-##
NON PENETRATING ANTENNA MOUNT
NPRM - D-2
3/8"
3/8"
4 1/2"
1"

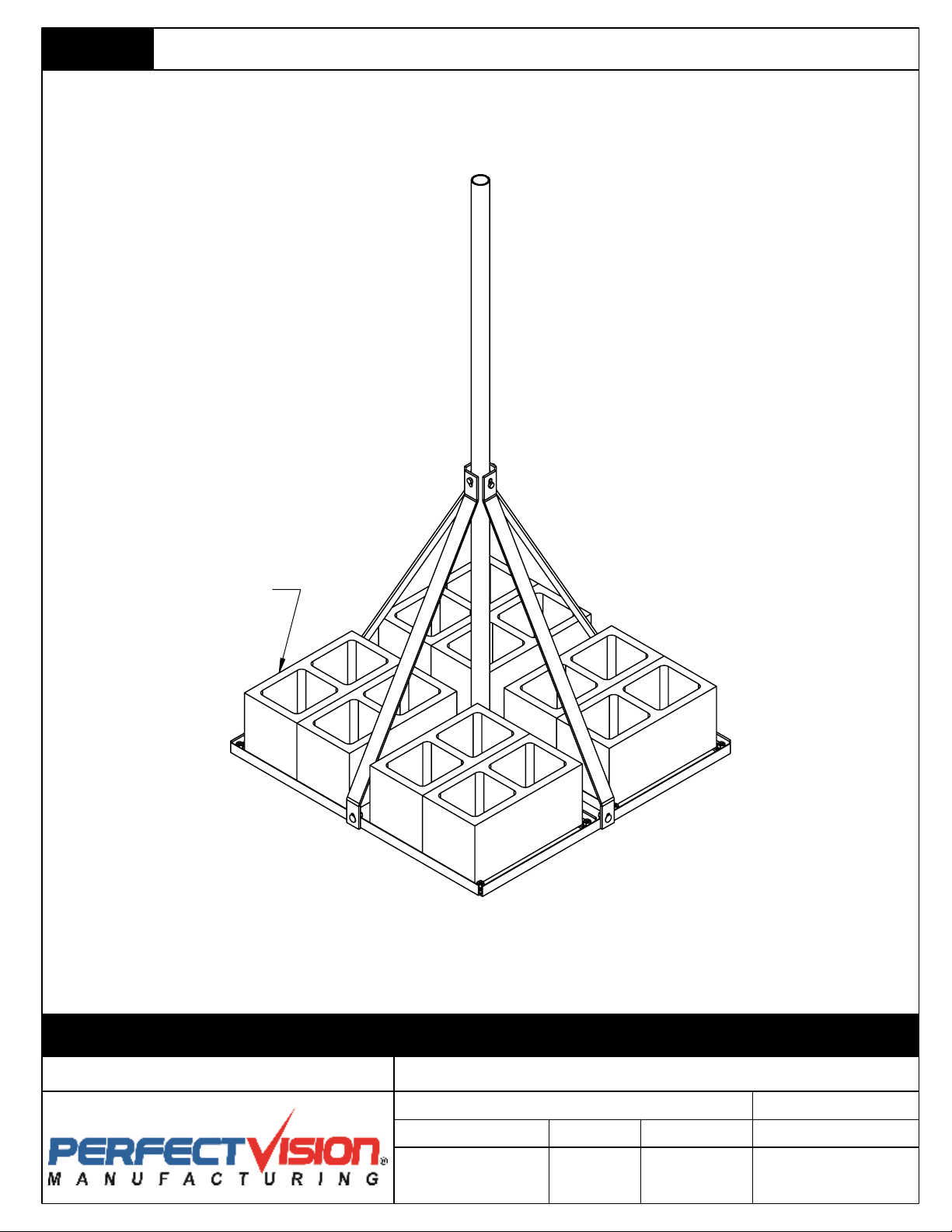

8x8x16" CMU BALLAST
BLOCKS. (8) MAX.
DETAIL G
BALLAST BLOCK INSTALLATION
Add required 8x8x16" CMU Ballast Blocks. Refer to site-specific engineering calculations for quantities.
LOADING BALLAST TRAYS
DATE: 5/3/2016
5 OF 5
REVISION
PAGE NUMBER
0
NONE
---
DRAWN BY
LGL
SHEET
STEP 4
NPRM INSTALLATION INSTRUCTION
PART #: PV-NPRM-##
NON PENETRATING ANTENNA MOUNT
NPRM - D-3
THANK YOU FOR CHOSING OUR PRODUCTS
