Pepperl+Fuchs LGM Series Guide de référence

LGM Series

Measuring Automation

Light Grid

Brief Instructions

With regard to the supply of products, the current issue of the following docu-

ment is applicable: The General Terms of Delivery for Products and Services

of the lectrical Industry, published by the Central Association of the lectrical

Industry (Zentralverband lektrotechnik und lektroindustrie (ZV I) e.V.) in its

most recent version as well as the supplementary clause: " xpanded reserva-

tion of proprietorship"

Worldwide

Pepperl+Fuchs Group

Lilienthalstr. 200

68307 Mannheim

Germany

Phone: +49 621 776 - 0

-mail: [email protected]-fuchs.com

North American Headquarters

Pepperl+Fuchs Inc.

1600 nterprise Parkway

Twinsburg, Ohio 44087

USA

Phone: +1 330 425-3555

-mail: sales@us.pepperl-fuchs.com

Asia Headquarters

Pepperl+Fuchs Pte. Ltd.

P+F Building

18 Ayer Rajah Crescent

Singapore 139942

Phone: +65 6779-9091

-mail: sales@sg.pepperl-fuchs.com

https://www.pepperl-fuchs.com

251720 2021-03

LGM Series

Contents

1 Introduction ..............................................................................

1.1 Purpose of These Brief Instructions..................................

1.2 Product documentation on the internet ............................

1.3 Intended Use........................................................................

2 Product Description.................................................................6

2.1 Indicators and Control elements ....................................... 6

2.2 Interfaces and Connections ............................................... 8

2.3 Scope of Delivery ................................................................ 9

3 Installation ..............................................................................10

3.1 Mounting ............................................................................ 10

3.2 Connecting the Sensor Units ........................................... 12

Commissioning the Light Grid..............................................16

5 Operation ................................................................................17

5.1 Operating the Light Grid Using the Programming

Interface ............................................................................. 17

5.2 Commissioning and Operating the Light Grid with

IO-Link ................................................................................ 22

5.2.1 Process Data ............................................................................23

5.2.2 Programmable Functions of the Light Grid................................24

6 Appendix.................................................................................28

6.1 Technical Data.................................................................... 28

251720 2021-03

LGM Series

Introduction

1 Introduction

1.1 Purpose of These Brief Instructions

These brief instructions contains basic instructions for operating the device. How-

ever, the manual takes priority over the brief instructions.

1.2 Product documentation on the internet

You can view all the relevant documentation and additional information on your

product at http://www.pepperl-fuchs.com. Simply enter the product name or

model number in the Product/Key word search box and click Search.

Select your product from the list of search results. Click on the information you

require in the product information list, e.g., Technical documents.

A list of all available documents is displayed.

1.3 Intended Use

The measuring LGM light grid consists of an emitter and receiver strip. Located

between the strips is the measuring range consisting of infrared light beams.

When an object enters the measurement field, one of several selectable measur-

ing methods sends out data on the interrupted beams via I/O-Link. The reading is

in mm.

Application areas

■Warehousing and material handling, packaging industry

Always operate the device as described in these instructions to ensure that the

device and connected systems function correctly. The protection of operating per-

sonnel and plant is guaranteed only if the device is operated in accordance with

its intended use.

The device and its input and output circuits must be operated from a power supply

that fulfills the requirements of P LV/S LV systems.

Only use recommended original accessories.

The operating company bears responsibility for observing locally applicable

safety regulations.

Caution!

Not a safety component

The light grid is not a certified safety light grid in accordance with N 61496. It is

also not a safety component under the terms of the U Machinery

Directive 2006/42/ C. The light grid must therefore not be used for the purpose of

preventing risk to individuals or parts of the body.

251720 2021-03

LGM Series

Introduction

Installation and commissioning of all devices may be performed only by trained

and qualified personnel.

It is dangerous for the user to make changes and/or repairs. Additionally, doing so

voids the warranty and excludes the manufacturer from any liability. In the event of

any serious errors, stop using the device. Secure the device against unintended

operation. To have the device repaired, return it to your local Pepperl+Fuchs rep-

resentative or your sales center.

Note

Repairs

If the light grid requires repair, please send the emitter and receiver together to

Pepperl+Fuchs.

251720 2021-03

LGM Series

Product Description

2 Product Description

2.1 Indicators and Control elements

Emitter unit

Figure 2.1 Function indicator on the emitter unit

Operation indicator and status indicator on the emitter

Receiver unit

Figure 2.2 Function indicator on the receiver unit

Operation indicator: indicates power-on or power-save mode

Status indicator: indicates transmission power, fault state, or active test mode

Function Diagnostic description

Operation indicator (green L D)

Green L D on Power-on

Green L D off

Yellow L D flashing

Power-save mode

Status indicator (yellow L D)

Yellow L D off Power of emitter is low

Yellow L D is on Power of emitter is high

Yellow L D flashing Fault state

Yellow L D changes state Test mode is active

Operation indicator: indicates power-on, power-save mode, IO-Link mode ak-

tive, or fault state

Status indicator: indicates detection field status, functional reserve, or fault

state

H3 F2

251720 2021-03

LGM Series

Product Description

Operation indicator and status indicator on the receiver

The control panel on the receiver unit consists of 12 indicator elements. The two

outer two symbols act as control elements (touch buttons). The receiver unit can

be parametrized via menu selection on the control panel (see chapter 5.1).

Figure 2.3 Controls on the Receiver unit

Function Diagnostic Description

Operation indicator (green L D)

Green L D permanently on Power-on

Green L D permanently off Power-save mode

Green L D flashes with short interrup-

tion

Active IO-Link mode, receiver's operat-

ing panel locked

Green L D flashes with 4 Hz Fault status: short circuit at the outputs

Status indicator (yellow L D)

Yellow L D permanently on Detection field interrupted

Yellow L D permanently off Detection field vacant

Yellow L D flashes (approx. 4 Hz) Insufficient functional reserve

Yellow L D flashes (approx. 8 Hz) Fault state: fault during signal measure-

ment

H3 F2

251720 2021-03

LGM Series

Product Description

Control elements

For a detailed description of the function status indicators, please see see chapter

5.1.

2.2 Interfaces and Connections

Use two M12 plugs for the electrical connection. The emitter unit has a cable with

a 4-pin plug and the receiver unit a cable with an 8-pin plug.

Emitter unit

Figure 2.4 mitter unit connection layout

Receiver unit

Number Symbol Parameter Description

Menu button Function selection

OK button Function confirmation

124 V DC

2Range (In)

30 V DC

Test (In)

251720 2021-03

LGM Series

Product Description

Figure 2.5 Receiver unit connection layout

IO-Link communication is established via the C/Q (Pin 4) connection.

2.3 Scope of Delivery

The scope of delivery includes:

■mitter unit and receiver unit

■Quick start guide

■Cable lug and housing screw as spare part

Brackets and cables are not included in the scope of delivery. See the appendix or

visit http://www.pepperl-fuchs.com for a selection of compatible mounting brack-

ets and recommended cables.

1+ UB

2SC (Stability Control, Out)

30 V DC

C/Q (IO-Link / Out)

5Q (Out)

6not connected

7not connected

8Teach-In (In)

251720 2021-03

LGM Series

Installation

3 Installation

3.1 Mounting

Make sure the detection field is free from obstacles. The first and last beams

within the detection field are used for optical synchronization of emitter and

receiver units. If both beams are blocked, synchronization is lost and the mea-

surement is inhibited. The system is preconfigured for operation wth cable outlet

upwards. For installation with cable outlet downwards, the receiver unit can be

configured via IO-Link for the zero-point reference on the cable side.

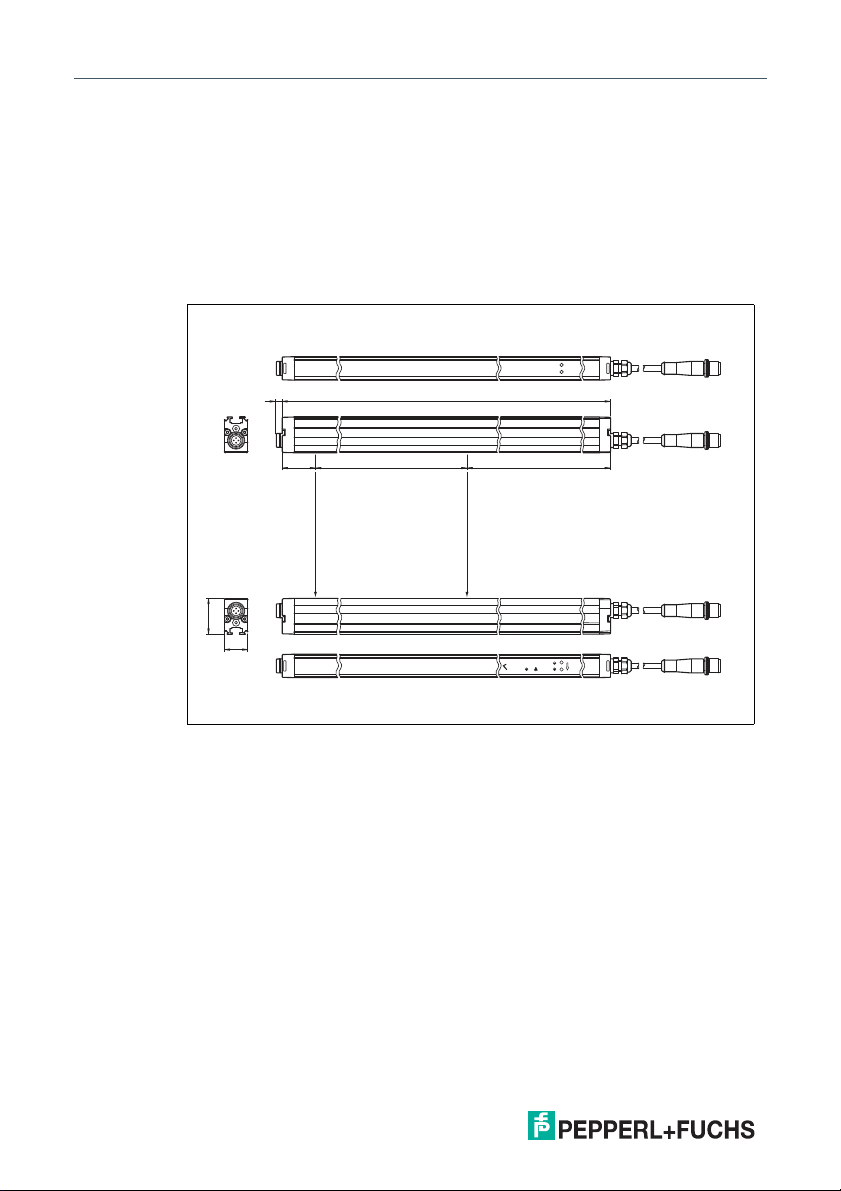

Figure 3.1 Light Grid Dimension Drawing

To mount the slim panels, use customized bore holes (d = 4.5 mm for M4 screws)

or a rear, continuous groove (for flat M6 nuts in accordance with ISO 4035).

Various brackets are available for mounting the light grid .

Mounting Using the Rear Groove

There is a continuous groove located on the rear of the strip on the light grid. Stan-

dard flat M6 nuts (in accordance with DIN 4035) fit into this groove. You can mount

the light grid using these inserted nuts.

Mounting Using Customized Bore Holes

You can mount the light grid using user-defined holes. The maximum screw size is

M4. Make sure to follow the instructions when positioning the hole. Improper han-

dling can damage internal electronics.

Fix

H3 Fn

Emitter unit

Detection field + 159

n Beam

1. Beam

Receiver unit

Detection field

21.2 137.8

30.5
