Pentax Optio 50 - Optio 50 5MP Digital Camera Manuel utilisateur

Front View

Name Description

Self-timer LED Blinks blue during Self-timer mode until picture is

taken.

Viewfinder Allows you to frame the subject of the picture.

Flash Provides flash illumination.

Shutter release

button

Focuses and locks the exposure of the camera

when pressed halfway down, and takes the picture

when pressed all the way down.

Lens 3x optical zoom lens allows you to take telephoto

and wide-angle pictures.

Power button Turns the camera power on and off.

Mode dial Sets the camera mode.

DC input terminal Allows you to connect AC power adapter to the

camera to operate the camera without battery.

PC/AV terminal Allows you to connect a USB cable or an AV cable to

the camera.

Microphone Allows you to record sound with the recorded movie

clips.

Shutter release button

Self-timer LED

Power button

Mode dial

Flash

Viewfinder

Lens

PC/AV terminal

DC input terminal

Microphone

This

Quick Start Guide

is only for quick reference. For more details

on advanced functions, you can refer to your Operating Manual.

GETTING TO KNOW YOUR CAMERA

Rear View

Name Description

Viewfinder Allows you to frame the subject of the picture.

Viewfinder LED Displays the camera current state.

/ button Zooms the lens to telephoto position.

During zoom playback, it changes the size of the

Zoom Display image displayed on the LCD monitor.

/ button Zooms the lens to wide-angle position.

Changes the display into nine images (thumbnail) in

the playback mode.

button Switches to Playback mode. The latest image and

information appear on the LCD monitor.

MENU button Toggles OSD menu on and off.

/DISPLAY

button

Confirms the menu item selection.

Turns the LCD monitor display and live view on and

off.

Strap holder Camera strap attachment.

button Allows you to erase the picture.

Tripod socket Allows tripod mounting.

Viewfinder

MENU button

button

OK/DISPLAY button

Four - way controller

Battery/Card cover

Tripod socket

Strap holder

Viewfinder LED

LCD monitor

Zoom/ / / / button

Mode Dial

Battery/Card cover Allows you to access to the battery and insert or

remove the memory card.

LCD monitor Provides menu information to operate the camera,

and previews the picture before taking it and review

it afterwards.

Four-way

controller

Allows you to scroll through menus and pictures,

and then select choices.

(W)- Selects the flash mode in Capture mode.

(X)- Selects the self-timer mode in Capture mode.

Mode Dial

Name Description

Simple Lets the camera set the functions

automatically.

Program The basic picture-taking mode.

Portrait Lets you take portrait-type pictures.

Landscape Lets you take landscape views.

Sport Lets you take sport pictures.

Night-scene Lets you take dark scenes such as night

views.

Setup Lets you select the camera preferences.

Moving Picture(Movie) Lets you take moving pictures.

Mode dial

Attaching the Camera Strap

Attach the camera strap as shown

in the illustration.

1. Open the battery/card cover.

2. Insert the battery in the

correct orientation as shown

on the right.

3. Close the battery/card cover.

Attaching the Camera Strap

Inserting the Battery

• You can use 2 AA size batteries (alkaline or Ni-MH rechargeable)

to power the camera.

GETTING STARTED

1. Open the battery/card cover.

2. Insert the SD memory card in the

correct orientation as shown on the

right.

Hold the SD memory card with its

metal contact end surface facing the

rear side of the camera, and then

insert the card as far as it can go.

3. Close the battery/card cover.

Press the button to turn the power on.

The viewfinder LED lights green and the camera is ready to take

pictures.

Inserting the SD Memory Card (Optional Accessory)

Turning the Power On

Power button

Choosing the OSD (On-Screen Display) Language

1. Set the mode dial to .

2. Use the four-way controller (X) to

select [Set-up2] menu.

[Set-up2] of the set-up menu is

displayed.

3. Use the four-way controller (T) to

select [Language] and press the

button.

4. Use the four-way controller (ST)

to select the language.

5. Press the button to confirm the

language selection.

Choosing the OSD (On-Screen Display) Language

Set-up 1 Set-up 2

OK : 3 / 5

Date Adjust

Video Out

Language

Brightness

PAL

English

y/m/d

Language

OK : 1 / 8

1. Set the mode dial to and use

the four-way controller (X) to select

[Set-up2] menu.

[Set-up2] of the set-up menu is

displayed.

2. Select [Date Adjust] with the four-

way controller (T).

3. Use the four-way controller (WX)

to select the date type.

4. Press the button.

The Date Adjust screen appears.

5. Use the four-way controller (WX)

to select itemís field and adjust the

value for the date and time with the

four-way controller (ST).

6. After confirming all settings are

correct, press the button.

Setting the Date and Time

Set-up1 Set-up2

OK : 1 / 5

Date Adjust

Video Out

Language

Brightness

PAL

English

d/m/y

Date Adjust

0 2 / 0 1 / 2 0 1 0

0 4 : 0 0

OK : Select :

1. Press the

button to turn on the camera.

2. Set the mode dial to .

3. Compose your image in the LCD monitor or through the viewfinder.

4. Press the shutter release button halfway down to automatically focus

the image. Proper exposure is determined and locked at the same

time.

5. Press the shutter release button down fully to take the pictures.

1. Press the button.

The last image appears on the screen.

2. Use the four-way controller (WX) to view the pictures.

Four-way controller (W): go back to the previous image.

Four-way controller (X): advance to the next image.

Taking Still Pictures

Playing Back Still Pictures

Power button

OK/DISPLAY button

Shutter release button

Viewfinder

LCD monitor

Zoom / / / button

Mode dial

Power button

Playback button

Four - way controller

LCD monitor

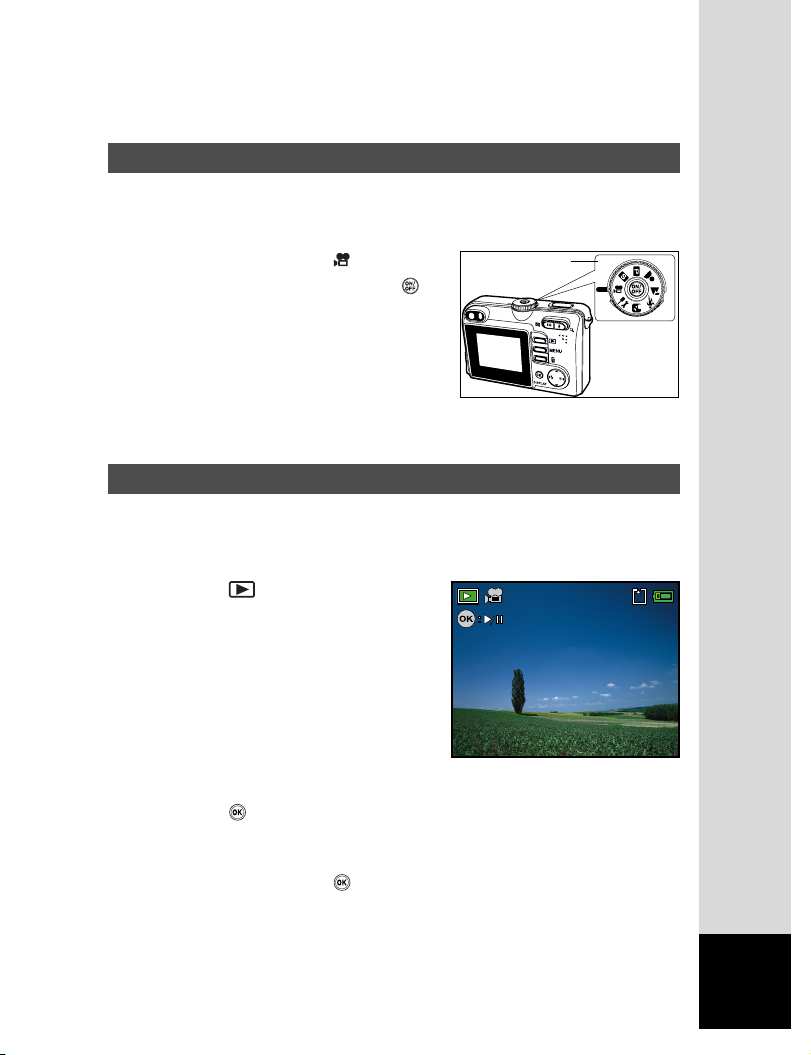

This mode allows you to record movie clips with sound via built-in

microphone.

1. Rotate the mode dial to and turn

your camera on by pressing the

button.

2. Press the shutter button to

start

recording.

3. To stop recording, press the shutter

button again.

You can play back the recorded movie clips on the LCD monitor.

However, the sound recorded with movie clips can only be played back

on TV or computers.

1. Press the button.

2. Use the four-way controller (WX)

to go through the images until the

movie clip you want to play back

is displayed.

To view the previous image,

press the four-way controller

(W).

To view the next image, press

the four-way controller (X).

3. Press the button to start

playing back the movie clips.

To pause or resume movie

playback, press the button

again.

<Erasing Images

Recording Movie Clips

Playing Back Movie Clips

100-0001

Size 320X240

EV 0.0

01.04. ’04 05:22

1. Press the

button.

The last image will be displayed on the screen.

2. Select the image you want to erase with the four-way controller

(WX).

3. Press the button.

4. Use the four-way controller (ST) to

select [OK].

5. Press the button to confirm the

deletion.

Erasing Images

Cancel

OK :

Delete
