Peerless-AV SS560M Mode d’emploi

Flat Panel Stand

for 32" to 65" Flat Panel Displays

The Flat Panel Stand is designed to provide ideal display viewing position, centralize audio video

components and match the décor of any environment. The full line of accessories enables each

stand to be fully tailored to meet speciﬁc requirements; whether video conferencing from a

boardroom or presenting on a trade show ﬂoor. And the internal cable management hides all

the AV cabling, providing a clean, clutter-free look.

Display size: 32" - 65" Max load: 150lb (68kg)

SS560M

Continous vertical

adjustment for perfect

viewing height

Incremental tilt of -2°, 0°

and +5° makes it simple

to set multiple angles for

preferred viewing and

aids in reducing screen

glare

Metal or tinted tempered

glass shelf provides

storage space for A/V

components. These

shelves are designed to

hold up to 50 pounds

each, ensuring equipment

and user safety.

Internal cable

management for clean,

clutter free look

Feet with a hard plastic

base with steel casing

FEATURES

VERTICAL ADJUSTMENT

Continous vertical adjustment

for perfect viewing height

COMPONENT PLACEMENT

Metal or tinted tempered glass

shelf provides storage space for

A/V components. These shelves are

designed to hold up to 50lb each,

ensuring equipment and user safety.

Internal cable

management

INCREMENTAL TILT

Incremental tilt of -2°, 0°

and +5° makes it simple

to set multiple angles for

preferred viewing and aids

in reducing screen glare

A R C H I T E C T S S P E C I F I C A T I O N S

Flat Panel Stand stand shall be a Peerless model SS560M/G and shall be installed where indicated on the plans. It shall be constructed of heavy gauge cold rolled steel

and ﬁnished with scratch resistant black or silver fused epoxy. Assembly and installation shall be done according to instructions provided by the manufacturer.

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE

SS560M/SS560G 57.7" x 19.2" x 7.7"

(1466 x 488 x 196mm)

SS560M: 87.3lb (40.2kg)

SS560G: 88.8lb (40.2kg)

SS560M:

SS560G:

735029277330

735029277347

Stand, metal or tinted

glass shelf, optional

universal adapter plate,

assembly and screen

attachment hardware

Package Speciﬁcations

DIMENSIONS (W x H x D ) PRODUCT WEIGHT LOAD CAPACIT Y FINISH AVAILABLE COLORS

SS560M/SS560G 35.6" x 63" x 26.9"

(904 x 1600 x 683mm)

SS560M: 74lb (33.6kg)

SS560G: 72lb (32.6kg)

150lb display (68.3kg)

50lb per shelf (22.6kg)

Scratch

resistant

fused

epoxy

SS560M:

SS560G:

Black stand with metal shelf

Black stand with tinted glass shelf

Product Speciﬁcations

Model Numbers WARRANTY: Limited 5-year

All dimensions = inch (mm)

SS560M Flat Panel Stand with metal shelf for 32" to 65" Flat Panel Displays

SS560G Flat Panel Stand with tinted glass shelf for 32" to 65" Flat Panel Displays

Accessories

ACC313: Metal Shelf

ACC318: Tinted Glass Shelf

ACC319: Video Conferencing Shelf

ACC314: Laptop Arm

ACC315: Base Shelf

ACC320: 20' Electrical Cord Wrap

ACC316: Safety Belt

40.00"

(864mm)

59.84"

(1520mm)

10.81"

(275mm)

27.45"

(697mm)

30.75"

(781mm)

28.75"

MAX.

(730mm)

17.05"

MAX.

(433mm)

ADAPTER PLATE

18.00"

(457mm)

1.25"

(32mm)

0.85"

(22mm)

0.75"

(19mm)

VERTICAL BRACKET

15°

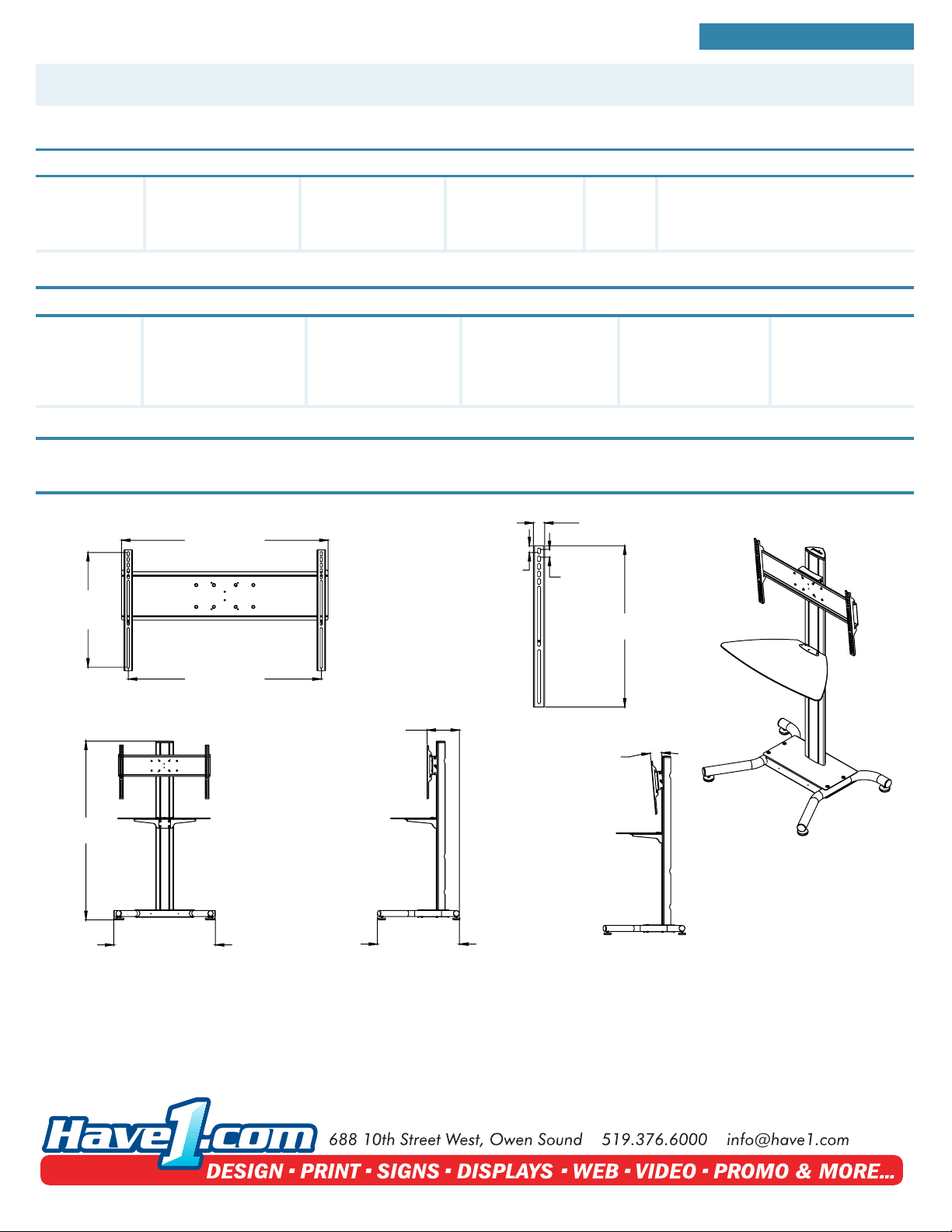

ISOMETRIC VIEW

FRONT VIEW

SIDE VIEW SIDE VIEW

15° TILT

Models: SS560M

Installation and Assembly: 32" - 65" Flat Panel Display Stand

Max UL Load Capacity:

150 lb (68 kg) display

50 lb (22.7 kg) per shelf

ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

2 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

NOTE: Read entire instruction sheet before you start installation and assembly.

Table of Contents

Parts List............................................................................................................................................................................ 3, 4

Assembling Cart .....................................................................................................................................................................5

Attaching Universal Adapter Plate....................................................................................................................................... 10

Installing Adapter Brackets ..................................................................................................................................................11

CordManagement ............................................................................................................................................................... 13

Tools Needed for Assembly

•level

•phillips screwdriver

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US

customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact

your local distributor.

• This product should only be installed by someone of good mechanical aptitude, and fully understands

these instructions.

• Never exceed the Maximum UL Load Capacity on page 1.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

• The cart is not afﬁxed or secured to the ﬂoor, and may therefore tip over and/or fall if display and/or stand is shaken

or hit. Always monitor children and do not let children play alone around stand as they could get hurt by a falling

display. Not recommended for use in areas with heavy trafﬁc.

WARNING

3 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated.

Description Qty. Part Numbe

screen mount bracket 1 201-1156

Bhook plate 1 201-1157

Cshelf support 1 201-1158

Dbase 1 009-1223

Euniversal plate 1 201-1110

Fadapter bracket 2 201-1510

Gupright 1 580-1180

Htop cover 1 590-1210

I1/4-20 x 12mm decorative screw 14 520-2325

J1/4-20mm nut 10 530-1050

L3/8-16 x 2.5" socket screw 3 520-9550

M7/32" allen wrench 1 560-9715

N4 mm allen wrench 1 560-9646

O8/32 nylock nut 6 530-1038

Pshelf pan 1 009-1225

Q6 mm allen wrench 1 560-9716

Rleft leg 1 009-1296

Sright leg 1 009-1295

Tfoot 4 600-1025

joint connector nut 4 530-1037

3/8

16 x 1.5

screw bolt

520

1329

Parts List

3/8-16 x 1

5 screw bolt

520 1329

M10 x .402 ID lock washer 3 540-9424

Z3/16 allen wrench 1 560-0071

M4 x 12 mm serrated washer head socket pin screw 6 510-1079

BB M4 x 25 mm serrated washer head socket pin screw 4 510-1082

CC M5 x 12 mm socket pin screw 4 520-1064

DD M5 x 25 mm socket pin screw 4 520-1122

EE M6 x 12 mm socket pin screw 4 520-1050

FF M6 x 25 mm socket pin screw 4 520-1211

GG M8 x 15 mm socket button screw 6 520-1068

HH M8 x 40 mm socket pin screw 4 520-1152

II .219 ID x .5 OD x .5 HT spacer 4 540-1057

JJ .344 ID x .75 OD x .5 HT spacer 4 540-1059

KK universal plasma tilt multi washer 6 580-1036

LL M6 x 20 mm socket pin screw 4 520-9554

MM M6 x 30 mm socket pin screw 4 520-1067

NN M8 x 25 mm socket pin screw 4 520-1101

OO M10 x 15 mm socket scre

4 520-9262

4 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

Parts List continued

Some parts may appear slightly different than illustrated.

AA BB CC HH

DD FFEE

II LL NN

5 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

Insert right leg (S) into base housing (D) as shown in ﬁg. 1.1. Then align holes in right leg with holes in base

housing (D). Fasten base housing to right leg using two 3/8-16 x 1.5" bolts (W)and two joint connectors (V).

Tighten using 3/16"allen wrench (Z) and 7/32"allen wrench (M) as shown in ﬁg.1.2.

NOTE: Left and right legs can be identiﬁed by looking at the cart from the front.

Repeat for left side with left leg (R).

ﬁg. 1.2

ﬁg. 1.1

FRONT OF CART

FRONT OF LEG

Insert feet (T) into holes of support legs (R&S) and hand thread to secure.

6 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

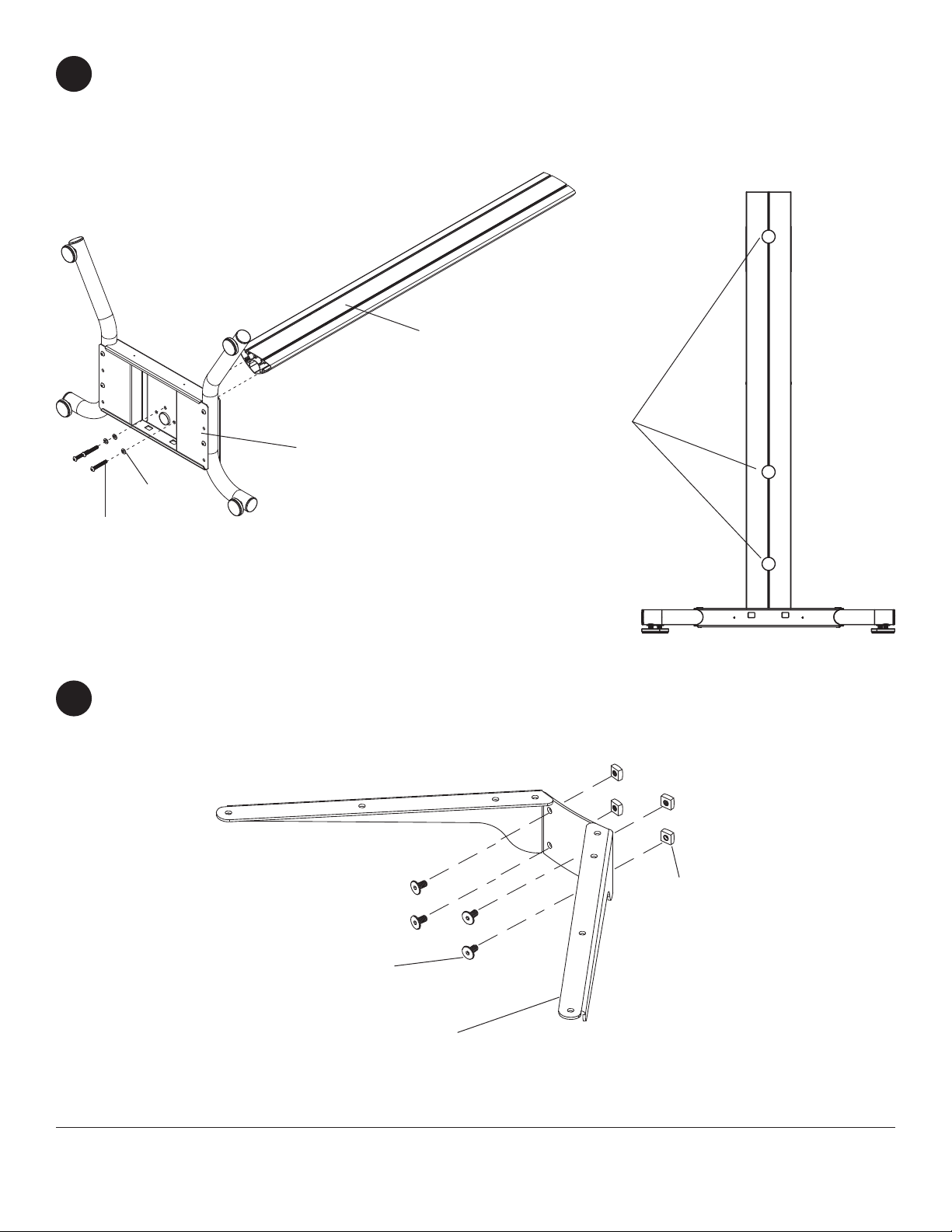

ﬁg. 3.2

CORD

MANAGEMENT

HOLES

ﬁg. 3.1

Attach upright (G) to base (D), as shown in ﬁg 3.1 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID

lock washers (X). Tighten screws using 7/32" allen wrench (M).

NOTE: Be sure cord management holes are in the conﬁguration shown in ﬁg 3.2.

Loosely attach four 1/4-20 x 12 mm screws (I) and 1/4-20 nuts (J) to shelf support (C).

7 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in ﬁgure 5.1

and detail 1. Slide shelf support to desired height, level, then tighten 1/4-20 x 12mm screws (I) using 4 mm allen

wrench (N).

NOTE: MAXIMUM OF TWO SHELVES

Max height of top shelf is 34" from base.

Max height of second shelf is 28" from base.

SLOT

ﬁg. 5.1

DETAIL 1

8 of 41 ISSUED: 02-25-11 SHEET #: 009-9052-2 10-30-11

Attaching Metal Shelf

Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench

to tighten six 8/32 nylock nuts (O).

• This shelf is intended for use with equipment

weighing no more than 50 lbs. (22.7 kg) that ﬁts

evenly accross the surface of shelf pan (P). Use with

other equipment may result in instability and cause

personal injury or property damage.

WARNING
