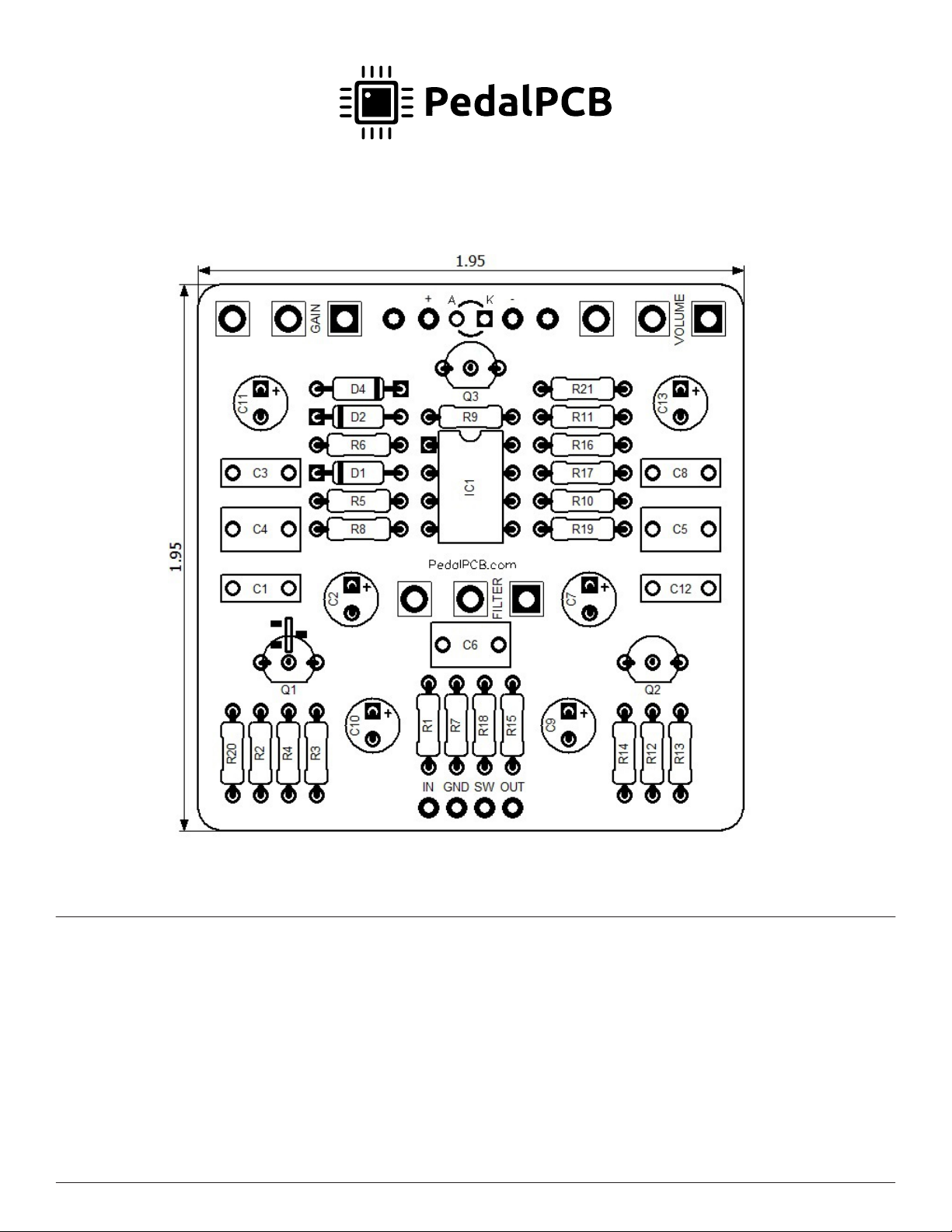

PedalPCB Stringer Overdrive Guide de démarrage rapide

Copyright © 2021 - PedalPCB.com Page 1 of 5Stringer Overdrive

Stringer Overdrive

Revised 8/7/21

All trademarks and registered trademarks are the property of their respective owners. The company, product, and service names used in this web site

are for identication purposes only. Use of these names, logos, and brands does not imply endorsement.

• Volume

• Filter

• Gain

CONTROLS AND FEATURES

Copyright © 2021 - PedalPCB.com Page 2 of 5

Stringer Overdrive

Stringer Overdrive

Parts List (Page 1 of 1)

LOCATION VALUE TYPE NOTES

R1 2M2 Resistor, 1/4W

R2 1K Resistor, 1/4W

R3 470K Resistor, 1/4W

R4 10K Resistor, 1/4W

R5 10K Resistor, 1/4W

R6 47K Resistor, 1/4W

R7 220R Resistor, 1/4W

R8 3K9 Resistor, 1/4W

R9 1K Resistor, 1/4W

R10 1K Resistor, 1/4W

R11 1K Resistor, 1/4W

R12 470K Resistor, 1/4W

R13 10K Resistor, 1/4W

R14 100R Resistor, 1/4W

R15 10K Resistor, 1/4W

R16 10K Resistor, 1/4W

R17 10K Resistor, 1/4W

R18 4K7 Resistor, 1/4W

R19 10K Resistor, 1/4W

R20 2M2 Resistor, 1/4W

R21 4K7 Resistor, 1/4W

C1 22n Film capacitor, 7.2 x 2.5mm

C2 10u Electrolytic capacitor, 5mm

C3 51p Ceramic capacitor

C4 47n Film capacitor, 7.2 x 2.5mm

C5 220n Film capacitor, 7.2 x 5.0mm

C6 220n Film capacitor, 7.2 x 5.0mm

C7 1u Electrolytic capacitor, 5mm

C8 100n Film capacitor, 7.2 x 2.5mm

C9 10u Electrolytic capacitor, 5mm

C10 47u Electrolytic capacitor, 5mm

C11 47u Electrolytic capacitor, 5mm

C12 100n Film capacitor, 7.2 x 2.5mm

C13 47u Electrolytic capacitor, 5mm

D1 1N4148 Signal diode, DO-35

D2 1N4148 Signal diode, DO-35

D4 1N5817 Schottky diode, DO-41

Q1 J201 JFET transistor, N-channel

Q2 2N3904 BJT transistor, NPN TO-92

Q3 2N3904 BJT transistor, NPN TO-92

IC1 JRC4558 Dual op-amp, DIP8

VOLUME B100K 16mm right-angle PCB mount pot

FILTER W20K 16mm right-angle PCB mount pot

GAIN A500K 16mm right-angle PCB mount pot

Copyright © 2021 - PedalPCB.com Page 3 of 5

Stringer Overdrive

Stringer Overdrive

Schematic Diagram

Copyright © 2021 - PedalPCB.com Page 4 of 5

Stringer Overdrive

Stringer Overdrive

Wiring Diagram

F

O

O

T

S

W

I

T

C

H

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

L

E

D

D

C

J

A

C

K

I

N

P

U

T

J

A

C

K

O

U

T

P

U

T

J

A

C

K

Copyright © 2021 - PedalPCB.com Page 5 of 5

Stringer Overdrive

Stringer Overdrive

Drill Template

125B Enclosure

Volume

Filter

Gain
