Peak Scientific NG3000 Manuel utilisateur

NG3000-5000 Installation Guide Rev 1 PN IG-0021 17/08/17 RS-2100

NG3000-5000 (All Models)

Installation Guide

Page 2

Change History

Rev Comment Name Date

How to use this Installation Guide

This document is intended to be used only as a Quick Start Guide, to facilitate safe and

correct installation and initial conﬁguration of your Peak Scientiﬁc gas generator.

For more extensive user operation directions, we recommend you download the User

Manual from the website.

Please visit www.peakscientiﬁc.com/downloads to

download the full User Manual for your gas generator.

Thank you for selecting Peak Scientiﬁc to meet your laboratory gas generation needs,

and should you require any further assistance or support please do not hesitate to

contact Peak Scientiﬁc or Peak Partner from which you purchased your generator.

Page 3

Safety Notices

Peak Scientiﬁc Instruments cannot anticipate every possible circumstance which may

represent a potential hazard. The warnings detailed within this document detail the

most known potential hazards, but by deﬁnition cannot be all inclusive. If the user

employs an operating procedure, item of equipment or a method of working which

is not speciﬁcally recommended by Peak Scientiﬁc, the user must ensure that the

equipment will not be damaged or become hazardous to persons or property.

Symbols

This document uses the following symbols to highlight speciﬁc areas important to the

safe and proper use of the Generator

A WARNING notice denotes a hazard. It calls attention to an operating procedure,

process or similar, which if not correctly performed or adhered to, could cause

personal injury or in the worst case death. Do not proceed beyond a WARNING

notice until the indicated conditions are fully understood or met.

A CAUTION notice denotes a hazard. It calls attention to an operating procedure,

process or similar, which if not correctly performed or adhered to, could cause

damage to the Generator or the Application. Do not proceed beyond a CAUTION

notice until the indicated conditions are fully understood or met.

Caution, risk of electric shock. Ensure power to the Generator has been removed

before proceeding.

Safety Notice to Users

These instructions must be read thoroughly and understood before

installation and operation of your Peak Generator. Use of the generator

in a manner not speciﬁed by Peak Scientiﬁc MAY impair the SAFETY

provided by the equipment.

When handling, operating or carrying out any maintenance, personnel

must employ safe engineering practices and observe all relevant local

health and safety requirements and regulations. The attention of UK

users is drawn to the Health and Safety at Work Act 1974, and the

Institute of Electrical Engineers regulations.

If the equipment is used in a manner not speciﬁed by the manufacturer,

the protection provided by the equipment may be impaired.

WARNING

CAUTION

Page 3

Page 4

Fittings Kit

PTFE 6mm Tubing 00-1302

x3m

UK Mains Cable C13 04-1030

US Mains Cable C13 6-15 04-1029

EU Mains Cable C13 04-1038

US Mains Cable C13 5-15 04-1039

1/4” - 6mm Push Fit Elbow Fitting 02-4331

No. 8 Screw 00-4075

No. 8 Wall Plug 00-4076

1/4” x 1/8” Compression Fitting 02-1000

1/4” x 1/4” Compression Fitting 02-4421

Page 5

Unpack the generator from the shipping crate and position on a ﬂat surface, in

desired area.

The NG range generator is designed to be mounted against a wall for safety reasons.

Locate the screw in the top right rear corner of the unit, beside the yellow warning

label.

Page 6

Next, using the screw which was removed, ﬁt the bracket and washers provided to the

generator. Again this should be repeated for the other side. The bracket is adjustable to

accommodate varying kickboard widths.

Remove the screw from the generator this should be repeated for the other

side of the unit, and retain.

Page 7

Finally, using the dimensions provided, ﬁx the wall plugs to the wall, ensuring wall plug

is suitable for the type of wall. If not, use the correct type. Secure the generator to the

wall with the screws from the ﬁttings kit.

For NG 3000-5000(A) before the unit is used, the transit brackets must ﬁrst be

removed from the compressor.

For NG 3000-5000 please proceed to step 10

To remove the transit bracket ﬁrst remove the 11 screws on the front panel as shown.

then remove the front panel from the generator.

Page 8

Now locate the red transit bracket attached to the compressor foot plate, and remove

the two screws on the bracket.

Then remove the front panel from the generator.

Page 9

Attach the ¼” Compression Fitting 02-4421 to the generators gas outlet.

10.

Next remove the transit bracket by ﬁrst lifting up and then out of the generator.

Replace the front panel and secure it to the generator using the 11 screws that were

previously removed.

02-4421

Page 10

11.

12.

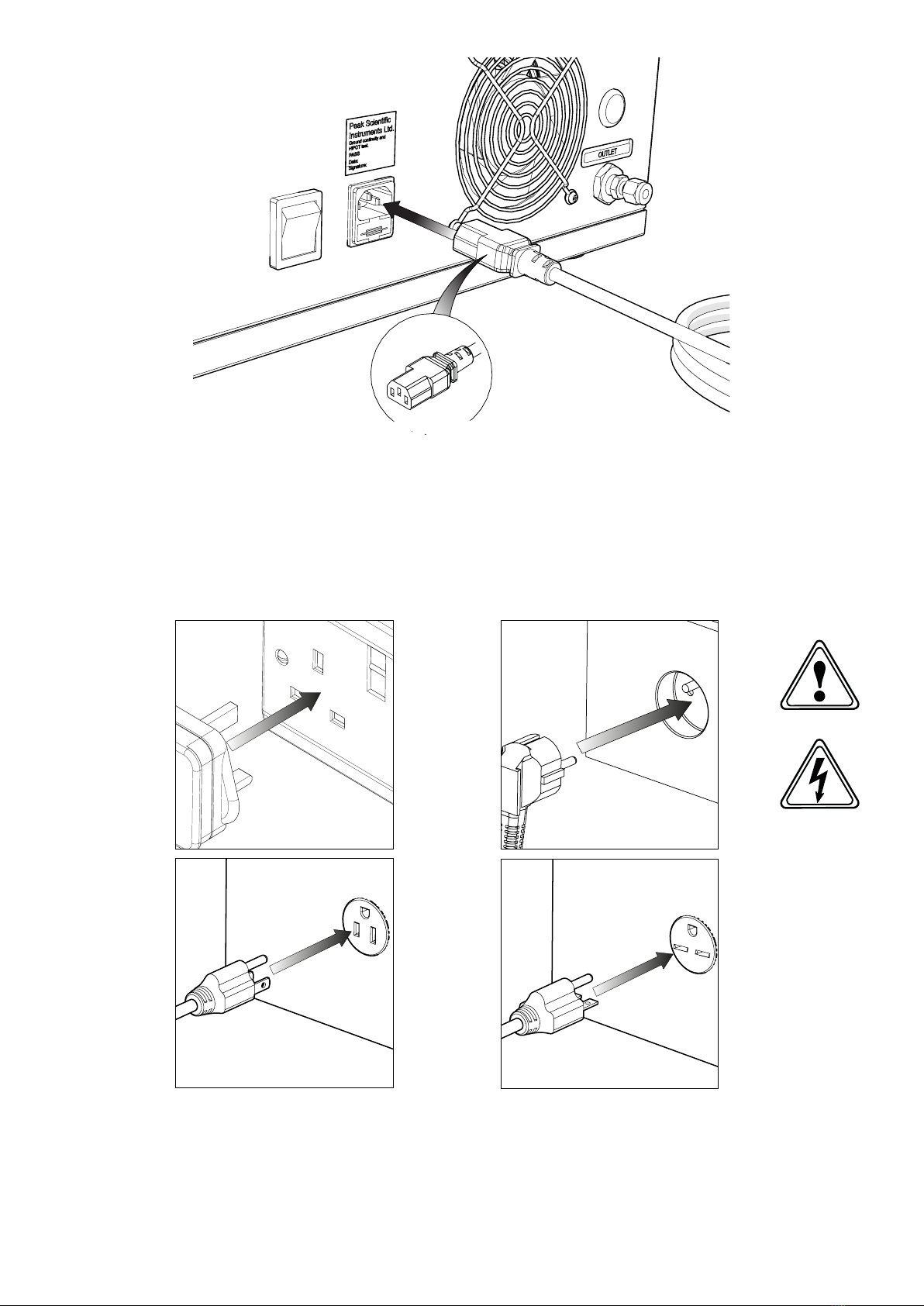

Select the appropriate mains cable from the ﬁttings kit and plug the IEC 60320/C19

cable into the mains input at the side of the generator.

04-1030/04-1029/

04-1038/04-1039

110VAC 50/60Hz OR 230VAC 50/60Hz

Plug the mains cable into the corresponding 110VAC 50/60Hz OR 230VAC 50/60Hz

single phase power supply.

CAUTION ensure the correct cable has been selected for your electrical supply

For non-gas versions of the MS Table proceed to step 15.

CAUTION

UK EU

110V

230V
