Infinity XE 60 Series (All Models)

Installation Guide

Page 2

Change History

Rev Comment Name Date

How to use this Installation Guide

This document is intended to be used only as a Quick Start Guide, to facilitate safe

and correct installation and initial conﬁguration of your Peak Scientiﬁc gas generator.

For more extensive user operation directions, we recommend you download the User

Manual from the website.

Please visit www.peakscientific.com/downloads to

download the full User Manual for your gas generator.

Thank you for selecting Peak Scientiﬁc to meet your laboratory gas generation needs,

and should you require any further assistance or support please do not hesitate to

contact Peak Scientiﬁc or Peak Partner from which you purchased your generator.

Page 3

Safety Notices

Peak Scientiﬁc Instruments cannot anticipate every possible circumstance which may

represent a potential hazard. The warnings detailed within this document detail the

most known potential hazards, but by deﬁnition cannot be all inclusive. If the user

employs an operating procedure, item of equipment or a method of working which

is not speciﬁcally recommended by Peak Scientiﬁc, the user must ensure that the

equipment will not be damaged or become hazardous to persons or property.

Symbols

This document uses the following symbols to highlight speciﬁc areas important to the

safe and proper use of the Generator

A WARNING notice denotes a hazard. It calls attention to an operating procedure,

process or similar, which if not correctly performed or adhered to, could cause

personal injury or in the worst case death. Do not proceed beyond a WARNING

notice until the indicated conditions are fully understood or met.

A CAUTION notice denotes a hazard. It calls attention to an operating procedure,

process or similar, which if not correctly performed or adhered to, could cause

damage to the Generator or the Application. Do not proceed beyond a CAUTION

notice until the indicated conditions are fully understood or met.

Caution, risk of electric shock. Ensure power to the Generator has been removed

before proceeding.

Safety Notice to Users

These instructions must be read thoroughly and understood before

installation and operation of your Peak Generator. Use of the

generator in a manner not speciﬁed by Peak Scientiﬁc MAY impair the

SAFETY provided by the equipment.

When handling, operating or carrying out any maintenance, personnel

must employ safe engineering practices and observe all relevant local

health and safety requirements and regulations. The attention of UK

users is drawn to the Health and Safety at Work Act 1974, and the

Institute of Electrical Engineers regulations.

If the equipment is used in a manner not speciﬁed by the

manufacturer, the protection provided by the equipment may be

impaired.

WARNING

CAUTION

Page 3

Page 4

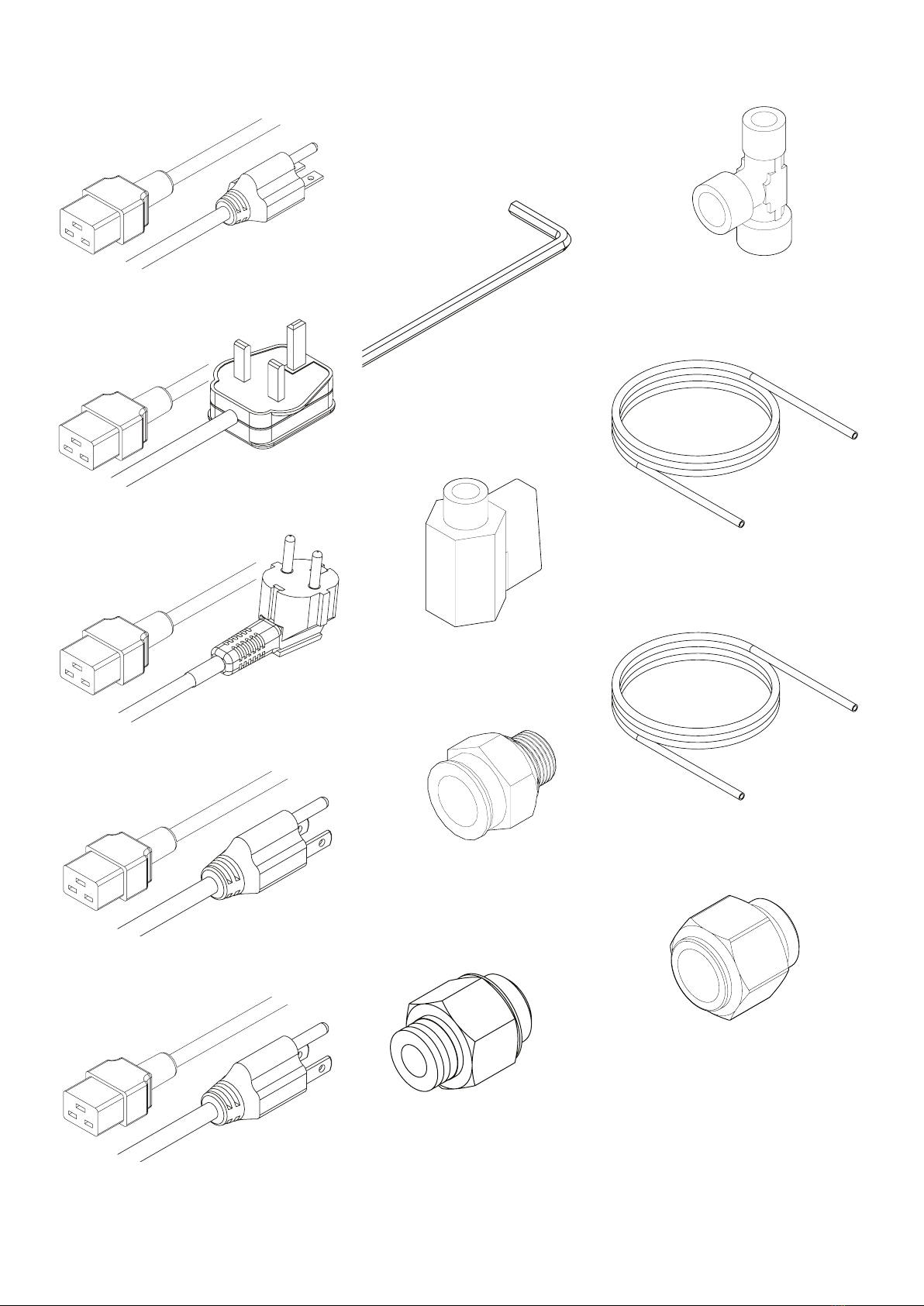

Fittings Kit

8mm Hex Key 00-0007

Shut-O Valve 02-4471

US Mains Cable 230V C19 6-15 04-1024

UK Mains Cable C19 04-1025

EU Mains Cable C19 04-1026

US Mains Cable 110V C19 5-15 04-1035

x1*

1/4” - 12mm Push Fit Fitting

02-5801

1/4” - 6mm Push Fit Fitting

02-4600

x3m*

12mm OD x 10mm ID PE 00-1267

6mm OD x 4mm ID PE 00-1282

x3m

JP Mains Cable 100V C19 04-1004

1/4” Tee Fitting 02-1048

16mm Push Fit Fitting 3301060

* x2 with Dry Air option ﬁtted

Page 5

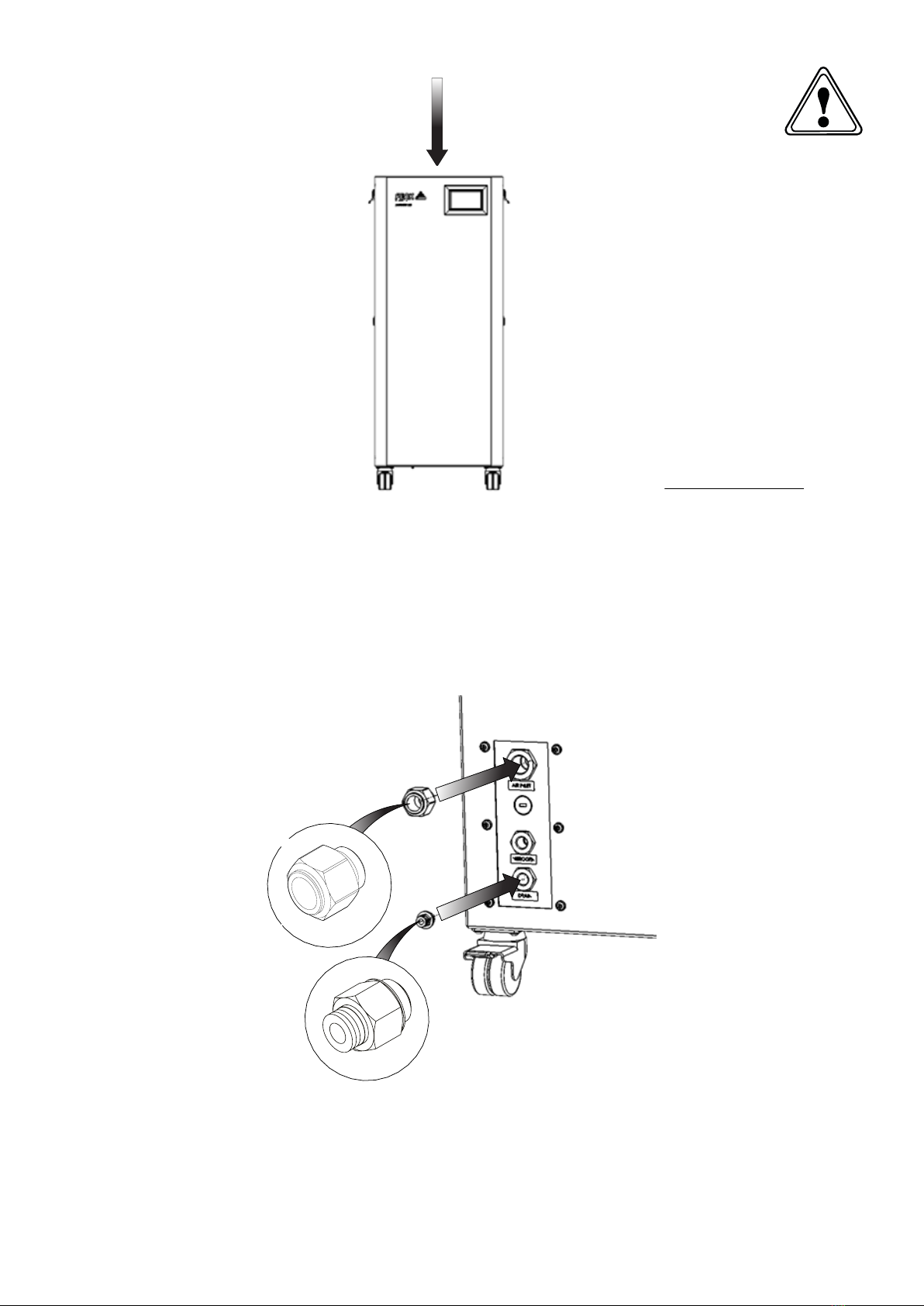

Unpack the generator from the shipping crate and position on a flat surface, in

desired area.

An Infinity XE 6010 has been used for the purposes of this Installation Guide.

WARNING Ensure all inlets and outlets are connected to correct sources and applications.

All Connections should only be carried out by trained personnel. Generator must be

switched off and unplugged prior to any connection , cleaning or maintenance operations.

Select the 16mm Push Fit Fitting 3301060 from the ﬁttings kit and attach to the Air

Inlet port at the rear of the generator.

Then ﬁt the 6mm Push-Fit Fitting 02-4600 to the Drain port.

0°

02-460002-4600

33010603301060

WARNING

Page 6

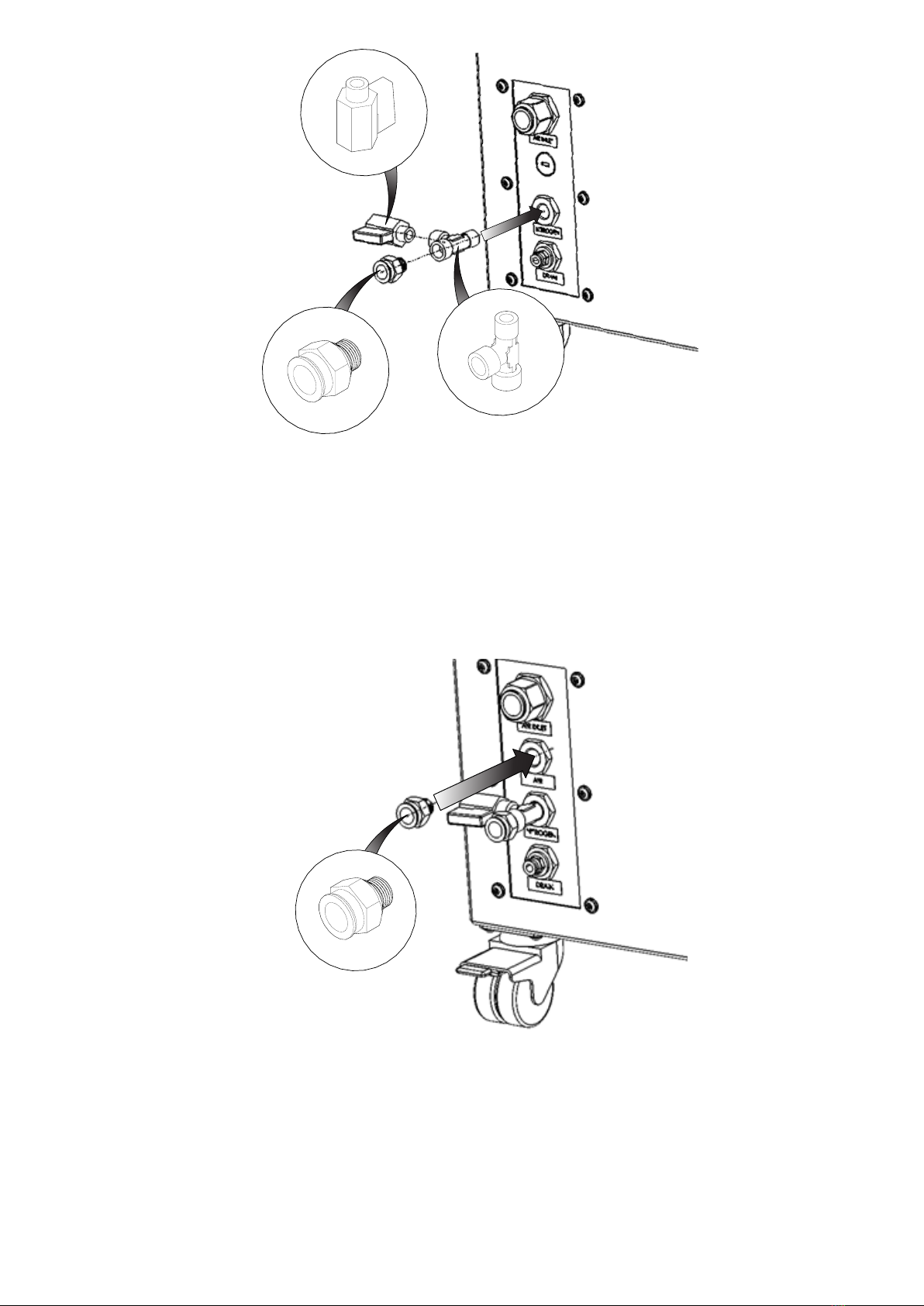

Select the Tee Fitting 02-1048 and attach this to the Nitrogen port.

Next, attach the Shut-Off Valve 02-4471 to the vertical female port on the Tee Fitting,

ensuring PTFE tape is used for tight ﬁt.

Finally attach the 12mm Push-Fit Fitting 02-5801 from the ﬁttings kit to the remaining

female port on the Tee Fitting, again ensuring PTFE tape is used.

For units without Dry Air option ﬁtted please proceed to step 5.

02-104802-1048

02-580102-5801

02-447102-4471

4. (Dry Air option only)

If the generator is ﬁtted with the optional Dry Air output, select the 12mm Push-Fit

Fitting 02-5801 from the ﬁttings kit and attach it to the ‘Air’ port on the rear of the

generator.

02-580102-5801

Page 7

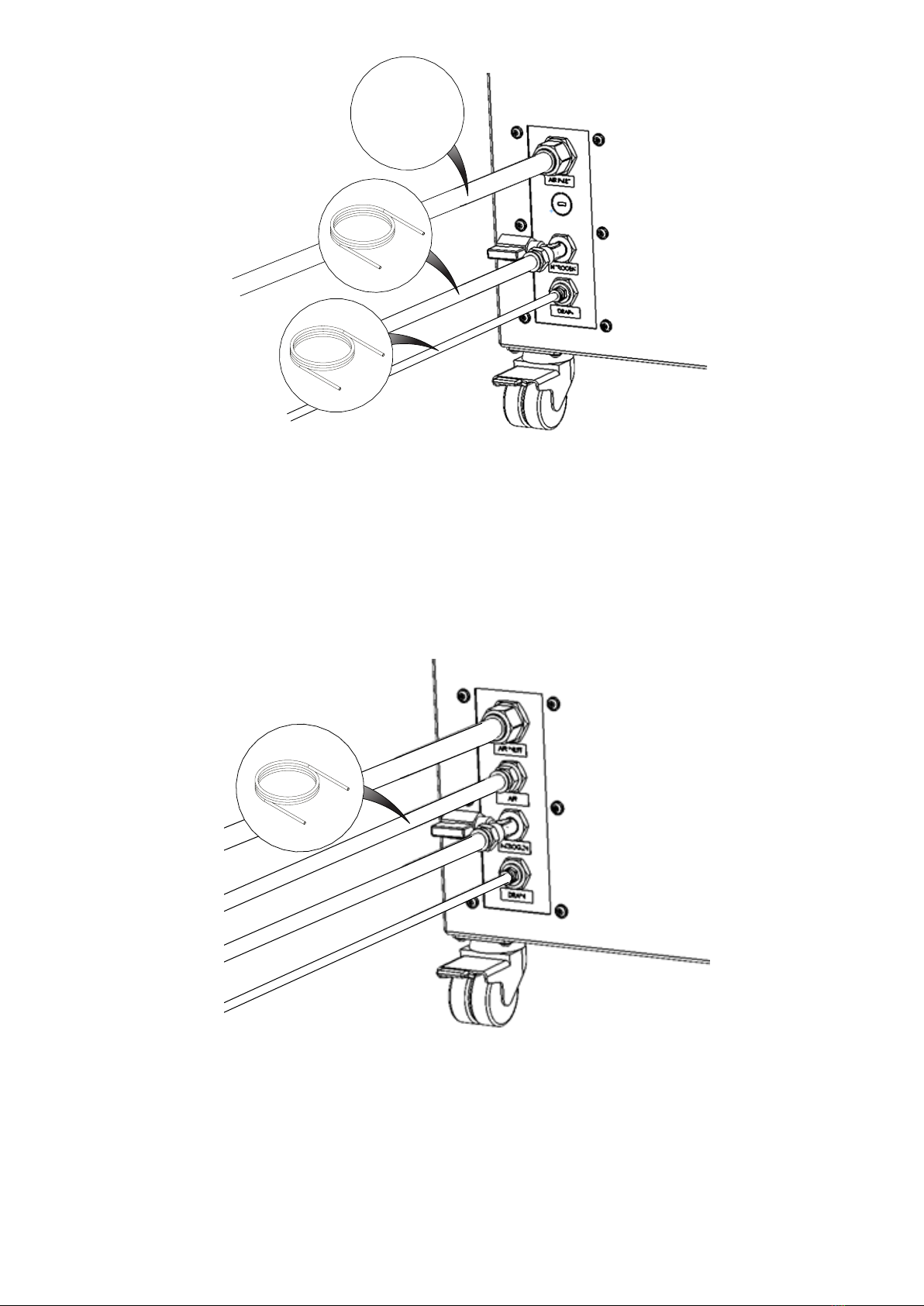

Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600.

Fit the other end of the tubing to a suitable drain connection or container. The container

MUST NOT have an airtight seal as water and air will be expelled periodically under a slight

pressure.

Attach 3m of 12mm PE Tubing 00-1267 to the ﬁtting attached to the ﬁttings on the

Nitrogen port and connect to the gas inlet of your instrument.

Lastly connect appropriate 16mm tubing (not supplied) to the ﬁtting on the Air Inlet port

and connect the other end to your air supply (ISO 8573-1:2010 Class [1.4.1]).

For units without Dry Air option ﬁtted please proceed to step 7.

00-128200-1282

00-126700-1267

Fit

appropriate

tubing

Attach 3m of 12mm PE tubing 00-1267 from the ﬁttings kit to the ﬁtting on the Dry Air

output of the generator. Connect the other end to the Air inlet of your instrument.

6. (Dry Air option only)

00-126700-1267

Page 8

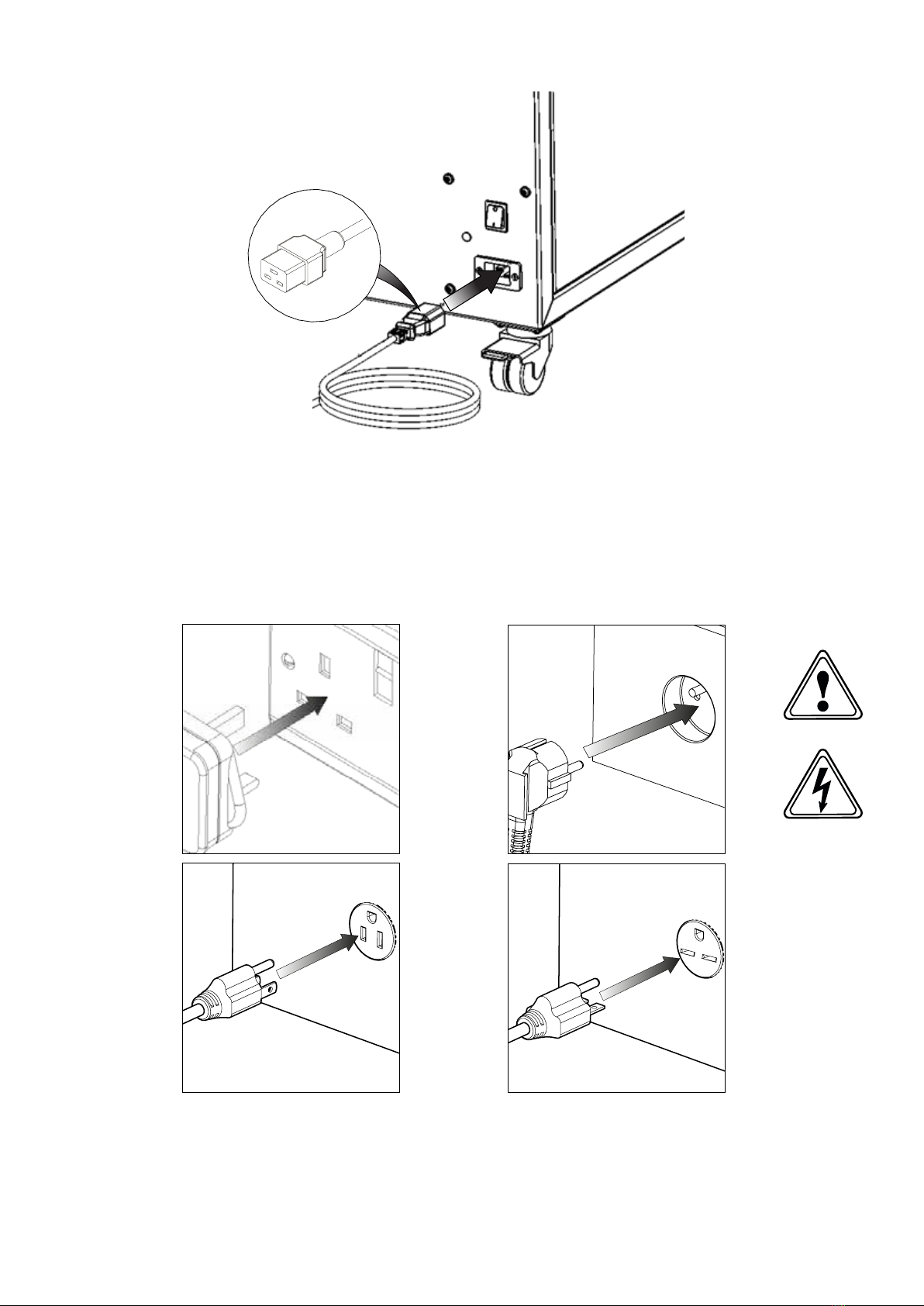

Select the appropriate mains cable from the ﬁttings kit and plug the IEC 60320/C19

cable into the mains input at the rear of the generator.

Plug the mains cable into the corresponding 100/110/230VAC 50/60Hz single phase

power supply.

CAUTION ensure the correct cable has been selected for your electrical supply.

Consult the Electrical Requirements section if you are unsure of the requirements

of your generator.

UK EU

110V

100V

230V

CAUTION

04-1004/04-1024/04-102504-1004/04-1024/04-1025

/04-1026/04-1035/04-1026/04-1035

Page 9

10.

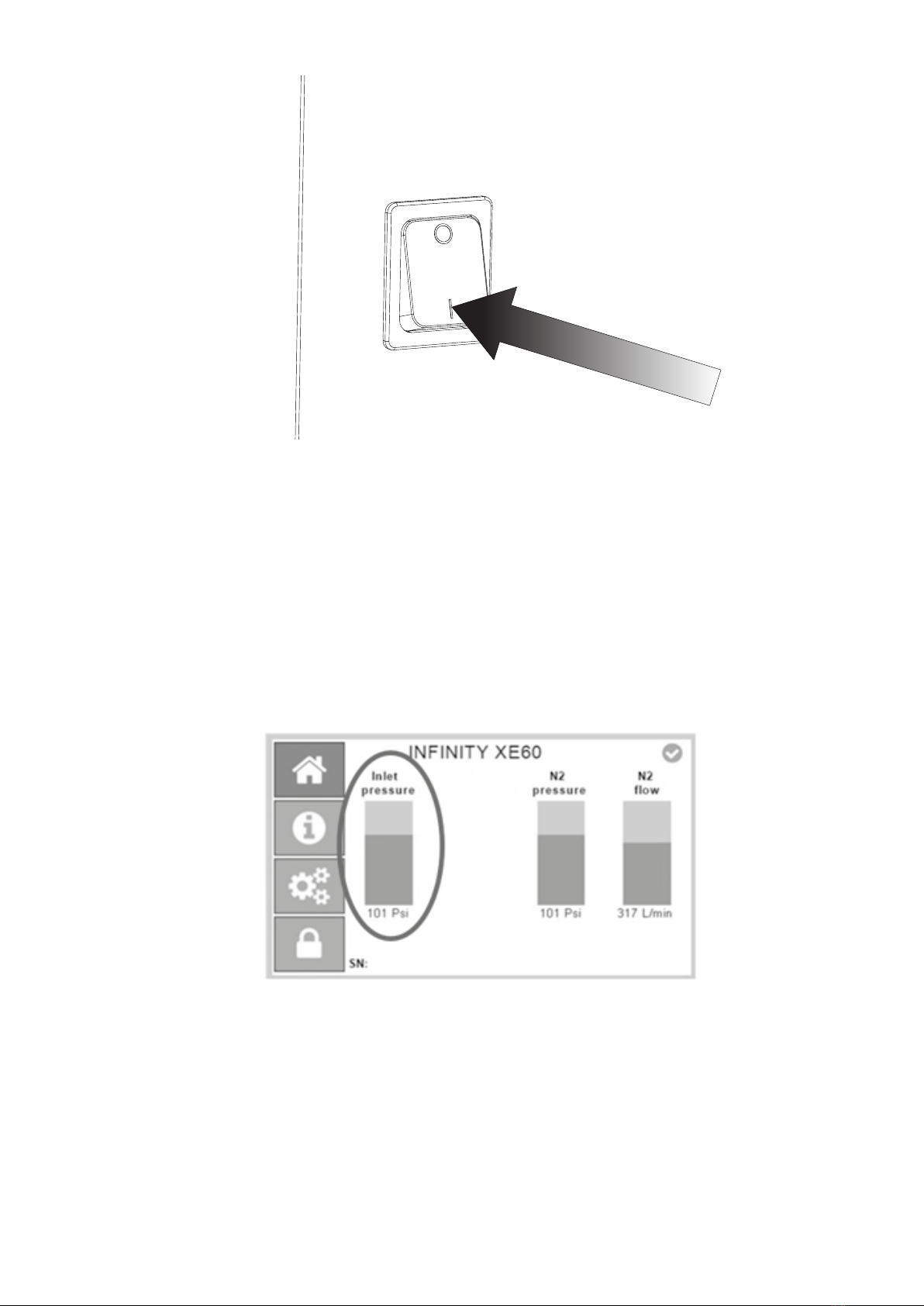

Switch the generator power ON using the switch on the rear panel.

The inlet pressure graph on the external HMI of the generator will gradually increase

from 0Psi to the delivered inlet pressure as the system pressurises

Page 10

11.

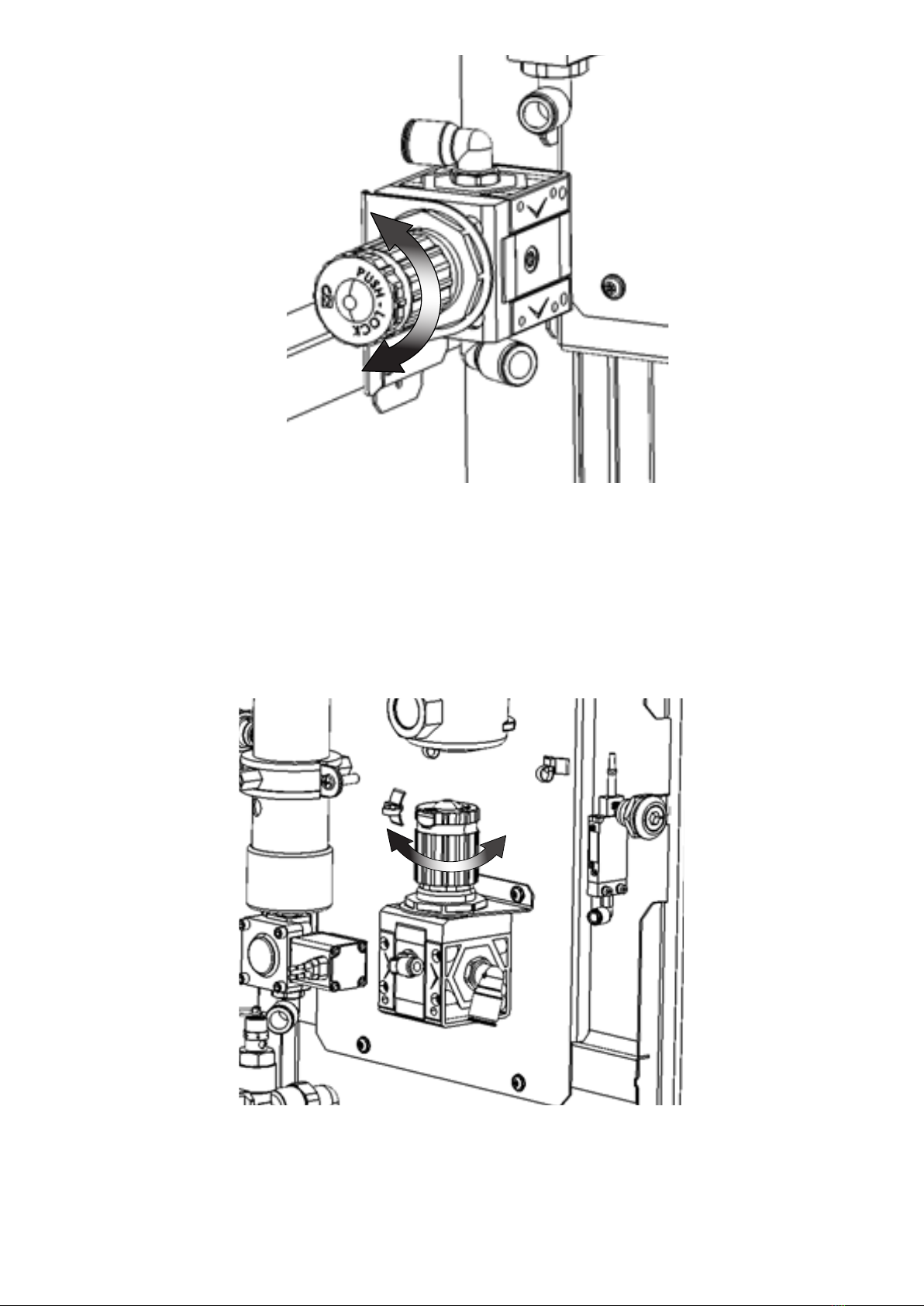

Set the desired Air output pressure using the internal pressure regulator located

near the rear of the generator. View the external outlet pressure reading on the HMI

when setting the pressure. Replace the side panel after the regulator has been set.

12. (Dry Air option only)

Remove the side panel, and set the desired Nitrogen output pressure using

the internal pressure regulator located near the front of the generator. View

the external outlet pressure reading on the HMI when setting the pressure.

For units without Dry Air option ﬁtted please replace the side panel after the

regulator has been set and proceed to step 13.
