The Model 691B40 Twelve Channel Switch Box Module

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

MANUAL NUMBER: 18419

MANUAL REVISION: NR

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 2

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

table of contents

Description ....................................................................................................................... page 3

Installation........................................................................................................................ page 3

Calibration........................................................................................................................ page 3

Terminal Strip Wiring........................................................................................................ page 4

ESD Warning Information................................................................................................. page 5

warranty/servicing

Warranty, Service & Return Procedure............................................................................ page 6

Customer Service............................................................................................................. page 7

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 3

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

description

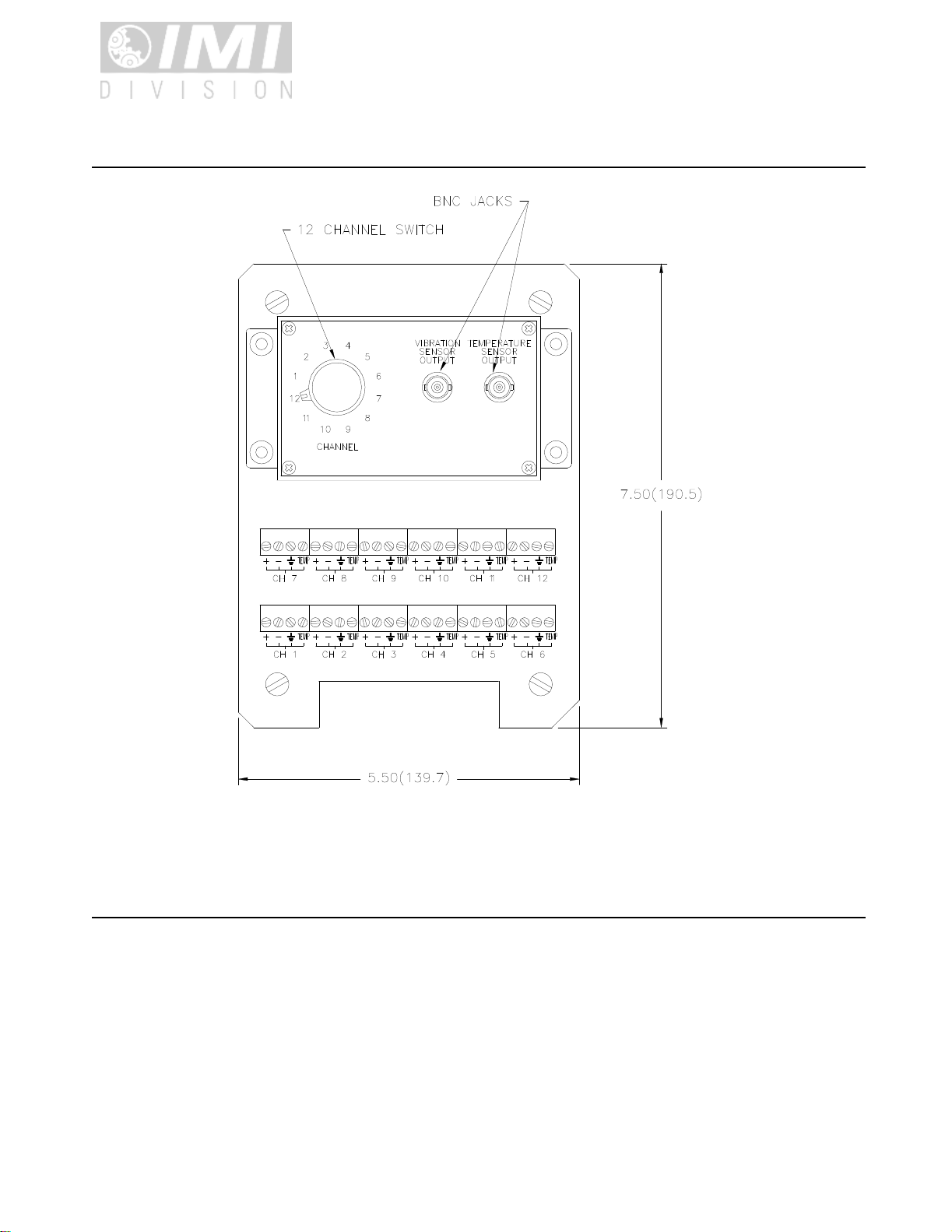

The Model 691B40 is a twelve channel switch box module which provides terminal strip input with the

convenience of BNC outputs. They are used in conjunction with commercially available data collectors and

analyzers. They provide inputs and switched outputs for vibration sensors with built-in temperature sensors. This

field installable module may be added to the model 691B43, 691B44, or 691B45 to provide expandability for up to

48 channels. A few specifications are listed below for easy reference:

Number of Channels................................................................... 12

Input Connectors.....................................4-Socket Terminal Strip

Output Connector - Vibration.........................................BNC Jack

Output Connector - Temperature ..................................BNC Jack

Size (H x W x D).................................................... 7.5 x 5.5 x 3.3 in

Weight.................................................................................... 1.7 lb.

installation

The 691B40 module may be added to the 691B43, 691B44, or 691B45 by fastening the captive panel screws

found in each corner of the 691B40 module to the plate found in the bottom of 691B43, 691B44, or 691B45

enclosure.

calibration

The Model 691B40 does not need any calibration since they are only switch box modules. If there are any

questions concerning the products, please contact the factory.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 4

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

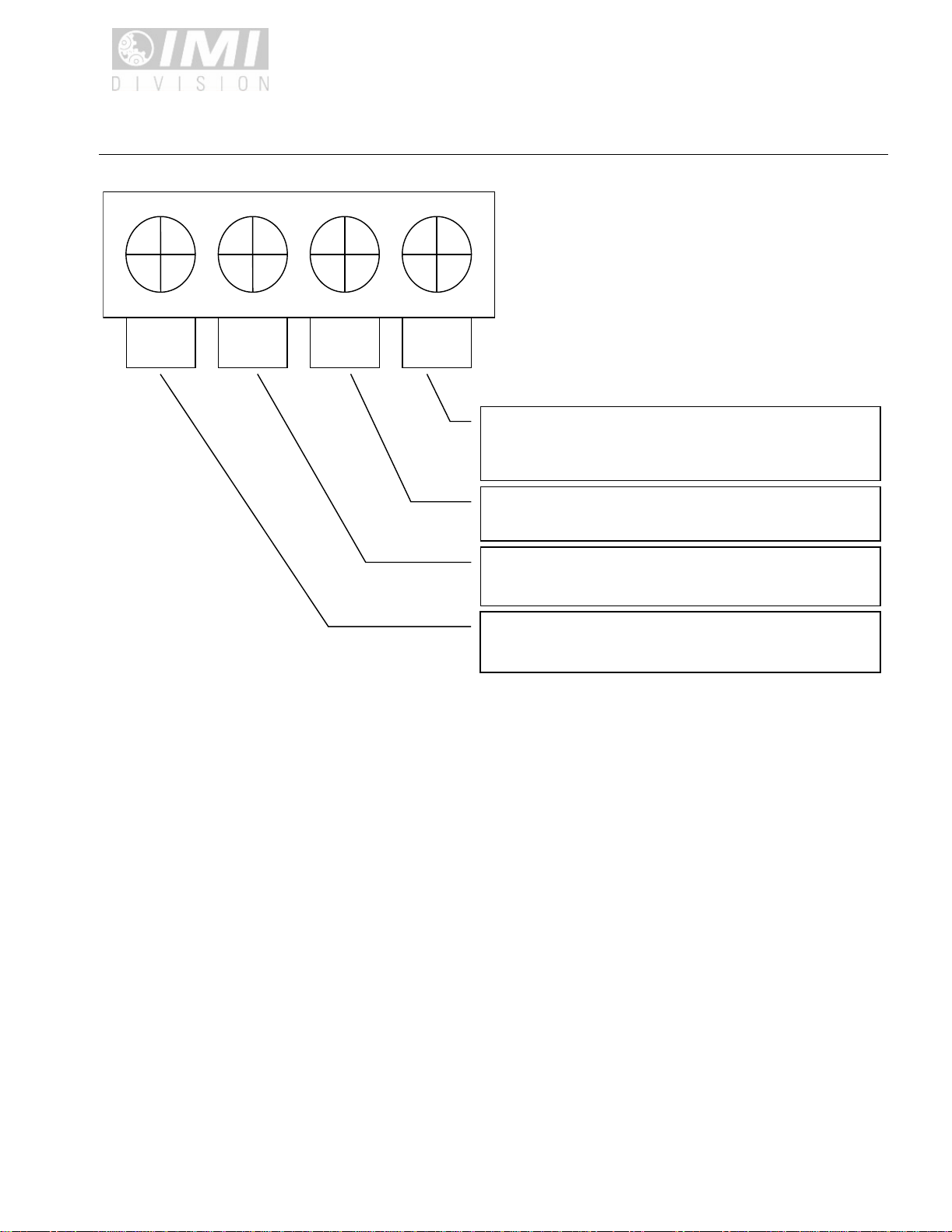

terminal strip wiring

Positive Input

Connect the sensor’s positive input

Negative Input

Connect the sensor’s negative input

Shield

Connect the sensor’s shield; if applicable

TEMP

TEMP –Temperature Sensor Input

If thevibration sensors have a built-in temperature

sensor, connect the wire tothis terminal strip input.

INDUSTRIAL MONITORING INSTRUMENTATION DIVISION

PAGE 5

SENSORS AND INSTRUME

NTATION FOR MACHINE

CONDITION MONITORING

warning 1 –ESD sensitivity

The power supply/signal conditioner should not be opened by anyone other than qualified service

personnel. This product is intended for use by qualified personnel who recognize shock hazards and are familiar

with the safety precautions required to avoid injury.

warning 2 –ESD sensitivity

This equipment is designed with user safety in mind; however, the protection provided by the equipment may be

impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc.

caution 1 –ESD sensitivity

Cables can kill your equipment. High voltage electrostatic discharge (ESD) can damage electrical devices.

Similar to a capacitor, a cable can hold a charge caused by triboelectric transfer, such as that which occurs in the

following:

 Laying on and moving across a rug,

 Any movement through air,

 The action of rolling out a cable, and/or

 Contact with a non-grounded person.

The PCB solution for product safety:

 Connect the cables only with the AC power off.

 Temporarily “short”the end of the cable before attaching it to any signal input or output.

caution 2 –ESD sensitivity

ESD considerations should be made prior to performing any internal adjustments on the equipment. Any

piece of electronic equipment is vulnerable to ESD when opened for adjustments. Internal adjustments should

therefore be done ONLY at an ESD-safe work area. Many products have ESD protection, but the level of

protection may be exceeded by extremely high voltage.

Table des matières

Autres manuels PCB Piezotronics Changer

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX685A09 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors SS691C41 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001A10 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B44 Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 685B0000A33 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001D30 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A21 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001A30 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 686B11 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B47 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001C14 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 685B1001A41 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A19 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors M686B01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686C01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685B0001A13 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 691A80 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B43 Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 685B0001A13 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0011A13 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B77 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 010D10 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A09 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 686B61 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
