PCB Piezotronics 132A31/004AW Manuel utilisateur

Model 132A31/004AW

Micro ICP® pressure sensor, 140 mV/psi, pigtail conn. (for high frequency

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-828-8840

24-hour SensorLine: 716-684-0001

Fax: 716-684-0987

E-mail: [email protected]

Web: www.pcb.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Total Customer Satisfaction –PCB

Piezotronics guarantees Total Customer

Satisfaction. If, at any time, for any

reason, you are not completely satisfied

with any PCB product, PCB will repair,

replace, or exchange it at no charge.

You may also choose to have your

purchase price refunded in lieu of the

repair, replacement, or exchange of the

product.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to insure that liquids are not permitted to

migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will insure that your

returned materials are handled in the

most expedient manner. Before

Warranty, Service, Repair, and

Return Policies and Instructions

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Warranty –All equipment and repair

services provided by PCB Piezotronics,

Inc. are covered by a limited warranty

against defective material and

workmanship for a period of one year

from date of original purchase. Contact

PCB for a complete statement of our

warranty. Expendable items, such as

batteries and mounting hardware, are

not covered by warranty. Mechanical

damage to equipment due to improper

use is not covered by warranty.

Electronic circuitry failure caused by the

introduction of unregulated or improper

excitation power or electrostatic

discharge is not covered by warranty.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: C

ECN: 45605

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

ICP



is a registered trademark of PCB Piezotronics, Inc. Drawing Number: 21094

Revision: A

ECO #: 35764

OPERATION MANUAL FOR MICROSENSORS

132 Series

1.0 INTRODUCTION

132 Series Microsensors are small, piezoelectric

pressure sensors featuring extremely fast response for

measurement of short wavelength pressure pulses.

The short time constant of some models filters off the

longer duration portion of pressure pulses, allowing

differentiation of consecutive pressure pulses.

132 Series Microsensors contain integrated ICP



circuit amplifiers which operate as source followers

and provide very high-frequency response. These

micro-integrated circuit amplifiers convert the high-

impedance voltage from the crystals into low-

impedance voltage of less than 100 ohms.

Output from the microsensors may be coupled

directly into oscilloscopes, recorders and A to D

converters. Power to operate the IC amplifier and the

output signal are conducted over a single conductor,

two-wire cable with the ground serving as signal

return. Special low-noise cables are not required.

The calibrated mV/psi output of these microsensors is

not attenuated nor is noise appreciably increased by

the cable.

2.0 DESCRIPTION

132 Series Microsensors feature small diameter

pressure-sensing surfaces incorporating very small (<

1 mm) piezoelectric sensing elements. The small size

of the sensing elements imparts extremely fast

response time to the microsensors.

The charge generated by deflection of the

piezoelectric element when subjected to shock

pressures creates a voltage on the input capacitance at

the gate of the microsensor ICP



amplifier. The

amplifier, in conjunction with the source element,

transforms the input into a low-impedance output

signal of equal amplitude. The DC bias that exists on

the signal lead is removed from the output signal by a

coupling capacitor in the power supply. Resistors in

the internal ICP



amplifiers of the microsensors set

the internal discharge time constant, which

determines the low-frequency response of the

microsensors. (Refer to General Guide to ICP



Instrumentation, G-0001, for complete details.)

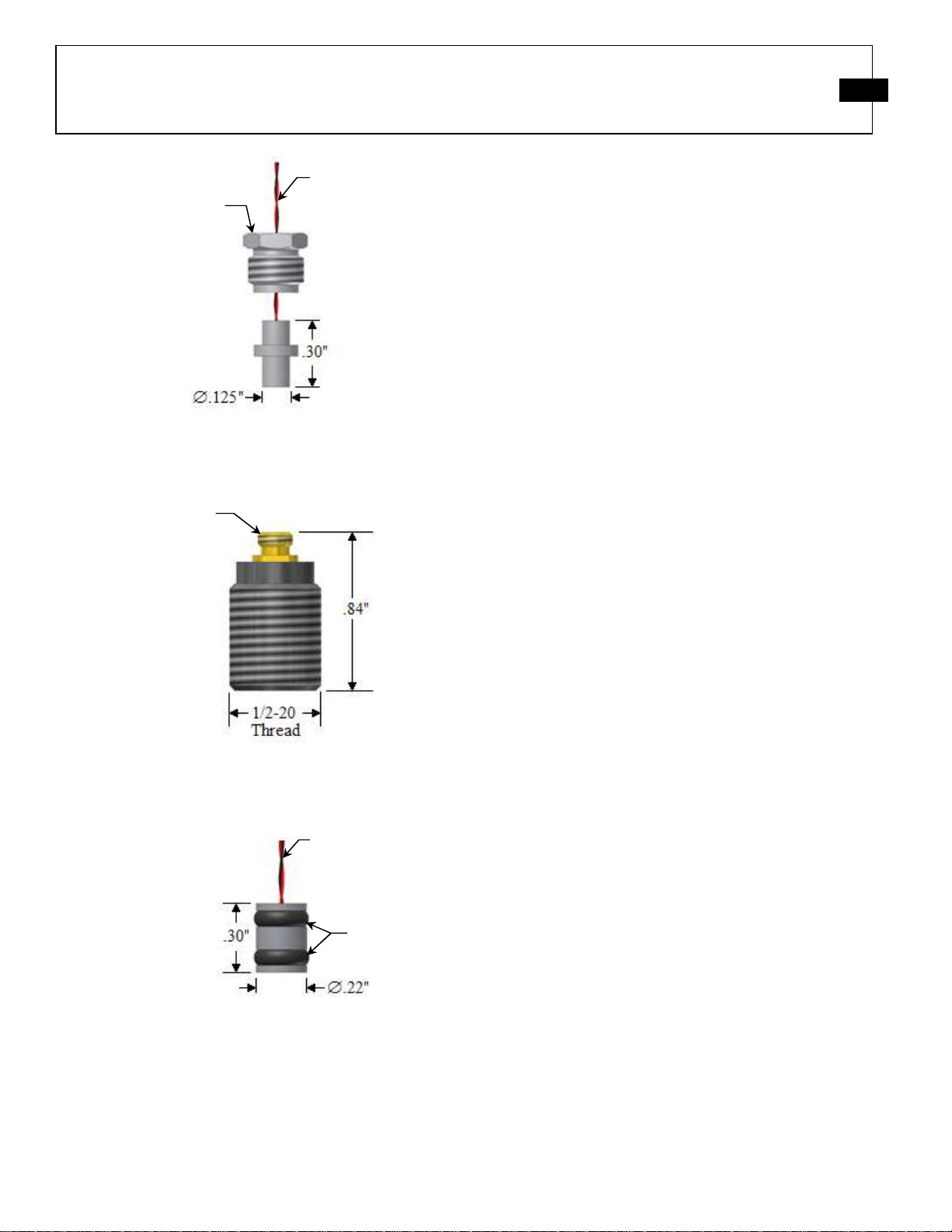

Below are the available configurations for the 132

Series Microsensors.

Model 132A31 Time-of-Arrival

ICP







Microsensor

Model 132A32

Model 060A28

Clamp Nut

¼” Hex

¼-28 Thread

(supplied)

2-ft Twisted Pair

Cable Terminating into

Model 070B09 Solder

Connector Adaptor

(supplied)

Terminating into

#10-32 Coaxial

Connector

ICP



is a registered trademark of PCB Piezotronics, Inc. Drawing Number: 21094

Revision: A

ECO #: 35764

OPERATION MANUAL FOR MICROSENSORS

132 Series

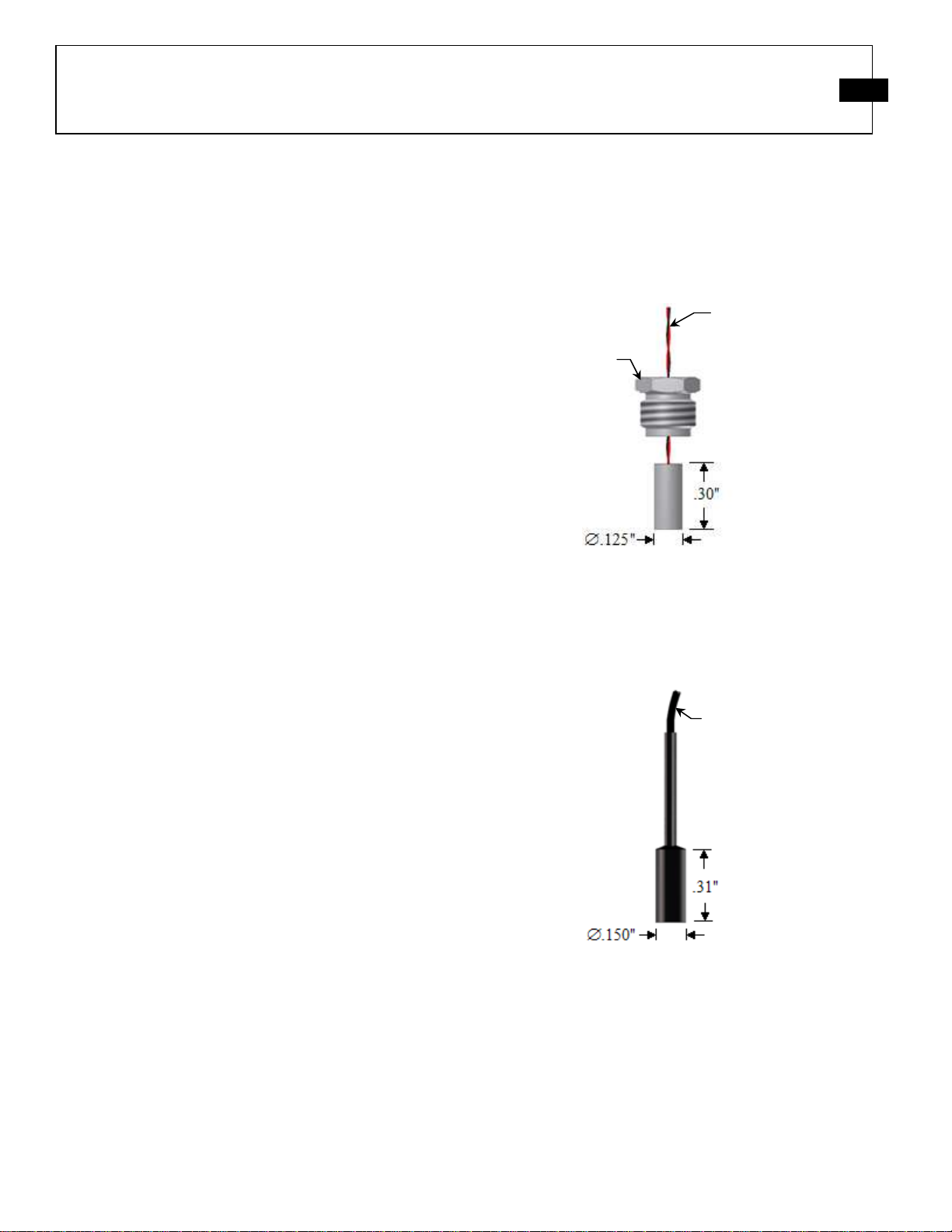

Model 132A35

Model 132A36

Model 132A37

3.0 INSTALLATION

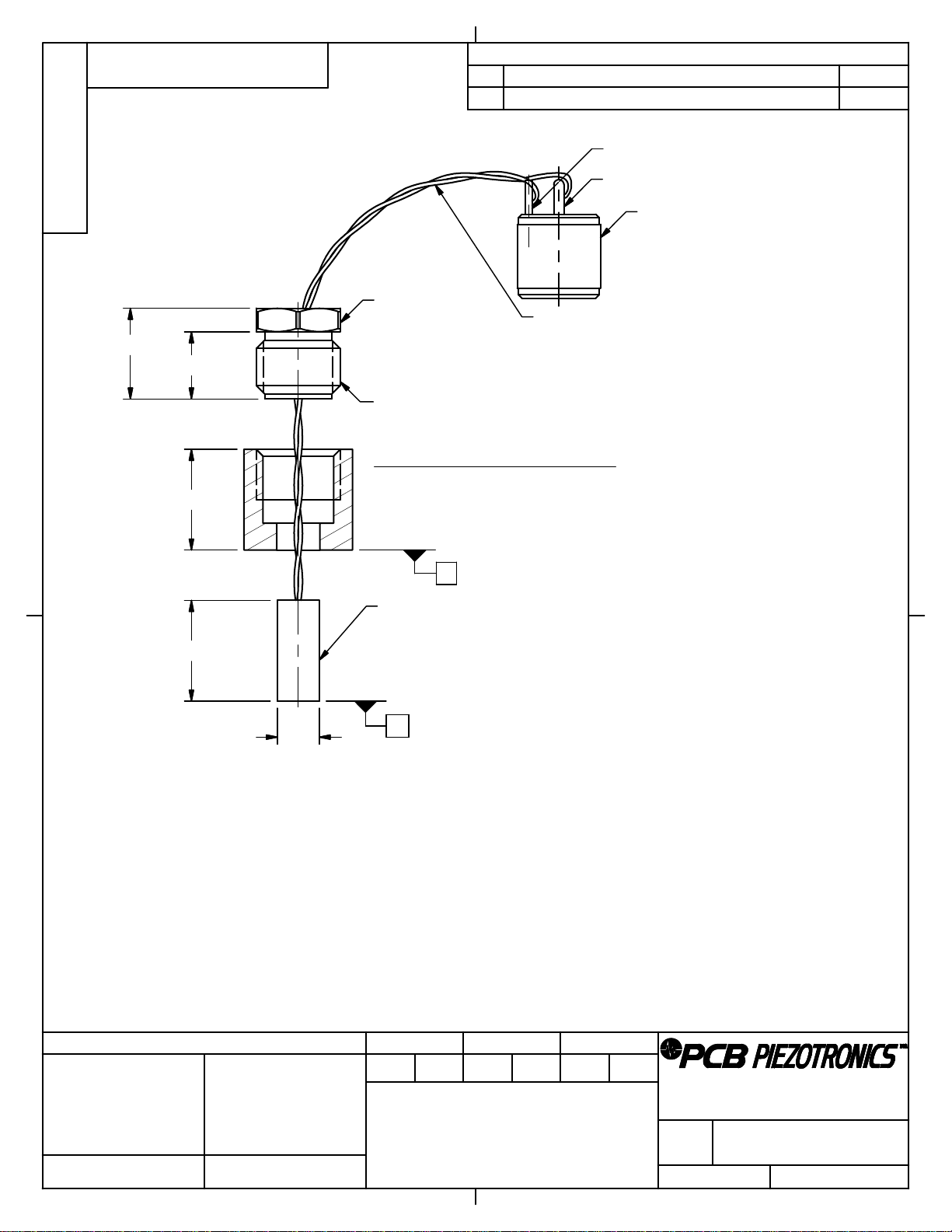

Refer to the installation drawing for details. If the

microsensors are to be subjected to pressures beyond

their specified range, be sure to use backing nuts to

prevent the sensors from backing out of their

mounting ports. (Thread adaptors are available from

PCB to facilitate mounting.)

Connect the microsensors to an ICP



power supply.

Use standard two-conductor cable between the sensor

and the ICP



power unit.

Next, connect the power unit to a readout device, e.g.,

oscilloscope, recorder or high-speed A to D

converter.

4.0 OPERATION

Switch the ICP



power unit on and observe reading of

bias-monitoring voltmeter on front panel of power

unit.

If indicator is in green section of indicator panel, the

IC amplifier is providing proper bias (normally +11

VDC), cable connections are normal and the system

is ready to operate.

If the needle moves to the red area of the fault

monitor meter, output is zero and a short is indicated.

The short could be located in the amplifier cable

connectors or in the power unit.

If the pointer moves into the yellow area of the fault

monitor meter, an open circuit is indicated with full

power supply voltage. An open circuit could be the

result of a faulty amplifier, an open cable or open

connectors.

Allow the sensor to thermally stabilize for about one

minute. A signal drift may occur when the output

cable is connected to the readout instrument.

The drift occurs during charging of the coupling

capacitor in the power unit. The signal will stabilize

in several minutes.

Model 060A28

Clamp Nut

¼” Hex

¼-28 Thread

(supplied)

2-ft Twisted Pair

Cable Terminating into

Model 070B09 Solder

Connector Adaptor

(supplied)

2-ft Twisted Pair

Cable Terminating

into Pigtail

#10-32

Coaxial

Connector

O-Rings

(2 supplied)

O-Rings

(2 supplied)

ICP



is a registered trademark of PCB Piezotronics, Inc. Drawing Number: 21094

Revision: A

ECO #: 35764

OPERATION MANUAL FOR MICROSENSORS

132 Series

4.1 OPERATION BEYOND RANGE

SPECIFICATION

Because 132 Series Microsensors can be installed

using RTV-like potting materials to hold them in

place, maximum pressure specifications are given to

prevent the sensors from being extruded from the

mounting holes. Static or slow dynamic

overpressures are more apt to cause a problem than a

short dynamic shock pulse. Use of backing nuts will

minimize the possibility of a problem.

The microsensors are capable of responding to

dynamic overpressures up to ten times the specified

range. The output will be “clipped” (look flat-topped

on the readout) after about 10 volts.

The initial rise of the output will be accurate up to the

point of clipping. This can allow for an accurate

time-of-arrival measurement, even though the peak

pressure cannot be measured.

5.0 CALIBRATION

A shock tube is used to calibrate the microsensors.

6.0 MAINTENANCE AND REPAIR

Except for repair of wires, the microsensors are not

field-repairable. In case of serious malfunction,

contact the PCB at (888) 684-0011.

It is well to observe the following precautions in

using the microsensors:

1. Do not exceed specified pressure levels without

proper mounting.

2. Do not subject microsensors to temperatures

exceeding 174 °F (79 °C).

3. Do not apply voltage to sensors without current-

limiting diodes or other current protection. (PCB

ICP



power supplies feature proper voltage and

current protection.)

4. Do not apply more than 20 mA of current to the

microsensors.

Model Number

132A31 ICP® PRESSURE SENSOR Revision: R

ECN #: 44634

Performance ENGLISH SI

Measurement Range 50 psi 345 kPa

Sensitivity(± 30 %) 140 mV/psi 20.3 mV/kPa

Maximum Pressure(Dynamic) 800 psi 5516 kPa

Resolution 0.001 psi 0.007 kPa

Resonant Frequency ≥1000 kHz ≥1000 kHz

Rise Time(Incident) ≤3 µ sec ≤3 µ sec [1]

Rise Time(Reflected) ≤0.5 µ sec ≤0.5 µ sec [2]

Low Frequency Response(-5 %) 11,000 Hz 11,000 Hz

Environmental

Temperature Range(Operating) 0 to +175 °F -18 to +79 °C

Electrical

Output Polarity(Positive Pressure) Positive Positive

Discharge Time Constant(at room temp) ≥.000045 sec ≥.000045 sec

Excitation Voltage 20 to 30 VDC 20 to 30 VDC

Constant Current Excitation 2 to 20 mA 2 to 20 mA

Output Impedance ≤100 Ohm ≤100 Ohm

Output Bias Voltage 8 to 14 VDC 8 to 14 VDC

Physical

Sensing Element Ceramic Ceramic

Housing Material Stainless Steel Stainless Steel

Sealing Epoxy Epoxy

Electrical Connector Integral Twisted Pair Integral Twisted Pair

Weight(without clamp nut) 0.018 oz 0.52 gm [3]

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP®is a registered trademark of PCB Group, Inc.

M- Metric Mount

N- Negative Output Polarity

W- Water Resistant Cable

NOTES:

[1]Rise time in air at Mach 1

[2]Rise time at 20mA

[3]Weight including cable.

SUPPLIED ACCESSORIES:

Model 060A28 Clamp Nut, 1/4-28 x 1/4" Hex (1)

Model 070B09 Solder adaptor (1)

3425 Walden Avenue, Depew, NY 14043

Phone: 716-684-0001

Fax: 716-684-0987

E-Mail: [email protected]

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard model

except where noted below. More than one option may be used.

Entered: JM Engineer: MJK Sales: RWM Approved: APB Spec Number:

Date: 10/6/2015 Date: 10/6/2015 Date: 10/6/2015 Date: 10/6/2015 132-1310-80

A A

B B

CODE

IDENT. NO.

52681

DWG. NO.

SCALE: SHEET

DRAWN CHECKED ENGINEER

TITLE

UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:

DIMENSIONS IN MILLIMETERS

[ IN BRACKETS ]

XX ±0.13

ANGLES 2 DEGREES

3425 WALDEN AVE. DEPEW, NY 14043

(716) 684-0001 E-MAIL: sales@pcb.com

DIMENSIONS IN INCHES

DECIMALS XX ±.01

ANGLES 2 DEGREES

FILLETS AND RADII

.003 - .005

DECIMALS X ± 0.3

FILLETS AND RADII

0.07 - 0.13

INSTALLATION DRAWING

6574

1 OF 13X

MODEL 132A31

MICRO SENSOR

XXX ±.005

BB 1/13/16 ECB 1/13/16 MJK 1/13/16

6574

PCB Piezotronics Inc. claims proprietary rights in

the information disclosed hereon. Neither it nor any

reproduction thereof will be disclosed to others

without the written consent of PCB Piezotronics Inc.

REVISIONS

REV DESCRIPTION DIN

D ADDED WIRE NOTE 44937

MODEL 070B09

SOLDER CONNECTOR ADAPTOR

(SUPPLIED)

.30 [7.6]

.125 [3.18]

MODEL 132A31

MICRO SENSOR

RED - SIG/PWR

BLACK - GROUND

(SUPPLIED

.300 [7.62]

.20 [5.1]

.27 [6.9]

1/4-28 UNF - 2A

MODEL 060A28

CLAMP NUT

.25[6.4] HEX

(SUPPLIED)

SIG/PWR

GROUND

MOUNTING HOLE PREPARATION:

Ø.1285 [3.250] THRU

Ø.203 [5.20] .220

1/4-28 UNF - 2B .150

WIRE: #36 AWG

TWISTED PAIR 2.00 FEET (.6 METERS) LONG

RED: SIG/PWR

BLACK: GROUND

6.) ALLOW RTV TO FULLY CURE

5.) REMOVE EXCESSIVE RTV FROM MICRO SENSOR AND MOUNTING HOLE SURFACES

4.) WHILE APPLYING FINGER PRESSURE TO THE BOTTOM OF THE MICRO SENSOR, UNTIGHTEN CLAMP NUT

UNTIL DATUM A AND B ARE FLUSH WITH EACH OTHER

3.) INSERT MICRO SENSOR INTO BOTTOM OF MOUNTING HOLE

2.) HAND TIGHTEN CLAMP NUT INTO MOUNTING HOLE

1.) LIGHTLY COAT THE INSIDE DIAMETER OF MOUNTING HOLE, OUTSIDE DIAMETER OF MICRO SENSOR

(MODEL 132A31), AND CLAMP NUT (MODEL 060A28) WITH RTV

Table des matières

Autres manuels PCB Piezotronics Accessoires

PCB Piezotronics

PCB Piezotronics JM353B14 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 393B12 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS TO640B31 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 208A45 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 643A01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M119C12 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M103B12 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 105C02/NC Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX641B72 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 357E93 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics PCB LOAD & TORQUE 1102-02A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics PCB-(M)353B17 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics R480E09 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 201B01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 118A07 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 356B10 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 1404-13A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 116B Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS VO622A11 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics PCB-(M)352C66 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 602D01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 357A09/NC Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 136A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 138A50 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
