BALLISTICS PRESSURE TRANSDUCER MODELS 165B02 AND 118A07 OPERATION MANUAL 1

1.0 INTRODUCTION

The Model 165B02 & 118A07 are, charge mode

ballistics transducers with welded diaphragm and a

rugged quartz element of proven reliability ideally suited

for shotgun shells. The transducer’s welded diaphragm

provides better transient thermal characteristics,

important for ballistics applications. The rugged

piezoelectric element utilizes synthetic quartz crystals to

convert instantaneous pressure changes to an analogous

electrostatic charge. Chamber pressure is sensed by the

transducer as the round is fired.

The transducer also serves as a replacement for other

diaphragm-type gauges. In addition to ballistics testing,

the Model 165B02 & 118A07 can be used for hydraulic

and pneumatic test applications.

2.0 DESCRIPTION

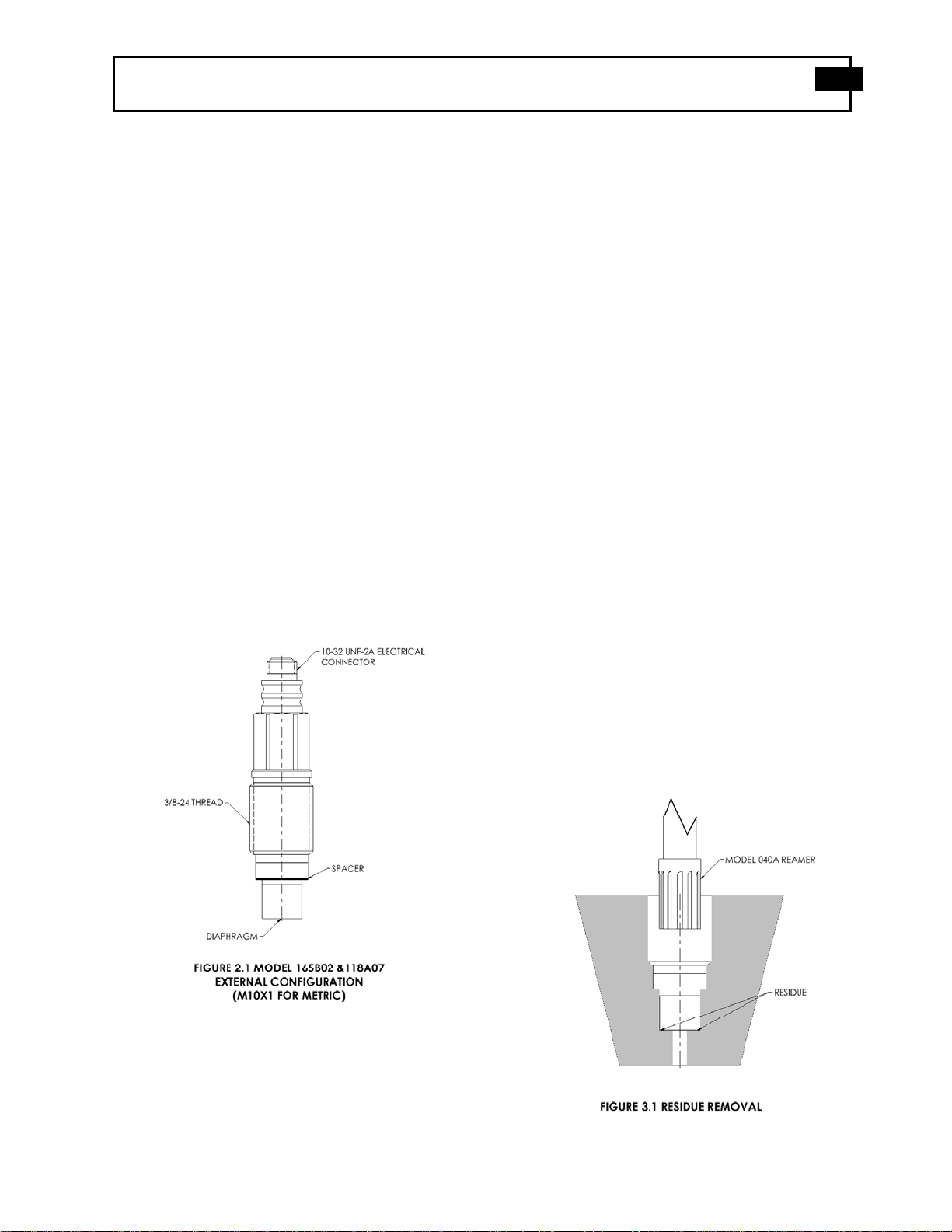

Figure 2.1 shows the external configuration of the Model

165B02. The unit is housed in a lightweight stainless

steel case and has a stainless steel diaphragm. It

comfortably tolerates ambient temperatures ranging

from -400 to +400 °F (-240 to +204 °C).

The 3/8-24 thread and flush diaphragm design are

conventional, providing direct interchangeability with

existing machined diaphragm-type piezoelectric

transducers. The short, rigid quartz element and stiff

diaphragm give the unit a 250 kHz natural frequency and

good linearity, even below 1 000 psi.

3.0 INSTALLATION

When choosing an installation method, the advantages

and disadvantages of each method must be carefully

weighed. Characteristics like location, ruggedness,

amplitude range, accessibility, temperature and

portability may be greatly affected by the installation

configuration and technique. Often, the most important

and overlooked consideration is the affect the mounting

technique has on the high-frequency operating range of

the pressure sensor.

Two basic mounting techniques are recommended for

pressure sensors: the recess mount and the flush mount.

The technique used is determined by the specifics of the

individual application. See the Installation Drawing in

this manual for additional details on the individual

sensor series.

A torque wrench should be used to ensure specified

mounting torque when installing the unit. Refer to the

Installation Drawing, located in the Appendix, for the

recommended torque value.

It is wise to replace the seal each time the transducer is

installed. One is supplied with the sensor; replacements

are available as regular stock items.

3.1 Mounting in Existing Recessed Ports

The Model 165B02 & 118A07 mounts directly in

existing ports machined for PCB Models 165A02,

167A, 167A02, 167A11, 167A12, and others.

Drawing Number: 21109

Revision: NR

BALLISTICS PRESSURE TRANSDUCER MODELS 165B02 AND 118A07 OPERATION MANUAL 2

Before installing the transducer in previously used

mounting ports, clean out the residue remaining from

previous tests as shown in Figure 3.1 . This is

accomplished by hand-reaming the ¼-inch diameter

hole, using a PCB Model 040B20 (English Port,

Drawing 42831) or 040B21 (Metric Port, Drawing

42832) Flat-Bottom Reamer or its equivalent.

It is important to note that the seal surface may require

remachining to get it sufficiently clean following

prolonged use. If this procedure is necessary, do not

forge too deeply into the 1/4-inch (6.35 mm) diameter

hole. Doing so could remove the shoulder, causing the

transducer to bottom out when it is installed.

If waveform distortion occurs during prolonged testing,

remove the transducer and clean out the residue as

shown on 42831, & 42832.

3.2 Preparing New Mounting Ports

Refer to drawings 42831, & 42832 provided for

instructions on mounting hole preparation. For best

results, do not deviate from the outlined steps.

Use good machining practice in preparing the mounting

port. Pay particular attention to the seal surface (.323

inches / 8.2 mm in diameter), keeping it free from tool

chatter marks.

NOTE: It is important that this surface be perfectly

smooth and free from nicks or other discontinuities that

could cause leaks at high pressures.

3.3 Recess Mount

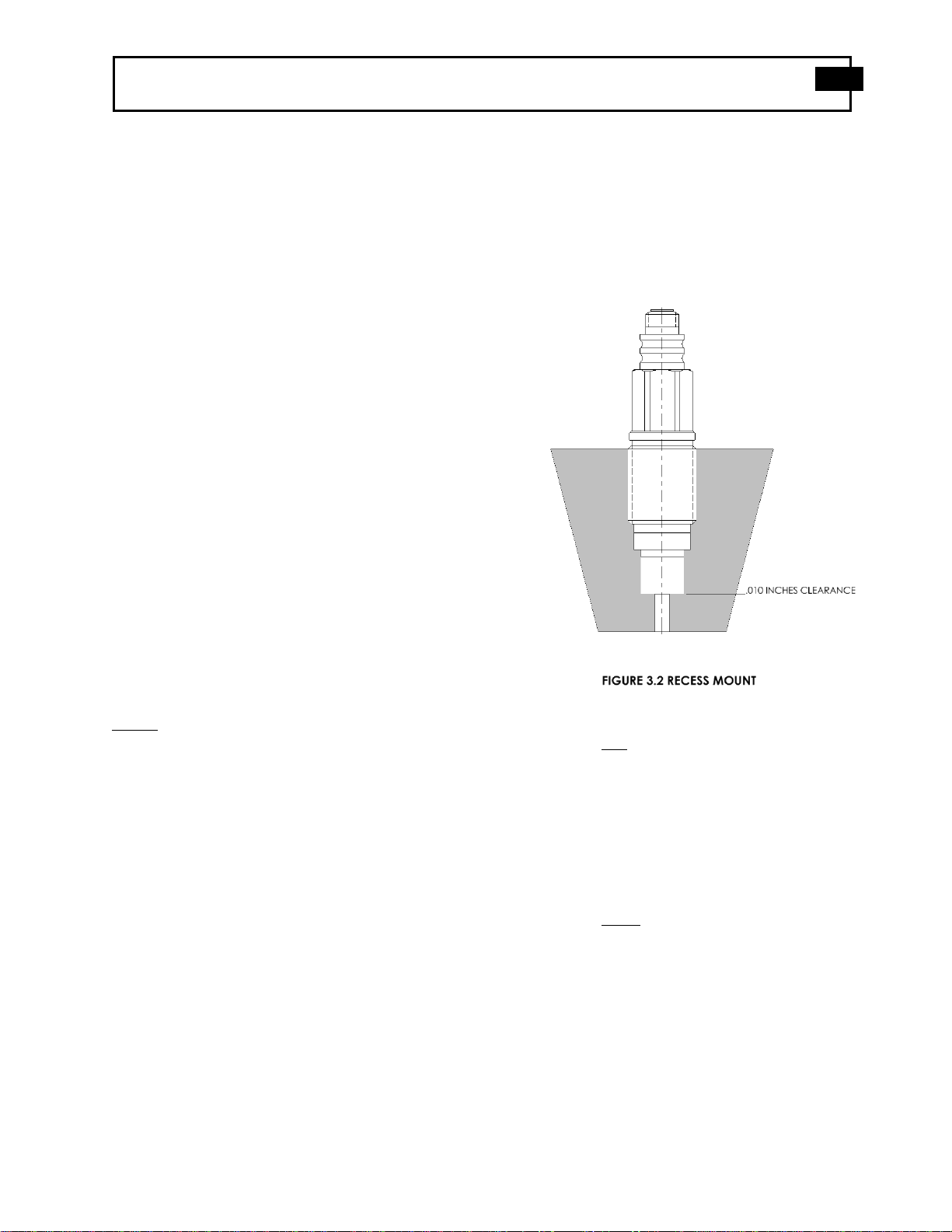

The recess mount technique protects the sensor

diaphragm from the effect of high flash temperature and

particle impingement. This method is often selected

because it can prolong sensor life and increase data

integrity by reducing thermal error. See Figure 3.2.

The recommended range of passage diameters is .090 to

.125 inches (2.286 to 3.175 mm) in diameter.

When using the recess mount technique, note that the

length of the passage may limit the usable frequency

range of the sensor. The effect the passage has is like

that of an under-damped second order system, with the

resonant frequency determined by passage length. The

passage length thus limits the pressure pulse rise time

and may also cause passage ringing.

The function is described by the following equation:

Where: Fr = resonant frequency passage (Hz)

V = velocity of sound in air (feet/second)

L = length of column (feet)

For air at room temperature, the equation becomes:

3300

Where: L = passage length (inches)

The natural frequency and approximately fastest

pressure step rise time for various length passages are

shown in the following chart, using a medium of air at

77°F (25°C).

Drawing Number: 21109

Revision: NR

BALLISTICS PRESSURE TRANSDUCER MODELS 165B02 AND 118A07 OPERATION MANUAL 3

Selected Values for 77°F (25°C)

Measured resonant frequencies may differ slightly from

the chart values due to variations in the velocity of

sound in the air from changes in temperature and

pressure of the air in the passage.

If possible, keep passage lengths below 0.10 inches

(.254 mm) for best results in most ballistic applications,

especially at the casemouth and when measuring port

pressures.

3.4 Flush Mount

The flush mount installation is intended for tangential

shot shell pressure measurement and there is no reduced

area passage from the sensor diaphragm to the test

chamber. Instead, the sensor diaphragm is mounted flush

with, or slightly recessed from, the inside surface of the

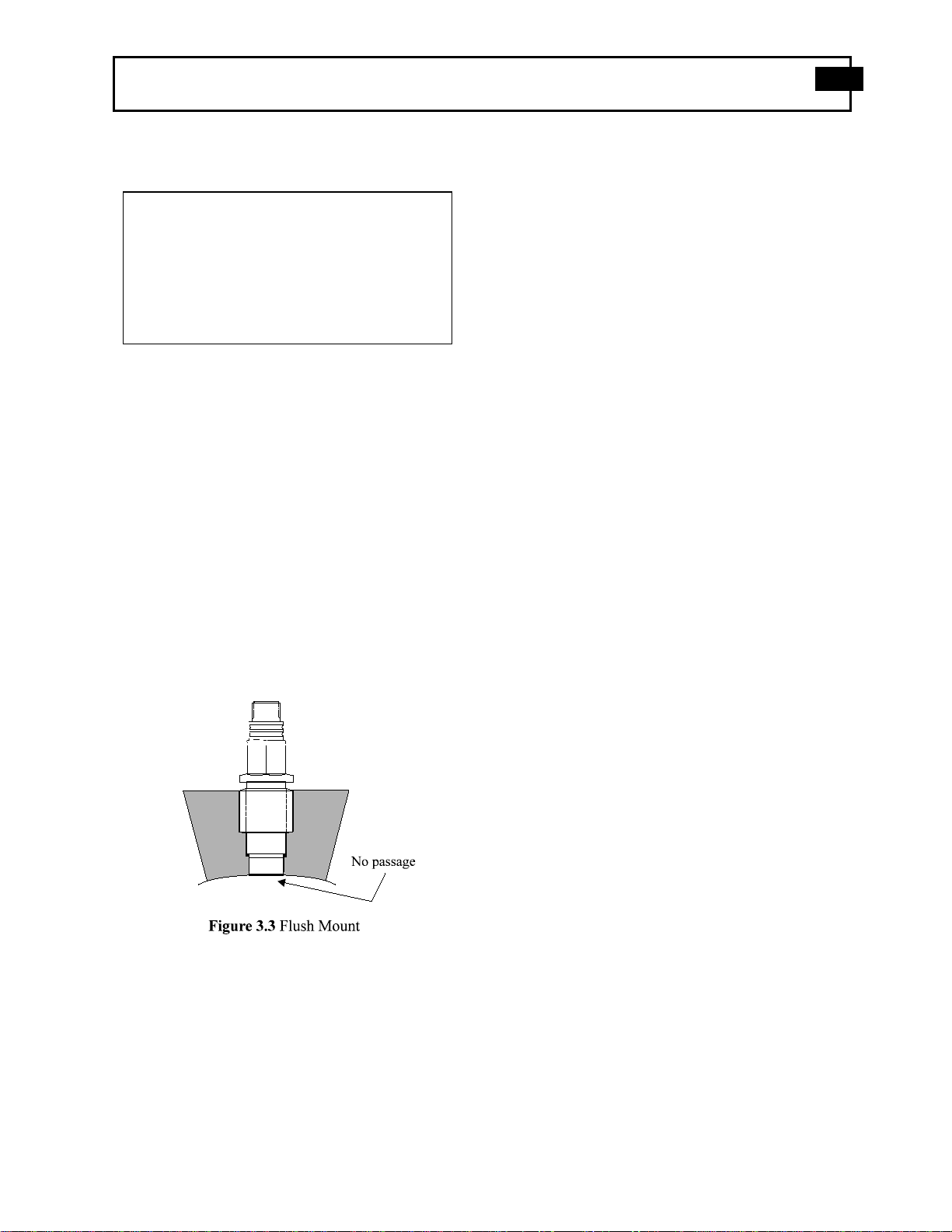

test chamber. See Figure 3.3.

If thermal transients or diaphragm impingement are

concerns, use the flush mount technique only when

space or rise time considerations preclude the use of the

recess mount installation.

3.5 Flash Thermal Protection

Additional steps may be taken to provide protection

from flash thermal effects. The sensor diaphragm may

be thermally insulated with DC-4 silicone grease or its

equivalent. In place of the silicone rubber, one layer of

black vinyl electrical tape on the diaphragm may provide

sufficient insulation.

3.6 Cable Installation

Use only low-noise treated coaxial cable (PCB Model

003A or equivalent) to connect the transducer to the

charge amplifier, in-line voltage amplifier, or other high

input impedance readout instrument. For further details

on such cabling contact PCB.

Protect the ultra high impedance connection against

moisture contamination with shrink tubing or other

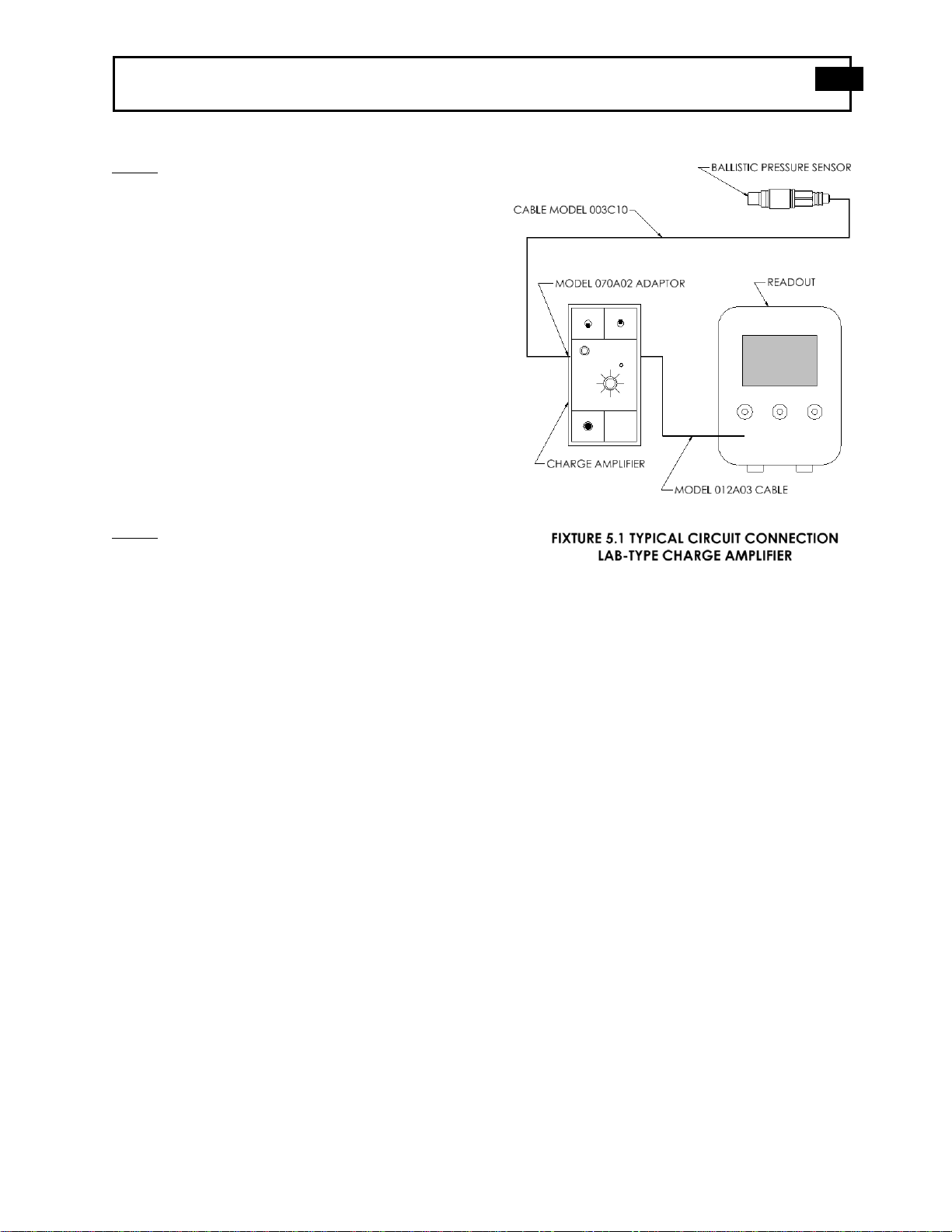

suitable method. Figures 5.1 and 5.2 illustrate typical

circuit connections.

It is advisable to support transducer cables by tying them

to rigid structures to prevent excessive motion that can

generate noise and materially shorten cable life. Allow

adequate strain relief.

4.0 CALIBRATION

This transducer can be calibrated using either static

hydraulic techniques, such as by a dead weight tester, or

by comparison with a standard dial gauge.

Set the charge amplifier for a long time constant, and

allow the transducer to thermally stabilize before

attempting to calibrate it.

Passage Passage Approx. fastest

length resonance pulse rise time

(inches) (kHz) (microseconds)

.050 66 5

.100 33 10

.200 16.5 20

.50 6.6 50

1.0 3.3 100

Drawing Number: 21109

Revision: NR

BALLISTICS PRESSURE TRANSDUCER MODELS 165B02 AND 118A07 OPERATION MANUAL 4

NOTE: Do not attempt to use a charge amplifier that has

less than a 5 000 second time constant when in the long

position.

Several charge amplifiers are specially designed for use

with ceramic accelerometers for higher frequency

measurements. In general, these types are unsuitable for

calibration of quartz pressure transducers by quasi-static

means.

A factory charge calibration is supplied with each

transducer. Factory recalibration is available.

5.0 OPERATION

Most test setups include the Model 165B02 & 118A07

operating into an electrostatic charge amplifier, such as

the PCB Model 443B02. See Figure 5.1.

NOTE: Keep the input cable to the charge amplifier as

short as is practical. Electrical noise at the output of any

charge amplifier is directly related to input cable length

(capacitance).

Press the ground button of the charge amplifier and

adjust electrical zero if necessary. Range the amplifier

to give the necessary full-scale voltage. For normal,

drift-free operation, switch the charge amplifier time

constant selector to MEDIUM or SHORT during use.

5.1 Polarity

Since most charge amplifiers are inverting amplifiers,

the Model 165B02 & 118A07 is designed to produce a

negative-going charge for increasing pressure at the

diaphragm.

6.0 MAINTENANCE

The only maintenance required on the Model 165B02 &

118A07 is the periodic cleaning of the connector to

restore insulation resistance.

During use in damp environments or after a period of

storage, the insulation resistance of the transducer may

degrade (1012 ohms is normal). To restore insulation

resistance, an ultrasonic cleaning in 99% pure isopropyl

alcohol is required. Then bake the transducer in a 250 °F

(121 °C) oven for several hours. If available, a vacuum

oven expedites the process. Allow the sensor to cool to

ambient temperature before re-testing the insulation

resistance.

Drawing Number: 21109

Revision: NR

Model Number

118A07 CHARGE OUTPUT PRESSURE SENSOR Revision: E

ECN #: 49945

Performance EN GLISH SI

Sensitivity(± 15 %) 0.28 pC/psi 0.041 pC/kPa

Measurement Range 15 kpsi 103,400 kPa

Maximum Pressure 35 kpsi 241,316 kPa [1]

Resolution 10 mpsi 0.069 kPa [2]

Resonant Frequency ≥ 175 kHz ≥ 175 kHz

Rise Time(Reflected) ≤ 2.5 µ sec ≤ 2.5 µ sec

Non-Linearity ≤ .5 % FS ≤ .5 % FS [3]

Environmental

Acceleration Sensitivity ≤ 0.03 psi/g ≤ 0.021 kPa/(m/s²)

Temperature Range(Operating) -50 to +325 °F -46 to +163 °C

Temperature Coefficient of Sensitivity ≤ 0.06 %/°F ≤ 0.108 %/°C

Maximum Flash Temperature 3,000 °F 1,649 °C

Maximum Shock 20,000 g pk 196,140 m/s² pk

Electrical

Output Polarity(Positive Pressure) Negative Negative

Capacitance 5 pF 5 pF [4]

Insulation Resistance ≥ 1012 Ohm ≥ 1012 Ohm

Ph ysical

Sensing Element Quartz Quartz

Housing Material Stainless Steel Stainless Steel

Diaphragm Stainless Steel Stainless Steel

Sealing Epoxy Epoxy

Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack

Weight 0.52 oz 14.6 gm

[5]

All specifications are at room temperature unless otherwise specified.

In the interest of constant product improvement, we reserve the right to change specifications without notice.

ICP® is a registered trademark of PCB Piezotronics, Inc.

M - Metric Mount

P - Positive Output Polarity

W - Water Resistant Cable

OPTIONAL VERSIONS

Optional versions have identical specifications and accessories as listed for the standard model

except where noted below. More than one option may be used.

NOTES:

[1]Non-Linearity for maximum pressure will be ≤ 2.0%

[2]Resolution dependent on range setting and cable length used in charge system.

[3]Zero-based, least-squares, straight line method.

[4]Typical.

[5]See PCB Declaration of Conformance PS158 for details.

Date: 09/11/2019 Date: 09/11/2019 Date: 09/11/2019 Date: 09/11/2019 61551

Entered: RB Engineer: RPF Sales: RWM Approved: RPF Spec Number:

3425 Walden Avenue, Depew, NY 14043

Ph one: 716-684-0001

Fax: 716-684-0987

E-M ail: info@ pcb.com

SUPPLIED ACCESSORIES:

Model 065A06 Seal ring 0.318" OD x 0.250" ID x 0.010" thk 316L SS material (3)

Model 065A19 Spacer set, 0.250" ID (1)

Table des matières

Autres manuels PCB Piezotronics Accessoires

PCB Piezotronics

PCB Piezotronics 208A45 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS HT640 B Series Manuel utilisateur

PCB Piezotronics

PCB Piezotronics S101A02 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 629A11 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 483C05 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI Sensors 66333PPZ2 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 353B17 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP E106B Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 352C23/NC Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 640B61 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics P112A05 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 137B28 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 357C73 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX641B02 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS 603C11/-0006 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics IMI SENSORS HT646B02 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 260M21 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics M1630-03C Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8180-SH410A Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 261A02 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics PCB-320C04 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics ICP 401B04 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 209C01 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 2508-04A Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
