Monarch®
939i
Intelligent
Keyboard
TC0939IOI Rev. AC 5/06 ©2004 Paxar Americas, Inc. All rights reserved.
Each product and program carries a respective written warranty, the only
warranty on which the customer can rely. Paxar reserves the right to make
changes in the product, the programs, and their availability at any time and
without notice. Although Paxar has made every effort to provide complete and
accurate information in this manual, Paxar shall not be liable for any omissions
or inaccuracies. Any update will be incorporated in a later edition of this
manual.
©2 4 Paxar Americas, Inc. All rights reserved. No part of this publication
may be reproduced, transmitted, stored in a retrieval system, or translated into
any language in any form by any means, without the prior written permission of
Paxar Americas, Inc.
WARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
CANADIAN D.O.C. WARNING
This digital apparatus does not exceed the Class A limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian Department
of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le
brouillage radioélectrique édicte par le ministère des Communications du Canada.
Trademarks
Monarch®, 938, 939, 939i, 9855, and 986 are trademarks of Paxar Americas, Inc.
Paxar® is a trademark of Paxar Corporation.
UFST, Monotype, the Monotype logo, and CG Triumvirate are trademarks of Monotype Imaging, Inc.
Paxar Americas, Inc.
17 Monarch Lane
Miamisburg, OH 45342
TABLE OF CONTENTS
GETTING STARTED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Power-Up Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
About This M nu l . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
About Scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Unp cking the Keybo rd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Connecting the Keybo rd’s C ble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Connecting the Sc nner’s C bles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Using the Keybo rd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Control Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
SETTING BATCH OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Setting Prompts nd Def ults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Non-Knife Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
ENTERING BATCH DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Entering B tch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Printing T gs Without Cutting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Using Print Multiple with Inc/Dec Fields . . . . . . . . . . . . . . . . . . . . . . . 3-8
Ex mples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
SPECIFICATIONS & ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Accessories & Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Fl t Surf ce Mount. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
W ll Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
T ble of Contents i
CHARACTER SETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Supported Symbol Sets nd Code P ges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Intern l (St nd rd nd Reduced Font) . . . . . . . . . . . . . . . . . . . . . . . . B-2
Bold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
ANSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
Code P ge 437 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
Code P ge 850 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
CONFIGURING THE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Accessing the Keybo rd’s M in Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Oper ting in Script Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
About the Sc nner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Oper ting the Sc nner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Troubleshooting the Sc nner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Cle ning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
En bling the Sc nner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
Configuring the Sc nner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
En ble the Communic tions Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Reset to Def ult V lues. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
Set the Communic tions Port Def ults . . . . . . . . . . . . . . . . . . . . . . . . C-6
Set the Minimum B r Code Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
ii T ble of Contents
GETTING STARTED 1
The Monarch® 939i keyboard allows you to easily configure the
printer and enter batch data. The keyboard works with the
Monarch® 9855 and Monarch® 9860 printers. This keyboard
also works with non Monarch printers. However, an external
power supply is required for the keyboard. See Appendix A,
"Specifications and Accessories" for the part number.
This chapter includes information about
Nunpacking the keyboard.
Nconnecting the power cable.
Nthe various power up modes available
Nusing the keyboard.
Overview
The 939i keyboard is an "intelligent" keyboard that can be
programmed to show user prompts and collect data. Using the
Application Development Kit II (ADK2), an application, or script,
can be written to program the keyboard. See the ADK manual for
more information. Think of the intelligent keyboard like your PC,
where you can enter data using your PC’s keyboard or connect an
optional scanner to scan data.
With a script, you can
NCreate prompts for the user to enter data manually or using
a scanner. See Appendix C, "Configuring the System," for
more information.
NUse look up tables, or files, to store data that will be
printed on labels.
NPerform additional data tracking, data conversion, and data
manipulation.
Getting Started 1-1
Throughout this manual, you will see references to the term
script. The script is the program that runs on the keyboard to
perform a specific task, such as scanning or collecting data.
Monarch® offers custom script writing. Contact your Monarch
Representative for information and pricing on custom scripts.
Power-Up Modes
Your 939i keyboard has the ability to operate in "terminal" mode
or in "intelligent" mode (using a custom ADK2 script).
If there is no ADK2 script loaded in the keyboard, the keyboard
operates in terminal mode. You can enter data and configure the
printer. In terminal mode, the keyboard does not access the
intelligent functionality provided by a script.
If an ADK2 script is loaded in the keyboard, the script
automatically runs when the keyboard and printer are turned on.
The prompts you see and what you do are controlled by the
script.
About This Manual
This manual is arranged in several sections:
NUse Chapters 2 through 4 when your keyboard is operating in
terminal mode.
NUse Appendix A for keyboard specifications.
NUse Appendix B for the available character sets.
NUse Appendix C, with information for your System
Administrator on intelligent (script) mode and configuring the
scanner.
1-2 Getting Started
About Scripts
This manual does not cover any specific information about what
may be in your script, because each script is different. Your script
is written based on jobs you need to perform. A script should
contain several basics features:
NA way to enter and exit the script.
NA way to enter terminal mode (required for 9860 printer).
NA message about the keyboard’s backup battery when it
requires replacing.
NThe prompts for entering the date and time each time you turn
on the printer.
NThe scanner’s configuration and setup (if you are using a
scanner).
Contact your System Administrator for more information about
these items.

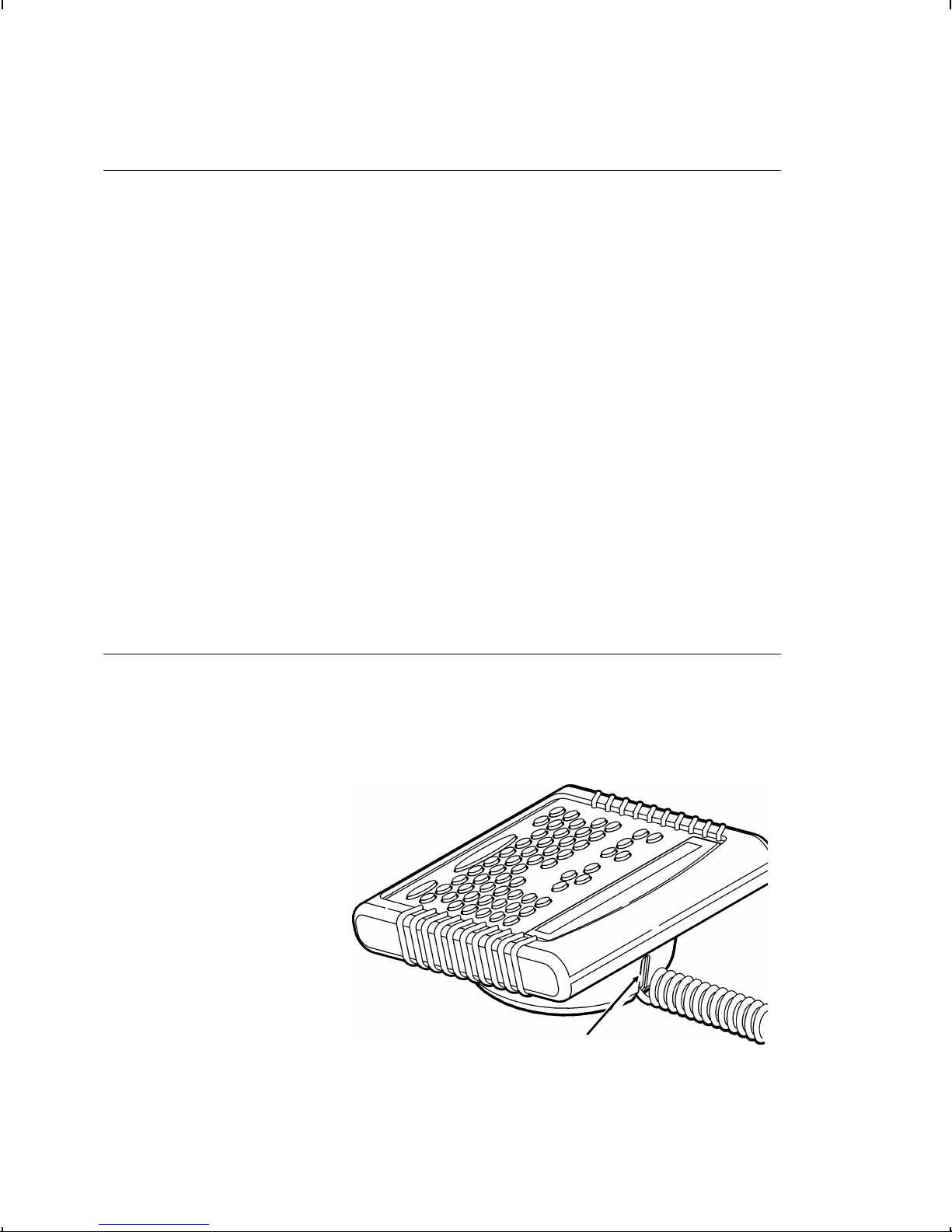

Unpacking the Ke board
After unpacking the keyboard, look through all packaging material
for parts. Keep the box and packaging material in case the
keyboard ever needs repair.
1. Pull the long,
coiled cable out
from the bottom of
the base.
2. Slide the first loop
in the cable slot as
shown.
Cable
Slot
Getting Started 1-3

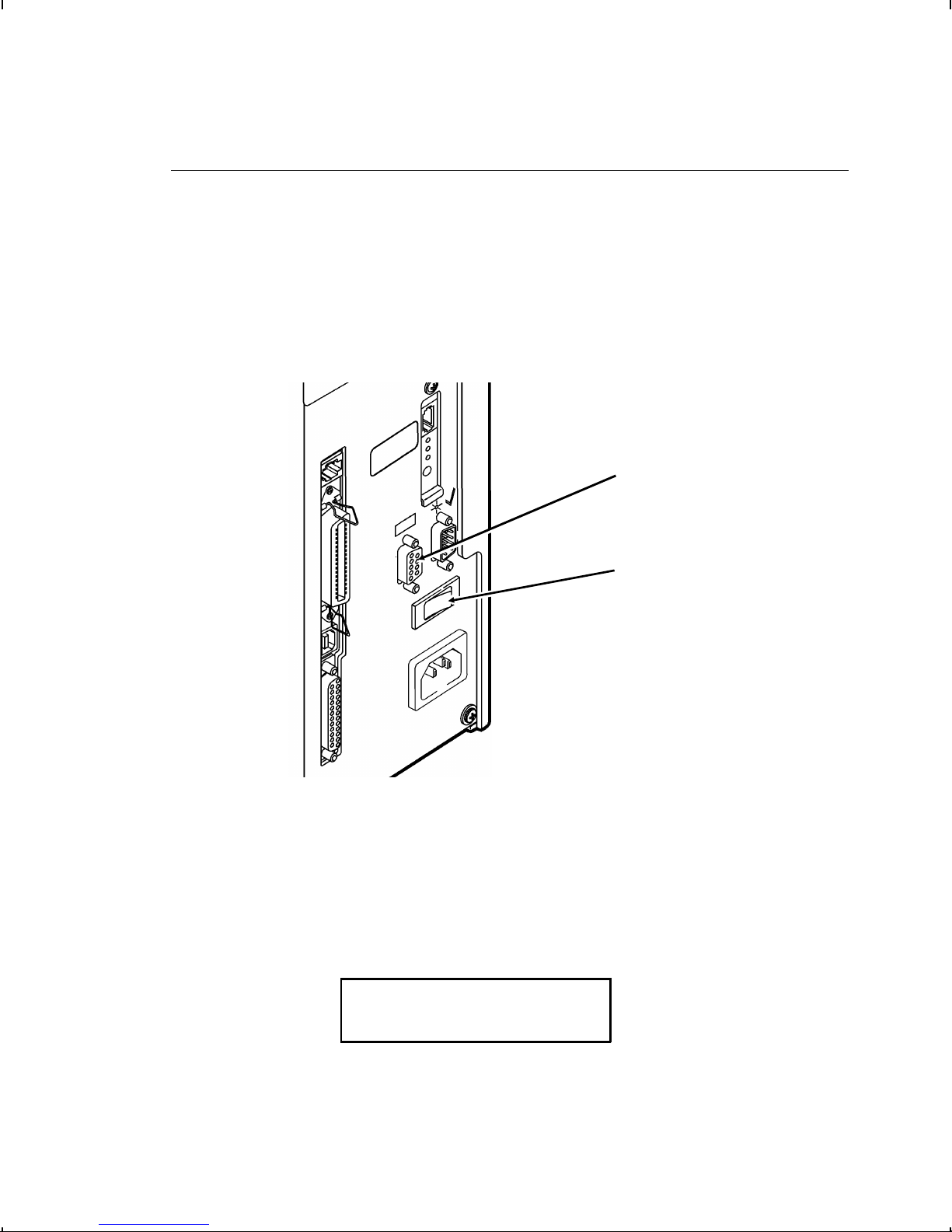

Connecting the Keyboard’s Cable
When using the keyboard with a Monarch® 9855 or 9860
printer, the keyboard receives power from the printer
1. Turn OFF the printer before you connect the keyboard’s cable
2. Plug the 9-pin coiled keyboard cable into the back of the
printer
3. Tighten the screws on the cable to secure the cable to the
printer
4. Turn ON the printer On the back of the printer, press (I) to
turn on and (O) to turn off the printer You will see the
prompts for your job If a script is not written for your job, the
keyboard displays
PRINT MODE
Ready
See your System Administrator for information about your job
Keyboard
Cable Goes
Here
ON/OFF
Switch
1-4 Getting Started

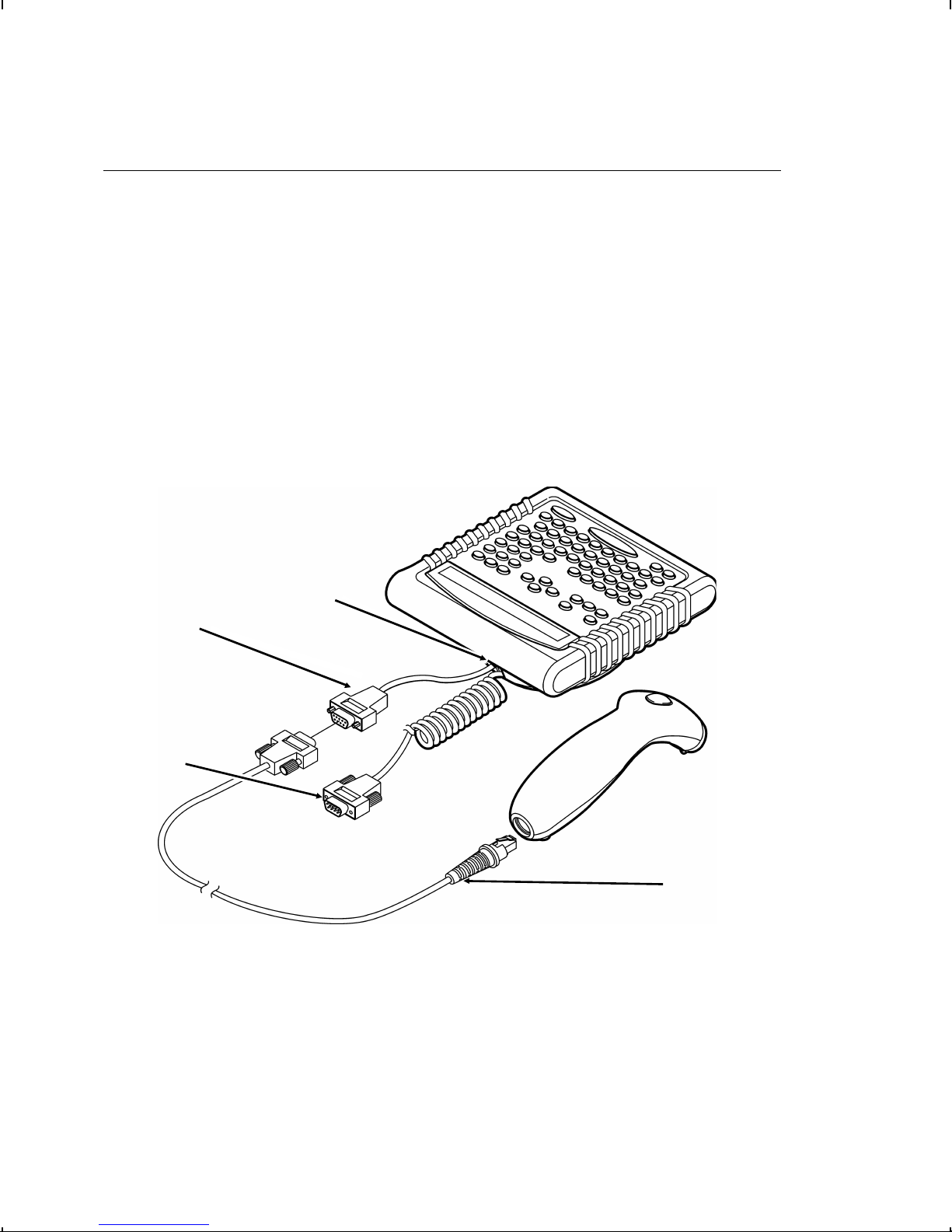

Connecting the Scanner’s Cables
A scanner is optional for the keyboard. You need to connect the
cable to the scanner and keyboard before you can use it. The
scanner receives power through the keyboard. For more
information about the scanner or other peripheral devices, refer to
their User Manuals.
1. Turn OFF the printer before you connect the scanner’s cable.
2. Reach into the bottom of the keyboard’s base and locate the
keyboard’s auxiliary serial port, which is on a short, straight
cable as shown.
3. Slide the cable into the slot on the keyboard’s base.
4. On the scanner, connect the RJ45 male connector end of the
cable into the scanner. You will hear it click into place.
5. Connect the other end (9 pin male) of the cable to the
keyboard’s auxiliary serial port (9 pin female).
6. Tighten the screws on the cable to secure the scanner cable
to the auxiliary serial port.
Cable
Slot
Auxiliar
Serial Port
Scanner
Cable
Ke board Cable
to Printer
Getting Started 1-5
7. Tuck the connectors into the keyboard’s base if necessary.
8. Turn ON the printer. Press (I) to turn on and (O) to turn off
the printer.

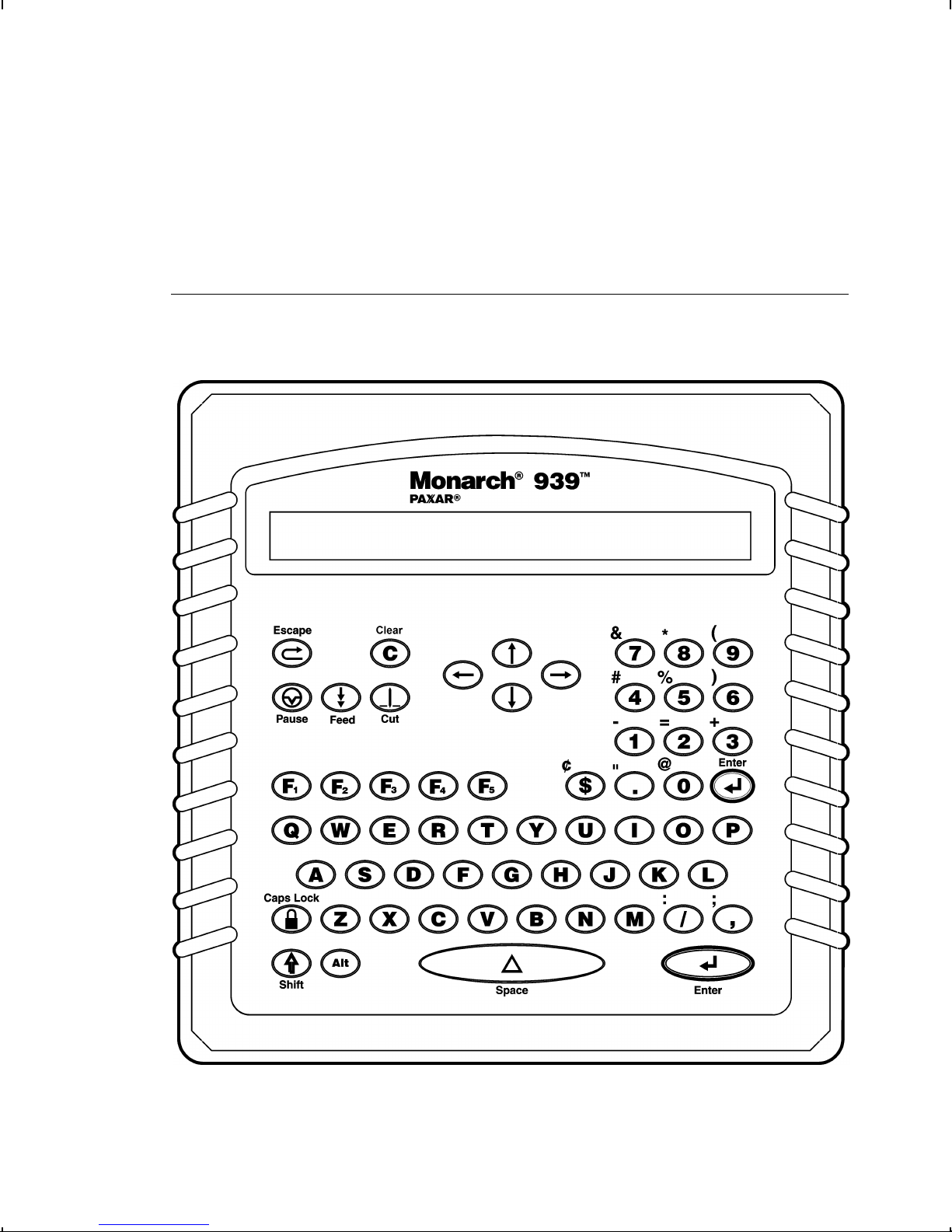

Using the Ke board
The keyboard has full alphabetic keys with 10 numeric keys, 5
function keys, 4 arrow keys, and several special keys.
1-6 Getting Started
