Paugge ENT-SW20B4A Manuel utilisateur
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
I.
Introduction
This is a high performance HDMI 4x1 switcher that supports HDTV formats up to
4Kx2K@60Hz and all HDMI 3D TV formats. It can extract HDMI stream audio to
separate digital and analog audio output. This product supports HDCP
repeater/CEC/ARC functions. Select any of the inputs by front panel button or IR
Remote, the corresponding indicator LED on the front panel will be illuminated.
II.
Package
1 x HDMI 4x1 Switcher
1 x 5V/1A Power Adapter
1 x 38KHz IR Rx cable
1 x Optical convert header (for SPDIF audio output)
1 x HDMI 4x1 IR Remote
1 x Operation Manual
III.
Features
Compliant with HDMI 2.0a, DVI 1.0 standards.
HDCP 2.2 and HDCP 1.4compliant.
Video formats up to 4Kx2K@60 and all HDMI 3D video formats.
Support PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
Digital and analog audiooutput
Support smart EDID management(Auto/2CH/5.1CH/7.1CH selectable)
Support input port auto switching or manual switching mode
Audio Return Channel (ARC) supports
IV.
Specifications
Frequency Bandwidth
Input Ports
Output port HDMI
Audio Output
ESD Protection
Dimensions (mm)
Weight (g)
Power Consumption
Operating Temperature
Storage Temperature
18Gbps
4 HDMI Female ports, 1 IR Receive port and 1
RS232 port
1 HDMI Female port and 1 L/R & Optical port
PCM 2 . 1 / 5 . 1/7.1CH, Dolby 5. 1 , DTS5.1,
Dolby-TrueHD, DTS-HD
Human Body Model:± 8kV (air-gap discharge)
± 4kV (contact discharge)
180 (D) x 85 (W) x 11.6 (H)
300
Max 2.5W
0˚C ~ 40˚C / 32˚F ~ 104˚F
-20˚C ~ 60˚C / -4˚F ~ 140˚F
1
2
3
4
5 6
V.
Switcher Operation controls and Functions
Front Panel:
1 Input indicator LED, corresponding port LED will be illuminated when its port
be selected.
Auto or manual select button:
Press this button >2 seconds to select auto switching or manual switching mode.
Under manual switching mode, short pressing this button to select input port.
EDID status LED (Auto means using TV EDID).
EDID select button (Press this button to select EDID mode Auto/2CH/5.1CH/7.1CH)
2
3
4
1
2
1
2
3 4 5 6
ARC status LED (this LED will be illuminated if ARC is enabled successfully) ARC
function on/off button
Rear Panel:
HDMI output port, connect with HDTV or monitor by HDMI cable
HDMI input ports, connect with DVD, PS4 or Set-top Box by HDMI cable
Audio output (including L/R analog and optical audio out)
RS232 port
IR receiver port
DC 5V input port
5
6
3
4
5
6
ARC
Press this button to enable or
disable ARC function.
ARC LED on front panel will be illuminated if ARC
function is enabledsuccessfully.
Auto
2.1ch
5.1ch
7.1ch
Press these buttons to select different EDID setting
and corresponding LED on front panel will be
illuminated.
Auto
Source
Press this button to select auto switching or manual
switching mode.
In1
In2
In3
In4
Under manual switching mode, press this
button
to select input port.
ARC
Auto 2.1ch
In1
In2 In3
Auto
Source
In4
5.1ch
7.1ch
VI.

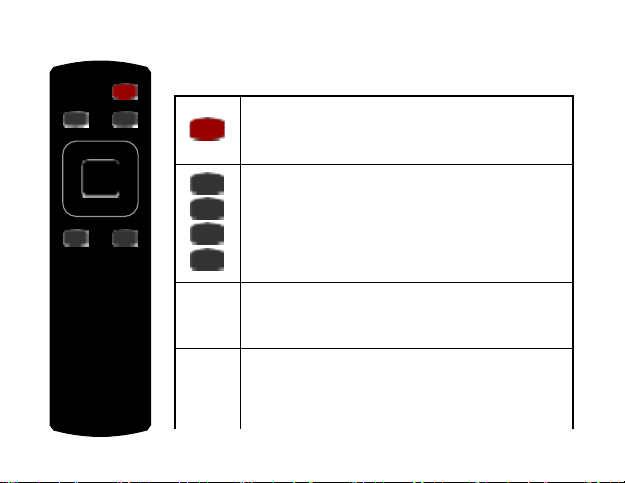

IR Remote
VII.
Application Example
