MODEL 2300M SERIES

OpticLink Ethernet

Media Converters

(2300M, 2310M,

2311M,& 2312M)

SALES OFFICE

(301) 975-1000

TECHNICAL SUPPORT

(301) 975-1007

Part# 07M2300M

Doc# 077321U Rev. A

Revised 4/14/03

An ISO-9001

Certiﬁed Company

CONTENTS

1.0 Warranty Information ................................................................. 3

1.1 Radio and TV Interference............................................................ 3

1.2 CE Notice...................................................................................... 3

1.3 Service.......................................................................................... 4

2.0 General Information.................................................................... 5

2.1 Features........................................................................................ 5

2.2 Description.................................................................................... 6

3.0 Installation................................................................................... 8

3.1 Installing a media converter.......................................................... 8

3.2 End-to-end connection................................................................ 11

4.0 Operation................................................................................... 12

4.1 LED indicators ............................................................................ 12

A Specifications ........................................................................... 14

A.1 Interfaces/Connectors ................................................................ 14

A.2 Interface Speed .......................................................................... 14

A.3 Transmission Mode ..................................................................... 14

A.4 Twisted-Pair/Copper Cable Type* .............................................. 14

A.5 Fiber Cable Type ........................................................................ 14

1.6 Fiber Wavelength........................................................................ 14

A.7 Fiber Optic Link Budget .............................................................. 15

Transmit power........................................................................... 15

Receiver Sensitivity.................................................................... 15

Delay Time ................................................................................. 15

Typical Fiber Max. Distance....................................................... 15

A.8 Standards ................................................................................... 15

A.9 LED Status Indicators ................................................................. 15

A.10 Compliance ................................................................................. 16

A.11 Power .......................................................................................... 16

A.12 Packaged Weight ....................................................................... 16

A.13 Dimensions ................................................................................. 16

A.14 Environment ................................................................................ 16

1.0 WARRANTY INFORMATION

Patton Electronics

warrants all Model 2300M Series components to be

free from defects, and will—at our option—repair or replace the product

should it fail within one year from the ﬁrst date of shipment.

This warranty is limited to defects in workmanship or materials, and does

not cover customer damage, abuse, or unauthorized modiﬁcation. If this

product fails or does not perform as warranted, your sole recourse shall

be repair or replacement as described above. Under no condition shall

Patton Electronics

be liable for any damages incurred by the use of this

product.These damages include, but are not limited to, the following:lost

proﬁts, lost savings and incidental or consequential damages arising

from the use of or inability to use this product.

Patton Electronics

spe-

ciﬁcally disclaims all other warranties, expressed or implied, and the

installation or use of this product shall be deemed an acceptance of

these terms by the user.

1.1 RADIO AND TV INTERFERENCE

The Model 2300M Series generates and uses radio frequency energy,

and if not installed and used properly—that is, in strict accordance with

the manufacturer's instructions—may cause interference to radio and

television reception.The Model 2300M Series has been tested and

found to comply with the limits for a Class A computing device in accor-

dance with the speciﬁcations in Subpart B of Part 15 of FCC rules, which

are designed to provide reasonable protection from such interference in

a commercial installation. However, there is no guarantee that interfer-

ence will not occur in a particular installation.If a 2300M Series unit does

cause interference to radio or television reception, which can be deter-

mined by disconnecting the cables, the user is encouraged to try to cor-

rect the interference by one or more of the following measures: moving

the computing equipment away from the receiver, re-orienting the receiv-

ing antenna, and/or plugging the receiving equipment into a different AC

outlet (such that the computing equipment and receiver are on different

branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates that it is

in compliance with the Electromagnetic Compatibility (EMC) directive

and the Low Voltage Directive (LVD) of the Union European (EU).A Cer-

tiﬁcate of Compliance is available by contacting Technical Support.

1.3 SERVICE

All warranty and nonwarranty repairs must be returned freight prepaid

and insured to Patton Electronics. All returns must have a Return Materi-

als Authorization number on the outside of the shipping container.This

number may be obtained from Patton ElectronicsTechnical Services at:

• Tel:

(301) 975-1007

• Email:

[email protected]

• URL:

http://www.patton.com

Note

Packages received without an RMA number will not be

accepted.

Caution

This device is not intended to be connected to the public

telephone network.

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product. It has

been thoroughly inspected and tested and is warranted for

one year

for

parts and labor. If you have any questions about this product, please call

Patton Electronics Technical Support at (301) 975-1007.

2.1 FEATURES

• Cost effective plug and play solution for converting both 10Base-T and

100Base-TX to 10Base-FL, 100Base-FX, and 100Base-SX

• Supports 802.3 and 802.3u, 10Base-T, 10Base-FL, 100Base-TX,

100Base-FX, and 100Base-SX industry standards

• Extends network connections up to 2 km (1.24 miles) (300 m for Model

2311 in 100BASE-SX Mode) over multi-mode ﬁber media.

• Low power consumption

• Auto-sensing full or half duplex Ethernet operation

• Twisted Pair MDI/MDI-X switch

• ST or SC connectors for connecting to multimode ﬁber media

• Ultra-miniature MicroPak Chassis

• LED indicators for Power, Fiber Link and Activity, and Twisted-pair Link

and Activity

• External power supply adapter with AC and DC options

2.2 DESCRIPTION

There are four base models in the Patton Model 2300M Series of stan-

dards compliant Ethernet Media Converters (see Table 1) that convert

and extend the reach of copper Ethernet over multi-mode ﬁber.

• The Model 2300M converts 100Base-TX to 100Base-FX and extends

up to 1.24 miles (2.0 km).

Note

The Model 2300M can be used to connect auto-sensing 10/100

and 100Base-TX/100Base-FX network devices only; it is not

capable of connecting to 10Base-T/10Base-FL network devices.

• The Model 2310M converts 10Base-T to 10Base-FL and extends up to

1.24 miles (2.0 km).

Note

The Model 2310M can be used to connect auto-sensing 10/100

and 10Base-T/10Base-FL network devices only;it is not capable

of connecting to 100Base-TX/100Base-FX or SX network

devices.

• The Model 2311M auto-negotiates and converts 10Base-T/100Base-

TX to 10Base-FL/100Base-SX and extends up to 1.24 miles (2.0 km)

in 10Base-FL mode and 0.19 miles (0.3 km) in 100Base-SX mode.

Note

The Model 2311M can be used to connect auto-sensing 10/100,

10Base-T/10Base-FL, and 100Base-T/100Base-SX network

devices, however, it is not capable of connecting to 100Base-FX

network devices. Further, the Model 2311M cannot connect a

10Base network device on one side to a 100Base network

device on the other.

If a 10Base network device is on one side of the Model 2311M,

there must be another 10Base or an auto-sensing 10/100 net-

work device on the other.If a 100Base network device is on one

Table 1:

Model 2300M conﬁgurations

Model Twisted-Pair

Standard Fiber

Standard Connector Distance Wavelength

2300M-ST 100Base-TX 100Base-FX ST 2 km 1300nm

2300M-SC 100Base-TX 100Base-FX SC 2 km 1300 nm

2310M-ST 10Base-T 10Base-FL ST 2 km 850nm

2310M-SC 10Base-T 10Base-FL SC 2 km 850nm

2311M-ST 10Base-T/

100Base-TX 10Base-FL/

100Base-SX ST 2 km/300 m 850nm

2311M-SC 10Base-T/

100Base-TX 10Base-FL/

100Base-SX SC 2 km/300 m 850nm

2312M-ST 10Base-T/

100Base-TX 10Base-FL/

100Bawe-Fx ST 2 km 1300nm

2312M-SC 10Base-T/

100Base-TX 10Base-FL/

100Bawe-Fx SC 2 km 1300nm

side of the Model 2311M, there must be another 100Base or an

auto-sensing 10/100 network device on the other.

The Model 2311M is the ideal product for customers who currently have

10Base-T networks and/or equipment and are planning to upgrade to

100Base-TX in the future.The Model 2311 provides a migration path

from 10Base-T/10Base-FL to 100Base-TX/100Base-SX, which elimi-

nates the need to upgrade and lowers the overall cost of ownership.

• The Model 2312M auto-negotiates and converts 10/100Base-TX to

10Base-FL/100Base-FX and extends up to 1.24 miles (2.0 km).

Note

The Model 2312M can be used to connect auto-sensing

10Base-T/10Base-FL and 100Base-TX/100Base-FX network

devices, however, it is not capable of connecting to 10BasE net-

work devices. Further, the Model 2312M cannot connect a

10Base network device on one side to a 100Base network

device on the other.

If a 10Base network device is on one side of the Model 2312M,

there must be another 10Base or an auto-sensing 10/100 net-

work device on the other.If a 100Base network device is on one

side of the Model 2312M, there must be another 100Base or an

auto-sensing 10/100 network device on the other.

The Model 2312M is the ideal product for customers who currently have

10Base-T networks and/or equipment and are planning to upgrade to

100Base-TX in the future.The Model 2312 provides a migration path

from 10Base-T/10Base-FL to 100Base-TX/100Base-FX, which elimi-

nates the need to upgrade and lowers the overall cost of ownership.

All Patton 2300M Series models are packaged in an ultra-miniature

MicroPak chassis and feature power, ﬁber link and activity, and twisted-

pair link and activity LED indicators.The Model 2300M Series of Ether-

net Media Converters can be ordered with ST or SC ﬁber optic connec-

tors and with 120VAC, 220VAC, universal interface (UI), -48 VDC, -24

VDC, or -12 VDC power supply adapters. Power cord designations for

220VAC and UI models must be speciﬁed at the time of purchase.

3.0 INSTALLATION

The following sections describe installing and conﬁguring the Model

2300M Series of Ethernet Media Converters

3.1 INSTALLING A MEDIA CONVERTER

Do the following to install the Model 2300M Series of Ethernet Media

Converters:

1. The MDI/MDI-X switch enables you to connect the 2300M models to

different types of network devices using a standard (straight-

through) network patch cable.

To connect the 2300M models to a terminal, transceiver, or network inter-

face card (NIC), set the switch to the MDI-X (lefthand) position (see

Figure 1).

Otherwise, to connect to a hub or switch, set the switch to the MDI (right-

hand) position (see Figure 1).

Figure 1.

MDI/MDI-X switch, Ethernet RJ-45 jack, and power jack locations

Gaithersburg, Maryland

Model 2311M

Auto-Negotiating Ethernet

Media Converter

10/100Base-T/TX to 10/100Base-FL/SX

PWR

TP100

TPACT

TP10

FO100

FOACT

FO10

2. The media converter comes equipped with a shielded RJ-45 Jack

for Ethernet connections (see Figure 1 on page 8).

Connect the Ethernet RJ-45 jack to the appropriate 802.3 compliant

network equipment via a standard network patch cable (not pro-

vided).The pinout diagrams in Figure 2 reﬂect the pinouts of the

Ethernet RJ-45 jack when switched to MDI and MDI-X settings.

Note

Twisted-pair connections from the Ethernet RJ-45 Jack to the

network device should be 802.3 compliant (Category 5 STP or

UTP recommended) and must not exceed 100 meters (328

feet). Do not use ﬂat or satin cable.

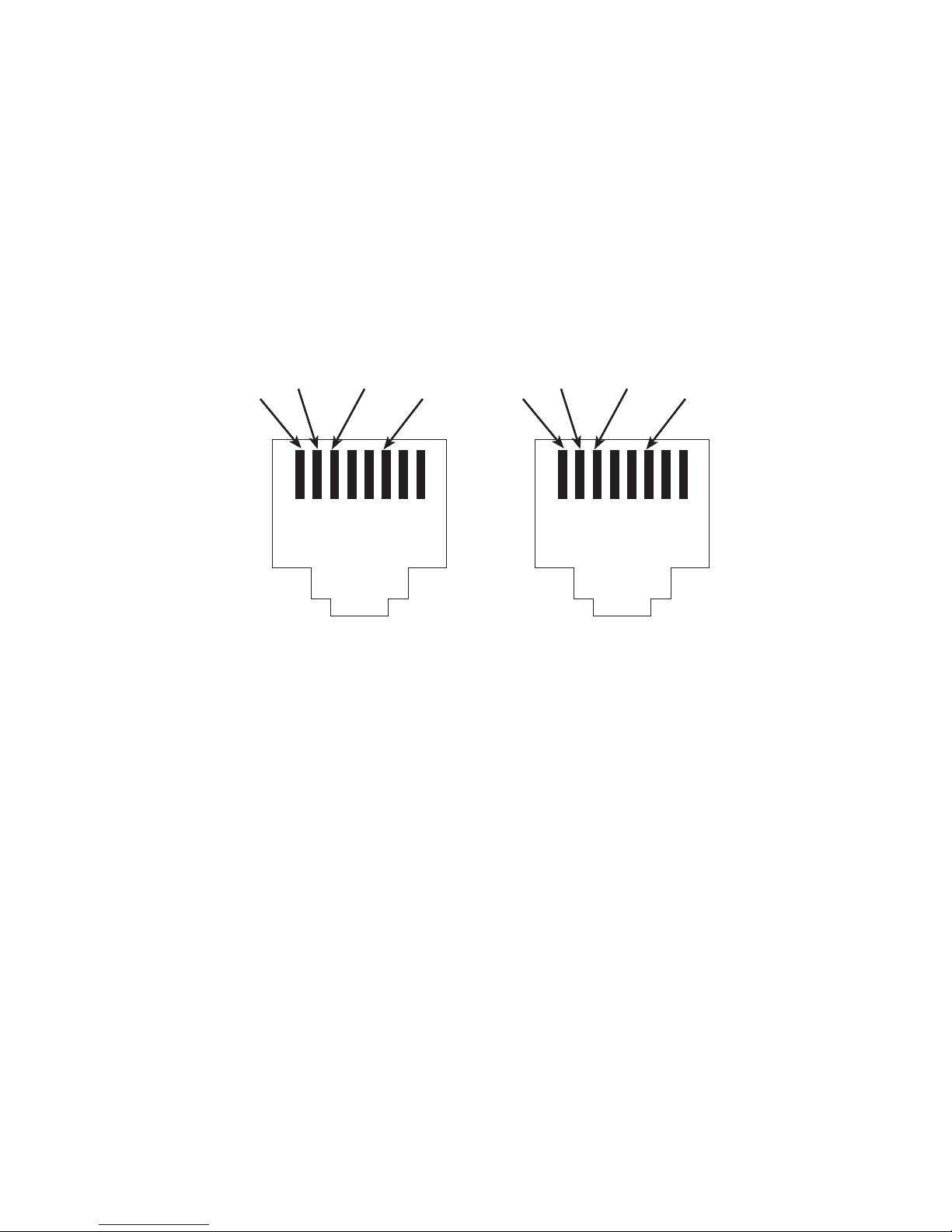

Figure 2.

Shielded Ethernet RJ-45 Jack pin-outs with different MDI/MDI-X switch settings

T+

12345678

T+ R+ R-

MDI

R+

12345678

R+ T+ T-

MDI-X

3. Connect the dual ﬁber ST or SC connectors on the media converter

(see Figure 3) directly to the 802.3 compliant multi-mode ﬁber cable

equipped with male ST or SC connectors or via 802.3 compliant

multi-mode ﬁber patch cord (not provided) and corresponding ST or

SC ﬁber wall jacks.

Note

Verify that the cable connecting theTX and RX of the 2300M

Series unit is connected to the RX and TX respectively on the

remote 2300M Series unit or network device. End-to-end multi-

mode ﬁber connections between two Model 2300M Series

Ethernet Media Converters or between one Model 2300M

Series Media Converter and other network devices must not

exceed 2 km (1.24 miles), 298.7 m (980 ft) in 100Base-SX mode

(Model 2311M only).

Figure 3.

Fiber connector locations

4. Connect the DC power output side of the power supply adapter to

the power jack (see Figure 1 on page 8) on the 2300M Series unit.

5. Connect the AC power side/cord of the power supply adapter to the

appropriate AC power source.

The media converter will power up and LED indicators will illuminate

once connected to the power source.

Gaithersburg, Maryland

Model 2311M

Auto-Negotiating Ethernet

Media Converter

10/100Base-T/TX to 10/100Base-FL/SX

PWR

FO100

FOACT

FO10

TP100

TPACT

TP10

ST or SC style

fiber connectors

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Patton electronics Convertisseur de média

Patton electronics

Patton electronics 2090 Series Manuel utilisateur

Patton electronics

Patton electronics 2011 Manuel utilisateur

Patton electronics

Patton electronics 2017RC Manuel utilisateur

Patton electronics

Patton electronics 2702 G.703 Manuel utilisateur

Patton electronics

Patton electronics 2030 Manuel utilisateur

Patton electronics

Patton electronics 2085RC Manuel utilisateur

Patton electronics

Patton electronics 2086 Series Manuel utilisateur

Patton electronics

Patton electronics 2036P Manuel utilisateur

Patton electronics

Patton electronics 2072 Manuel utilisateur

Patton electronics

Patton electronics 1104 Series Manuel utilisateur

Patton electronics

Patton electronics Kilo-Link 2073 Manuel utilisateur

Patton electronics

Patton electronics 2039 Manuel utilisateur

Patton electronics

Patton electronics 2040 Series Manuel utilisateur

Patton electronics

Patton electronics 2017A Manuel utilisateur

Patton electronics

Patton electronics 222N, 222NS Manuel utilisateur

Patton electronics

Patton electronics 222NRC Manuel utilisateur

Patton electronics

Patton electronics 2029 Manuel utilisateur

Patton electronics

Patton electronics 2042 Series Manuel utilisateur

Patton electronics

Patton electronics 2070 Series Manuel utilisateur

Patton electronics

Patton electronics 2710A Series Manuel utilisateur

Patton electronics

Patton electronics 2073RC Manuel utilisateur

Patton electronics

Patton electronics 2026 Manuel utilisateur

Patton electronics

Patton electronics 2014 Manuel utilisateur

Patton electronics

Patton electronics 2085 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
