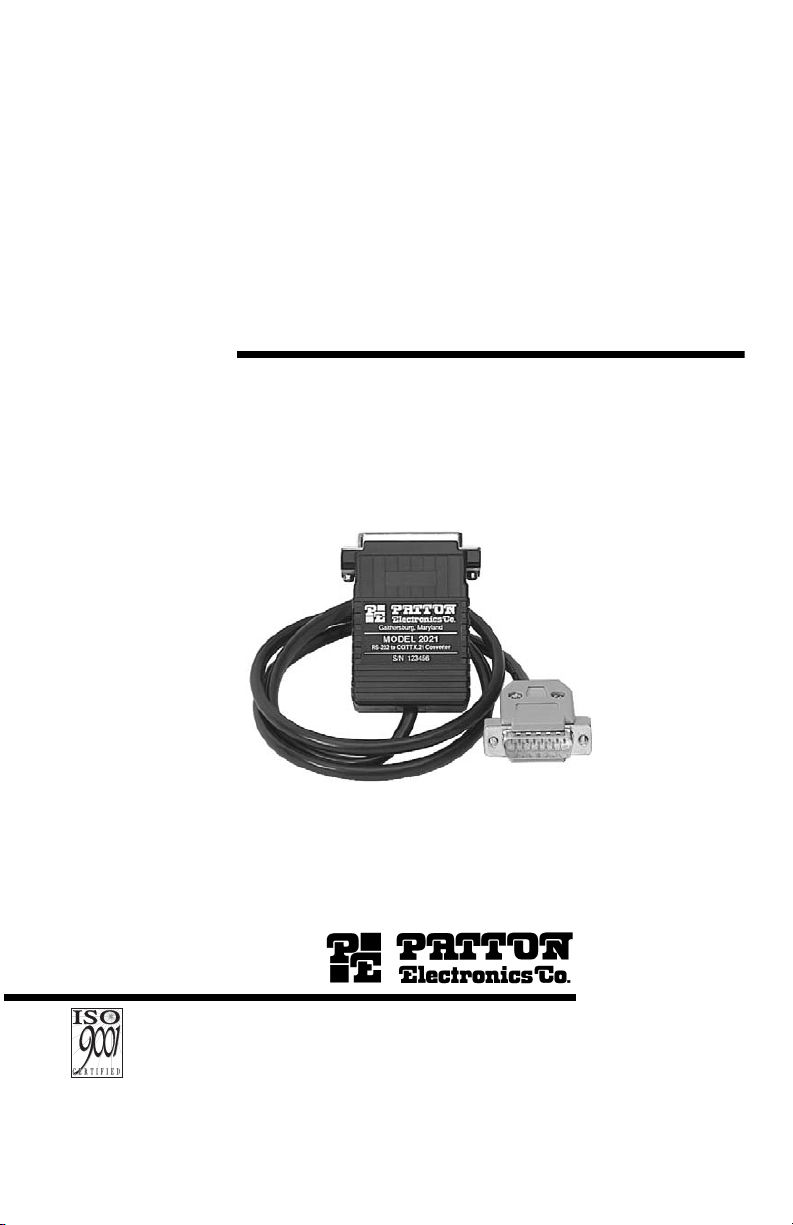

Patton electronics 2021 Manuel utilisateur

USER

MANUAL

MODEL 2021

Interface Powered

RS-232 to X.21 Converter

SALES OFFICE

(301) 975-1000

TECHNICAL SUPPORT

(301) 975-1007

http//:www.patton.com

Part #07M2021-C

Doc. #077061U,

Rev. D

Revised 1/22/08

CERTIFIED

An ISO-9001

Certified Company

Dear Valued Customer,

Thank you for purchasing Patton Electronics products! We do

appreciate your business. I trust that you find this user manual helpful.

We manufacture one of the widest selections of data

communications products in the world including CSU/DSU's, network

termination units, powered and self-powered short range modems, fiber optic

modems, interface converters, baluns, electronic data switches, data-line surge

protectors, multiplexers, transceivers, hubs, print servers and much more. We

produce these products at our Gaithersburg, MD, USA, facility, and can

custom manufacture products for your unique needs.

We would like to hear from you. Please contact us in any of the

following ways to tell us how you like this product and how we can meet your

product needs today and in the future.

Web: http://www.patton.com

Sales E-mail: [email protected]

Support E-mail: [email protected]

Phone - Sales (301) 975-1000

Phone - Support (301) 975-1007

Fax: (301) 869-9293

Mail: Patton Electronics Company

7622 Rickenbacker Drive

Gaithersburg, MD 20879 USA

We are committed to a quality product at a quality price. Patton

Electronics is ISO 9001 certified. We meet and exceed the highest standards

in the industry (CE, UL, etc.).

It is our business to serve you. If you are not satisfied with any

aspect of this product or the service provided from Patton Electronics or its

distributors, please let us know.

Thank you.

Burton A.Patton

Vice President

P.S. Please tell us where you purchased this product.

1.0 WARRANTY INFORMATION

Patton Electronics warrants all Model 2021 components to be

free from defects, and will—at our option—repair or replace the product

should it fail within one year from the first date of shipment.

This warranty is limited to defects in workmanship or materials, and

does not cover customer damage, abuse or unauthorized modification.

If this product fails or does not perform as warranted, your sole

recourse shall be repair or replacement as described above. Under no

condition shall Patton Electronics be liable for any damages incurred

by the use of this product. These damages include, but are not limited

to, the following: lost profits, lost savings and incidental or

consequential damages arising from the use of or inability to use this

product. Patton Electronics specifically disclaims all other warranties,

expressed or implied, and the installation or use of this product shall be

deemed an acceptance of these terms by the user.

1.1 RADIO AND TV INTERFERENCE

The Model 2021 generates and uses radio frequency energy, and if

not installed and used properly—that is, in strict accordance with the

manufacturer's instructions—may cause interference to radio and

television reception. The Model 2021 has been tested and found to

comply with the limits for a Class A computing device in accordance

with the specifications in Subpart J of Part 15 of FCC rules, which are

designed to provide reasonable protection from such interference in a

commercial installation. However, there is no guarantee that

interference will not occur in a particular installation. If the Model 2021

does cause interference to radio or television reception, which can be

determined by disconnecting the RS-232 interface, the user is

encouraged to try to correct the interference by one or more of the

following measures: moving the computing equipment away from the

receiver, re-orienting the receiving antenna and/or plugging the

receiving equipment into a different AC outlet (such that the computing

equipment and receiver are on different branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates

that it is in compliance with the Electromagnetic Compatibility (EMC)

directive and the Low Voltage Directive (LVD) of the Union European

(EU). A Certificate of Compliance is available by contacting Technical

Support.

1.3 SERVICE

All warranty and non-warranty repairs must be returned freight

prepaid and insured to Patton Electronics. All returns must have a

Return Materials Authorization number on the outside of the shipping

container. This number may be obtained from Patton Electronics

Technical Support: (301) 975-1007; http://www.patton.com; or,

[email protected].

NOTE: Packages received without an RMA number will not be

accepted.

Patton Electronics' technical staff is also available to answer any

questions that might arise concerning the installation or use of your

Model 2021. Technical Support hours: 8AM to 5PM EST, Monday

through Friday.
