Patton electronics 2013 Manuel utilisateur
USER
MANUAL
MODEL 2013
Asynchronous
RS-232 to TDI
Interface Converter
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
http://www.patton.com
Part# 07M2013-A
Doc# 077021UA
Revised 11/28/94
WARRANTY
Patton Electronics warrants all Model 2013 components to be
free from defects, and will—at our option—repair or replace the product
should it fail within one year from the first date of shipment. This war-
ranty is limited to defects in workmanship or materials, and does not
cover customer damage, abuse or unauthorized modification. If this
product fails or does not perform as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics be liable for any damages incurred by the use of
this product. These damages include, but are not limited to, the follow-
ing: lost profits, lost savings and incidental or consequential damages
arising from the use of or inability to use this product. Patton
Electronics specifically disclaims all other warranties, expressed or
implied, and the installation or use of this product shall be deemed an
acceptance of these terms by the user.
SERVICE AND SUPPORT
All warranty and non-warranty repairs must be returned freight pre-
paid and insured to Patton Electronics. All returns must have a Return
Materials Authorization number on the outside of the shipping container.
This number may be obtained from Patton Electronics Technical
Service at (301) 975-1007.
Packages received without an RMA number
will not be accepted.
Patton Electronics' technical staff is also available
to answer any questions that might arise concerning the installation or
use of your Model 2013. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.
PRODUCT DESCRIPTION
The Patton Model 2013 Asynchronous RS-232 to TDI Interface
Converter lets you connect an RS-232 DTE device (PC, ATM terminal,
teller terminal, etc.) to a Two-wire Direct Interface (TDI) Line Driver
such as a Burroughs (Unisys) A,V or B Series Mainframe. Requiring
no user configuration, the Model 2013 is also compatible with Unisys
B20, B25 and B27 micros. The Model 2013 is transparent to baud rate
and supports TDI distances to 1000 feet. Distances to 100’ are possi-
ble on the RS-232 side of the unit.
The Model 2013 needs no AC power or batteries for operation,
drawing necessary operating power from pin 20 of the RS-232 DTE
interface. Full duplex emulation is accomplished using DTE pin 6 and
8, while pins 4 and 5 are looped back internally. The Model 2013 is
equipped with a female DB-25 on the RS-232 side and a male DB-25
on the TDI side. One LED indicator on each side shows received data.
The Model 2013 supports up to 10 terminal drops in a polling environ-
ment. 12
MODEL 2013 INSTALLATION
The Patton Model 2013 is easy to install and requires no user con-
figuration. Simply plug the Model 2013’s DB-25 female connector
directly into the DB-25 serial port of your PC or other DTE device.
Then connect the TDI device to the DB-25 male connector on the
Model 2013 using a straight through serial cable. Below are the inter-
face signal/pin requirements for the Model 2013:
RS-232 DTE 2013 (RS-232) 2013 (TDI) TDI Device
1 --------------------1 FG FG 1--------------1
2 --------------------2 TD Data 2--------------2
3 --------------------3 RD SG 7--------------7
4 --------------------4 RTS
5 --------------------5 CTS
6 --------------------6 DSR
8 --------------------8 DCD
20 ------------------20 DTR [>/= 6.2V DC (unloaded) required]*
Please note the following requirements and/or limitations when
installing the Model 2013:
1) Nearly all TDI equipment falls under the category of “line driv-
ers” or “line receivers”. The Model 2013 is a line
receiver
, and may
only be connected to line
driver
, such as a Burroughs CPU line
adapter. Connection of the Model 2013 to another line receiver, such
as a modem or T27 terminal, is not possible.
*2) Successful operation of the Model 2013 requires that your RS-
232 DTE device supply >/= 6.2V DC (unloaded) or >/= 6.8V DC
(loaded) on pin 20 . RS-232 TD/RD levels must be between +/- 15V
DC and +/- 3V DC. The TDI line driver must also supply 0V (ground)
and -12V (data) levels.
3) The Maximum loading for the Model 2013 is one RS-232
device. Up to 10 Model 2013’s may be connected to one TDI line driv-
er in a multi-point polling environment.
4) If you must connect the Model 2013 to your RS-232 device
using a cable, the cable should be no longer than 100 ft. The distance
between the Model 2013 and the TDI line driver should be no greater
than 1000 ft.
PATTON MODEL 2013 SPECIFICATIONS
Transmission Format: Asynchronous, full or half duplex
Interface Standards: Unisys TDI, CCITT V.28.EIA/RS-232D
RS-232 Connection: DB-25 female, configured as DCE
RS-232 (DTE) Pins
Required: 2, 3, 4, 5, 6, 8 and 20
TDI Connection: DB-25 male; TD/RD on pin 2, signal ground
on pin 7, chassis ground on pin 1 (where
needed)
Maximum RS-232
Distance: 100’ over three twisted pairs
Maximum TDI
Distance: 1000’ over one twisted pair
Maximum Terminals
Supported: One RS-232 (DTE) terminal, 10 TDI
terminals
LED Indicators: RD on each side
Data Rates: Transparent to data rate
Power Supply: No AC power or batteries required; DC
voltage of >/= 6.2 V (unloaded) or >/= 6.8 V
(loaded) supplied to device via RS-232
(DTE) pin 20
Dimensions: 2.20”L x 1.75”W x 0.75”H
© Copyright
Patton Electronics Company
All Rights Reserved
3
Autres manuels Patton electronics Convertisseur de média
Patton electronics
Patton electronics 2020RC Manuel utilisateur
Patton electronics
Patton electronics 2030 Manuel utilisateur
Patton electronics
Patton electronics 2300M Manuel utilisateur
Patton electronics
Patton electronics 285 Manuel utilisateur
Patton electronics
Patton electronics 2011 Manuel utilisateur
Patton electronics
Patton electronics 2072 Manuel utilisateur
Patton electronics
Patton electronics 2073RC Manuel utilisateur
Patton electronics
Patton electronics 1104 Series Manuel utilisateur
Patton electronics
Patton electronics 2090 Series Manuel utilisateur
Patton electronics
Patton electronics 2020 Manuel utilisateur
Patton electronics
Patton electronics 2015 Manuel utilisateur
Patton electronics
Patton electronics 2085 Manuel utilisateur
Patton electronics
Patton electronics 2018 Manuel utilisateur
Patton electronics
Patton electronics 2021 Manuel utilisateur
Patton electronics
Patton electronics 2022 Manuel utilisateur
Patton electronics

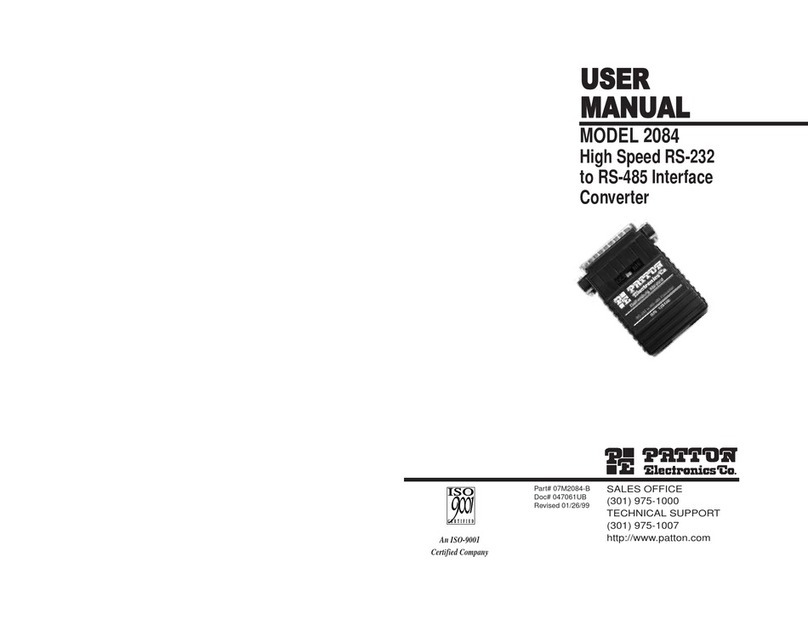

Patton electronics 2084 Manuel utilisateur
