Patton electronics CopperLink 2158 Manuel utilisateur

USER

MANUAL

CopperLink™ Ethernet

Extenders

Model 2158 & 2168

Part# 07M2158_2168 Rev. A

Doc# 058091U

Revised 3/24/03

An ISO-9001Certiﬁed

Company

CONTENTS

1.0 Warranty Information ................................................................. 4

1.1 Radio and TV Interference............................................................ 4

1.2 CE Notice...................................................................................... 4

1.3 Service.......................................................................................... 5

2.0 General Information.................................................................... 6

2.1 Features........................................................................................ 6

2.2 Description.................................................................................... 6

3.0 Installation................................................................................... 8

3.1 Standalone unit installation........................................................... 8

3.2 Rack card installation.................................................................... 9

3.3 Connecting the Twisted-Pair Line Interface................................ 10

3.4 Connecting the 10/100Base-T Ethernet Interface ...................... 11

Connecting the 10/100Base-T Ethernet Port to a Hub............... 12

Connecting the 10/100Base-T Ethernet Port to a PC (DTE)...... 12

3.5 Connecting Power ...................................................................... 12

4.0 Configuration (Model 2168 Only) ............................................ 14

4.1 Configuring the hardware DIP switches...................................... 14

4.2 Configuring DIP Switch S1 ......................................................... 16

Switch S1-1: Ethernet Auto Sense............................................. 16

Switches S1-2 and S1-4: Data Rate........................................... 16

5.0 Operation................................................................................... 18

5.1 Power Up.................................................................................... 18

5.2 Front Panel LED Status Monitors............................................... 18

A Specifications ........................................................................... 21

A.1 LAN Connection .......................................................................... 21

A.2 Transmission Line ....................................................................... 21

A.3 CopperLink Line Rate ................................................................. 21

A.4 CopperLink Distance .................................................................. 21

A.5 CopperLink Surge Suppressor ................................................... 21

A.6 LED Status Indicators ................................................................. 21

A.7 Power Supply .............................................................................. 21

A.8 Temperature Range .................................................................... 22

A.9 Humidity ...................................................................................... 22

A.10 Dimensions ................................................................................. 22

B Model 2158 Series Factory

Replacement Parts and Accessories...................................... 23

C Model 2168 Series Factory

Replacement Parts and Accessories...................................... 24

D CopperLink Series Interface Pin Assignment........................ 25

D.1 10/100Base-T Interface .............................................................. 25

RJ-45.......................................................................................... 25

D.2 CopperLink Interface .................................................................. 25

RJ-45.......................................................................................... 25

Terminal Block............................................................................ 25

E Distance Chart, Based on 24 AWG (0.5 MM).......................... 26

1.0 WARRANTY INFORMATION

Patton Electronics

warrants all CopperLink Ethernet Extender compo-

nents to be free from defects, and will—at our option—repair or replace

the product should it fail within one year from the ﬁrst date of the ship-

ment.

This warranty is limited to defects in workmanship or materials, and does

not cover customer damage, abuse or unauthorized modiﬁcation.If this

product fails or does not performs as warranted, your sole recourse shall

be repair or replacement as described above.Under no condition shall

Patton Electronics

be liable for any damages incurred by the use of this

product.These damages include, but are not limited to, the following:lost

proﬁts, lost savings and incidental or consequential damages arising

from the use of or inability to use this product.

Patton Electronics

spe-

ciﬁcally disclaims all other warranties, expressed or implied, and the

installation or use of this product shall be deemed an acceptance of

these terms by the user.

Note

Conformity documents of all Patton products can be viewed

online at www.patton.com under the appropriate product page.

1.1 RADIO AND TV INTERFERENCE

The CopperLink Ethernet Extender generates and uses radio frequency

energy, and if not installed and used properly-that is, in strict accordance

with the manufacturer’s instructions-may cause interference to radio and

television reception.The CopperLink Ethernet Extender has been tested

and found to comply with the limits for a Class A computing device in

accordance with speciﬁcations in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection from such interfer-

ence in a commercial installation. However, there is no guarantee that

interference will not occur in a particular installation. If the CopperLink

Ethernet Extender does cause interference to radio or television recep-

tion, which can be determined by disconnecting the unit, the user is

encouraged to try to correct the interference by one or more of the follow-

ing measures: moving the computing equipment away from the receiver,

re-orienting the receiving antenna and/or plugging the receiving equip-

ment into a different AC outlet (such that the computing equipment and

receiver are on different branches).

1.2 CE NOTICE

The CE symbol on your Patton Electronics equipment indicates that it is

in compliance with the Electromagnetic Compatibility (EMC) directive

and the Low Voltage Directive (LVD) of the European Union (EU).A Cer-

tiﬁcate of Compliance is available by contacting Technical Support.

1.3 SERVICE

All warranty and non-warranty repairs must be returned freight prepaid

and insured to Patton Electronics. All returns must have a Return Materi-

als Authorization number on the outside of the shipping container.This

number may be obtained from Patton Electronics Technical Services at:

• Tel:

(301) 975-1007

• Email:

[email protected]

• URL:

http://www.patton.com

Note

Packages received without an RMA number will not be

accepted.

2.0 GENERAL INFORMATION

Thank you for your purchase of this Patton Electronics product.This

product has been thoroughly inspected and tested and is warranted for

one year for parts and labor. If any questions or problems arise during

installation or use of this product, contact Patton Electronics Technical

Support at +1 (301) 975-1007.

2.1 FEATURES

• Easy to install standalone CopperLink Ethernet Extenders (no conﬁgu-

ration required)

• Auto-sensing full or half-duplex Ethernet

• Auto-sensing 10/100Base-T

• Extends network connections up to 6,000 ft (1.83 km) over 2-wire 24-

AWG unconditioned lines

• Switch selectable line rates up to 16.67 Mbps (Model 2168 only)

• 7 symmetric or asymmetric settings via DIP switch (Model 2168 only)

• Transparent operation

• LED indicators for Power, Ethernet Link & Activity, CopperLink link & Quality

of Line (QOL)

• Surge suppression up to 20 kA (8/20

• Available in rack-mount or standalone conﬁgurations

• Made in the USA

2.2 DESCRIPTION

The Patton Electronics CopperLink/L and CopperLink/R Ethernet

Extenders provide high-speed LAN connections between peered Ether-

net LANs, remote PCs, or any other network enabled 10/100Base-T

device.

Operating in pairs, a CopperLink/L (local) located at one end of the LAN

extension and a CopperLink/R (remote) at the other end, these units can

automatically forward LAN broadcasts, multicasts, and frames across a 2-

wire voice-grade twisted-pair link.The data is passed transparently

(unmodiﬁed) through the CopperLink Ethernet Extenders.The CopperLink

Ethernet Extenders automatically add and delete MAC addresses, only

passing packets across the CopperLink link that are meant for the remote

peered LAN.

Figure 1.

Typical application

The CopperLink/L modem and CopperLink/R modem work together to

create a transparent extension between two peered Ethernet LANs.

Figure 1 shows a typical point-to-point application.

3.0 INSTALLATION

Because the CopperLink Ethernet Extender requires no conﬁguration, it can

be installed quickly.If you are installing a standalone unit, refer to section 3.1

“Standalone unit installation”.Otherwise, refer to section 3.2 “Rack card

installation”.

Note

If asymmetric transmission or line rates other than 12.5 Mbps

are required (Model 2168 only), refer to section 4.0, “Conﬁgura-

tion (Model 2168 Only)” on page 14.

3.1 STANDALONE UNIT INSTALLATION

Do the following:

1. Connect the line interface between the units (refer to section 3.3,

“Connecting the Twisted-Pair Line Interface” on page 10)

Note

See Figure 2 for the standalone unit’s rear panel arrangements.

2. Connect the Ethernet interface (refer to section 3.4, “Connecting the

10/100Base-T Ethernet Interface” on page 11).

3. Connect the power plug (refer to section 3.5, “Connecting Power”on

page 12).

Figure 2.

CopperLink Ethernet Extender standalone rear panel

3.2 RACK CARD INSTALLATION

The CopperLink Ethernet Extender rack card comprised a front card and

a rear card.Do the following to install the cards into the rack chassis:

1. Slide the rear card into the back of the chassis along the metal rails.

2. Secure the rear card using the supplied metal screws.

3. Slide the front card into the chassis until you feel resistance as the

front card engages the rear card.When that happens,

gently

push

the front card forward until it is fully seated in the card-edge recepta-

cle of the rear card (it should

click

into place).

4. Secure the front card using the captive fasteners.

Note

The Model 1001R14 chassis supports “hot swapping” of cards,

so it is not necessary to power down the rack when you install or

remove a CopperLink Ethernet Extender rack card.

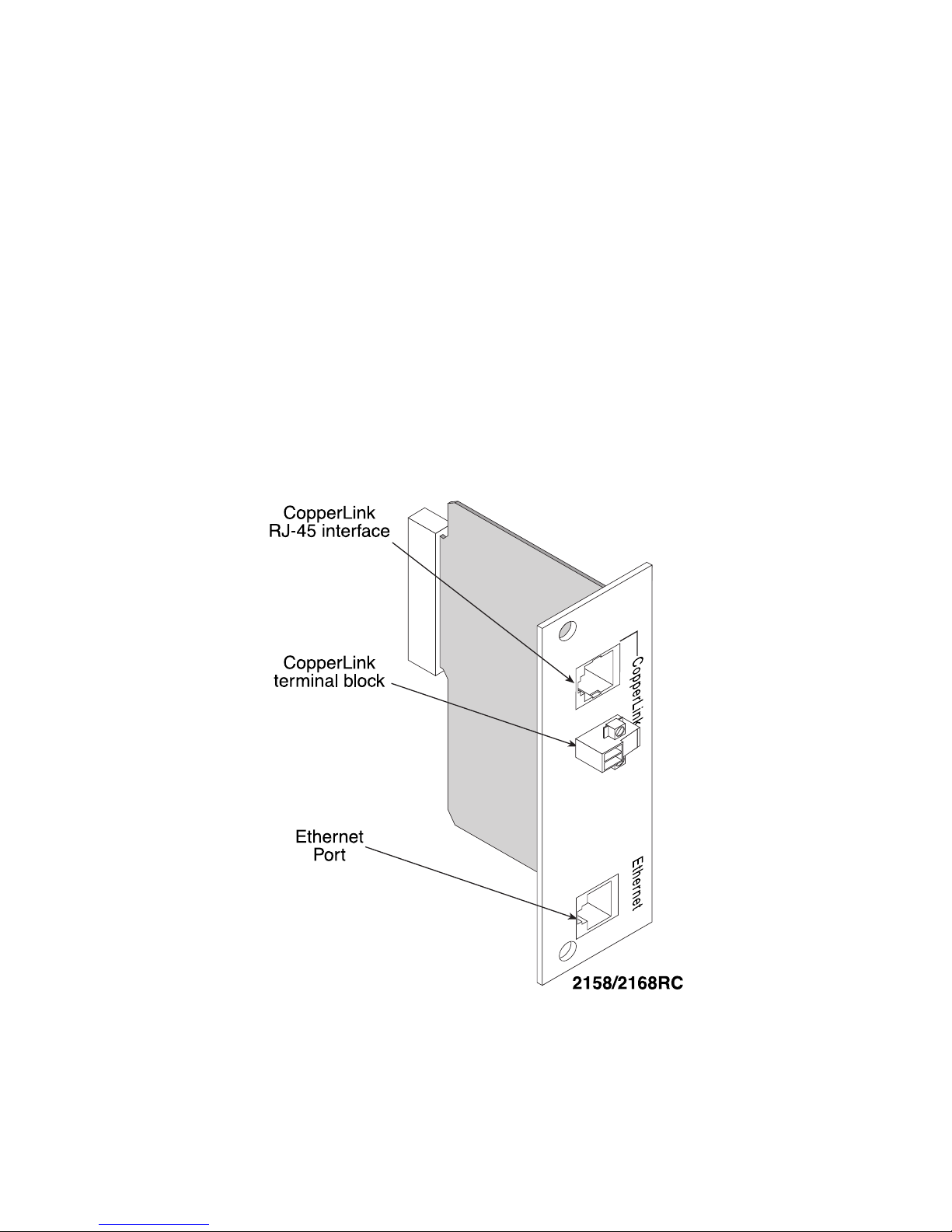

Figure 3.

CopperLink Ethernet Extender rack cards

5. Connect the line interface between the units (refer to section 3.3,

“Connecting the Twisted-Pair Line Interface” on page 10)

Note

See Figure 3 for the rack card’s panel arrangements.

6. Connect the Ethernet interface (refer to section 3.4, “Connecting the

10/100Base-T Ethernet Interface” on page 11).

3.3 CONNECTING THE TWISTED-PAIR LINE INTERFACE

The CopperLink Ethernet Extender supports communication between

two peer Ethernet LAN sites over a distance of up to 6,000 ft (1.83 km)

over 24 AWG (0.5 mm) twisted-pair wire.

Note

Actual distance and link performance may vary depending on

the environment and type/gauge of wire used.

Follow the steps below to connect the CopperLink Ethernet Extenders

interfaces.

Note

The CopperLink units work in pairs.One of the CopperLink units

must be an L (local), and the other unit must be an R (remote).It

does not matter which end is the L and which is the R.The link is

always initiated by the R. As long as the L is powered on, the R

can establish a link by being powered on or by having its power

reset.

1. To function properly, the two CopperLink Ethernet Extenders must

be connected together using twisted-pair, unconditioned, dry, metal

wire, between 19 (0.9mm) and 26 AWG (0.4mm). Leased circuits

that run through signal equalization equipment are not acceptable.

2. The CopperLink Ethernet Extenders are equipped with two interface

jacks that can be used on the CopperLink interface, an RJ-45 or a ter-

minal block.These CopperLink interfaces are a two-wire interface.

Observe the signal/pin relationships on the CopperLink Ethernet

Extender's CopperLink interface jacks.

The

RJ-45 connector

on the CopperLink Ethernet Extender's twisted

pair interface

is polarity insensitive

and is wired for a two-wire inter-

face.The signal/pin relationship is shown in Figure 4.

Figure 4.

CopperLink Ethernet Extender (RJ-45) twisted pair line interface.

1 (no connection)

2 (no connection)

3 (no connection)

4 (2-Wire RING)

5 (2-Wire TIP)

6 (no connection)

7 (no connection)

8 (no connection)

Autres manuels pour CopperLink 2158

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Patton electronics Extenseur

Patton electronics

Patton electronics EnviroNET 2100 Series Manuel utilisateur

Patton electronics

Patton electronics CopperLINK 2168B Manuel utilisateur

Patton electronics

Patton electronics 1058 Manuel utilisateur

Patton electronics

Patton electronics 2113 Manuel utilisateur

Patton electronics

Patton electronics 2113 Manuel utilisateur

Patton electronics

Patton electronics EnviroNet Ethernet Extenders Manuel utilisateur

Patton electronics

Patton electronics COPPER LINK 2174 Manuel utilisateur

Patton electronics

Patton electronics EnviroNET 2100 Series Manuel utilisateur

Patton electronics

Patton electronics CopperLINK 2172A Manuel utilisateur

Patton electronics

Patton electronics CopperLINK 2172 Manuel utilisateur

Patton electronics

Patton electronics 2156 Manuel utilisateur

Patton electronics

Patton electronics CopperLink 2155 Manuel utilisateur

Patton electronics

Patton electronics 1068 Manuel utilisateur

Patton electronics

Patton electronics COPPERLINK 2150 Manuel utilisateur

Patton electronics

Patton electronics CopperLink Ethernet Extenders 2158A Manuel utilisateur

Patton electronics

Patton electronics 1173R Manuel utilisateur

Patton electronics

Patton electronics CopperLINK 2173 Manuel utilisateur

Patton electronics

Patton electronics CopperLink 2168 Manuel utilisateur

Patton electronics

Patton electronics SmartNode 2294 Manuel utilisateur

Patton electronics

Patton electronics Industrial Ethernet Extender with LCD Interface... Mode d’emploi

Patton electronics

Patton electronics CopperLink 2172R Manuel utilisateur

Patton electronics

Patton electronics CopperLINK 2158B Manuel utilisateur

Patton electronics

Patton electronics 2173R Manuel utilisateur

Patton electronics

Patton electronics SmartNode 2292 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
