PASI WMS-LTC Manuel utilisateur
WMS
-
LTC
User Manual
Temperature Level Conductivity meter
P.A.S.I srl – via Galliari 5/E – 10125 TORINO – Italy
Tel. +39 011 650.70.33 – Fax +39 011 658.646 - E-mail [email protected]t
www.pasisrl.it
Table of Contents
Table of Contents .............................................................................................................. 1
1. Important Notice ....................................................................................................... 2
2. Warranty and safety instructions .............................................................................. 3
3. Introduction ............................................................................................................... 4
4. Technical Specifications ........................................................................................... 5
Probe ............................................................................................................................. 5
Temperature .................................................................................................................. 6
Conductivity .................................................................................................................. 6
Level Indicator .............................................................................................................. 6
Power supply ................................................................................................................. 6
Display .......................................................................................................................... 7
User Interface ................................................................................................................ 7
5. User Interface, functionality and maintenance ......................................................... 8
Panel .............................................................................................................................. 8
Functionality ................................................................................................................. 9
ON ............................................................................................................................. 9
OFF ........................................................................................................................... 9
Back-lighting ............................................................................................................ 9
Changing the unit of measure of the temperature ................................................... 10
Display of the remaining battery charge - percentage ............................................ 10
Sensitivity selection for level detection .................................................................. 10
Calibration .............................................................................................................. 11
Maintenance ................................................................................................................ 11
6. Take a measurement ............................................................................................... 13
2
1. Important Notice
All rights to this manual are owned solely by P.A.S.I. srl. All rights reserved.
P.A.S.I. software and programs are delivered "as is".
P.A.S.I. products have not been designed to be used in any way or application other than
those mentioned.
This guide refers to "WMS-TLC".
Torino, ITALIA 2020
Copyright: 2020 P.A.S.I. srl
WMS
-
LTC
3
Warranty and safety instructions
2. Warranty and safety instructions
Read the instructions carefully before using the product:
- Warranty will be void if the product is used in any ways that is in contradiction with
the instructions given in this manual.
- Warranty will be void if the instrument has been tampered with.
- The device must be used only according to the instructions described in this manual.
Faultless and safe operation of the device can be guaranteed only if the transport,
storage, handling and operation of the device is appropriate.
- To avoid damage, use only original accessories or approved by PASI srl.
- When a suitable location has been selected for the instrument, you must ensure that
water does not flow into the device under any conditions. Only the probe and the
cable are guaranteed in case of immersion. Direct sunlight is also to be avoided for
long periods. It is not recommended to install the device on a highly vibrating surface.
4
3. Introduction
The instrument WMS-LTC is a device designed and assembled by PASI srl.
The WMS-LTC is a conductivity, temperature and level meter.
The instrument is equipped with a display on which the temperature and conductivity
indications are shown.
The water level will be visible on the cable marked in centimetres.
The instrument is also equipped with a sound signal and LED that indicate the water
level – placed on the panel
The system consists of:
Winch with cable of the selected length equipped with probe for measuring
conductivity, temperature and level.
Batteries included.
WMS
-
LTC
5
Technical Specifications
4. Technical Specifications
Cable marked in centimetres
rounded cable, four copper wires, kevlar core and external antiscratch protective film in
transparent PUR.
Graduation in centimeters, printed in black on the cable itself, with meter-decimeter
indication
Probe

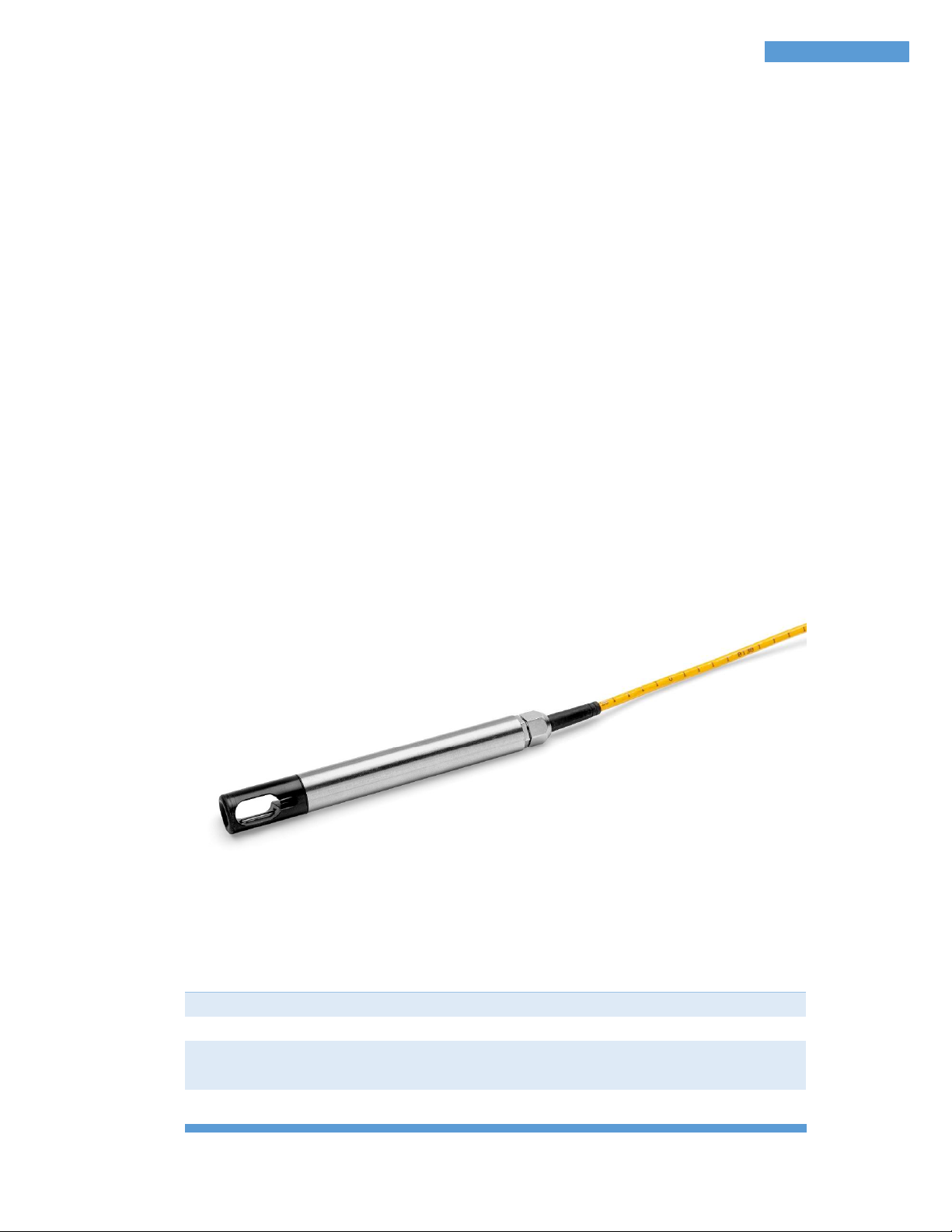

Probe diameter 20mm
Probe length 200mm
Materials Stainless steel body, plastic protective
cap/cover
6
Temperature
Unit of measure °C o °F
Measuring range from -10°C to +60°C or from 14°F to 140°F
Precision +/- 0.2°C or +/- 0.4°F
Conductivity
Unit of measure µS/cm or mS/cm normalized at @25°C
Range from 40µS/cm to 80000µS/cm
Precision +/- 5% of the reading
Level Indicator
Sensitivity 4 sensitivity levels, automatic or manual selection.
Signaling Sound signal and red LED indicate when the probe enters
and exits the water
Power supply
Batteries 4 X 1,5V AA alkaline batteries
Battery life 70h (depends on the use)
Auto Off After 60min
WMS
-
LTC
7
Technical Specifications
Display
Backlight Yes
Line 1 Conductivity
Line 2 Temperature
User Interface
Push-button Single button for on / off and settings
NOTICE:
When the batteries are flat, the instrument will automatically switch off and display
a low battery message accompanied by a warning light and sound signal
8
5. User Interface, functionality and
maintenance
Panel

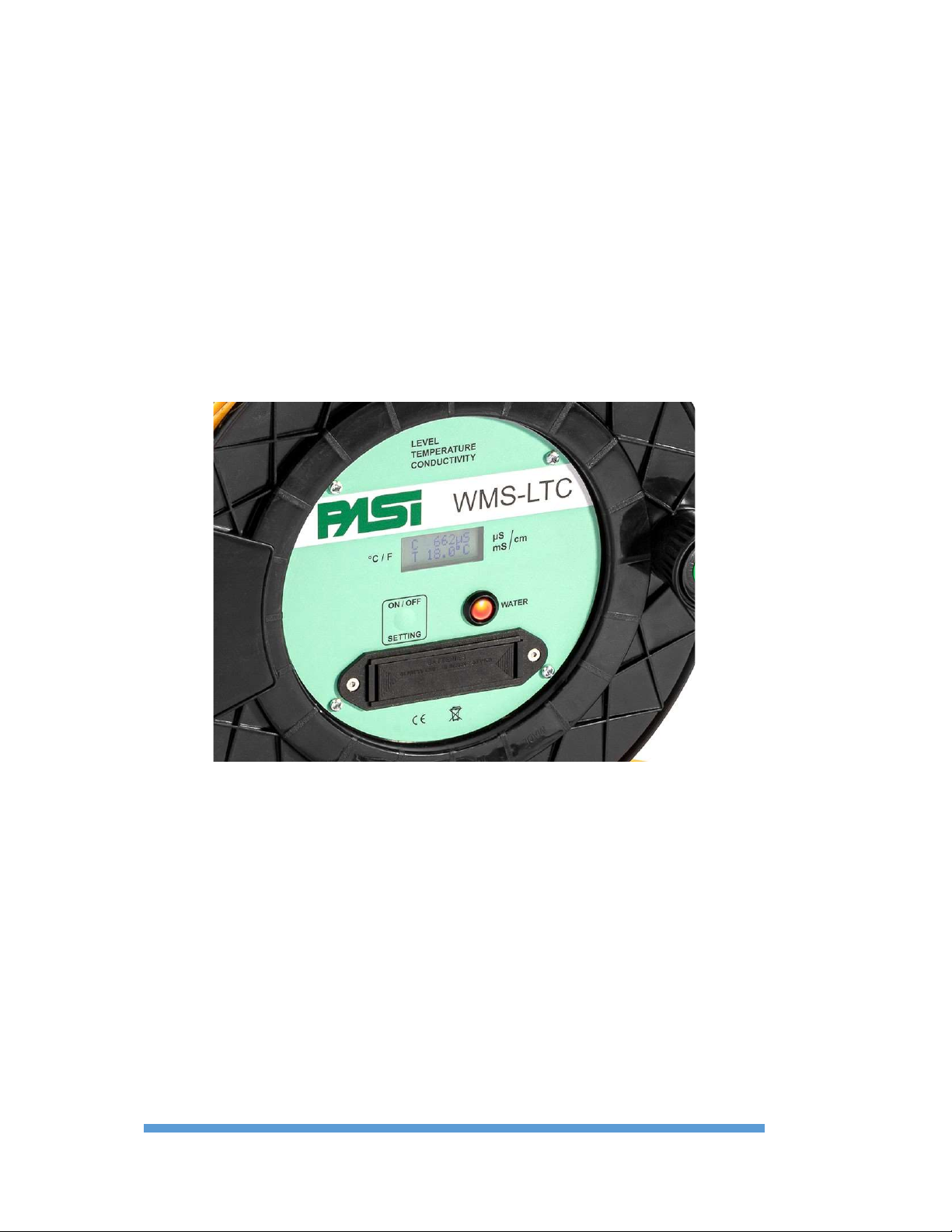

The panel on the instrument shows information about the instrument and its functions.
The 2 lines on the display show respectively:
Conductivity level normalized to 25°C;
Temperature.
Conductivity is displayed in:
µS/cm when, next to the reported value, only the unit of measure µS occurs;
mS/cm when, next to the reported value, only the unit of measure mS occurs.
