PASCO Code.Node Manuel utilisateur

//code.Node (PS-3231)

Included Equipment

//code.Node

Micro USB cable

For connecting the sensor to a USB charger to charge the

battery or a USB port to transmit data.

Required Equipment

PASCO Capstone or SPARKvue software is required for data

collection.

Overview

The //code.Node is an input-output device that supports coding

activities to help teach how sensors work and how code can be

used to create and control a response (output) to a stimulus

(input). The //code.Node is an introductory device for STEM-

oriented programming activities performed using PASCO

software applications. The device contains five sensors and two

momentary push buttons that act as inputs, as well as three

output signals, enabling students to program how the device

collects and responds to data.

The //code.Node can sense relative light brightness, relative

sound loudness, temperature, acceleration, tilt angle, and

magnetic field. These input sensors are included to help

teaching coding concepts and highlight how collected data can

be analyzed and programmed to create unique outputs involving

its speaker, LED light source, and 5 x 5 LED array. The

//code.Node outputs are not exclusive for use only with its

inputs; the outputs can be used in code involving any PASCO

sensors and interfaces.

NOTE: All //code.Node sensors used in a given

experiment will take measurements at the same

sample rate specified in PASCO Capstone or

SPARKvue. It is not possible to set separate

sample rates for different sensors on the same

//code.Node in a single experiment.

The //code.Node sensors are meant to be used for coding

purposes and should not be considered a replacement for

science sensors in labs that use similar sensor measurements.

Sensors built to more rigorous specifications for use in science

experiments are available at www.pasco.com.

Components

Inputs

Magnetic Field Sensor

Acceleration and Tilt Sensor

Light Sensor

Ambient Temperature Sensor

Sound Sensor

Button 1 and Button 2

Outputs

Red-Green-Blue (RGB) LED

Speaker

5 x 5 LED Array

Product Guide | 012-16658B

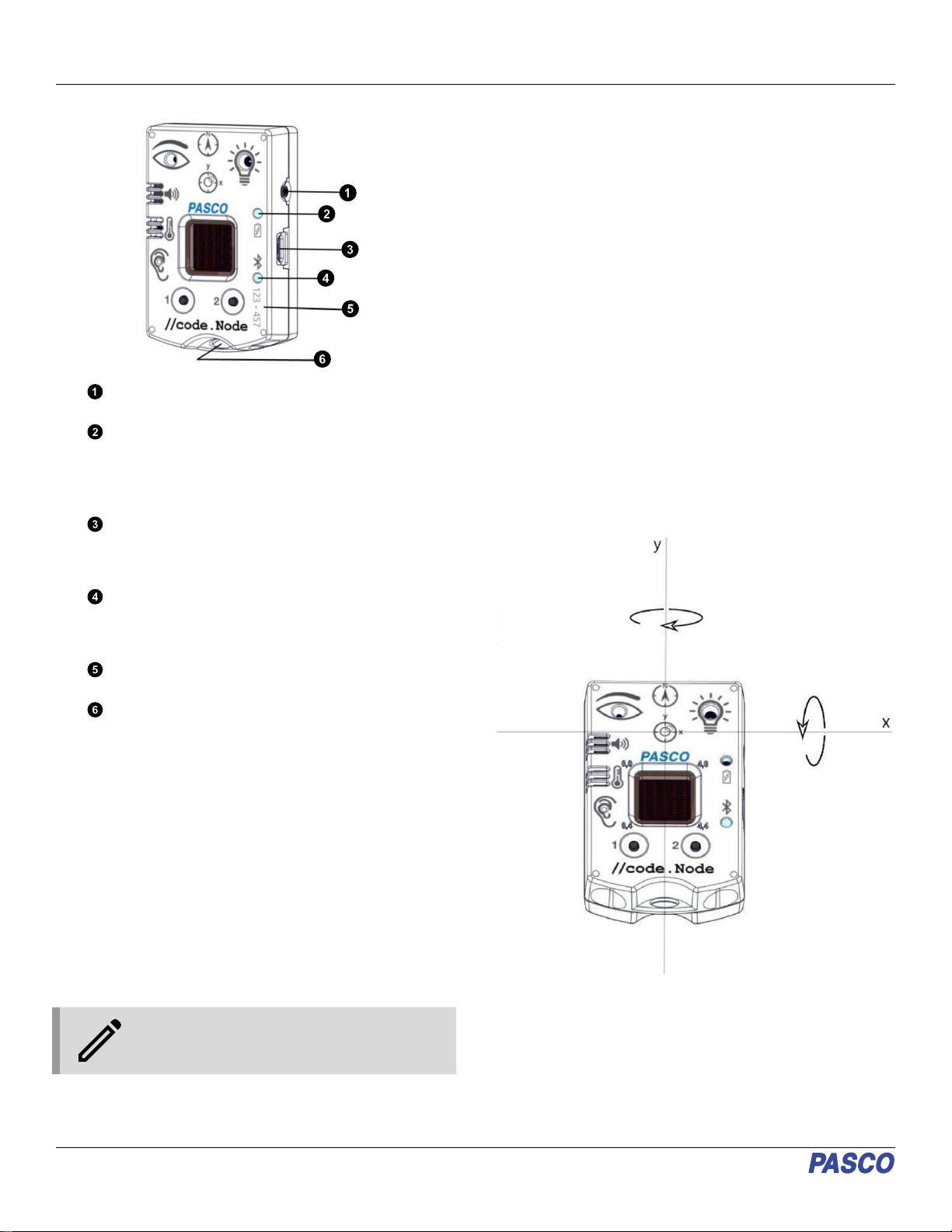

Sensor Components

Power Button

Press and hold for one second to turn on or off.

Battery status LED

Red blink Battery needs to be recharged soon.

Green solid Battery is fully charged.

Yellow solid Battery is charging.

Micro USB port

For charging the battery when connected to a USB charger.

For transmitting data when connected to the USB port of a

computer.

Bluetooth status LED

Red blink Ready to be paired with software

Green blink Paired with software

Sensor ID

Use this ID when connecting the sensor to software.

Lanyard Hole

For attaching a lanyard, string, or other material.

//code.Node Inputs

Temperature/Light/Sound Sensor

This 3-in-1 sensor records ambient temperature, brightness as a

measure of relative light intensity, and loudness as a measure of

relative sound level.

•The temperature sensor measures ambient temperature

between 0 — 40 °C.

•The light sensor measures brightness on a 0 — 100%

scale, where 0% is a dark room and 100% is a sunny day.

•The sound sensor measures loudness on a 0 — 100%

scale, where 0% is background noise (40 dBC) and 100%

is a very, very loud scream (~120 dBC).

NOTE: The Temperature, Light, and Sound

Sensors are not calibrated and cannot be

calibrated within PASCO software.

Magnetic Field Sensor

The magnetic field sensor only measures the strength of a

magnetic field in the y-axis. A positive strength is produced

when the north pole of a magnet is moved towards the "N" in the

magnetic sensor icon on the //code.Node.

While the magnetic field sensor cannot be calibrated in the

software application, the sensor measurement can be tared to

zero.

Button 1 and Button 2

Button 1 and Button 2 are included as basic momentary inputs.

When a button is pressed, that button will be assigned a value of

1. A value of 0 is assigned when the button is not being pressed.

Acceleration and Tilt Sensor

The acceleration sensor within the //code.Node measures

acceleration in the x- and y-axis directions, which are labeled on

the sensor icon shown on the device. The pitch (rotation around

the y-axis) and roll (rotation around the x-axis) are measured as

Tilt Angle - x and Tilt Angle - y respectively; the tilt angle is

measured to a ±90° angle in relation to the horizontal and

vertical planes.

The acceleration and tilt angle measurements of the sensor can

be tared to zero from within the software application.

Produces a positive x-tilt to

a maximum angle of 90°,

occurring when the

//code.Node is on its left

side.

Produces a positive y-tilt

to a maximum angle of

90°, occurring when the

//code.Node is standing

upright.

When placed face-up on a flat surface, tilting the //code.Node to

the left (thus rotating around the y-axis) will result in a positive x-

acceleration and a positive x- tilt angle up to 90°. Tilting to the

right will result in a negative x- acceleration and negative x- tilt

angle. Similarly, tilting the device upwards (rotating around the x-

axis) will result in a positive y- acceleration and positive y- tilt

angle to a maximum angle of 90°; tilting the device downwards

will produce negative values.

//code.Node | PS-3231

//code.Node Outputs

Within the Blockly-integrated Code tool, unique coding blocks

have been created in SPARKvue and PASCO Capstone for each

output of the //code.Node to program and control their effects.

NOTE: The use of the //code.Node outputs are

not exclusive to its inputs. These outputs can be

used in conjunction with all lines of supported

PASCO sensors.

Accessing and using the Code Blocks for

the //code.Node

Note that producing code for the //code.Node requires using

PASCO Capstone version 2.1.0 or later or SPARKvue version

4.4.0 or later.

1. Open the software and select Hardware Setup from the

Tools panel on the left (Capstone) or Sensor Data from the

Welcome Screen (SPARKvue).

2. Connect the //code.Node to the device.

3. SPARKvue only: Once the //code.Node measurements

appear, select the measurement options you intend to use,

then select a template option.

4. Select Code from the Tools tab (Capstone), or click the

Code button on the bottom toolbar (SPARKvue).

5. Select "Hardware" from the list of Blockly categories.

RGB LED

One output signal of the //code.Node is its Red-Green-Blue

(RGB) multi-color LED. The individual brightness levels for red,

green, and blue light of the LED can be adjusted from 0 — 10,

allowing for a spectrum of colors to be created.

A single block is included in Code for the RGB LED and can be

found in the "Hardware" Blockly category. A brightness of 0 for a

given color will ensure that color LED is not emitted.

Speaker

While the volume is fixed, the frequency of the //code.Node

Speaker can be adjusted using the appropriate Code blocks.

The speaker can generate sounds in a range of 0 — 20,000 Hz.

Two unique blocks are included in the software’s Code tool to

support the speaker output. The first of these blocks turns the

speaker on or off; the second block sets the frequency of the

speaker.

5 x 5 LED Array

The central output of the //code.Node is a 5 x 5 array consisting

of 25 red LEDs. The LEDs in the array are positioned using the

(x,y) Cartesian coordinate system, with (0,0) at the top left

corner and (4,4) at the lower right corner. A faint imprint of the

corner coordinates can be found at each corner of the 5 x 5 LED

Array on the //code.Node.

The LEDs in the array can be turned on individually or as a set.

The brightness of the LEDs is adjustable on a scale of 0 — 10,

where a value of 0 will turn the LED off.

Three unique blocks are included in the software’s Code tool

that support the 5 x 5 LED Array. The first block sets the

brightness of a single LED at a specified coordinate. The second

block will set a group of LEDs to a specified brightness level and

can be programmed to keep or clear previous code commands

concerning the 5 x 5 LED array. The third block is an imitation of

the 5 x 5 array on the //code.Node; checking a square is

equivalent to setting the LED at that position on the //code.Node

array to the specified brightness. Multiple squares can be

selected.

Using the sensor for the first time

Before using the sensor in the classroom, the following tasks

must be completed: (1) charge the battery, (2) install the

latest version of PASCO Capstone or SPARKvue, and (3)

update the sensor firmware. Installing the latest version of the

data collection software and the sensor firmware is necessary to

have access to the latest features and bug fixes. Detailed

instructions for each procedure have been provided.

Charge the battery

The sensor contains a rechargeable battery. A fully charged

battery will last an entire school day. To charge the battery:

1. Connect the micro USB cable to the micro USB port

located on the sensor.

2. Connect the other end of the cable to a USB charger.

3. Connect the USB charger to a power outlet.

As the device is charging, the battery indicator light will be

yellow. The device is fully charged when the light is green.

Product Guide | 012-16658B

Install the latest version of PASCO Capstone

or SPARKvue

Follow the instructions below for your device to download and

install the latest version of PASCO Capstone or SPARKvue.

Windows and macOS

Go to www.pasco.com/downloads/sparkvue to access the

installer for the latest version of SPARKvue.

iOS, Android, and Chromebook

Search for "SPARKvue" in the App Store (iOS), Google Play

Store (Android), or Chrome Web Store (Chromebook).

Windows and macOS

Go to www.pasco.com/downloads/capstone to access the

installer for the latest version of Capstone.

Connect the sensor to PASCO Capstone or

SPARKvue

The sensor can be connected to Capstone or SPARKvue using

a USB or Bluetooth connection.

To connect using USB:

1. Connect the micro USB cable to the sensor’s micro USB

port.

2. Connect the other end of the cable to your device.

3. Open Capstone or SPARKvue. The //code.Node will

automatically connect to the software.

NOTE: Connecting to SPARKvue using USB is

not possible with iOS devices and some Android

devices.

To connect using Bluetooth:

1. Turn on the sensor by pressing and holding the power

button for one second.

2. Open SPARKvue or Capstone.

3. Click Sensor Data (SPARKvue) or Hardware Setup in the

Tools panel on the left side of the screen (Capstone).

4. Click the wireless sensor that matches the ID label on your

sensor.

Update the sensor firmware

Sensor firmware is installed using SPARKvue or PASCO

Capstone. You must install the latest version of SPARKvue or

Capstone in order to have access to the latest version of the

sensor firmware. When you connect the sensor to SPARKvue or

Capstone, you will automatically be notified if a firmware update

is available. Click "Yes" to update the firmware when prompted.

If you do not receive a notification, the firmware is up to date.

TIP: Connect the sensor using USB for a faster

firmware update.

Specifications and accessories

Visit the product page at pasco.com/product/PS-3231 to view

the specifications and explore accessories. You can also

download experiment files and support documents from the

product page.

Experiment files

Download one of several student-ready activities from the

PASCO Experiment Library. Experiments include editable

student handouts and teacher notes. Visit

pasco.com/freelabs/PS-3231.

Technical Support

Need more help? Our knowledgeable and friendly Technical

Support staff is ready to answer your questions or walk you

through any issues.

Chat pasco.com

Phone 1-800-772-8700 x1004 (USA)

+1 916 462 8384 (outside USA)

Email support@pasco.com

Limited Warranty

For a description of the product warranty, see the Warranty and Returns page at

www.pasco.com/legal.

profit educational institutions for reproduction of any part of this manual, providing

the reproductions are used only in their laboratories and classrooms, and are not

sold for profit. Reproduction under any other circumstances, without the written

consent of PASCO scientific, is prohibited.

Trademarks

PASCO and PASCO scientific are trademarks or registered trademarks of PASCO

scientific, in the United States and in other countries. All other brands, products, or

service names are or may be trademarks or service marks of, and are used to

identify, products or services of, their respective owners. For more information visit

www.pasco.com/legal.

Product end-of-life disposal

This electronic product is subject to disposal and recycling regulations

that vary by country and region.

It is your responsibility to recycle your electronic equipment per your local

environmental laws and regulations to ensure that it will be recycled in a

manner that protects human health and the environment.

To find out where you can drop off your waste equipment for recycling, please

contact your local waste recycle or disposal service, or the place where you

purchased the product.

The European Union WEEE (Waste Electronic and Electrical Equipment) symbol

on the product or its packaging indicates that this product must not be disposed of

in a standard waste container.

CE statement

This device has been tested and found to comply with the essential requirements

and other relevant provisions of the applicable EU Directives.

FCC statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

Battery disposal

Batteries contain chemicals that, if released, may affect the environment

and human health. Batteries should be collected separately for recycling

and recycled at a local hazardous material disposal location adhering to

your country and local government regulations. To find out where you can

drop off your waste battery for recycling, please contact your local waste disposal

service, or the product representative. The battery used in this product is marked

with the European Union symbol for waste batteries to indicate the need for the

separate collection and recycling of batteries.

//code.Node | PS-3231

Ce manuel convient aux modèles suivants

Autres manuels PASCO Système d'E/S

PASCO

PASCO PS-3324 Manuel utilisateur

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Advantech

Advantech PCM-27J3AU Manuel d'installation et d'exploitation

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur

PASCO code.Node Manuel utilisateur

Manuels Système d'E/S populaires d'autres marques
